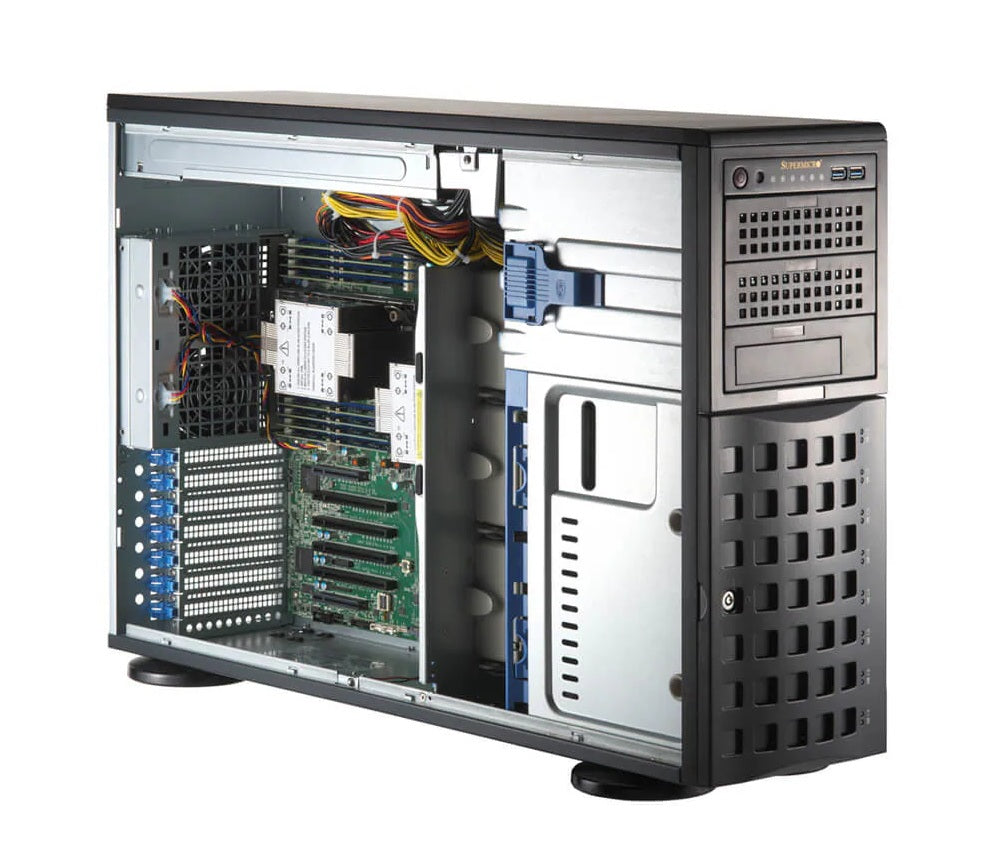

Supermicro SYS-741P-TRT 4U Intel Xeon 120 Core Barebone Server

The Supermicro Mainstream SuperServer SYS-741P-TRT is a highly versatile, 4U/Tower dual-socket enterprise barebone server built on the Supermicro X13DEI motherboard platform. It is engineered for mid-to-large-scale enterprise applications, virtualization environments, database management, and light-duty AI workstation workloads

Specifications

Model Number:  SYS-741P-TRT

Brand:  Supermicro

Alt Part Number(s):  SYS-741P-TRT

Product Type:  Barebone Server

Technical Description

Brand:  Supermicro

Model Number:  SYS-741P-TRT

Series:  X13 Mainstream SuperServer

Processor Type:  5th Gen/4th Gen Intel Xeon Scalable processors

Processor Core:  Up to 120 Core/240 Thread

Processor Power:  Supports up to 300W TDP CPUs

Processor Socket:  Dual Socket E (LGA-4677)

Motherboard:  Super X13DEI-T

Chassis:  CSE-745BTS-R1K23BP

Supported GPU:  2 Double‑width or 2 Single‑width Cards

Chipset Type:  Intel C741

Graphics Controller:  ASPEED AST2600 BMC

Networking Connectivity:  2 RJ45 10GbE, 1 RJ45 1GbE Dedicated BMC LAN port

RAID Levels:  0, 1, 5, 6, 10, 50, 60 (With RAID controller)

Number of Drive Bays:  8 x 3.5" bays, 2 x M.2 NVMe, 3 x 5.25" drive bays (Peripheral optional)

Expansion Slots:  2 PCIe 5.0 x8 FHFL slots, 4 PCIe 5.0 x16 FHFL slots, 2 M.2 PCIe 4.0 x2 NVMe slots

Memory Supported:  Up to 4TB

Memory Technology:  DDR5 ECC RDIMM

Memory Speed:  5600MT/s

Memory Slots:  16 DIMM slots

Power Supply:  2x 1200W Redundant (1 + 1) Titanium

Cooling System:  Up to 3 middle Fan(s) Up to 2 rear Fan(s)

Form Factor:  4U Rackmount

Height:  17.8"

Width:  7"

Depth:  25.5"
