Supermicro SuperServer SYS-5039MC-H12TRF 3U 12-Node Intel Xeon E 6-Core 128GB Server

Overview

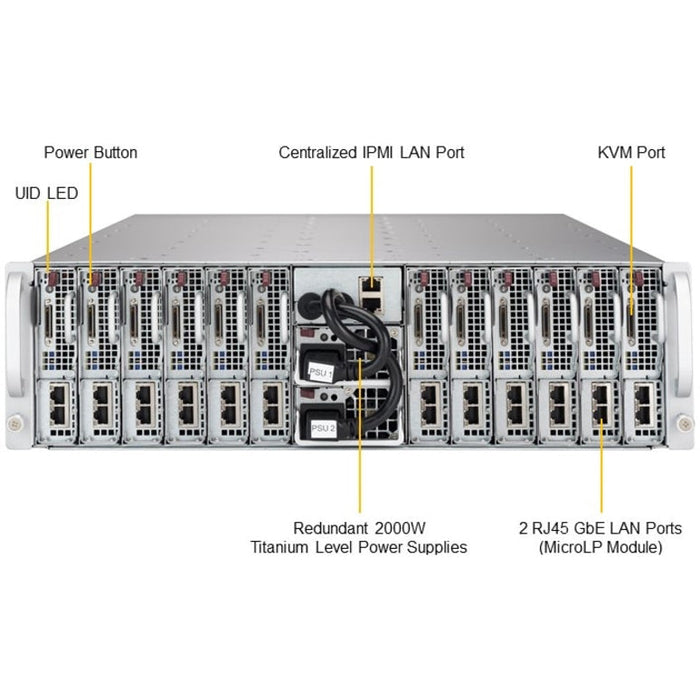

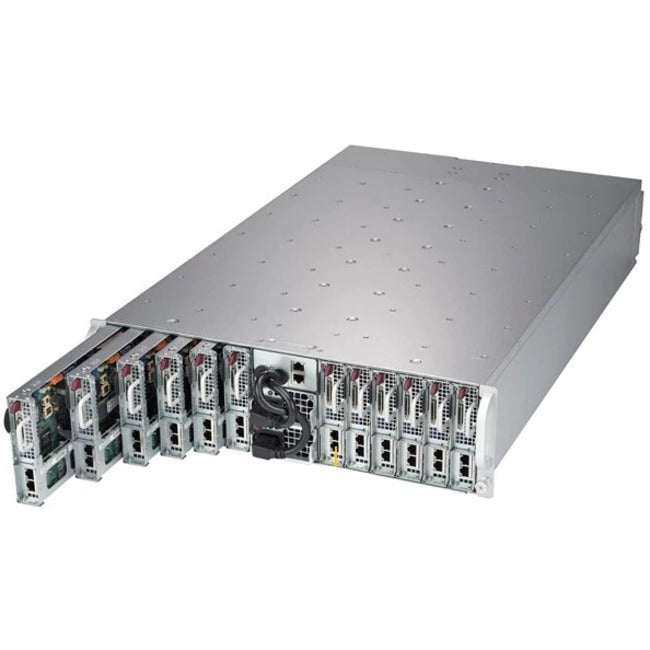

Supermicro SuperServer SYS-5039MC-H12TRF from the 3U series delivers a 12 node architecture each supporting a single Socket H4 LGA-1151 Xeon Core i3 Celeron or Pentium processor with up to 128GB DDR4-2666 memory. It features Intel C246 chipset RAID support Gigabit Ethernet PCIe x4 expansion and dual 2000W power supplies for high density and reliable rackmount deployment.

Specifications

Model Number:SYS-5039MC-H12TRF

Brand:   Supermicro

Alt Part Number(s):SYS-5039MC-H12TRF

Product Type: Server

Technical Description

Brand:  Supermicro

Model:SYS-5039MC-H12TRF

Number of Nodes: 12

Number of Processors Supported: 1

Processor Socket: Socket H4 LGA-1151

Processor Supported: Xeon; Core i3; Celeron; Pentium

64-bit Processing: Yes

Chipset Manufacturer: Intel

Chipset Model: C246

Maximum Memory Supported: 128 GB

Memory Technology: DDR4 SDRAM

Memory Standard: DDR4-2666/PC4-21300

Total Number of Memory Slots: 4

Controller Type: Serial ATA/600

RAID Supported: Yes

Ethernet Technology: Gigabit Ethernet

Total Number of Expansion Slots: 1

Number of PCI Express x4 Slots: 1

Number of SATA Interfaces: 2

Input Voltage: 230 V AC

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 2000 W

Color Family: Black

Product Color: Black

Form Factor: Rack-mountable

Rack Height: 3U

Height: 5.2"

Width: 17.5"

Depth: 29.5"

Weight (Approximate): 131.99 lb

*
