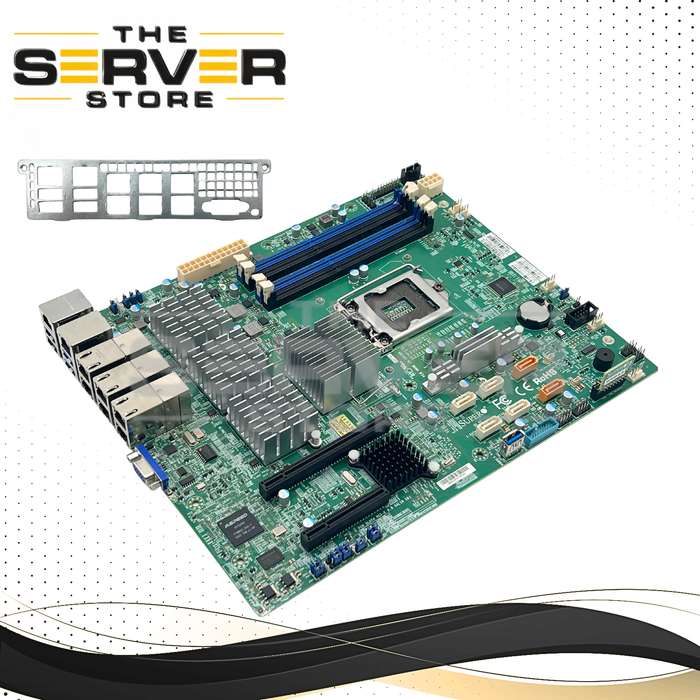

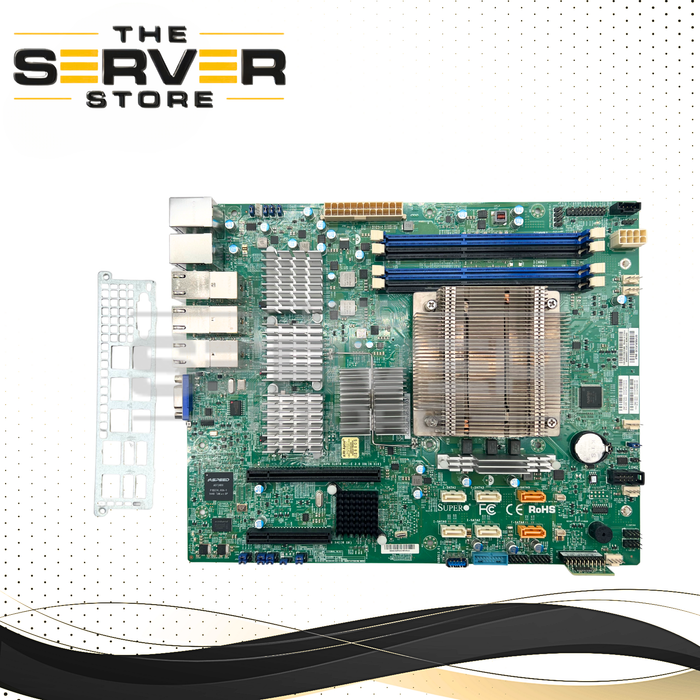

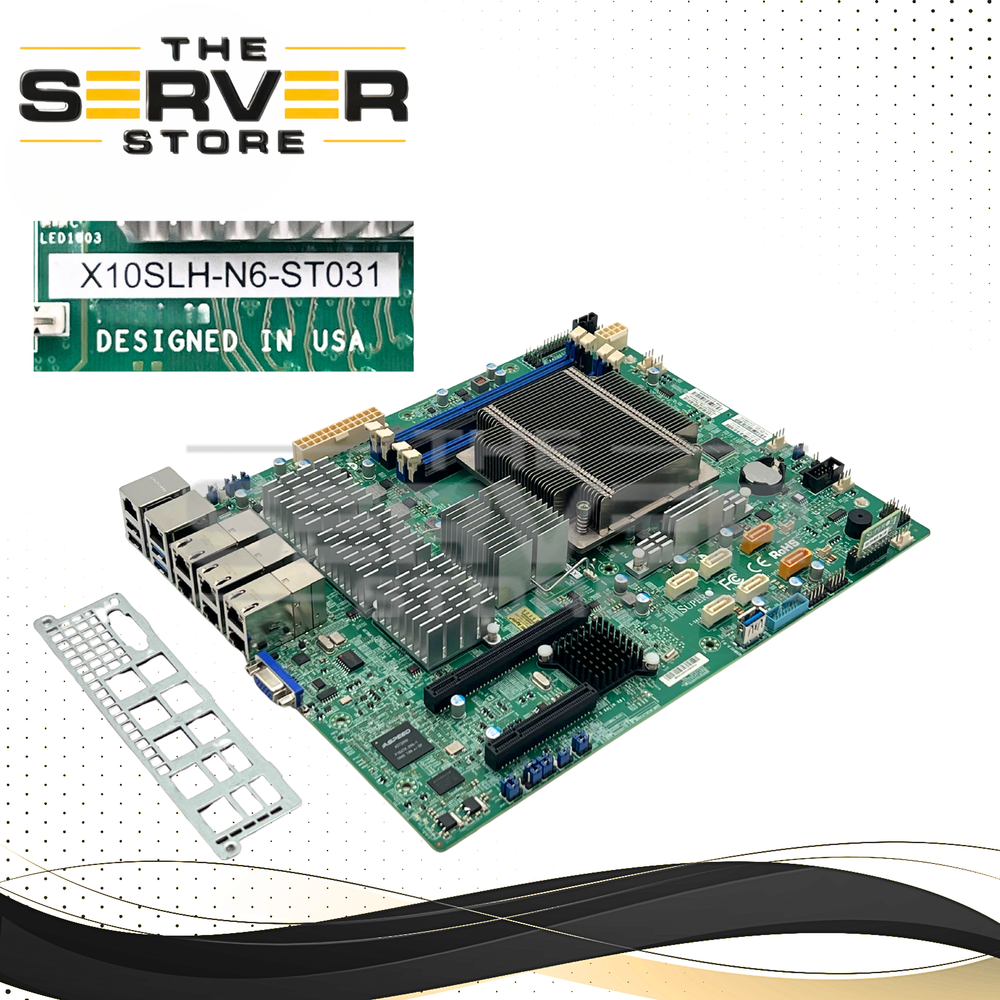

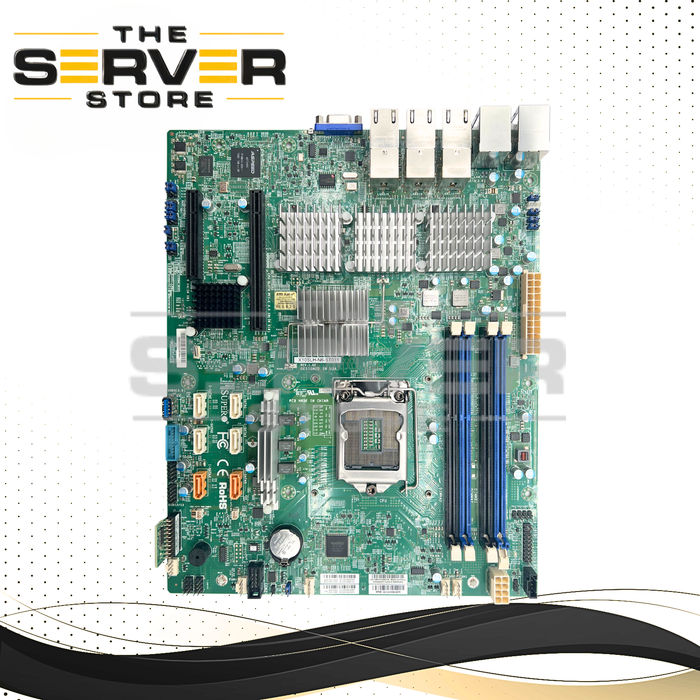

Supermicro Single Socket (H3) FCLGA1150 10GbE DDR3 (9.6" x 12") Motherboard X10SLH-N6-ST031
Note: Form Factor: our Motherboard is market with the par number: X10SLH-N6-ST031 but has this dims: (9.6" x 12" ATX)
The Supermicro X10SLH-N6-ST031 is a high-performance server motherboard designed for networking, security appliances, and enterprise server applications. Built on the Intel C226 Express chipset, this board supports Intel Xeon E3-1200 v3/v4 processors as well as 4th Gen Intel Core i3, Pentium, and Celeron CPUs, delivering reliable computing power in a compact Micro-ATX form factor.
A key highlight of the X10SLH-N6-ST031 is its advanced networking capability, featuring six integrated 10GbE RJ45 ports powered by the Intel X540 controller, along with dual 1GbE Intel i210AT LAN ports and a dedicated IPMI management port. This makes it an ideal choice for firewall systems, virtualized environments, and high-throughput network appliances.
The motherboard supports up to 32GB of DDR3 ECC UDIMM memory across four DIMM slots, ensuring data integrity and stability for mission-critical workloads. With multiple PCI Express 3.0 expansion slots, six SATA 6Gb/s ports with RAID support, and comprehensive remote management via IPMI 2.0 with KVM-over-LAN, the Supermicro X10SLH-N6-ST031 delivers enterprise-class performance, scalability, and reliability.
Key Features & Specifications
Socket: LGA 1150 (Single Socket H3)
CPU Support: Intel Xeon E3-1200 v3/v4, Core i3 (4th Gen), Pentium, Celeron
Chipset: Intel C226 Express PCH
Memory: Up to 32GB DDR3-1600 ECC UDIMM (4 DIMM slots)
Networking:
6 × 10GbE RJ45 ports (Intel X540)
2 × 1GbE LAN ports (Intel i210AT)
1 × Dedicated IPMI LAN (IPMI 2.0, KVM-over-LAN)
Expansion Slots:
1 × PCIe 3.0 x8 (x16 slot)
1 × PCIe 3.0 x8
1 × PCIe 2.0 x4 (x8 slot)
Storage: 6 × SATA 6Gb/s with RAID 0, 1, 5, 10

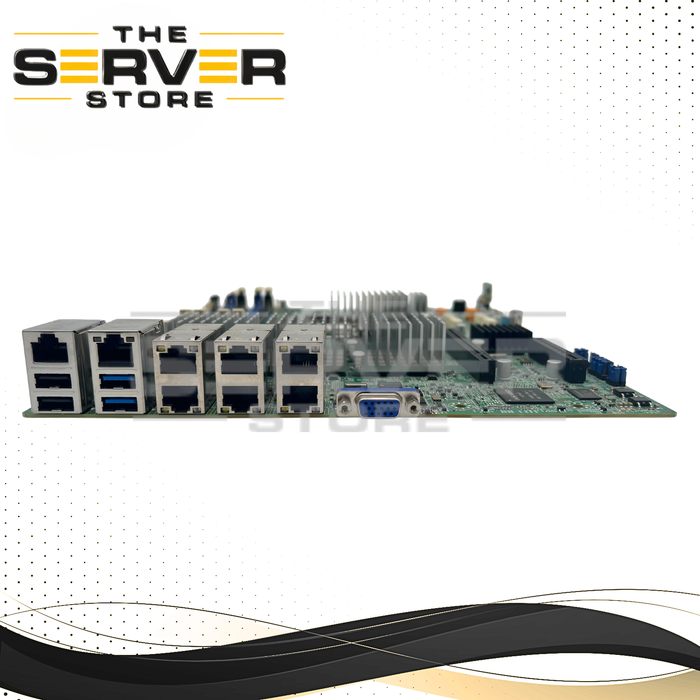

External I/O: VGA, Ethernet, USB (4 × USB 3.0, 6 × USB 2.0 total)
