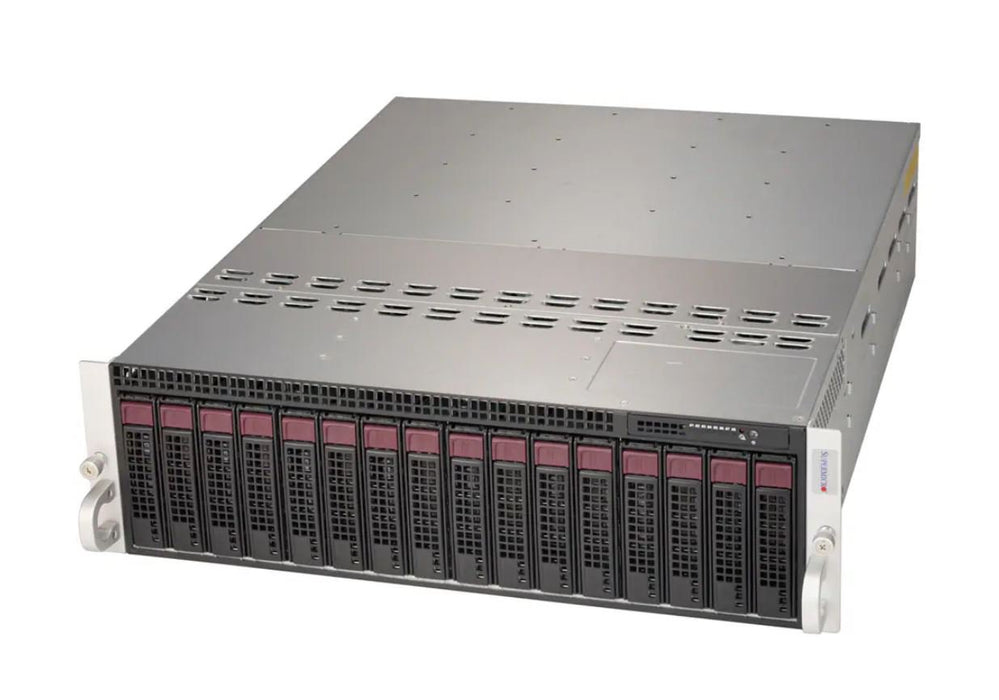

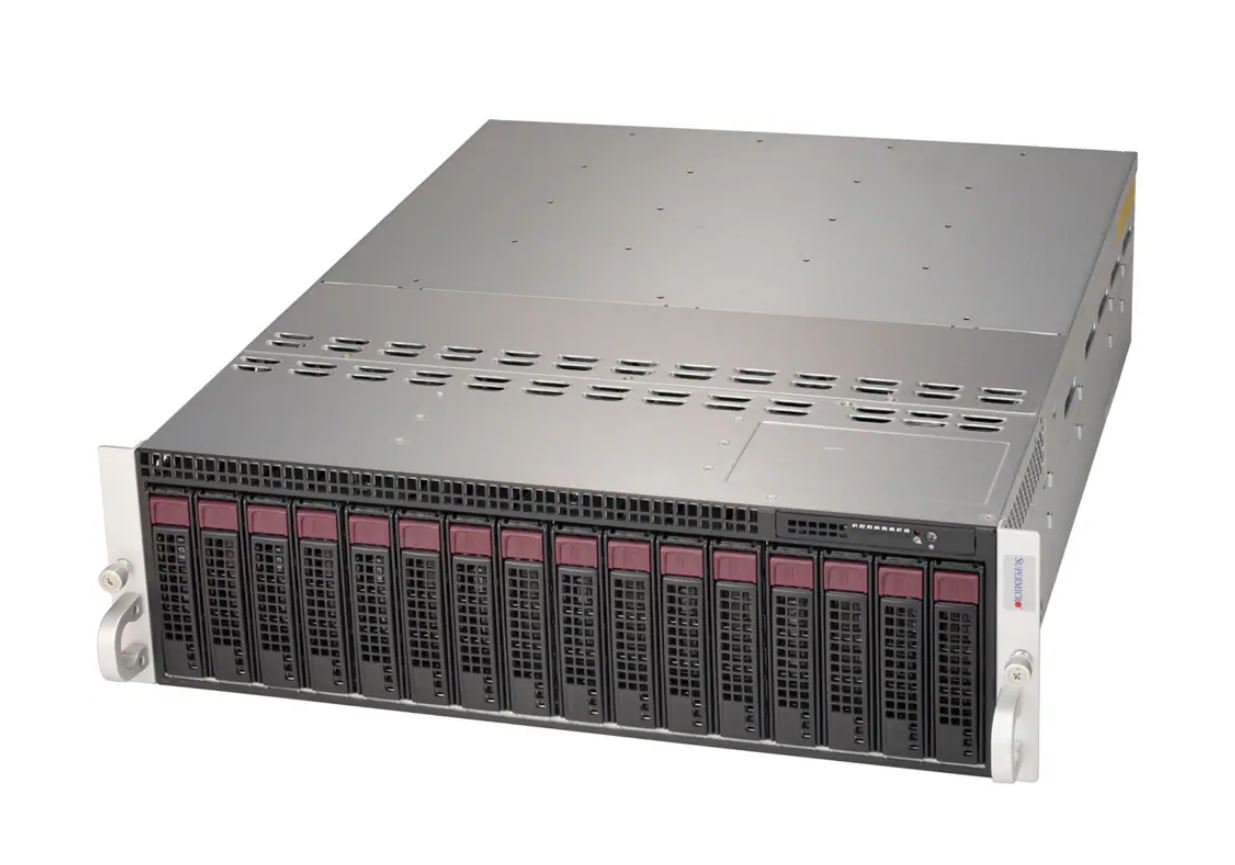

Supermicro MicroCloud A+ AS-3015MR-H8TNR AMD EPYC AM5 LGA-1718 192GB 4 DIMM Slots Dual Front Storage Bays 3U Rackmount Server

Overview

Supermicro MicroCloud A+ AS-3015MR-H8TNR from the 3U series features a single AMD EPYC 4004 processor with up to 16 cores 192GB DDR5 memory across 4 DIMM slots and dual front storage bays. It includes dual 2200W redundant power supplies PCIe 5.0 expansion slots and on-board NVMe for high-performance computing.

Specifications

Model Number: AS-3015MR-H8TNR

Brand:   Supermicro

Alt Part Number(s):   AS -3015MR-H8TNR

Product Type: Server

Technical Description

Brand:  Supermicro

Model: AS-3015MR-H8TNR

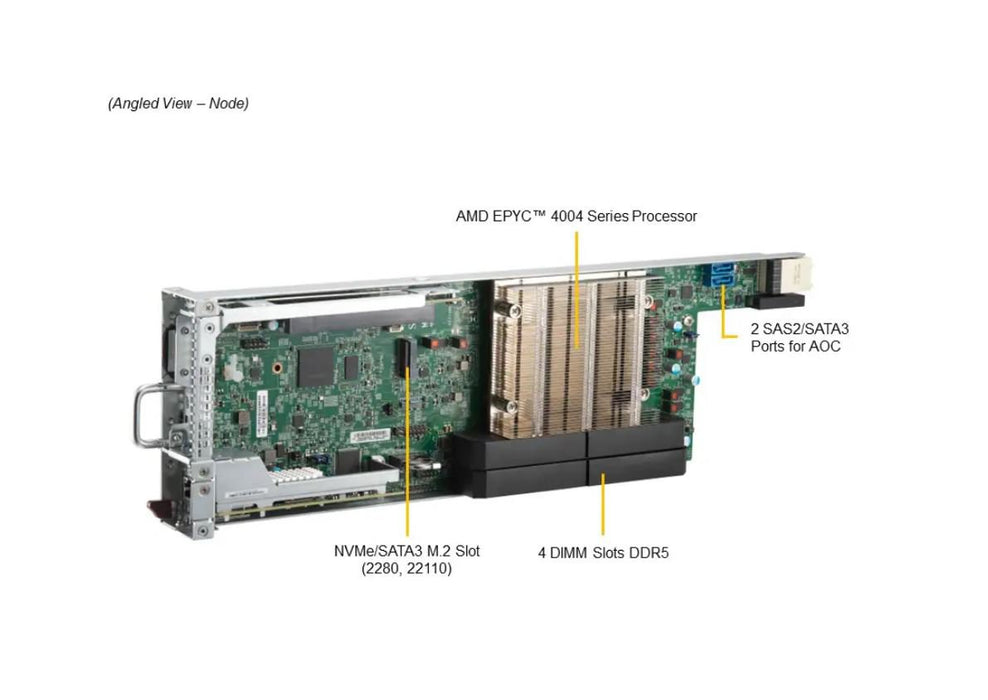

Motherboard: Super H13SRD-F

Processor Socket: Single Socket AM5 (LGA-1718)

Processor Supported: AMD EPYC 4004 Series; Up to 16C/32T; Up to 128MB Cache; 65W - 170W TDP (Air Cooled)

Maximum GPU Count: 1 single-width GPU

Supported GPU: NVIDIA PCIe T4; L4; A2

Memory Slot Count: 4 DIMM slots

Maximum Memory: 192GB 5200MT/s non-ECC DDR5 UDIMM (2DPC)

Memory Voltage: 1.1V

On-Board NVMe: Yes (Native)

Chipset: AMD Knoll - Integrated I/O Controller Hub

Network Connectivity: No NIC option supported

USB Ports: 2 USB 2.0 ports; 1 Type-C port (front)

Video Ports: 1

TPM: 1 TPM Onboard/port 80

System BIOS: AMI 32MB SPI Flash EEPROM

Management Software: SuperCloud Composer; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA)

Power Features: Power-on mode for AC power recovery; ACPI 6.0 Power Management; PC Health Monitoring; CPU and chassis environment monitoring; 3-Phase switching voltage regulator 0.5V-2.3V; Fan speed control, Dual Cooling Zone

Form Factor: 3U Rackmount, GPU Server

Chassis Model: CSE-938NH-R2K20BP2

Height: 5.21" (132 mm)

Width: 17.26" (438 mm)

Depth: 23.2" (589 mm)

Package Dimensions: 11.65" H x 26.26" W x 34" D

Net Weight: 62.2 lbs (28.21 kg)

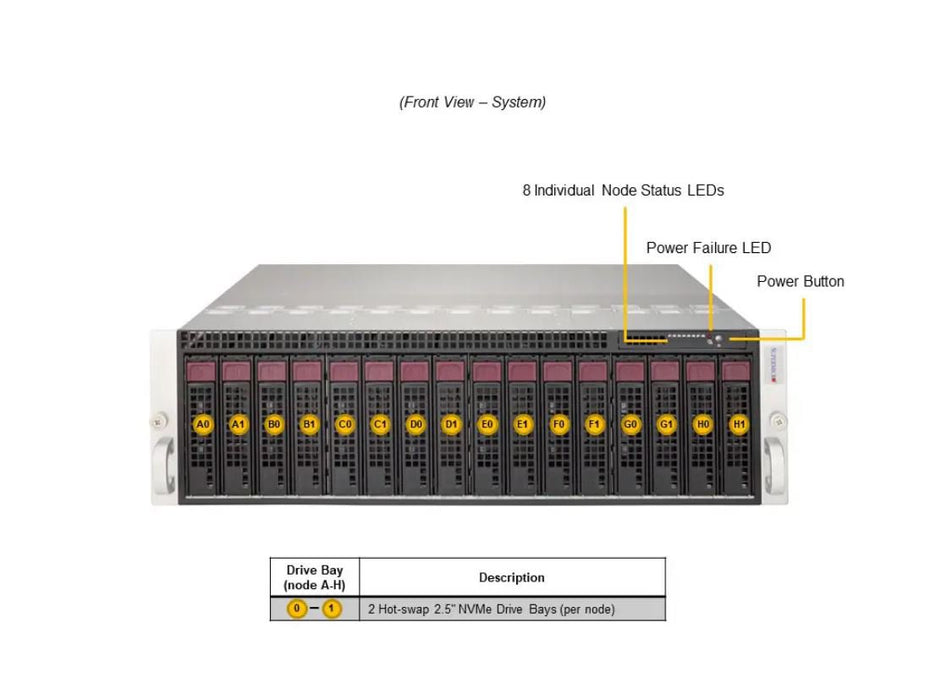

Front Panel LED Indicators: 8 Individual Node Status Indicators; Power Failure

Front Panel Buttons: Power On/Off

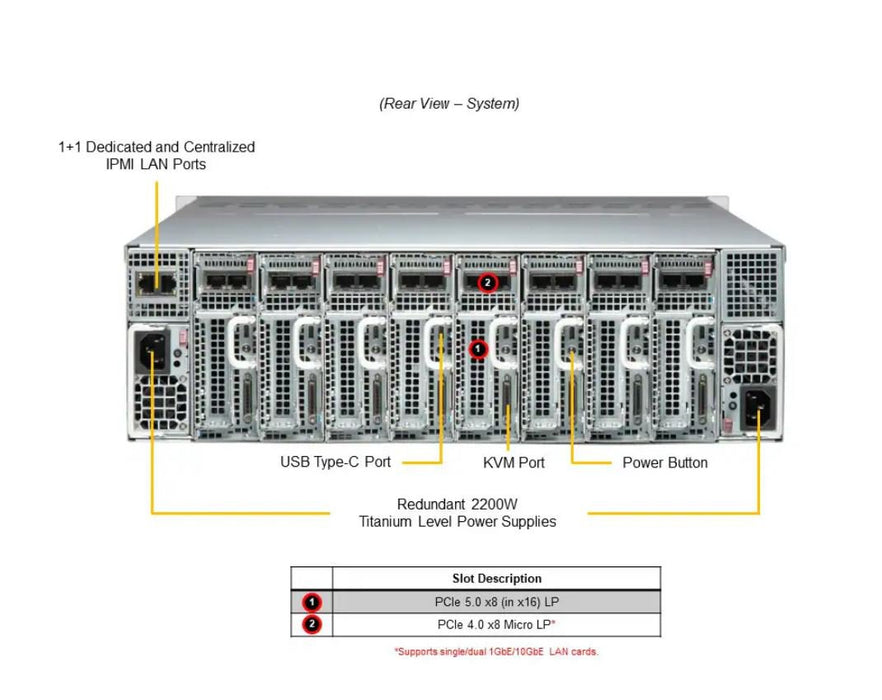

Expansion Slots (per Node): 1 PCIe 5.0 x8 (in x16) LP slot; 1 PCIe 5.0 x8 MicroLP slot

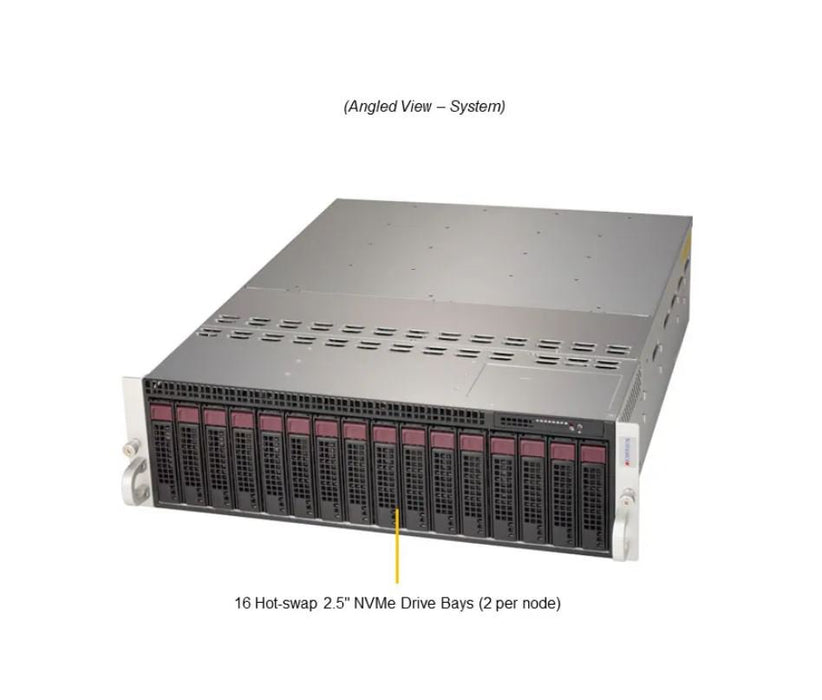

Drive Bays (per Node): 2 front fixed 3.5"/2.5" NVMe/SAS/SATA drive bays

M.2 Slot: 1 M.2 NVMe/SATA slot (M-key 2280/22110)

System Cooling: 4 Heavy Duty 8cm Fans; 8 Air Shrouds

Power Supply: 2x 2200W Redundant (1 + 1) Titanium Level (96%)

Power Supply Dimensions: 76 x 40 x 336 mm

Power Supply Input: 100-127V AC; 200-240V AC; 230-240V DC (varies per configuration)

+12V Max/Min Output: 100A-183.33A depending on input voltage

5V SB Max/Min Output: 1A / 0A

Output Type: Backplanes (gold finger)

ROHS Compliance: Yes

Operating Temperature: 10°C to 35°C (50°F to 95°F)

Non-Operating Temperature: -30°C to 60°C (-22°F to 140°F)

Operating Relative Humidity: 8% to 80% (non-condensing)

Non-Operating Relative Humidity: 8% to 90% (non-condensing)

*
