Overview

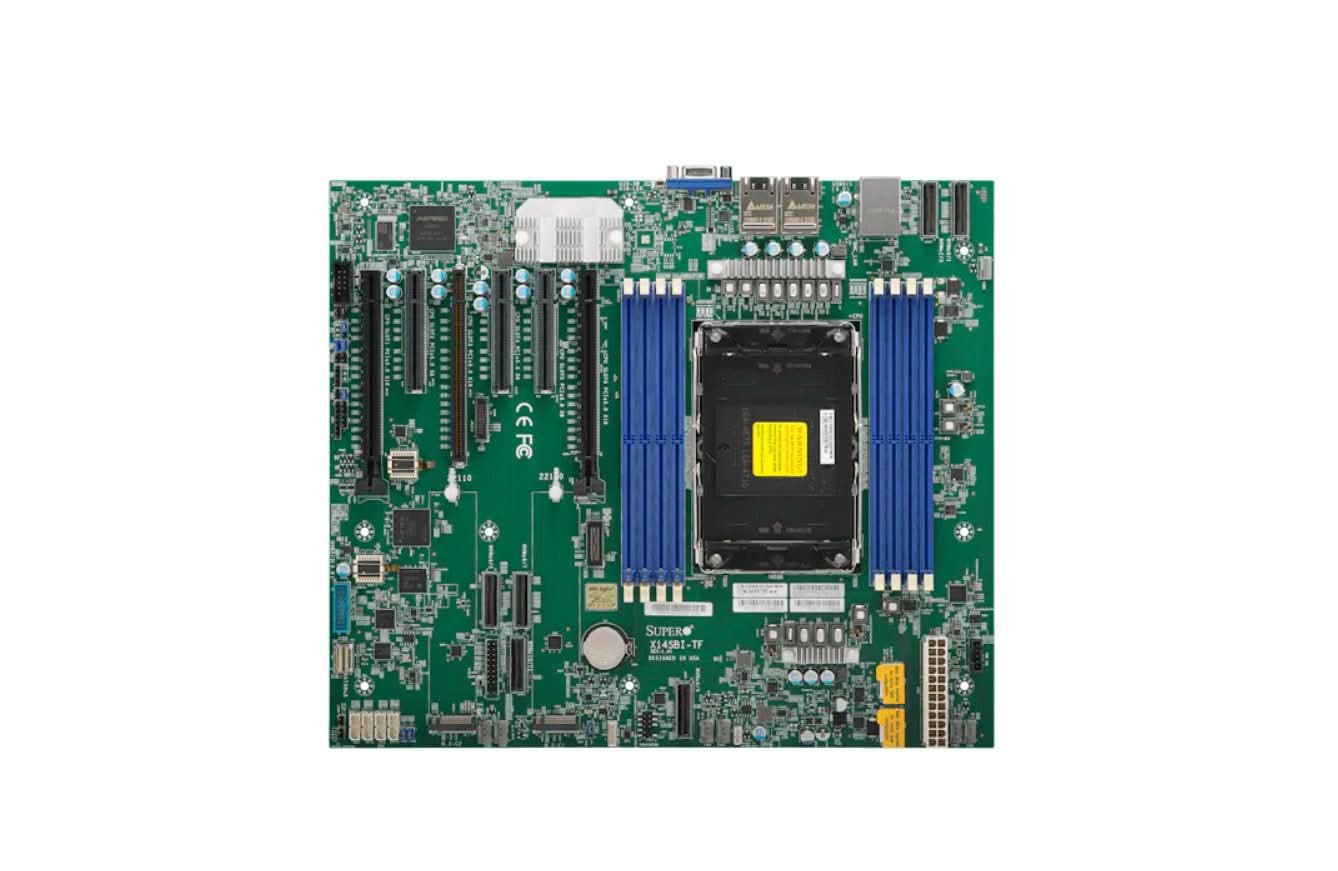

The Supermicro MBD-X14SBI-TF-B server motherboard supports Intel Xeon 6700-series processors with efficient E-cores on a single LGA-4710 (Socket E2) socket. It is designed to handle high-performance workloads with CPU TDP support up to 350W.
Specifications
Model Number:MBD-X14SBI-TF-B
Brand: Supermicro
Alt Part Number(s):MBD-X14SBI-TF-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model:MBD-X14SBI-TF-B
Form Factor: ATX-Compatible (Extended Dimensions)
Dimension: 12.3" x 10.5" (31.24cm x 26.67cm)
CPU: Single Socket E2 (LGA-4710); Intel Xeon 6700/6500 series processors (P-cores and E-cores); Supports up to 350W TDP CPUs
Core Count: Up to 144C
Memory: 8 DIMM Slots; Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only)
Error Detection: ECC memory (corrects single-bit, detects double-bit errors)
SATA: 4 SATA (6Gbps) via ASMedia ASM1164 and SlimSAS
Network Controller: Dual 10GbE LAN with Intel X550
LAN Ports: 2 RJ45 10 GbE; 1 RJ45 1 GbE Dedicated IPMI LAN
USB: 2 USB 3.2 Gen1 (Header); 2 USB 3.2 Gen1 (Rear)
Video: 1 VGA D-Sub port
Serial: 1 COM port (Header)
TPM: TPM 2.0 header
PCIe Slots: 3 PCIe 5.0 x8; 3 PCIe 5.0 x16; 6 PCIe 5.0 x8 via MCIO Connector (some slots enabled with specific CPUs)
M.2 Slots: 2 M.2 PCIe 5.0 x2 (M-key 22110)
BIOS: AMI 64MB UEFI; ACPI 6.5; SMBIOS 3.7+; UEFI 2.9
Security: TPM 2.0 hardware
Voltage Monitoring: +12V, +3.3V, +5V, +5V standby; CPU and memory voltages; chassis intrusion; system management support
LED Indicators: CPU/system overheat; UID/remote UID
Temperature Monitoring: CPU thermal trip; CPU and chassis environment; PECI; TM2 support
Fans: 7x 4-pin fan headers; fan speed control; overheat LED
Other Features: ACPI power management; chassis intrusion detection; power-on recovery control; M.2 NGFF connector; UID; Wake on LAN (WOL)
*
