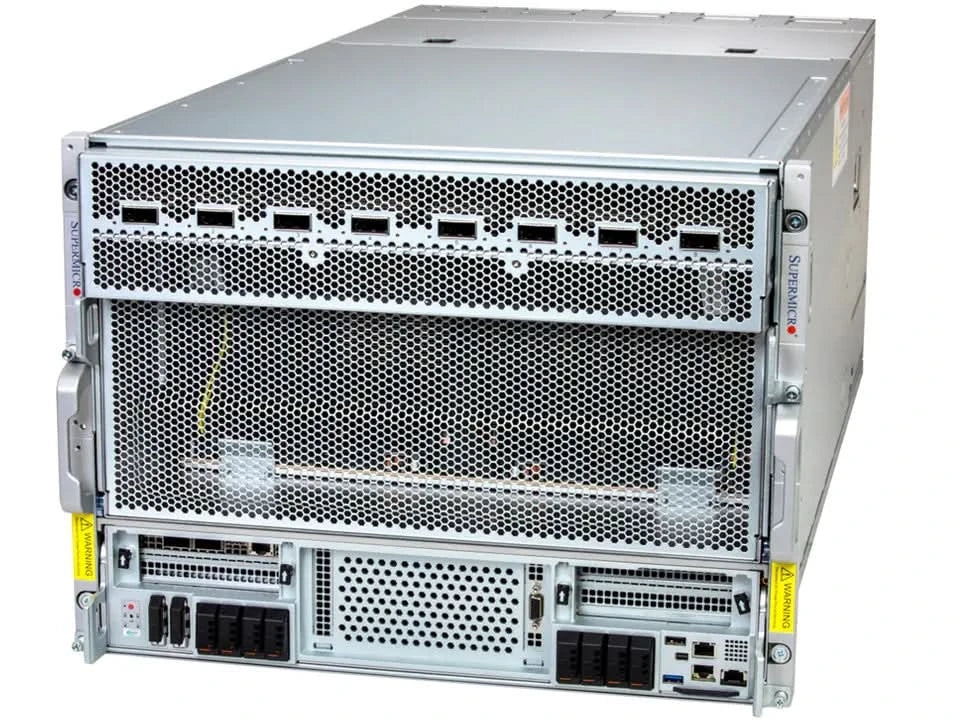

Supermicro SYS-822GS-NB3RT-01-G2 Gold Series GPU server is an 8U rackmount platform featuring dual Intel Xeon 6768P processors with 128 total cores, the NVIDIA HGX B300 8 GPU platform with up to 1.5 TB of HBM3e memory, 2 TB of DDR5-6400 ECC RDIMM memory, and integrated 800 GbE XDR800 InfiniBand networking for large scale AI and high performance computing. It supports up to 8 TB of system memory, eight hot swap E1.S PCIe 5.0 NVMe drive bays, PCIe 5.0 expansion, six 6600 W Titanium redundant power modules, and advanced enterprise management with IPMI 2.0, KVM over IP, Redfish API, and onboard TPM 2.0 security.
Specifications
Model Number: SYS-822GS-NB3RT-01-G2
Brand: Supermicro
Alt Part Number(s): SYS-822GS-NB3RT-01-G2
Product Type: GPU Server
Technical Description
Brand: Supermicro
Model Number: SYS-822GS-NB3RT-01-G2
Series: Gold
Chassis Profile: 8U Rackmount
Chassis Model: CSE-GP802S-R000NBP
Dimensions: 14 x 17.2 x 35 in (H x W x D)
Motherboard: Super X14DGO-6
Platform Series: Gold Series
CPU Sockets: Dual Socket E2 (LGA-4710)
Processor Family: Intel Xeon 6 6700 Series with P-Cores
Processors: 2 x Intel Xeon 6768P
CPU: 64 Cores per Processor; 2.4 GHz Base Clock; 330W TDP per Processor
Total System Cores: 128 Cores / 128 Threads
UPI Speed: Up to 4 x Intel Ultra Path Interconnect Links at 24 GT/s
Memory: 2TB DDR5-6400 ECC RDIMM
Maximum Memory Capacity: Up to 8TB
Memory Type: DDR5-6400 ECC RDIMM
Memory Slots: 32
Memory Voltage: 1.1V
Baseboard Platform: NVIDIA HGX B300 8-GPU
Total Graphics Memory: Up to 1.5TB HBM3e
GPU Interconnect: 5th Generation NVIDIA NVLink; Up to 1.8TB/s Bidirectional per GPU
Chassis Thermal Design: Air-Cooled
Boot Drive: 960GB M.2 NVMe PCIe 4.0 x4 SSD
Drive Bays: 8 x Hot-Swap E1.S 9.5 mm NVMe PCIe 5.0 x4
PCI Express Slots: 8 x PCIe 5.0 x16 Low-Profile Rear-Accessible Slots
AI Interconnect Networking: 8-Port 800GbE XDR800 InfiniBand
SuperNICs: Integrated NVIDIA ConnectX-8 SuperNIC Platform
Management Port: 1 x Dedicated RJ45 1GbE IPMI Remote Management Port
Rear Connectivity: 2 x USB 3.0 Ports; 1 x VGA Port
Cooling Fans: 8 x Heavy-Duty 8 cm Counter-Rotating Hot-Swappable Fans
Power Supply: 6 x 6600W Titanium Level 96% Efficiency Power Modules
Power Configuration: 3+3 Redundant
Software: IPMI 2.0; KVM over IP; Redfish API; Supermicro Power Manager (SPM); Supermicro Update Manager (SUM)
Hardware Security: Trusted Platform Module (TPM) 2.0 Onboard
