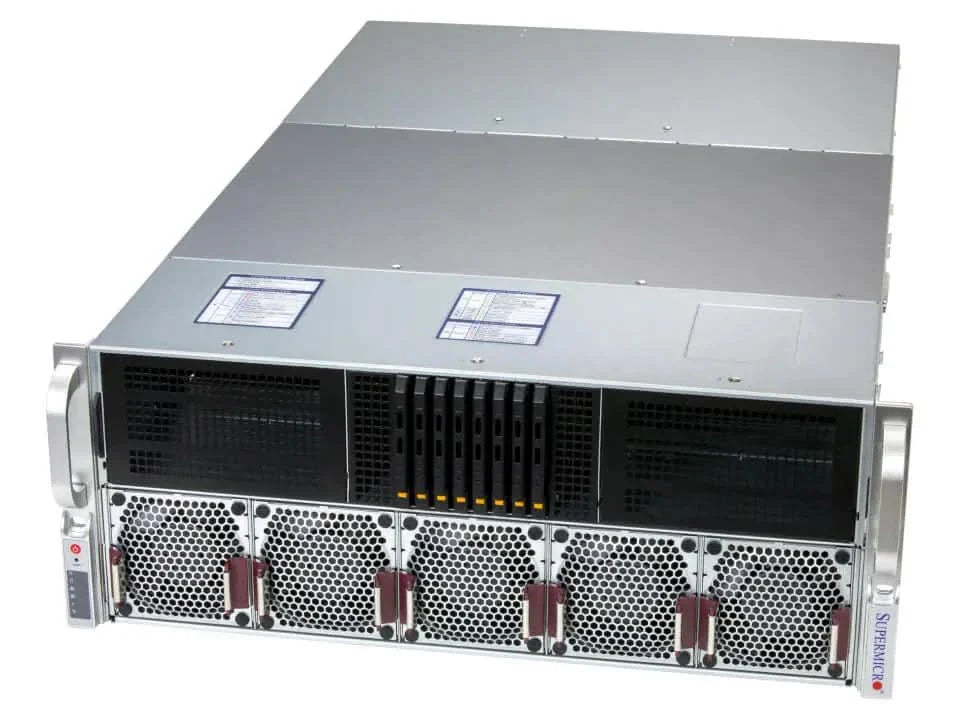

Supermicro SYS-422GA-NRT-02-G2 Gold Series GPU server is a 4U rackmount platform featuring dual Intel Xeon 6962P Granite Rapids processors with 144 total performance cores, eight NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs, 1.5 TB of DDR5-6400 ECC RDIMM memory, and dual root PCIe 5.0 architecture for AI and accelerated computing workloads. It supports up to 6 TB of DDR5 memory, eight front hot swap E3.S NVMe drive bays, integrated 400 GbE and 200 GbE networking, up to thirteen PCIe 5.0 expansion slots, four Titanium redundant power supplies, and enterprise remote management with IPMI 2.0 and KVM over IP.
Specifications
Model Number: SYS-422GA-NRT-02-G2
Brand: Supermicro
Alt Part Number(s): SYS-422GA-NRT-02-G2
Product Type: GPU Server
Technical Description
Brand: Supermicro
Model Number: SYS-422GA-NRT-02-G2
Series: Gold
Chassis Form Factor: 4U Rackmount
Chassis Dimensions: 17.2 x 7 x 29 in (437 x 178 x 737 mm)
Motherboard Model: Super X14DBG-AP
PCIe Topology: Dual-Root PCIe System Topology
CPU Configuration: Dual Socket BR (LGA-7529)
Processors: 2 x Intel Xeon 6962P (Granite Rapids Architecture)
Total Core Count: 144 Performance Cores (P-Cores)
Base Clock Speed: 2.7 GHz
GPU Count: 8 Double-Width PCIe Accelerator Slots
Installed GPU: 8 x NVIDIA RTX PRO 6000 Blackwell Server Edition
Maximum GPU Power Support: Up to 600W per PCIe Slot
Memory: 1.5TB DDR5-6400 ECC RDIMM
Maximum Memory Capacity: Up to 6TB DDR5-8800 MRDIMM
Memory Slots: 24
Primary Hot-Swap Drives: 2 x 3.84TB NVMe SSDs
M.2 Boot Drive: 960GB M.2 NVMe SSD
Drive Bays: 8 Front Hot-Swap E3.S NVMe Drive Bays
400GbE Infrastructure: 2 x 1-Port 400GbE / 400G NDR
200GbE Infrastructure: 1 x 2-Port 200GbE / NDR200
Base LAN Interface: 1 x 2-Port 10GbE RJ45; Intel X710 Controller
PCI Express Slots: Up to 13 PCIe 5.0 x16 FHFL Slots
Power Supply: 4 x 3200W Redundant Power Supplies
Power Supply Efficiency: Titanium Level Certified
System Management: Integrated IPMI 2.0; Dedicated LAN Port; KVM over IP; ASPEED AST2600 BMC
