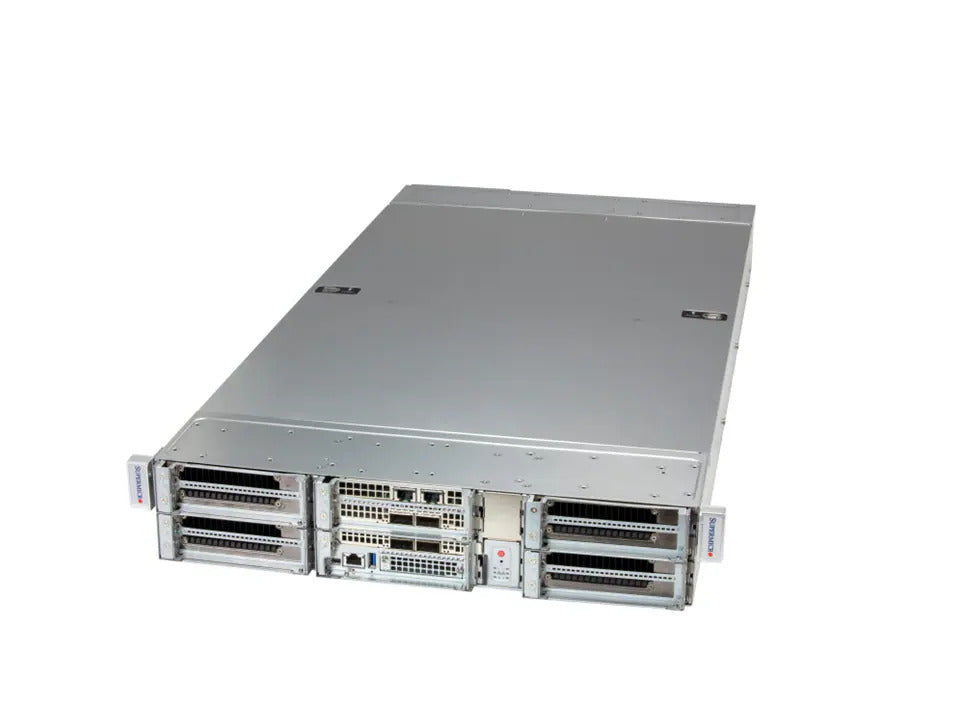

Supermicro SYS-212GB-FNR-01-G2 Gold Series server is a 2U rackmount platform featuring a single Intel Xeon 6700 or 6500 Series processor with up to 80 cores and 160 threads, support for up to four NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs, up to 2 TB of ECC DDR5 memory, and PCIe 5.0 connectivity for AI and high performance computing workloads. It includes four hot swap E1.S PCIe 5.0 NVMe drive bays, dual 2700 W Titanium redundant power supplies, comprehensive enterprise security features, advanced system management software, and optimized cooling for reliable data center operation.
Specifications
Model Number: SYS-212GB-FNR-01-G2
Brand: Supermicro
Alt Part Number(s): SYS-212GB-FNR-01-G2
Product Type: Server
Technical Description
Brand: Supermicro
Model Number: SYS-212GB-FNR-01-G2
Series: Gold
Motherboard: Super X14SBGM
Processor: Intel Xeon 6700/6500 Series Processors with P-cores
CPU: Single Socket E2 (LGA-4710)
Core Count: Up to 80 Cores / 160 Threads
CPU TDP Support: Up to 350W (Air Cooled)
Max GPU Count: Up to 4 Double-Width GPUs
Supported GPU: NVIDIA RTX PRO 6000 Blackwell Server Edition
CPU-GPU Interconnect: PCIe 5.0 x16
GPU-GPU Interconnect: NVIDIA NVLink Bridge (Optional)
Memory: 16 DIMM Slots; 8 Channels
Maximum Memory (1DPC): Up to 1TB 6400 MT/s ECC DDR5 RDIMM; Up to 512GB 8000 MT/s ECC DDR5 MRDIMM
Maximum Memory (2DPC): Up to 2TB 5200 MT/s ECC DDR5 RDIMM
Memory Voltage: 1.1V
Chipset: System on Chip
LAN: 1 x RJ45 1GbE Dedicated BMC LAN Port
USB: 1 x USB 3.0 Type-A Rear Port
Video: 1 x Mini DisplayPort
BIOS Type: AMI 64MB SPI Flash EEPROM
Software: SuperCloud Composer; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA); Plug-ins for Third-Party Software
Power Configuration: Power-On Mode for AC Power Recovery; ACPI Power Management
Security: Trusted Platform Module (TPM) 2.0; Silicon Root of Trust (RoT) NIST 800-193 Compliant; Cryptographically Signed Firmware; Secure Boot; Secure Firmware Updates; Automatic Firmware Recovery; Remote Attestation; Runtime BMC Protections; System Lockdown
PC Health Monitoring: 8+4 Phase-Switching Voltage Regulator; CPU Core Monitoring; Chipset Voltage Monitoring; Memory Monitoring
Fan Monitoring: Tachometer Monitoring; PWM Fan Connectors; Status Monitor for Speed Control
Temperature Monitoring: CPU Monitoring; Chassis Environment Monitoring; Thermal Control for Fan Connectors
Form Factor: 2U Rackmount
Model: CSE-MG204-R000NDFP
Height: 3.43 in (87 mm)
Width: 17.3 in (438.4 mm)
Depth: 35.43 in (900 mm)
Package Dimensions: 11.02 x 27.56 x 47.24 in (H x W x D)
Net Weight: 66 lb (30 kg)
Available Color: Silver
Buttons: Power On/Off
LED: HDD Activity
PCI Express Configuration: 4 x PCIe 5.0 x16 FHFL Double-Width Slots; 3 x PCIe 5.0 x16 FHFL Slots
M.2 Slots: 2 x M.2 PCIe 5.0 x2 NVMe M-Key 2280/22110
Drive Bays: 4 Rear Hot-Swap E1.S PCIe 5.0 x4 NVMe Drive Bays
System Cooling: 5 x 8 cm Heavy-Duty Fans with Optimal Fan Speed Control
Power Supply: 2 x 2700W Redundant Titanium Level (96%) Power Supplies
Power Supply Dimensions: 73.5 x 40 x 185 mm
Input Voltage: 200–240VAC 50–60Hz; 240–240VDC 50–60Hz (CQC Only)
+12V Output: Max 225A; Min 0A
12V Standby: Max 4A; Min 0A
Output Type: Backplanes (Gold Finger)
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-Operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (Maximum 21° Dew Point; Non-Condensing)
Non-Operating Relative Humidity: 8% to 90% (Maximum 38° Dew Point; Non-Condensing)
