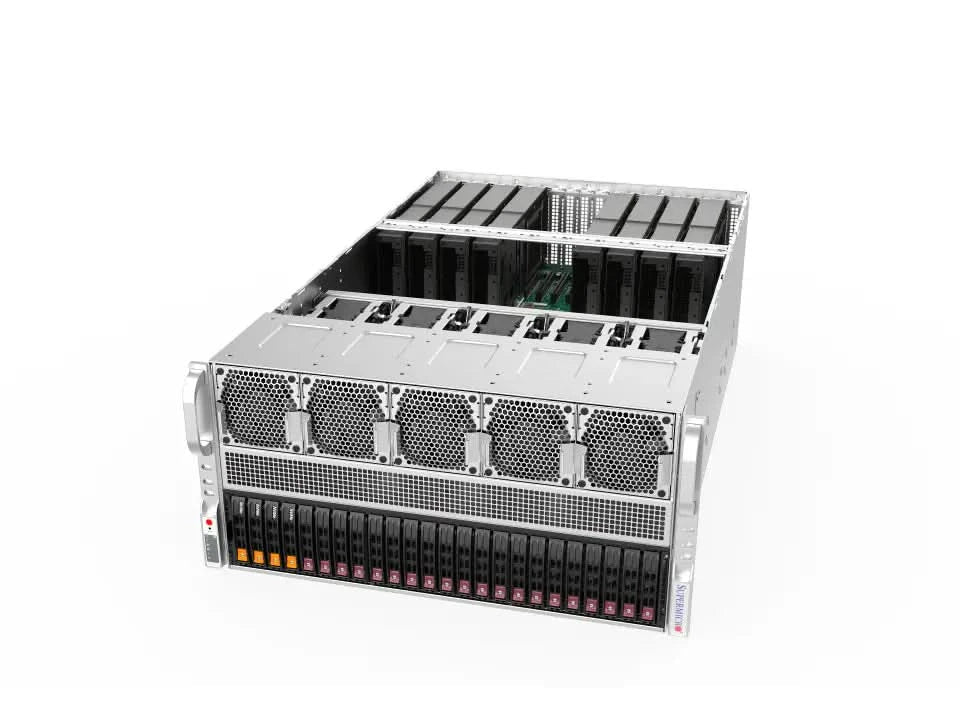

Supermicro Gold AS-5126GS-TNRT-01-G2 Dual AMD EPYC 9355 2x NVIDIA RTX PRO 6000 Blackwell GPU Server

Supermicro AS-5126GS-TNRT-01-G2 Gold Series GPU server is a 5U rackmount platform equipped with dual AMD EPYC 9355 processors with 32 cores and 64 threads each, 1.5 TB of DDR5-6400 ECC RDIMM memory, dual NVIDIA RTX PRO 6000 Blackwell Server Edition GPUs, and a 960 GB M.2 NVMe SSD for AI and high performance computing workloads. It supports up to eight double width PCIe GPUs, up to 6 TB of ECC DDR5 memory, PCIe 5.0 expansion, redundant 2700 W Titanium power supplies, and Supermicro Data Center Management Suite for scalable enterprise deployment.

Specifications

Model Number:  AS-5126GS-TNRT-01-G2

Brand:  Supermicro

Alt Part Number(s):  AS-5126GS-TNRT-01-G2

Product Type:  GPU Server

Technical Description

Brand:  Supermicro

Model Number:  AS-5126GS-TNRT-01-G2

Series:  Gold

Processors: 2 x AMD EPYC 9355 CPUs

CPU: 32 Cores / 64 Threads per CPU; 3.55 GHz Base Clock

Memory: 1.5TB; 24 x 64GB DDR5-6400 ECC RDIMM

Pre-Installed GPU: 2 x NVIDIA RTX PRO 6000 Blackwell Server Edition PCIe

Storage: 960GB M.2 NVMe SSD

Maximum GPU Support: Up to 8 Double-Width PCIe GPUs; Supports NVIDIA H100 NVL; NVIDIA H200 NVL; NVIDIA L40S; AMD Instinct MI350P

CPU-GPU Interconnect: Direct-Attached PCIe Lanes

GPU-GPU Interconnect: Optional NVIDIA NVLink; AMD Infinity Fabric Bridges

Maximum Memory Capacity: Up to 6TB ECC DDR5 RDIMM

Memory Slots: 24

Drive Bays: 6 Front Hot-Swap 2.5-Inch Bays; 4 x NVMe; 2 x SATA

M.2 Slots: 1 x Internal M.2 PCIe 3.0 x4

PCI Express Slots: Up to 9; Up to 10 PCIe 5.0 x16 FHFL Slots (Depending on Backplane Configuration)

Network Interfaces: 2 x 10GBASE-T RJ45 LAN Ports

Management Port: 1 x Dedicated RJ45 1GbE IPMI BMC Port

Management Software: Supermicro Data Center Management Suite

Power Supply: 6 x 2700W Titanium Level Redundant Power Supplies; 3+3 Load-Balancing Configuration

Form Factor: 5U Rackmount

Dimensions: 438 x 222.5 x 786.1 mm (17.2 x 8.75 x 31 in)
