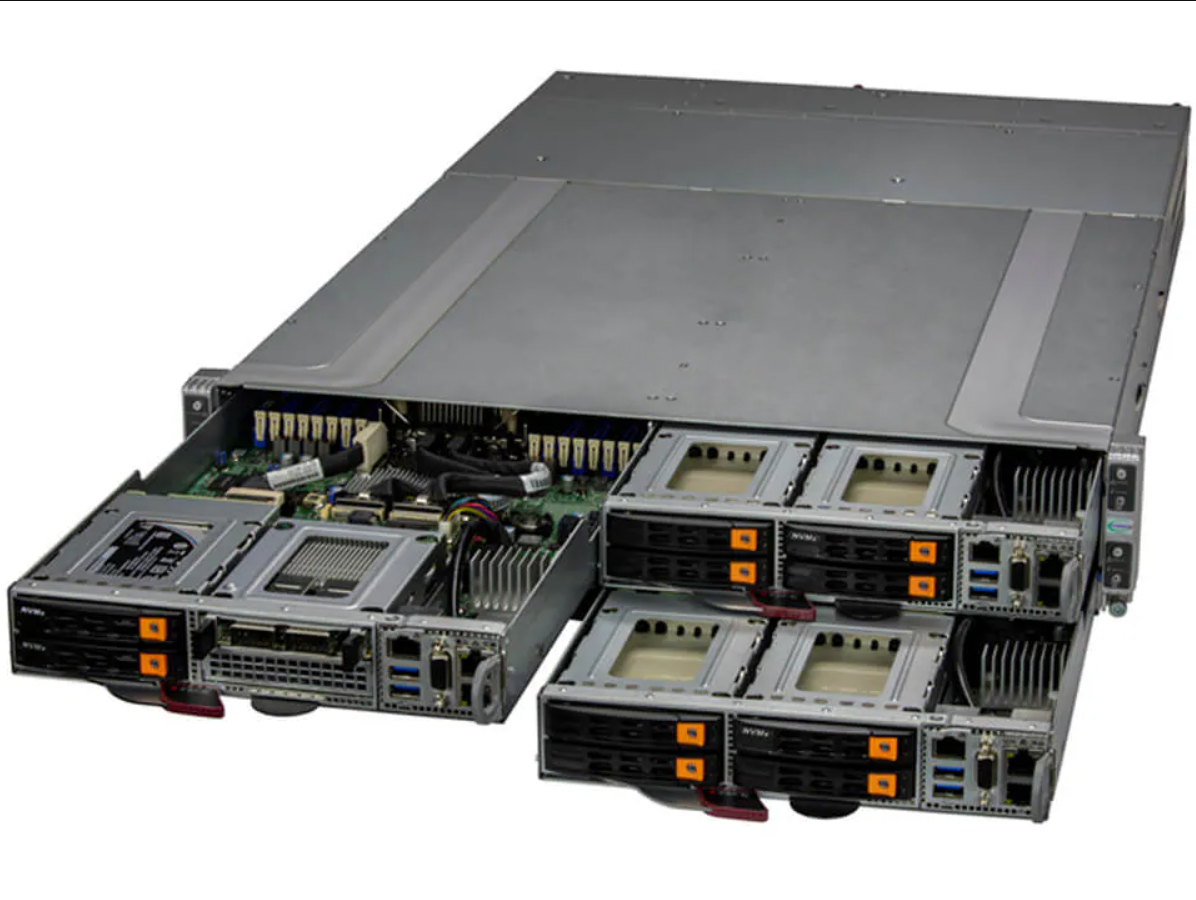

The Supermicro AS-2115GT-HNTF GrandTwin 2U Server is a cutting-edge solution designed to deliver exceptional compute density and performance. With two high-performance nodes in a single 2 U chassis, it’s engineered for demanding workloads like edge AI, virtualization, private cloud, and HPC.
Each node is equipped with an AMD EPYC 9474F processor (48 cores / 96 threads) and integrated dual 25 GbE networking, providing massive throughput and flexibility for modern data centres. The compact form factor significantly reduces rack footprint, power consumption, and complexity compared to traditional dual-server setups.
The system supports flexible memory and storage configurations, enabling you to optimize for your workloads. Memory and drives are sold separately, allowing you to tailor capacity according to your budget or project requirements.
Whether deploying AI inference clusters, high-density virtual desktops, container infrastructure, or GPU-accelerated nodes, the AS-2115GT-HNTF GrandTwin provides a future-proof foundation.
🧮 Product Specifications Supermicro AS-2115GT-HNTF GrandTwin 2U Server Each node with AMD EPYC 9474F, Dual 25GbE
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Brand |
Supermicro |
| Model |
AS-2115GT-HNTF GrandTwin 2U Server |
| Form Factor |
2 U rackmount – 2 nodes per chassis |
| Node Count |
2 independent server nodes |
| Processor (per node) |
AMD EPYC 9474F – 48 cores / 96 threads |
| Integrated Networking (per node) |
Dual 25 GbE (via Mellanox CX-4 Lx) |
| Memory (per node) |
Sold separately – user-configurable DDR5 RDIMM/3DS RDIMM (up to 3 TB+) |
| Storage (per node) |
Drives sold separately – up to 4 front hot-swap 2.5″ NVMe/SATA bays plus optional M.2 |
| Expansion Slots (per node) |
PCIe Gen 5 x16 low profile slot or AIOM/OCP3.0 option |
| Management |
IPMI 2.0, KVM over LAN, Supermicro Server Manager, SuperCloud Composer |
| Power Supply |
Redundant shared PSUs (Titanium level), typical dual 2200 W |
| Dimensions |
2U height, standard width/depth. Spec example: 449 × 88 × 711.2 mm |
| Use Cases |
Virtualisation, AI inference, cloud infrastructure, edge compute clusters |
| Warranty |
Standard Supermicro commercial warranty (check reseller terms) |
❓ Frequently Asked Questions (FAQs)
Q1: How many cores does each node have?
A1: Each node features the AMD EPYC 9474F with 48 cores and 96 threads - giving you massive per-node compute density.
Q2: Are memory and storage included?
A2: No - memory modules and drives are sold separately so you can configure capacity as needed.
Q3: What is the advantage of a dual-node 2U server?
A3: The architecture delivers two full server nodes in one chassis, reducing rack space, power usage, cabling, and complexity - ideal for dense deployments.
Q4: Does each node support 25 GbE networking?
A4: Yes - each node includes dual 25 GbE network connectivity built-in for high-bandwidth workflows.
Q5: Can I add GPUs or accelerators?
A5: Yes - with a PCIe Gen 5 x16 slot or AIOM/OCP3.0 option per node, you can install GPUs, NPUs, or other expansion cards, subject to power and cooling.
