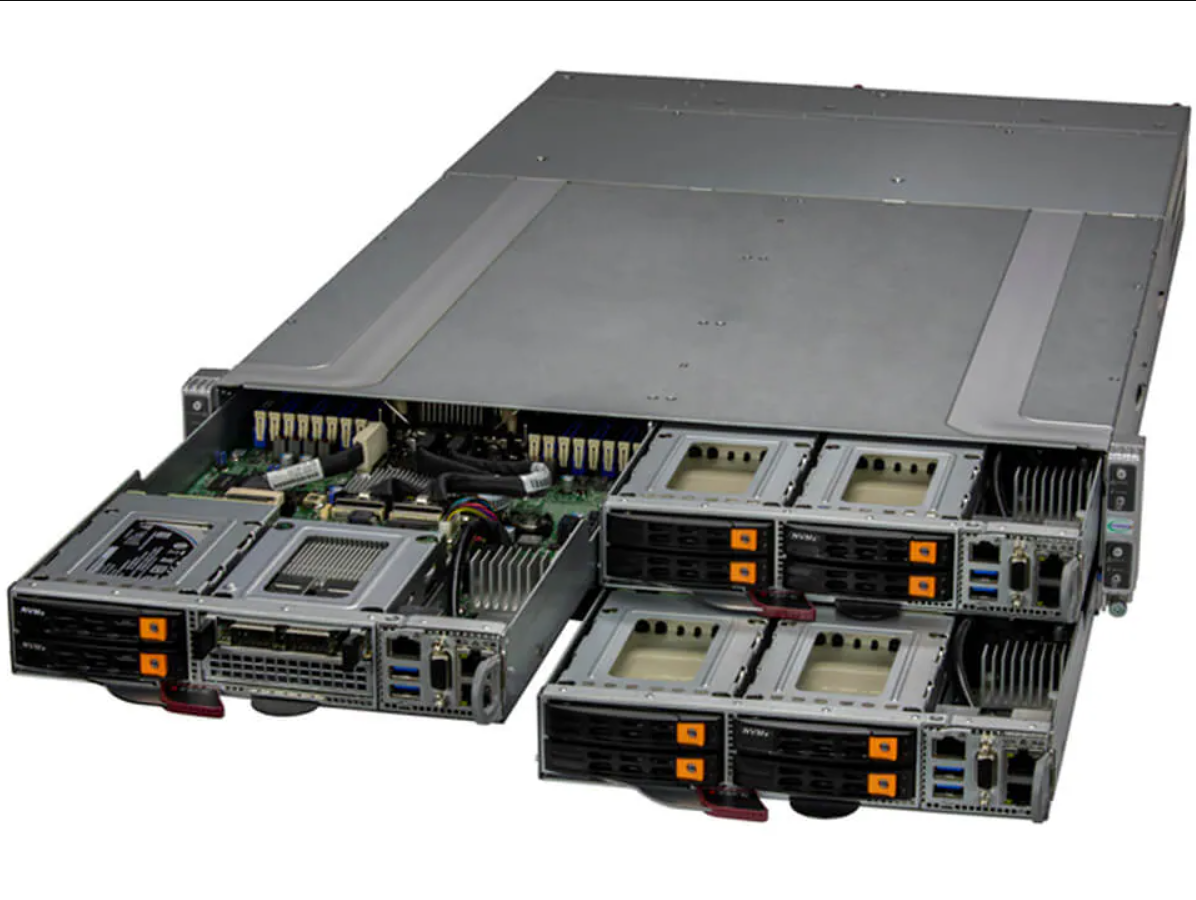

The Supermicro AS-2115GT-HNTF GrandTwin 2U Server is a cutting-edge dual-node platform designed to deliver maximum compute density and efficiency. With two server nodes housed in a 2-rack-unit chassis, each node powered by an AMD EPYC 9274F (24 cores / 48 threads) and integrated Dual 25GbE Mellanox CX-4 Lx networking, it provides enterprise-grade performance for virtualization, AI inference, cloud infrastructure, and high-throughput data center workloads.
Each node includes a dedicated motherboard (H13SST-G) and offers flexibility for memory, storage, and accelerator expansion. The GrandTwin design significantly reduces footprint, power, and cabling compared to traditional architectures, making it ideal for dense deployments, hyper-converged infrastructure, and edge compute clusters.
Important: Memory, NVMe drives, and GPU/accelerator cards are sold separately so you can tailor the configuration to your workload needs and budget.
🧮 Product Specifications for Supermicro AS-2115GT-HNTF GrandTwin 2U Server Each node with AMD EPYC 9274F, Dual 25GbE
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Brand |
Supermicro |
| Model |
AS-2115GT-HNTF (H13SST-G) |
| Form Factor |
2U Rackmount – 2 nodes per chassis |
| Node Count |
2 independent nodes |
| Processor (per node) |
AMD EPYC 9274F, 24 cores / 48 threads |
| Integrated Networking (per node) |
Dual 25GbE (Mellanox CX-4 Lx) |
| Memory (per node) |
Sold separately (user-configurable DIMMs) |
| Storage (per node) |
Drives sold separately (NVMe/SATA) |
| Expansion Slots |
PCIe Gen 5 expansion supported |
| Management |
IPMI 2.0 with dedicated LAN per node |
| Power Supply |
Redundant, shared high-efficiency PSUs |
| Cooling |
Redundant front-to-back airflow fans |
| Dimensions |
2U height, standard rack width/depth |
| Use Cases |
Virtualization, AI inference, cloud infra, edge clusters |
| Warranty |
Standard Supermicro commercial warranty |
❓ Frequently Asked Questions (FAQs)
Q1: How many CPUs are included in the AS-2115GT-HNTF?
A1: The system supports two nodes in one chassis, each with an AMD EPYC 9274F processor (24 cores / 48 threads), giving a total of 48 cores / 96 threads.
Q2: Are memory and storage included?
A2: No, memory and NVMe drives are not included and must be configured based on your requirements and budget.
Q3: What is the advantage of a dual-node 2U server?
A3: You get two complete servers in one chassis, reducing rack footprint, power consumption, cabling, and data center complexity—ideal for high-density deployments.
Q4: Does each node have its own networking?
A4: Yes, each node has dual 25GbE Mellanox CX-4 Lx networking built-in, enabling high-speed connectivity for AI, cloud, and data-center workloads.
Q5: Can I add GPUs or accelerators to each node?
A5: Yes. Each node supports standard PCIe expansion (Gen 5), making it compatible with GPUs, NPUs, or other acceleration cards, provided proper cooling and power are in place.
