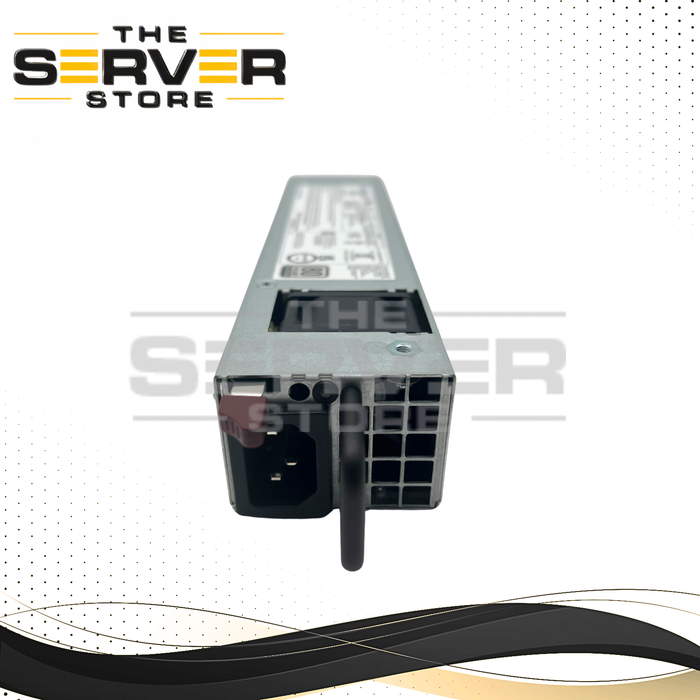

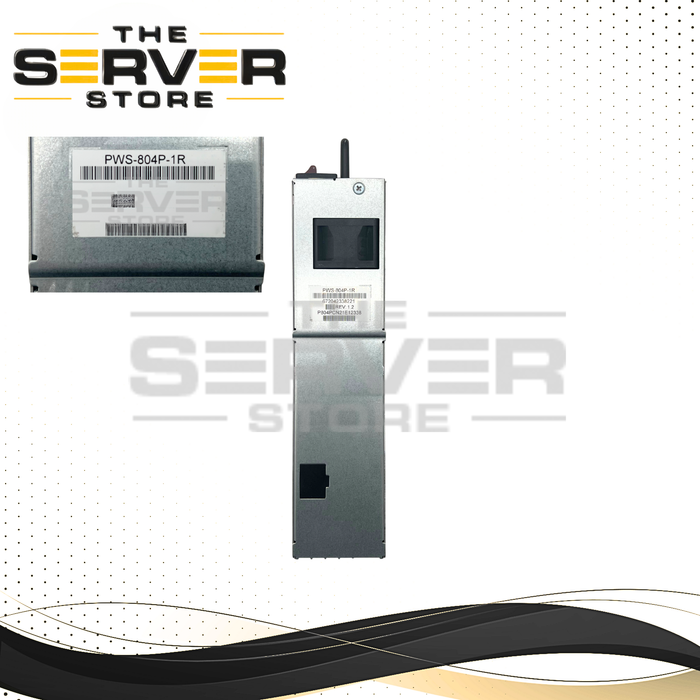

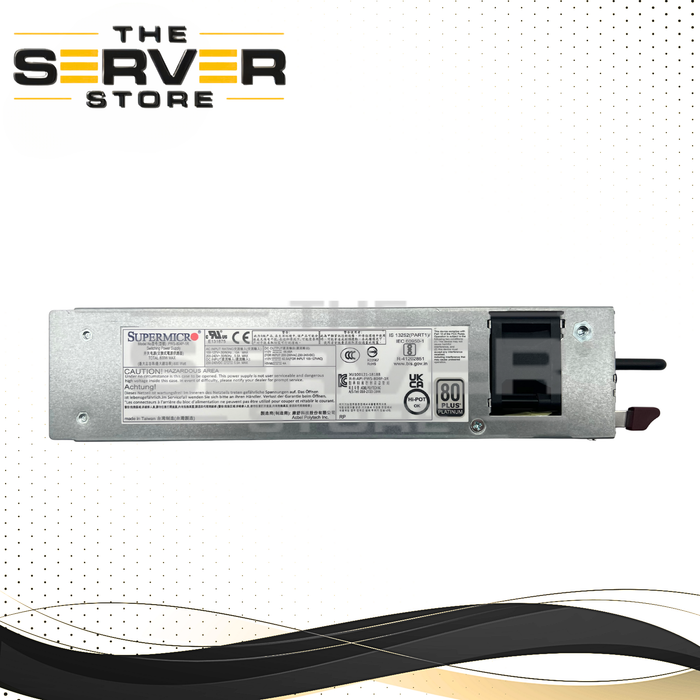

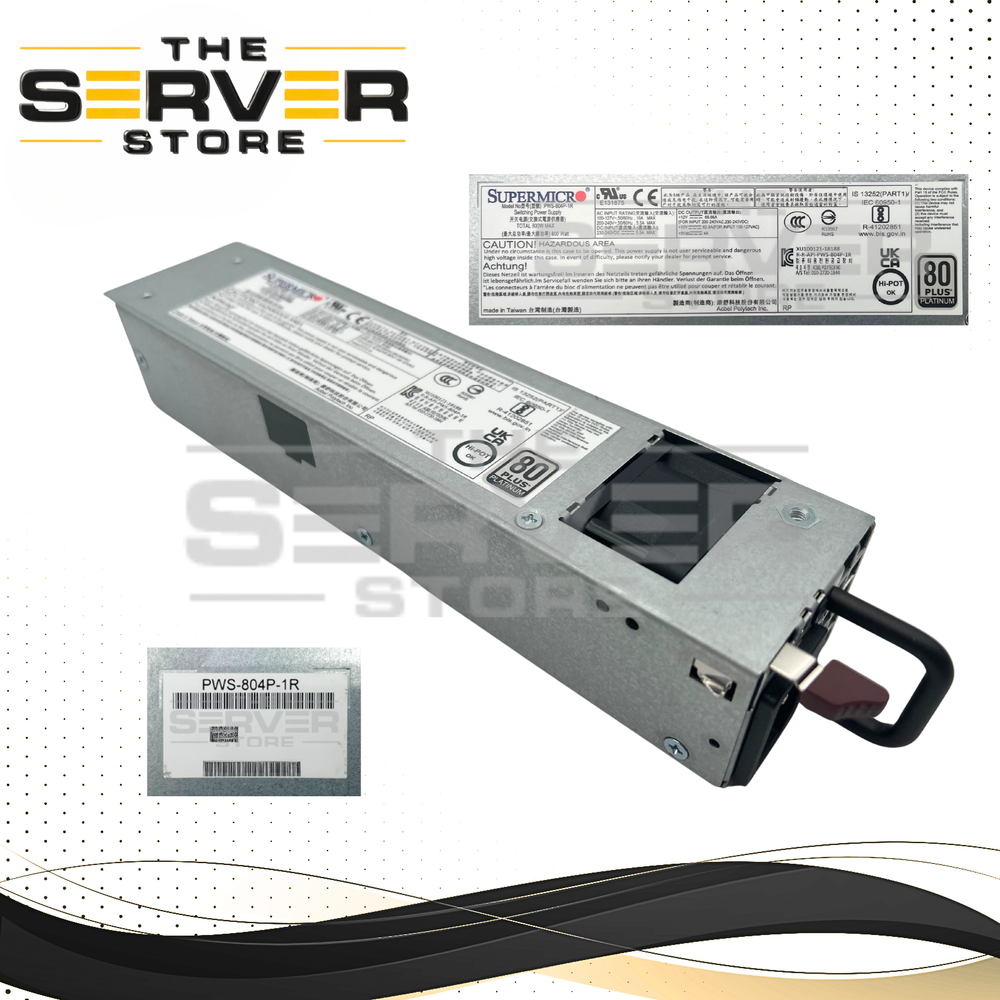

Supermicro 800W Platinum Redundant Power Supply 100-240VAC PWS-804P-1R

The Supermicro PWS-804P-1R is an 80 Plus Platinum certified redundant power supply designed for high-efficiency 1U server environments. Delivering up to 800W of output power, this PSU is optimized for enterprise systems requiring reliable, hot-swappable power with advanced monitoring and protection features.

• Total Output Power:
  • 800W (200–240VAC / 230–240VDC)
  • 750W (100–127VAC)
• Input Voltage Range: 100–240VAC (Auto-switching) or 230–240VDC
• Input Frequency: 50–60Hz
• Output Current:
  • +12V: 62.5A (100–127VAC) / 66.6A (200–240VAC)
  • +5V Standby: 4A
• Efficiency: Up to 94% (80 Plus Platinum Certified)

• Form Factor: 1U Redundant Power Supply

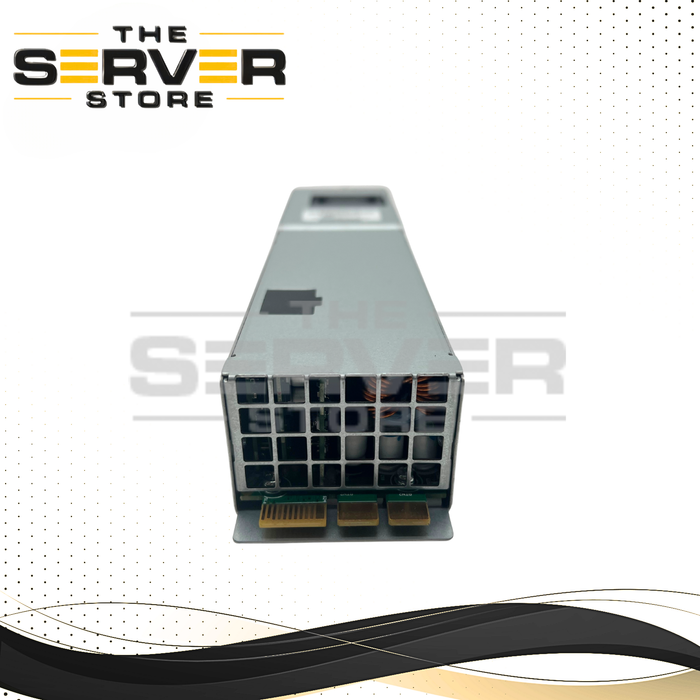

• Output Type: Gold Finger (Card-edge connector, 2x25 interface)
• Dimensions: 54.5mm (W) x 220mm (L) x 40.25mm (H)
• Weight: ~1.76 kg (3.88 lbs)
• Operating Temperature: 0°C to 40°C
• Humidity: 5% to 90% (non-condensing)
• MTBF: >400,000 hours

Hot-Swap Redundancy:
Supports live replacement to ensure zero downtime in critical systems

Advanced Monitoring:
PMBus 1.2 support enables real-time remote power monitoring and management

Built-in Protection:
Safeguards against over-voltage, over-current, and short-circuit conditions

Status Indicators:
Integrated LED provides visual status for normal and fault conditions

Validated Supermicro Systems

• SSG-1129P-ACR10N4L
• SSG-6019P-ACR12L+
• SYS-1029P-MTR
• SYS-6019P-MTR

Compatible Supermicro Chassis

• CSE-113MFAC2-R804CB
• CSE-515M-R804
• CSE-813MF2TQC-R804CB
• CSE-842XTQC-R804B

• Designed specifically for Supermicro 1U redundant power supply platforms
• Requires compatible chassis with gold finger connector interface
• Supports redundant PSU configurations for high availability environments

The Supermicro PWS-804P-1R delivers high-efficiency power, enterprise-grade reliability, and hot-swap redundancy, making it an ideal solution for mission-critical Supermicro server deployments.
