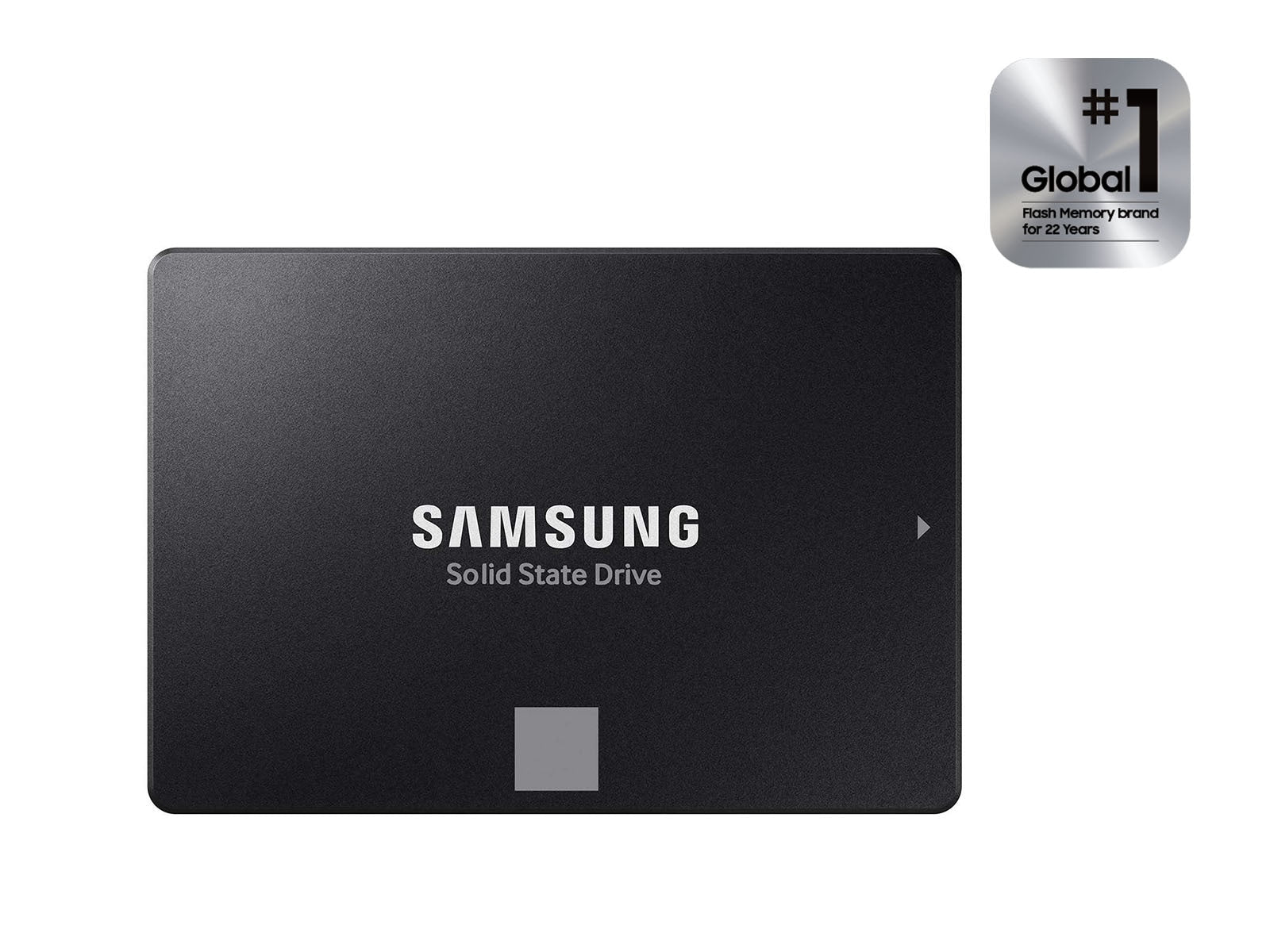

Samsung MZ-77E8T0B/AM 870 EVO is an 8 TB client solid state drive featuring a 2.5 inch form factor, SATA 6 Gb/s interface, Samsung V-NAND TLC flash memory, Samsung in house controller, and 8 GB LPDDR4 cache for reliable everyday and professional computing performance. It delivers sequential read speeds up to 560 MB/s and write speeds up to 530 MB/s, supports AES 256 bit encryption, TRIM and S.M.A.R.T functionality, and provides an MTBF rating of 1.5 million hours with operating temperatures ranging from 0°C to 70°C.
Specifications
Mfr Part Number: MZ-77E8T0B/AM
Brand: Samsung
Model Number: MZ-77E8T0B/AM
Type: Solid State Drive
Technical Description
Brand: Samsung
Model: MZ-77E8T0B/AM
Series: 870 EVO
Application: Client PCs
Capacity: 8 TB
Form Factor: 2.5 inch
Interface: SATA 6 Gb/s Interface; Compatible with SATA 3 Gb/s Interface; Compatible with SATA 1.5 Gb/s Interface
Dimensions (W x H x D): 3.9 x 2.75 x 0.27 in
Weight: Approx. 48.0 g
Storage Memory: Samsung V-NAND TLC
Controller: Samsung In-house Controller
Cache Memory: 8 GB LPDDR4
TRIM Support: Supported
S.M.A.R.T Support: Supported
Garbage Collection: Auto Garbage Collection Algorithm
Encryption Support: AES 256-bit Encryption (Class 0); TCG/Opal; IEEE1667 (Encrypted Drive)
WWN Support: World Wide Name Supported
Device Sleep Mode Support: Yes
Sequential Read: Up to 560 MB/s
Sequential Write: Up to 530 MB/s
Random Read: Up to 13,000 IOPS
Random Write: Up to 36,000 IOPS
Average Power Consumption: Read 2.2 W; Write 2.6 W
Power Consumption (Idle): Max. 40 mW
Allowable Voltage: 5V ± 5%
Reliability (MTBF): 1.5 Million Hours
Operating Temperature: 0°C to 70°C
Shock: 1,500 G; 0.5 ms (Half Sine)
Installation Kit: Not Available
Management Software: Magician Software for SSD Management; Data Migration Software for SSD Upgrade
