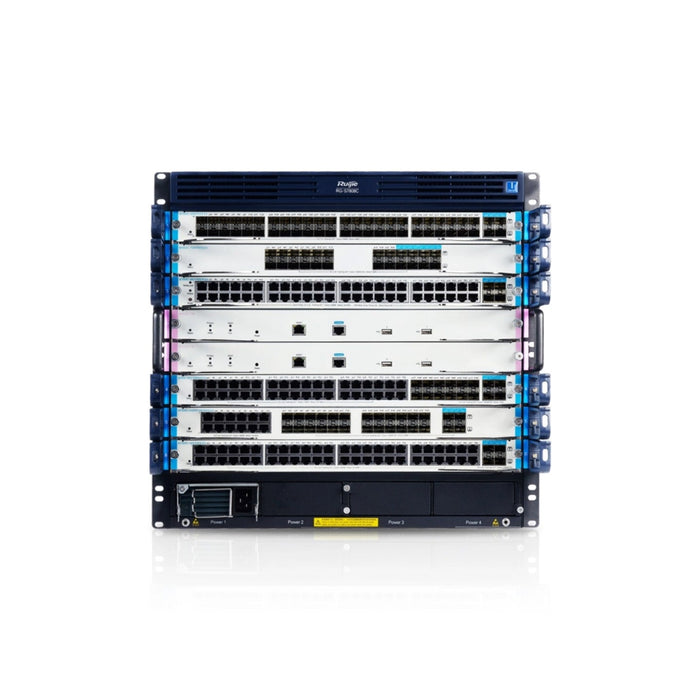

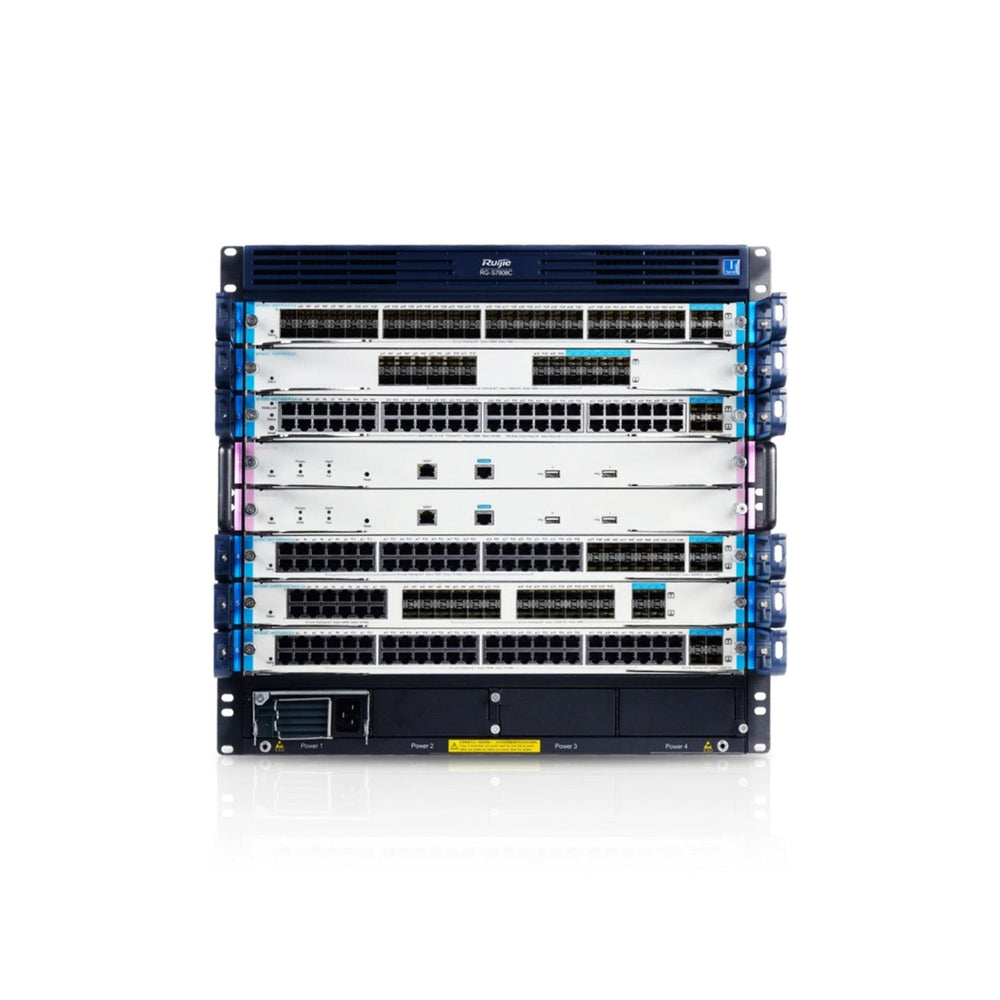

Ruijie RG-S7808C 8-Slot 12Tbps Modular Campus Core Switch(Chassis)
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S7808C 10-Slot, 10 RU Modular Campus Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Ruijie RG-S7808C is a high-performance modular Layer 3 core switch used in enterprise campus networks, MANs and data centers. The RG-S7808C features a 10 RU chassis with 2 supervisor modules and 6 line card slots for flexible and scalable solutions to keep up with the needs of growing networks. It offers advanced capabilities including Virtual Switch Unit (VSU) virtualization, extensive Layer 3 routing protocol support, and advanced security policies, targeting the core and aggregation layers in large networks.
Overview
Highlights
- Modular Design: 10 RU chassis with 2 supervisor module slots and 6 line card slots, providing flexibility for various network deployments.
- High Performance: Delivers up to 12 Tbps switching capacity and 9,000 Mpps packet forwarding rate, ensuring high-speed data processing.
- VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
- Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
- Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
- High Reliability: Features hot-swappable power modules and fan modules with redundancy, ensuring continuous operation and service reliability.
- Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S7808C:
| Product Model | Category | Description |
| M7808C-CM II | Supervisor Module | High-performance control engine module with quad-core CPU for efficient processing. |
| M7800C-48GT-FA | Line Card | 48 × 10/100/1000BASE-T ports, suitable for high-density access. |
| M7800C-48SFP-FA | Line Card | 48 × 1GE SFP ports, ideal for fiber-rich environments. |
| RG-PA1600I-F | Power Supply Module | 1600W AC power supply module, supporting hot-swapping and redundancy. |
| M08-FAN | Fan Module | Pluggable fan module for efficient cooling and airflow management. |
Comparison with Similar Models
| Model | Slot Configuration | Switching Capacity | Forwarding Rate |
|---|---|---|---|
| RG-S7805C | 3 service + 2 engine | 6 Tbps | 4 500 Mpps |
| RG-S7808C | 6 service + 2 engine | 12 Tbps | 9 000 Mpps |
| RG-S7810C | 8 service + 2 engine | 16 Tbps | 12 000 Mpps |
| RG-S6980-64QC | Fixed 64×400 GE QSFP-DD | 51.2 Tbps | 10 300 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S7808C |
| Chassis Slots | 10 RU (2 supervisor module slots, 6 line card slots) |
| Switching Capacity | Up to 12 Tbps |
| Packet Forwarding Rate | Up to 9,000 Mpps |
| MAC Address Table | Up to 288,000 entries |
| ARP Table Size | Up to 170,000 entries |
| IPv4 Unicast Routes | Up to 134,000 entries |
| IPv6 Unicast Routes | Up to 50,000 entries |
| IPv4 Multicast Routes | Up to 16,000 entries |
| IPv6 Multicast Routes | Up to 8,000 entries |
| Power Module Slots | 4 (supporting N+M redundancy) |
| Fan Module Slots | 2 pluggable fan modules |
| Management Ports | 1 × RJ45 console port, 1 × RJ45 MGMT port, 2 × USB 2.0 ports |
| Dimensions (W × D × H) | 442 mm × 465 mm × 441.7 mm (17.40 in. × 18.31 in. × 17.39 in.) |
| Weight | Approximately 35.6 kg (empty chassis with fan modules) |
| Power Supply | AC 100–240V, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
