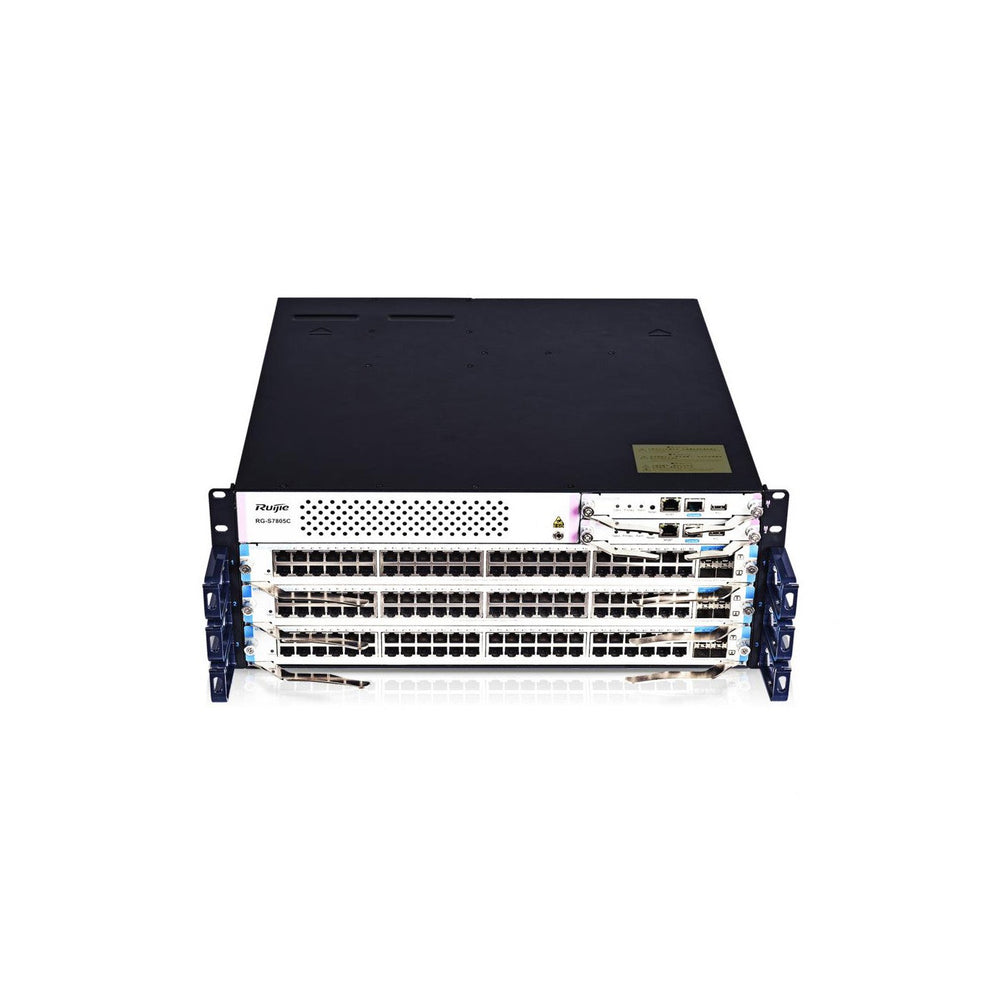

The Ruijie RG-S7805C is a cost-effective, 4 RU, 5-slot modular campus core switch ideal for enterprise campus networks, metropolitan area networks (MANs), and data center aggregation.
It delivers up to 4.8 Tbps non-blocking switching capacity and 7 142.4 Mpps of line-rate forwarding, with up to 48 × 10 GE ports via service modules, maximizing bandwidth investment through cross-device link aggregation.
Powered by the RGOS 11.X multi-processing modular OS, it supports Virtual Switch Unit 3.0 (VSU) and Virtual Switch Device (VSD) virtualization to simplify network topology and boost device utilization
Overview
Highlights
- Modular Design: 5-slot chassis with 2 control engine slots and 3 service module slots, providing flexibility for various network deployments.
- High Performance: Delivers up to 6 Tbps switching capacity and 4,500 Mpps packet forwarding rate, ensuring high-speed data processing.
- VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
- Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
- Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
- High Reliability: Features hot-swappable power modules and fan modules with redundancy, ensuring continuous operation and service reliability.
- Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S7805C:
| Product Model | Category | Description |
| M7805C-CM II | Supervisor Module | High-performance control engine module with quad-core CPU for efficient processing. |
| M7800C-48GT-FA | Line Card | 48 × 10/100/1000BASE-T ports with 4 × 10GE SFP+ uplink ports, suitable for high-density access. |
| M7800C-48SFP-FA | Line Card | 48 × 1GE SFP ports with 4 × 10GE SFP+ uplink ports, ideal for fiber-rich environments. |
| RG-PA300I-F | Power Supply Module | 300W AC power supply module, supporting hot-swapping and redundancy. |
| RG-PA460I-F | Power Supply Module | 460W AC power supply module, supporting hot-swapping and redundancy. |
| M05C-FAN | Fan Module | Pluggable fan module for efficient cooling and airflow management. |
Comparison with Similar Models
| Model | Port Configuration | Switching Capacity | Packet Forwarding Rate |
|---|---|---|---|
| RG-S7805C | Up to 48 × 10 GE SFP+ (via line cards) | 4.8 Tbps | 7142.4 Mpps |
| RG-S7808C | Up to 24 × 10 GE SFP+ | 9.6 Tbps | 14284.8 Mpps |
| RG-S6980-64QC | 64 × 400 GE QSFP-DD | 51.2 Tbps | 10300 Mpps |
| RG-S6580-24DC8QC | 24 × 200 GE QSFP56 + 8 × 400 GE QSFP-DD | 16.0 Tbps | 5350 Mpps |
| RG-S6510-48VS8CQ | 48 × 25 GE SFP28 + 8 × 100 GE QSFP28 | 4.0 Tbps | 2000 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S7805C |
| Chassis Slots | 5 (2 for control engines, 3 for service modules) |
| Switching Capacity | Up to 6 Tbps |
| Packet Forwarding Rate | Up to 4,500 Mpps |
| MAC Address Table | Up to 64,000 entries |
| ARP Table Size | Up to 20,000 entries |
| IPv4 Unicast Routes | Up to 10,000 entries |
| IPv6 Unicast Routes | Up to 6,000 entries |
| IPv4 Multicast Routes | Up to 8,000 entries |
| IPv6 Multicast Routes | Up to 4,000 entries |
| Power Module Slots | 2 (supporting 1+1 redundancy) |
| Fan Module Slots | 1 pluggable fan module |
| Management Ports | 1 × RJ45 console port, 1 × USB 2.0 port |
| Dimensions (W × D × H) | 442 mm × 451 mm × 175 mm (17.40 in. × 17.76 in. × 6.89 in.) |
| Weight | Approximately 12.42 kg (empty chassis with 1 fan module) |
| Power Supply | AC 100–240V, 50/60 Hz |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| MTBF | ≥ 216,000 hours |
