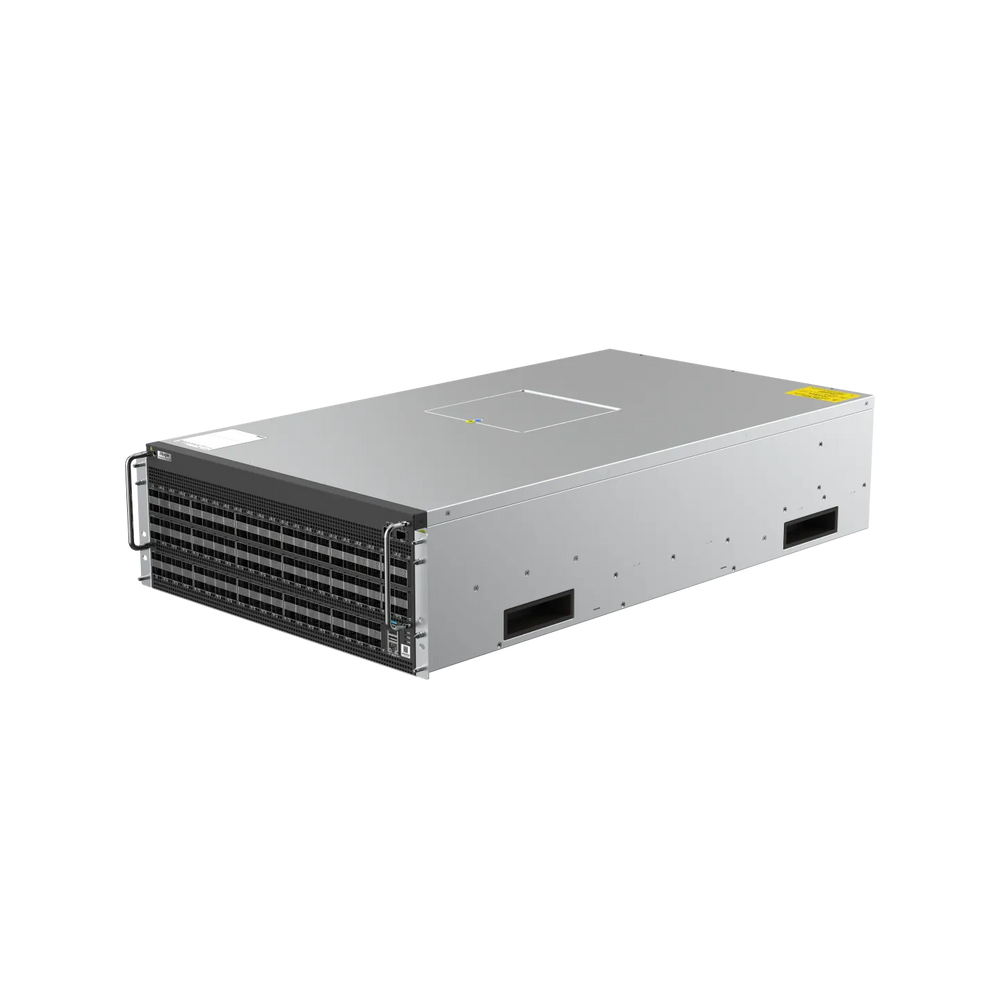

Ruijie RG-S6990-128QC2XS 128×400GE QSFP112 AIGC Data Center Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S6990-128QC2XS Modular Data Center Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Ruijie RG-S6990-128QC2XS is a next-generation, ultra-high-performance modular data center core switch, purpose-built for cloud-scale data centers, carrier networks, and large enterprise backbones.
Equipped with 128 × 100GE QSFP28 ports and 2 × 400GE QSFP-DD ports, this switch delivers massive switching capacity and flexibility for scalable, high-density network environments.
With full Layer 2/3 protocol support, rich virtualization features, and advanced reliability mechanisms, the NS-S6990-128QC2XS sets a new standard for performance, availability, and future-proof design in modern networking infrastructure.
Overview
Highlights
-
High-Density Port Configuration: Offers 128 × 100GE QSFP28 and 2 × 400GE QSFP-DD ports, enabling exceptional bandwidth aggregation and spine-core scalability.
-
Massive Switching Capacity: Delivers a switching capacity of up to 25.6 Tbps, supporting full line-rate forwarding on all ports simultaneously.
-
400G-Ready Architecture: Provides native 400GE support for next-gen data center uplinks and interconnects.
-
Advanced Layer 2/3 Support: Supports BGP, OSPF, IS-IS, MPLS, and Segment Routing for carrier-grade routing and interoperability.
-
Cloud Networking Features: Fully supports VXLAN, EVPN, and virtualization technologies for flexible, multi-tenant cloud environments.
-
High Availability: Features redundant control planes, hot-swappable line cards and power modules, and ISSU (In-Service Software Upgrade) for zero-disruption operations.
-
Comprehensive Security: Equipped with ACLs, control plane protection, ARP inspection, and MAC security for robust access and data protection.
-
Energy-Efficient & Silent: Intelligent fan speed adjustment and low-power optical modules reduce operating costs and noise levels.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| QSFP-100G-LR4 | Optical Module | 100GBASE-LR4 QSFP28, 1310nm, single-mode fiber, 10km |
| QSFP-100G-ER4 | Optical Module | 100GBASE-ER4 QSFP28, 1550nm, single-mode fiber, 40km |
| QSFP-DD-400G-LR8 | Optical Module | 400GBASE-LR8 QSFP-DD, 1310nm, single-mode fiber, 10km |
| QSFP-DD-400G-DR4 | Optical Module | 400GBASE-DR4 QSFP-DD, single-mode fiber, 500m |
| CAB-QSFP28-QSFP28 | Direct Attach | 100G DAC cable, QSFP28 to QSFP28, 1m/3m/5m |
| CAB-QSFP-DD-QSFP-DD | Direct Attach | 400G DAC cable, QSFP-DD to QSFP-DD, 1m/3m |
Comparison with Similar Core Switches
| Feature | RG-S6990-128QC2XS | RG-S6980-64QC | RG-S6510-48GT4XS |
|---|---|---|---|
| 100GE Ports | 128 × QSFP28 | 64 × QSFP28 | — |
| 400GE Ports | 2 × QSFP-DD | None | None |
| Switching Capacity | 25.6 Tbps | 12.8 Tbps | 176 Gbps |
| Modular Design | Yes (Chassis) | Fixed | Fixed |
| Cloud Virtualization | VXLAN, EVPN | VXLAN | — |
| Use Case | Data Center Core | Aggregation/Core | Access Layer |
Specifications
| Parameter | Specification |
|---|---|
| Model | RG-S6990-128QC2XS |
| Port Configuration | 128 × 100GE QSFP28, 2 × 400GE QSFP-DD |
| Switching Capacity | Up to 25.6 Tbps |
| Forwarding Rate | Up to 19,048 Mpps |
| Routing Protocols | Static, OSPF, BGP, IS-IS, MPLS, Segment Routing |
| Virtualization | VXLAN, EVPN, VRF, GRE tunnels |
| MAC Address Table | Up to 512K entries |
| Jumbo Frame Support | Up to 9600 bytes |
| Security Features | ACLs, port security, ARP inspection, CP protection |
| High Availability | Hot-swappable components, ISSU, redundant fabrics |
| Management | SNMP v1/v2/v3, CLI, NETCONF, RESTful API, Telemetry |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W×D×H) | 442 mm × 600 mm × 133 mm |
| Weight | ≤ 28 kg |
| Power Redundancy | Dual hot-swappable power modules |
| Warranty | Limited lifetime warranty |
