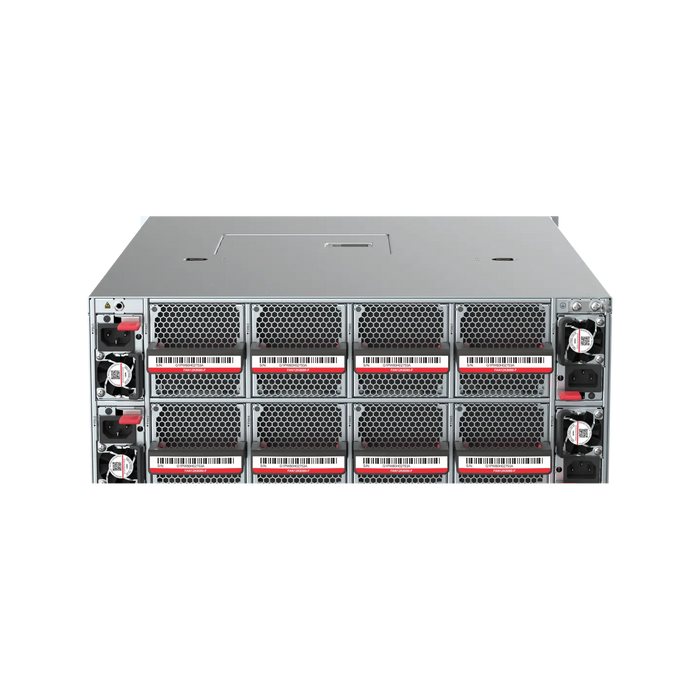

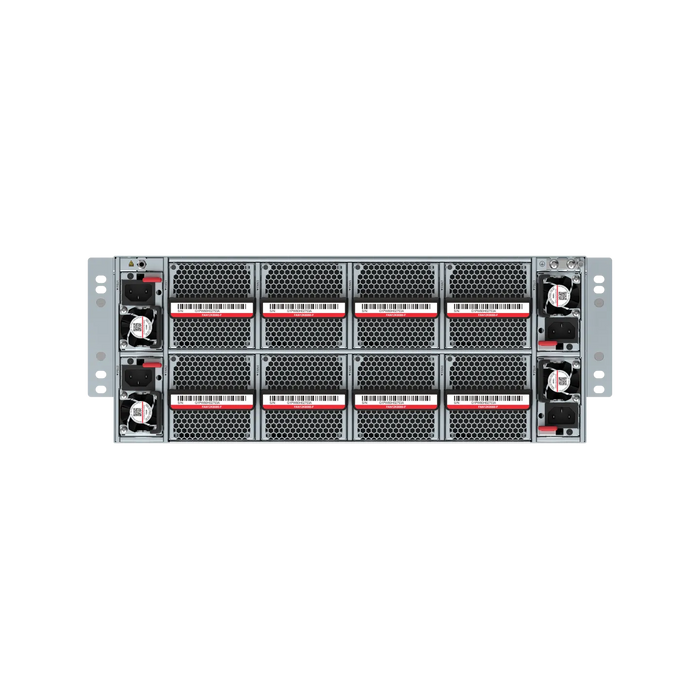

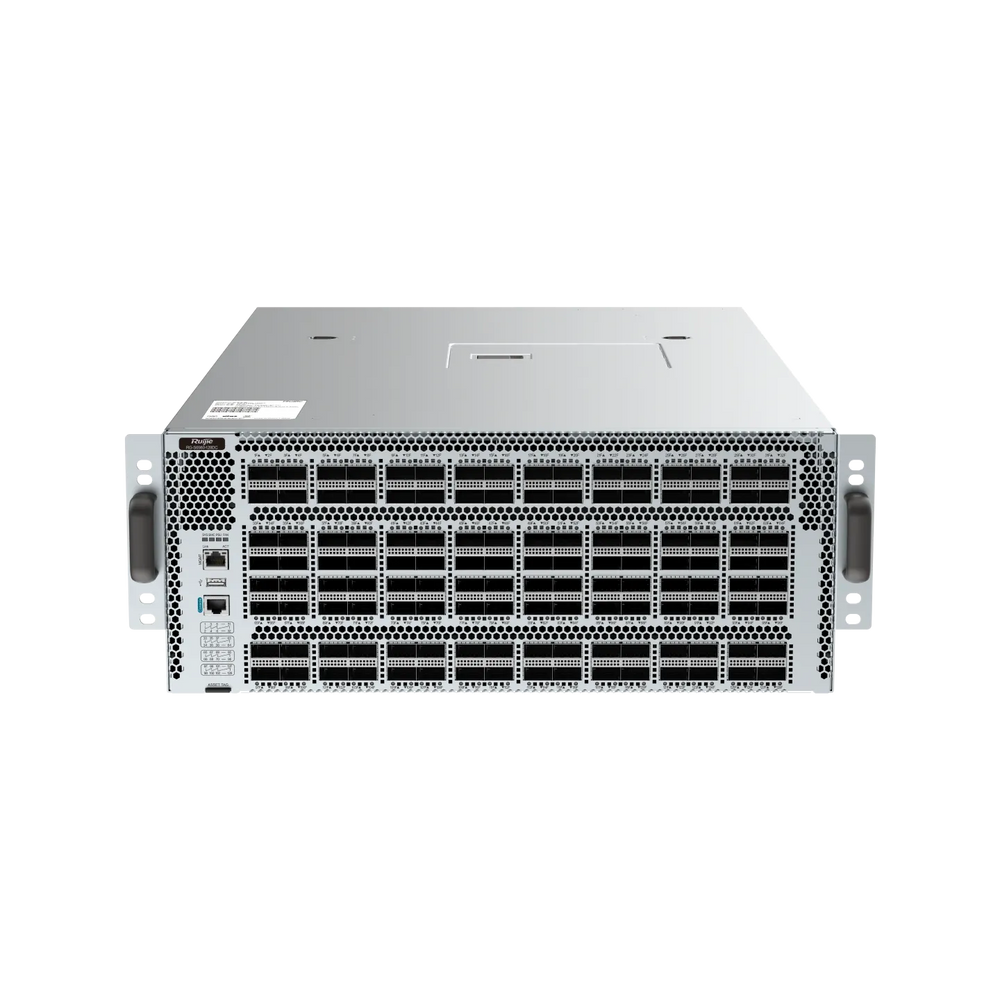

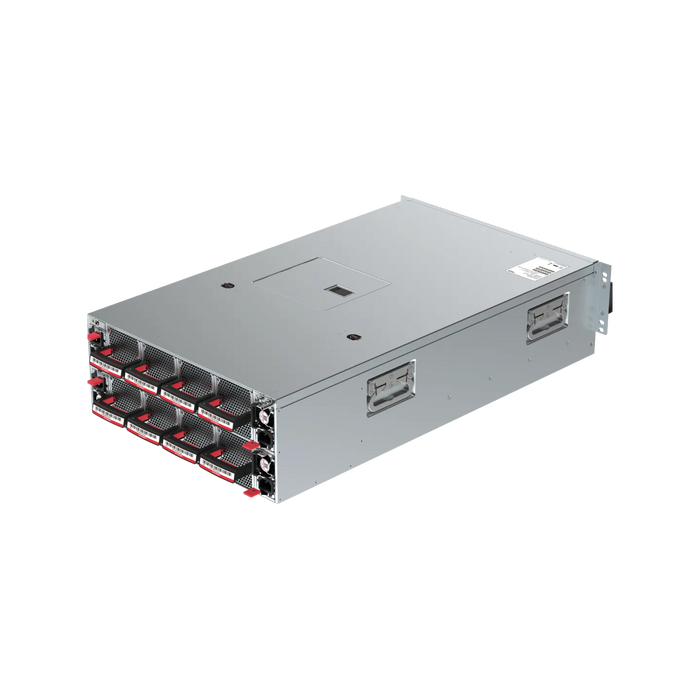

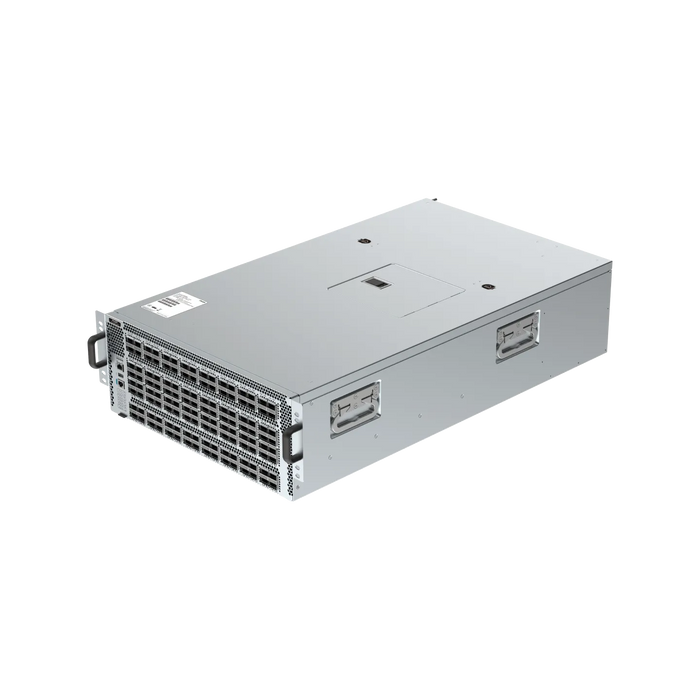

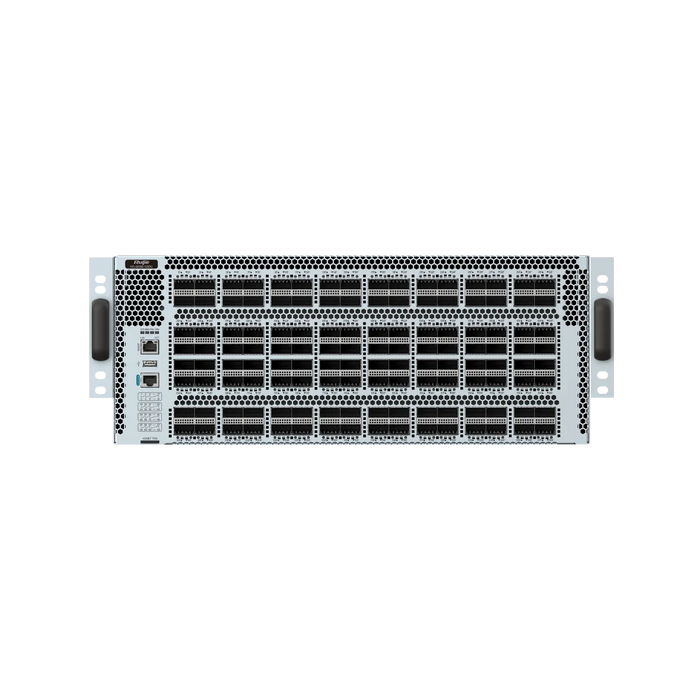

Ruijie RG-S6980-128DC 4RU 128×200G QSFP56 Core Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S6980-128DC 128-Port 200GE Data Center Core Switch
- Comparison with Similar Models
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Ruijie RG-S6980-128DC is a fixed-configuration, 4 RU core switch engineered for the most demanding next-generation data center environments such as AI/ML, HPC, and large-scale DCI.
It provides 128 × 200 GE QSFP56 ports in a non-blocking fabric delivering 51.2 Tbps of aggregate bandwidth and 10 300 Mpps line-rate forwarding, ensuring massive performance headroom.
Built for carrier-class reliability, the RG-S6980-128DC supports 4 hot-swappable power module slots (2+2 redundancy) and 8 hot-swappable fan module slots (7+1 redundancy), with sub-second failover to maintain uninterrupted service.
For lossless, low-latency fabrics—critical in RDMA/DCI scenarios—it implements Priority-Based Flow Control (PFC), Explicit Congestion Notification (ECN), and advanced MMU buffering to eliminate packet loss.
Overview
Highlights
-
High-Density Port Configuration: 128 × 200GE QSFP56 ports in a 4RU chassis, supporting up to 51.2 Tbps switching capacity.
-
Advanced Architecture: Clos orthogonal design delivers non-blocking forwarding and high-speed transmission without packet loss.
-
Lossless Ethernet: Supports RDMA, PFC, and ECN technologies for zero packet loss and low-latency data transmission.
-
Robust Redundancy: 2+2 hot-swappable power modules and 7+1 hot-swappable fan modules ensure continuous operation and service reliability.
-
Telemetry-Based Monitoring: Real-time network monitoring with sub-second granularity for efficient management.
-
Comprehensive Protocol Support: Supports IPv4/IPv6 dual-stack, BGP, OSPF, IS-IS, RIP, and various tunneling technologies.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6980-128DC:
| Product Name | Category | Description |
| PSA1300CRPS-F-RJ | Power Supply Module |
1300W AC/HVDC power supply module, supporting 2+2 redundancy for uninterrupted power. |
| FAN12K8080-F-RJ | Fan Module |
High-efficiency fan module with intelligent speed adjustment for optimal cooling. |
| 200GE QSFP56 Optical Modules | Optical Transceivers |
Support long-distance interconnection, ideal for data center interconnect (DCI) scenarios. |
| Model | Port Configuration | Switching Capacity | Packet Forwarding Rate |
|---|---|---|---|
| RG-S6980-128DC | 128 × 200 GE QSFP56 | 51.2 Tbps | 10300 Mpps |
| RG-S6980-64QC | 64 × 400 GE QSFP-DD | 51.2 Tbps | 10300 Mpps |
| RG-S6580-24DC8QC | 24 × 200 GE QSFP56 + 8 × 400 GE QSFP-DD | 16.0 Tbps | 5350 Mpps |
| RG-S6510-48VS8CQ | 48 × 25 GE SFP28 + 8 × 100 GE QSFP28 | 4.0 Tbps | 2000 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S6980-128DC |
| Ports | 128 × 200GE QSFP56 |
| Switching Capacity | 51.2 Tbps |
| Packet Forwarding Rate | 10,300 Mpps |
| Buffer Capacity | 113.66 MB |
| VLANs | 4,094 |
| Routing Entries | IPv4: 1,000K; IPv6: 640K |
| Management Ports | 1 × Management, 1 × Console, 1 × USB 2.0 |
| Power Module Slots | 4 (supporting 2+2 redundancy) |
| Fan Module Slots | 8 (supporting 7+1 redundancy) |
| Dimensions (W × D × H) | 442 mm × 760 mm × 175 mm (17.40 in. × 29.92 in. × 6.89 in., 4 RU) |
| Weight | Approximately 39.65 kg (including fan and power modules) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Altitude | Operating: up to 5,000 m (16,404 ft.) |
| MTBF | ≥ 200,000 hours |
