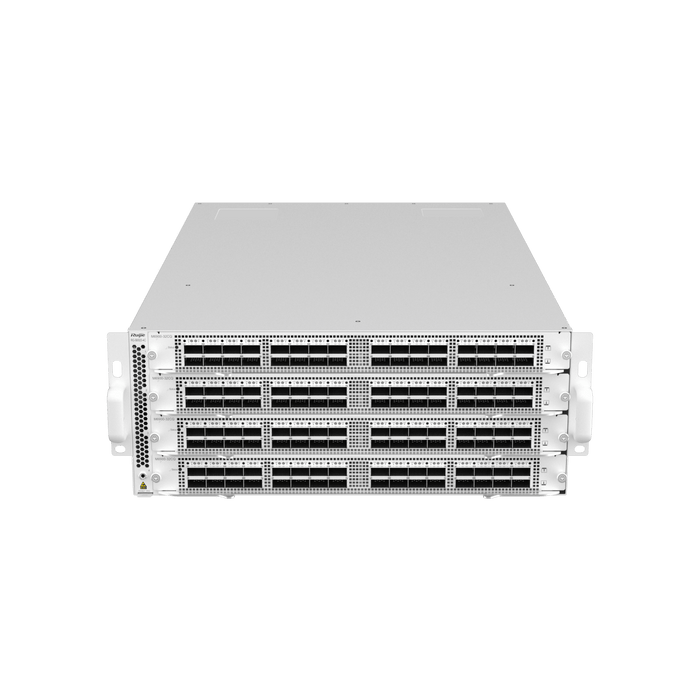

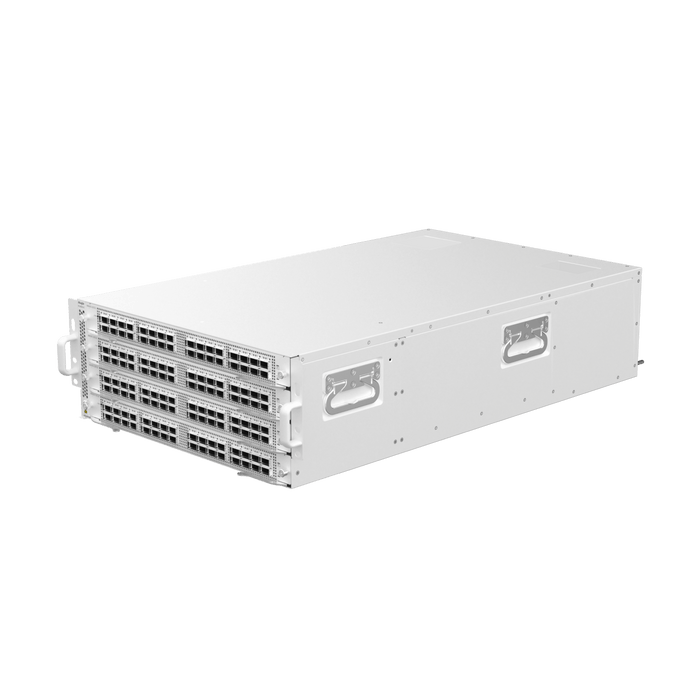

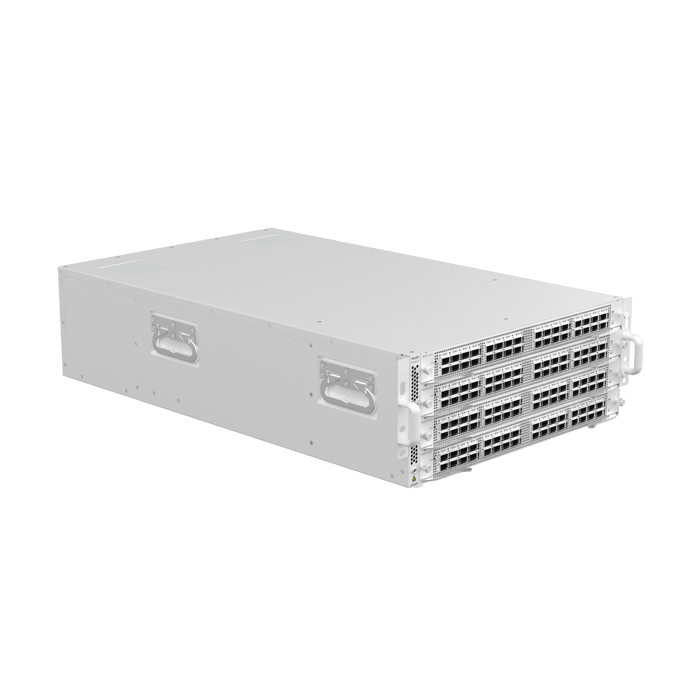

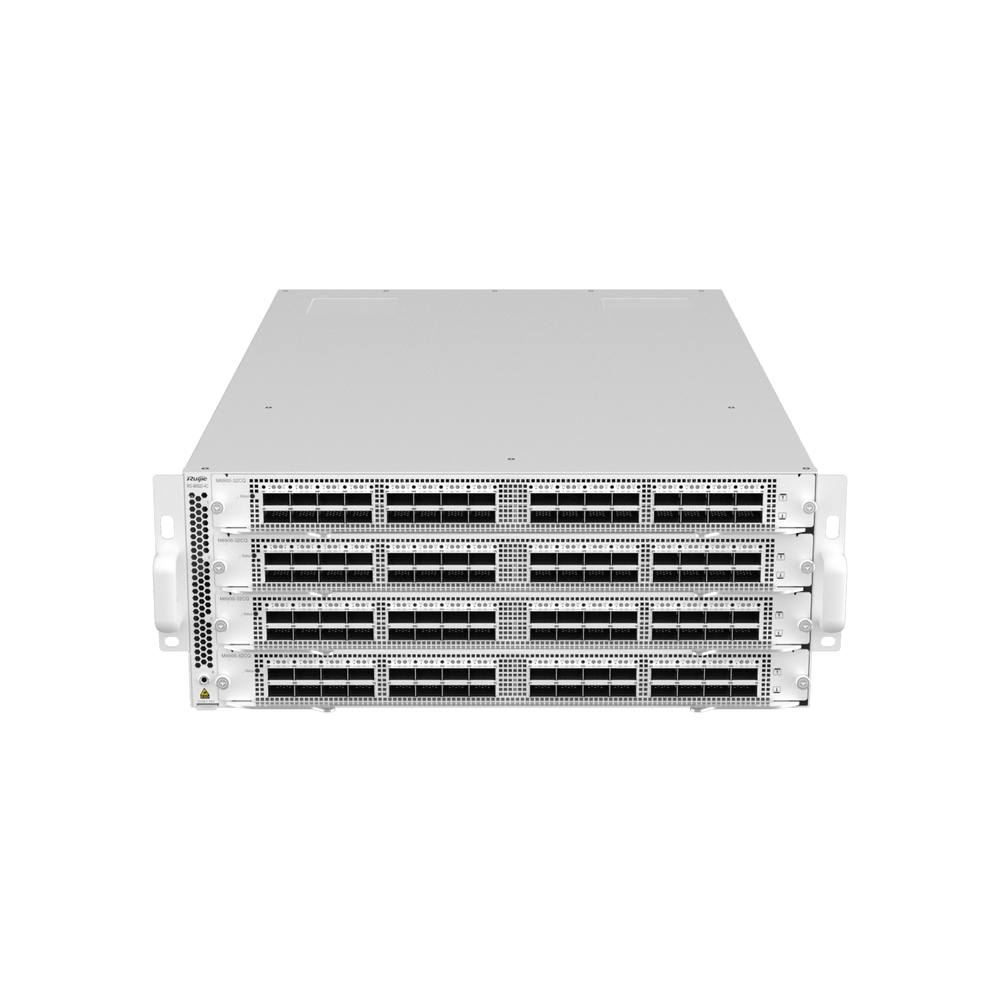

Ruijie RG-S6920-4C 4RU 4-Slot Up to 128×100G Modular Switch(Chassis)
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S6920-4C Modular Data Center Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Ruijie RG-S6920-4C is a next-generation, 4 RU modular core switch engineered for AI/ML, high-performance computing, and distributed storage in modern data centers. It supports up to 128 × 100 GE QSFP28 ports or a mix of 64 × 100 GE QSFP28 + 16 × 400 GE QSFP-DD ports, delivering massive density in a single chassis.
Designed for lossless, low-latency fabrics, it leverages PFC, ECN, and MMU-based buffering for RDMA and other delay-sensitive workloads, and offers hardware-level reliability with 2+2 hot-swappable power modules and 5+1 hot-swappable fan modules.
Overview
Highlights
-
High-Density Port Configuration: Supports up to 128 × 100GE or 32 × 400GE QSFP-DD ports, providing flexibility for diverse networking requirements.
-
Advanced Architecture: Employs a Clos orthogonal design, delivering non-blocking forwarding and high-speed transmission without packet loss.
-
Lossless Ethernet: Supports RDMA, PFC, and ECN technologies for zero packet loss and low-latency data transmission.
-
Robust Redundancy: Features 2+2 hot-swappable power modules and 5+1 hot-swappable fan modules, ensuring continuous operation and service reliability.
-
Telemetry-Based Monitoring: Provides real-time network monitoring with sub-second granularity, enhancing management efficiency.
-
Comprehensive Protocol Support: Supports IPv4/IPv6 dual-stack, BGP, OSPF, IS-IS, RIP, and various tunneling technologies.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6920-4C:
| Product Model | Category | Description |
| M6900-32CQ | Line Card Module |
Provides 32 × 100GE QSFP28 ports, supporting high-density 100GE connectivity. |
| M6900-16CQ4QC | Line Card Module |
Offers 16 × 100GE QSFP28 and 4 × 400GE QSFP-DD ports for mixed-speed deployments. |
| M6900-08QC | Line Card Module |
Delivers 8 × 400GE QSFP-DD ports, ideal for ultra-high-speed core connections. |
| RG-PA1200I-F | Power Supply Module |
1200W AC/HVDC power supply module, supporting 2+2 redundancy and hot-swapping. |
| M2EFAN I-F | Fan Module |
High-efficiency fan module with 5+1 redundancy and intelligent speed adjustment. |
| 400G-QDD-DR4-SM1310 | Optical Transceiver |
400G DR4 module, QSFP-DD form factor, MPO-12 APC, 1310 nm, 500 m over SMF. |
| 400G-QDD-FR4-SM1310 | Optical Transceiver |
400G FR4 module, QSFP-DD form factor, Duplex LC, 1310 nm, 2 km over SMF. |
| 400G-QDD-SR8-MM850 | Optical Transceiver |
400G SR8 module, QSFP-DD form factor, MPO-16 APC, 850 nm, 100 m over MMF. |
Comparison with Similar Models
| Model | Port Configuration | Switching Capacity | Packet Forwarding Rate |
|---|---|---|---|
| RG-S6920-4C | 128 × 100 GE or 64 × 100 GE + 16 × 400 GE | 25.6 Tbps | 8000 Mpps |
| RG-S6930-2C | 144 × 100 GE or 72 × 200 GE | 28.8 Tbps | 5400 Mpps |
| RG-S6980-64QC | 64 × 400 GE QSFP-DD | 51.2 Tbps | 10300 Mpps |
| RG-S6580-48CQ8QC | 48 × 100 GE DSFP + 8 × 400 GE QSFP-DD | 16.0 Tbps | 5350 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S6920-4C |
| Service Slots | 4 |
| Switching Capacity | 25.6 Tbps |
| Packet Forwarding Rate | 8,000 Mpps |
| Port Configurations | Up to 128 × 100GE or 32 × 400GE QSFP-DD ports |
| Power Module Slots | 4 (supporting 2+2 redundancy) |
| Fan Module Slots | 6 (supporting 5+1 redundancy) |
| Management Ports | 1 × Management, 1 × Console, 1 × USB 2.0 |
| Dimensions (W × D × H) | 442 mm × 735 mm × 173.6 mm (17.40 in. × 28.94 in. × 6.83 in., 4 RU) |
| Weight | Approximately 34.25 kg (including all modules) |
| Power Supply | AC 100–240V or HVDC 180–300V |
| Maximum Power Consumption | Max: 1,950 W; Typical: 1,469 W; Static: 516 W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Altitude | Operating: up to 5,000 m (16,404 ft.) |
| MTBF | ≥ 200,000 hours |
