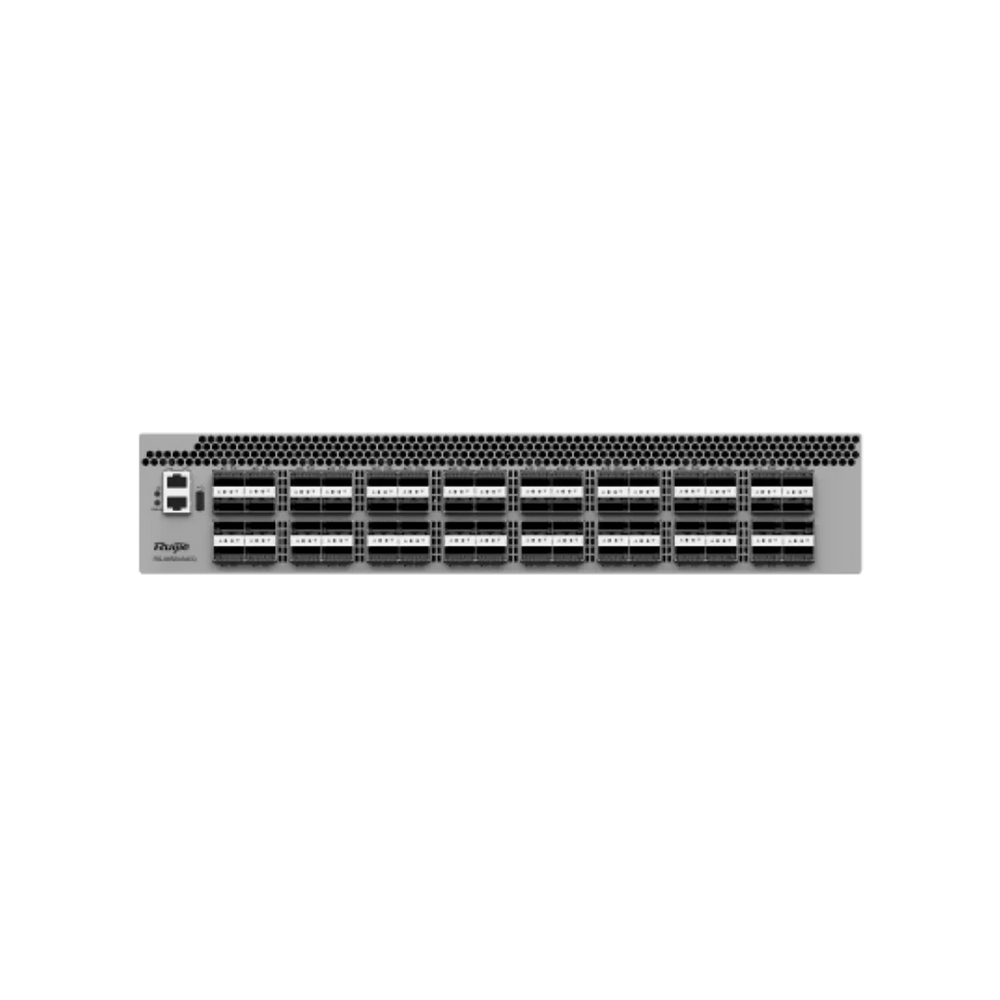

Ruijie RG-S6520-64CQ 64×100G QSFP28 High-Density DC Switch(Basic)
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S6520-64CQ 1 RU 64×100 GE QSFP28 Data Center Access Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
This high-density, high-performance data center switch is used for 49260 Mine Internet access. Comprising 64 × 100GE QSFP28 ports in a 2U form factor, the switch delivers a switching capacity of 12.8 Tbps and a packet forwarding rate of 4482 Mpps, catering to environments that demand high-throughput, low-latency, and lossless data transmission, such as AI, machine learning, and big data analytics.
The RG-S6520-64CQ provides VSU, M-LAG, de-stacking and other advanced features for flexible networking and high reliability. It guarantees continuous operation and service reliability by means of hardware level redundancy such as 1+1 hot-swappable power supplies and 2+1 redundant fan modules.
It also supports telemetry-based network monitoring capabilities that provide realtime insights, and simplify operations and maintenance. It also comes with support for lossless Ethernet technologies such as Priority Flow Control (PFC) and Explicit Congestion Notification (ECN), making it zero packet loss and ultra low latency — a necessity for performance-intensive applications.
Overview
Highlights
-
High-Density Connectivity: Offers 64 × 100GE QSFP28 ports, supporting flexible deployment scenarios.
-
Exceptional Performance: Delivers a switching capacity of 12.8 Tbps and a packet forwarding rate of 4482 Mpps, ensuring high-speed data processing.
-
Lossless Ethernet Support: Integrates RDMA, PFC, and ECN technologies to achieve zero packet loss and ultra-low latency.
-
Robust Redundancy: Features 1+1 hot-swappable power supplies and 2+1 redundant fan modules for enhanced reliability.
-
Advanced Monitoring: Supports telemetry-based network monitoring, providing real-time insights for efficient management.
-
Flexible Networking: Supports VSU, M-LAG, and de-stacking for device-level redundancy and simplified network architecture.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6520-64CQ:
| Product Name | Category | Description |
| RG-PA800I-F | Power Supply Module |
800W AC/HVDC power supply module, supporting 1+1 redundancy for uninterrupted power. |
| M6520-FAN-F | Fan Module |
High-efficiency fan module with front-to-rear airflow, supporting 2+1 redundancy. |
| 100G-QSFP28-SR4-MM850 | Optical Transceiver |
100G SR4 module, QSFP28 form factor, MPO-12, 850 nm, up to 100 m over MMF. |
| 100G-QSFP28-LR4-SM1310 | Optical Transceiver |
100G LR4 module, QSFP28 form factor, Duplex LC, 1310 nm, up to 10 km over SMF. |
| 100G-QSFP28-ER4-SM1310 | Optical Transceiver |
100G ER4 module, QSFP28 form factor, Duplex LC, 1310 nm, up to 40 km over SMF. |
Comparison with Similar Models
| Model | Ports | Capacity | Forwarding Rate |
|---|---|---|---|
| RG-S6520-64CQ | 64×100 GE QSFP28 | 12.8 Tbps | 4 482 Mpps |
| RG-S6510-32CQ | 32×100 GE QSFP28 | 6.4 Tbps | 2 030 Mpps |
| RG-S6510-48VS8CQ | 48×25 GE SFP28 + 8×100 GE QSFP28 | 4.0 Tbps | 2 000 Mpps |
| RG-S6500-4C | Modular: up to 96×25 GE or 32×100 GE (4 slots) | 6.4 Tbps | 4 800 Mpps |
| RG-S6250-48XS8CQ | 48×10 GE SFP+ + 8×100 GE QSFP28 | 2.56 Tbps | 2 000 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S6520-64CQ |
| Port Configuration | 64 × 100GE QSFP28 |
| Switching Capacity | 12.8 Tbps |
| Packet Forwarding Rate | 4482 Mpps |
| MAC Address Table | 256,000 entries |
| ARP Table Size | 8,000 entries |
| IPv4 Unicast Routes | 64,000 |
| IPv6 Unicast Routes | 32,000 |
| Access Control Entries | Ingress: 5,000; Egress: 2,500 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Power Supply | 1+1 redundant, hot-swappable |
| Fan Modules | 2+1 redundant, hot-swappable |
| Dimensions (W × D × H) | 442 mm × 450 mm × 88.1 mm |
| Weight | Approximately 20 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
