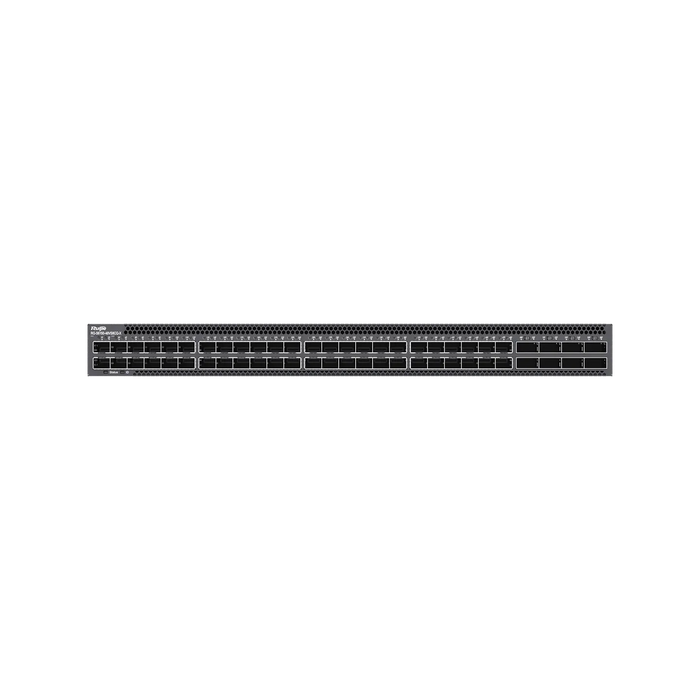

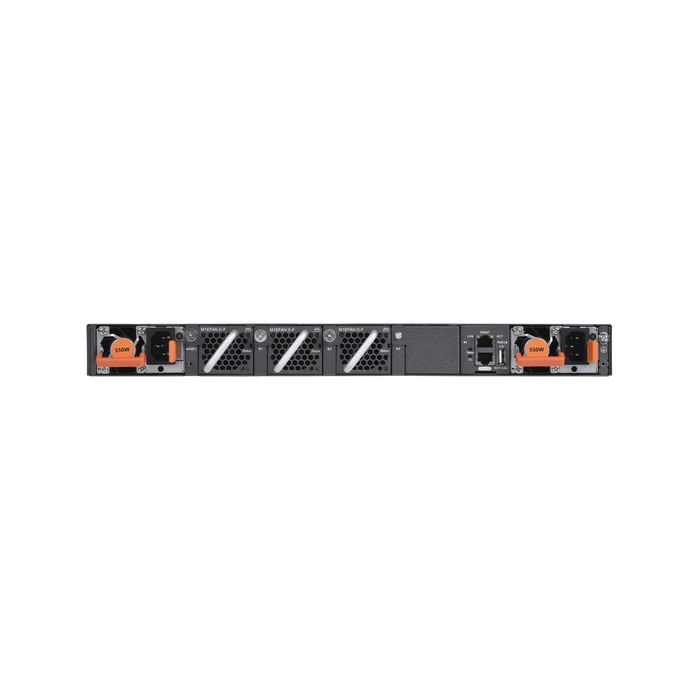

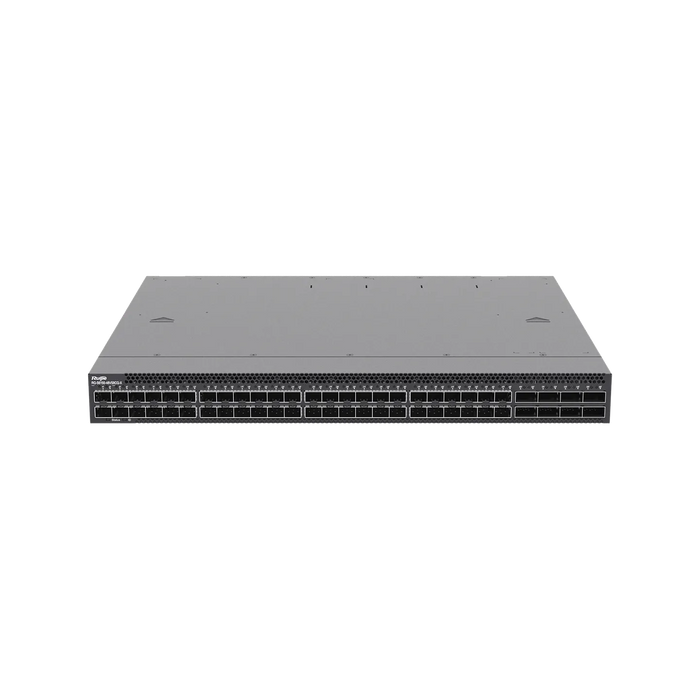

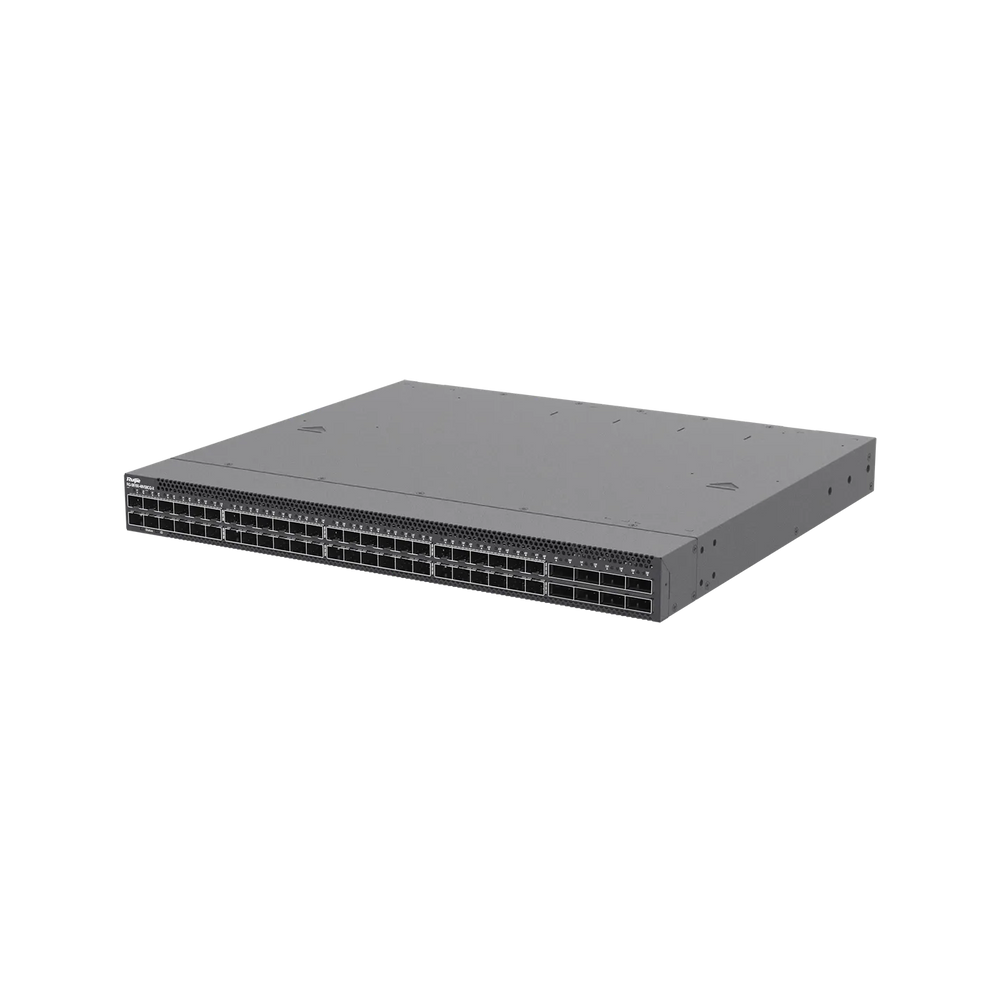

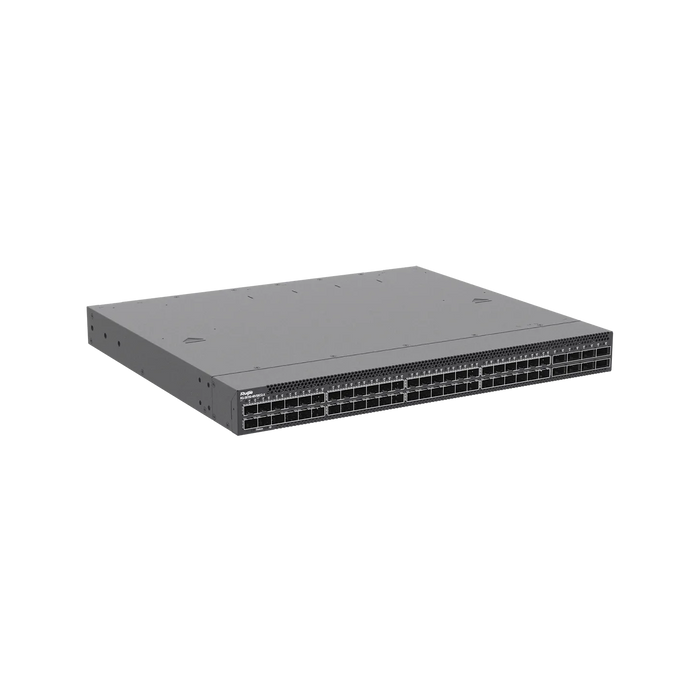

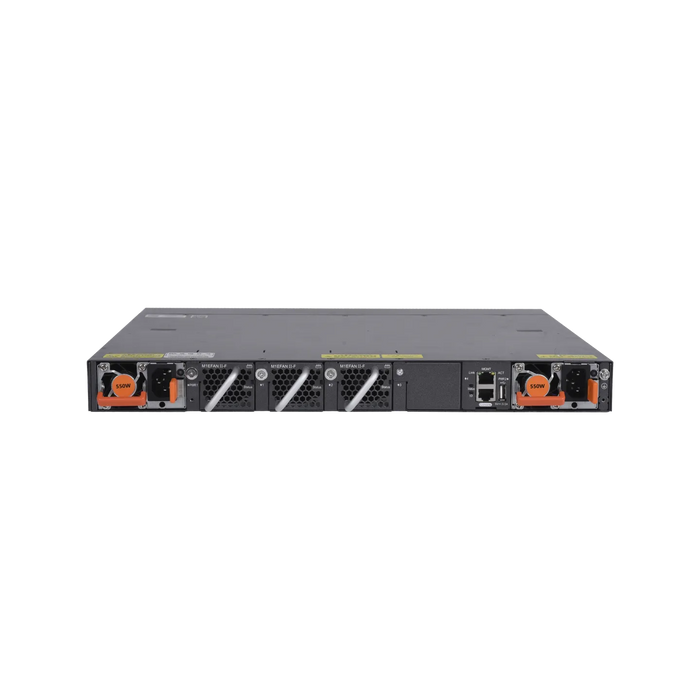

Ruijie RG-S6150-48VS8CQ-X 48×25G All-Optical, 8×100G Uplinks
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S6150-48VS8CQ-X 1 RU 48-Port 25 GE All-Optical Core & Aggregation Switch, 100 GE Uplink
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Ruijie RG-S6150-48VS8CQ-X is a high-performance, all-optical Layer 3 managed core and aggregation switch designed for modern campus and enterprise networks. Equipped with 48 × 10G/25G SFP28 ports and 8 × 40G/100G QSFP28 uplink ports, it offers flexible and scalable connectivity options.
The switch supports advanced features such as Virtual Switch Unit (VSU) virtualization, comprehensive Layer 3 routing protocols, and robust security policies, making it ideal for small to medium-sized network cores or as an aggregation switch in larger networks.
Overview
Highlights
-
High-Density Port Configuration: Provides 48 × 10G/25G SFP28 ports and 8 × 40G/100G QSFP28 uplink ports, supporting flexible deployment options.
-
VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
-
Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
-
Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
-
High Reliability: Features hot-swappable power and fan modules with redundancy, ensuring continuous operation and service reliability.
-
Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S6150-48VS8CQ-X:
| Product Model | Category | Description |
| RG-PA550I-F | Power Supply Module |
550W AC/HVDC power supply module, supporting 1+1 redundancy and hot-swapping. |
| RG-PD800I-F | Power Supply Module |
800W LVDC power supply module, supporting 1+1 redundancy and hot-swapping. |
| M1EFAN II-F | Fan Module |
High-efficiency fan module with 3+1 redundancy, supporting hot-swapping and front-to-rear airflow. |
| 100G-QSFP28-SR4 | Optical Transceiver |
100GE SR4 module, QSFP28 form factor, MPO connector, 850 nm, up to 100 m over OM4 MMF. |
| 100G-QSFP28-LR4 | Optical Transceiver |
100GE LR4 module, QSFP28 form factor, LC connector, 1310 nm, up to 10 km over SMF. |
| 25G-SFP28-SR | Optical Transceiver |
25GE SR module, SFP28 form factor, LC connector, 850 nm, up to 100 m over OM4 MMF. |
| 25G-SFP28-LR | Optical Transceiver |
25GE LR module, SFP28 form factor, LC connector, 1310 nm, up to 10 km over SMF. |
Comparison with Similar Models
| Model | Service Ports | Uplink Ports | Switching Capacity |
|---|---|---|---|
| RG-S6150-24VS8CQ-X | 24×1/10/25 GE SFP28 | 8×40/100 GE QSFP28 | 2.8 Tbps |
| RG-S6150-48VS8CQ-X | 48×1/10/25 GE SFP28 | 8×40/100 GE QSFP28 | 4.0 Tbps |
Specifications
| Parameter | Specification |
| Model | RG-S6150-48VS8CQ-X |
| Service Ports | 48 × 10G/25G SFP28 |
| Uplink Ports | 8 × 40G/100G QSFP28 |
| Switching Capacity | 4 Tbps |
| Packet Forwarding Rate | 2800 Mpps |
| Power Module Slots | 2 (supporting 1+1 redundancy) |
| Fan Module Slots | 4 (supporting 3+1 redundancy) |
| Management Ports | 1 × Management, 1 × Console, 1 × USB 2.0 |
| Dimensions (W × D × H) | 442 mm × 387 mm × 44 mm (17.40 in. × 15.24 in. × 1.73 in., 1 RU) |
| Weight | Approximately 10 kg (including all modules) |
| Power Supply | AC 100–240V, HVDC 192–288V, LVDC –42V to –72V |
| Maximum Power Consumption | < 300 W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
