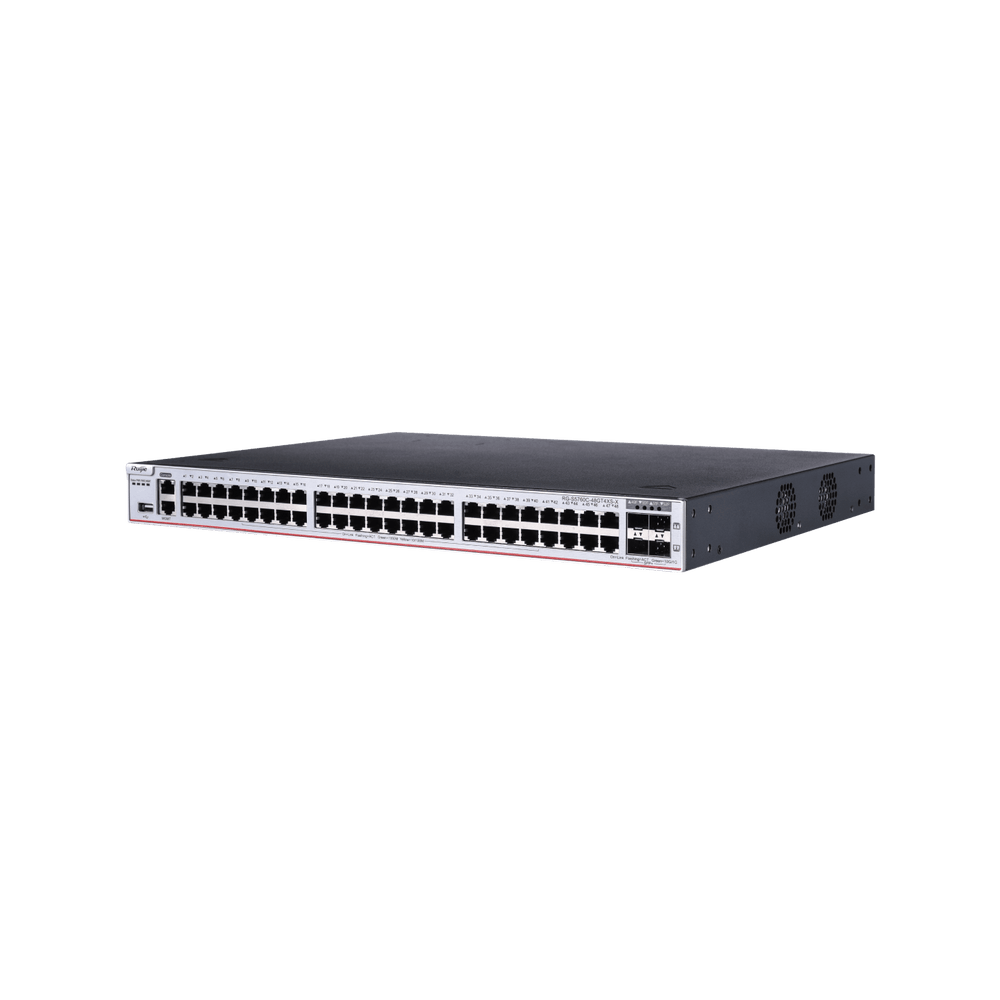

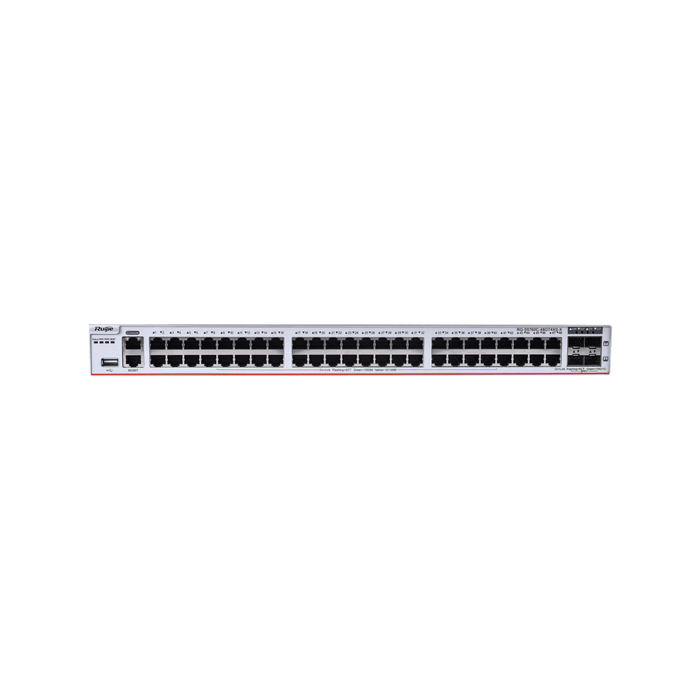

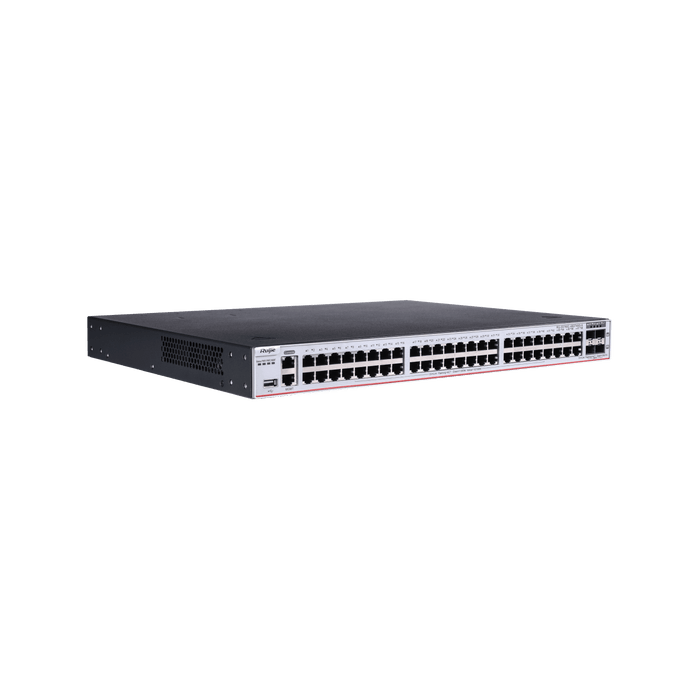

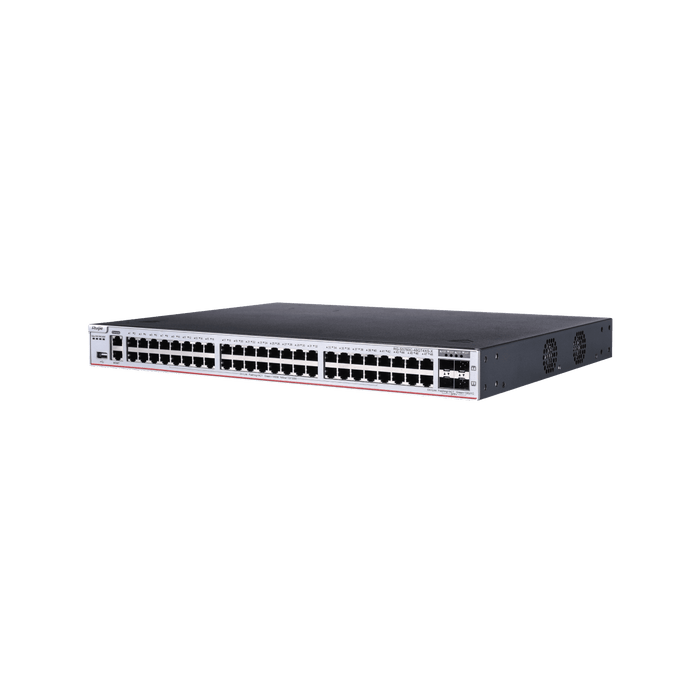

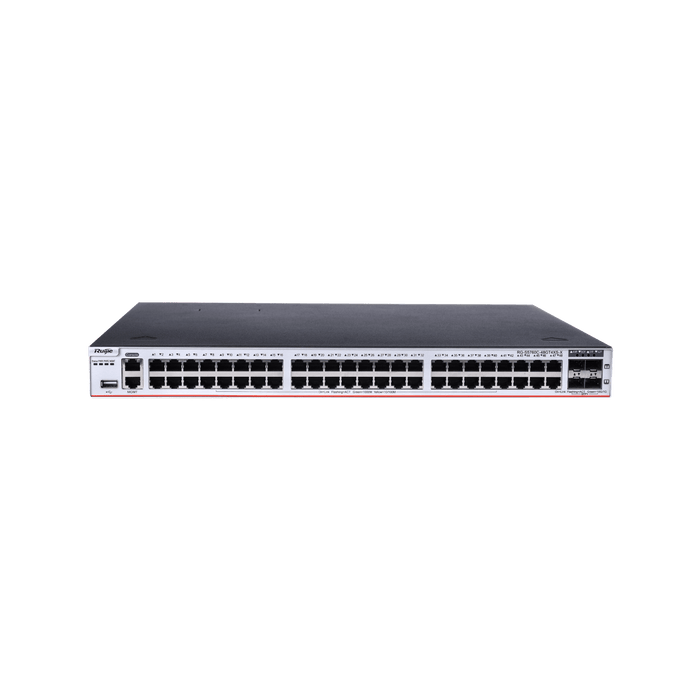

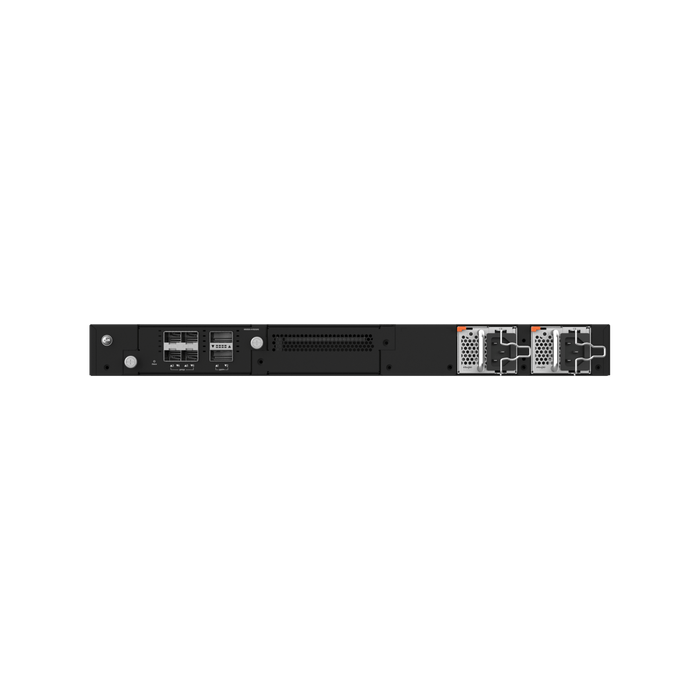

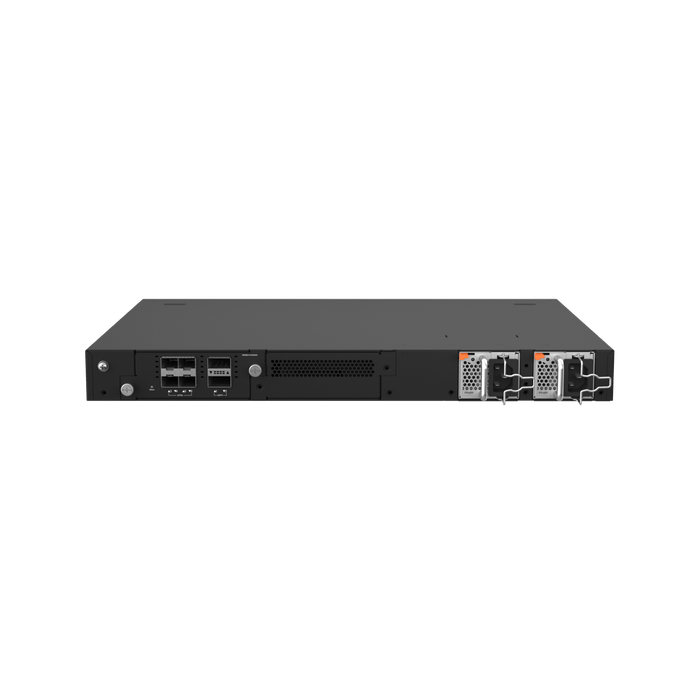

Ruijie RG-S5760C-48GT4XS-X 48×GE & 4×10G SFP+ Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S5760C-48GT4XS-X 48-Port Layer 3 Core/Aggregation Switch, 4×10 GE Uplink
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
A Layer 3 managed switch for enterprise campus networks, Ruijie RG-S5760C-48GT4XS-X features high-performance networking capabilities.
48 × 10/100/1000BASE-T ports and 4 × 1GE/10GE SFP+ uplink ports make it a flexible and scalable switch. Equipped with advanced capabilities like VSU, high-performance layer 3 routing protocols, and security policies, the switch is perfectly suited for aggregation layers in midscale to large networks.
Overview
Highlights
-
High-Density Port Configuration: Provides 48 × 10/100/1000BASE-T ports and 4 × 1GE/10GE SFP+ uplink ports, supporting flexible deployment options.
-
VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
-
Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
-
Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
-
High Reliability: Features hot-swappable power modules with redundancy, ensuring continuous operation and service reliability.
-
Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5760C-48GT4XS-X:
| Product Model | Category | Description |
| RG-PA150IB-F | Power Supply Module | 150W AC power supply module, supporting hot-swapping and redundancy. |
| RG-PD150IB-F | Power Supply Module | 150W DC power supply module, supporting hot-swapping and redundancy. |
| M5000X-4XS2CQ | Expansion Module | 4 × 10GE SFP+ ports and 2 × 100GE QSFP28 ports, enhancing uplink capacity. |
| XG-SFP-SR-MM850 | Optical Transceiver | 10GE SR module, SFP+ form factor, LC connector, 850 nm, up to 300 m over OM3 MMF. |
| XG-SFP-LR-SM1310 | Optical Transceiver | 10GE LR module, SFP+ form factor, LC connector, 1310 nm, up to 10 km over SMF. |
Comparison with Similar Models
| Model | Fixed + Uplink Ports | Switching Capacity | Packet Forwarding Rate |
|---|---|---|---|
| RG-S5760C-24GT8XS-X | 24 × 10/100/1000 BASE-T + 8 × 1/10 GE SFP+ | 826 Gbps | 614 Mpps |
| RG-S5760C-48GT4XS-X | 48 × 10/100/1000 BASE-T + 4 × 1/10 GE SFP+ | 826 Gbps | 614 Mpps |
| RG-S5760C-48SFP4XS-X | 48 × 1 GE SFP + 4 × 1/10 GE SFP+ | 787 Gbps | 586 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-S5760C-48GT4XS-X |
| Service Ports | 48 × 10/100/1000BASE-T |
| Uplink Ports | 4 × 1GE/10GE SFP+ |
| Switching Capacity | 880 Gbps |
| Packet Forwarding Rate | 402 Mpps |
| MAC Address Table | 64,000 entries |
| ARP Table Size | 24,000 entries |
| IPv4/IPv6 Unicast Routes | 24,000 entries |
| IPv4/IPv6 Multicast Routes | 4,000 entries |
| Power Module Slots | 2 (supporting 1+1 redundancy) |
| Fan Module Slots | 2 built-in fixed fans |
| Management Ports | 1 × Management, 1 × Console, 1 × USB 2.0 |
| Expansion Slots | 1 × expansion module slot |
| Dimensions (W × D × H) | 440 mm × 340 mm × 44 mm (17.32 in. × 13.39 in. × 1.73 in., 1 RU) |
| Weight | Approximately 4.5 kg (including all modules) |
| Power Supply | AC 100–240V, HVDC 192–288V |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Ruijie RCNP Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your Ruijie products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.
Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.
Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.
Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.
Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.
Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.
Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.
