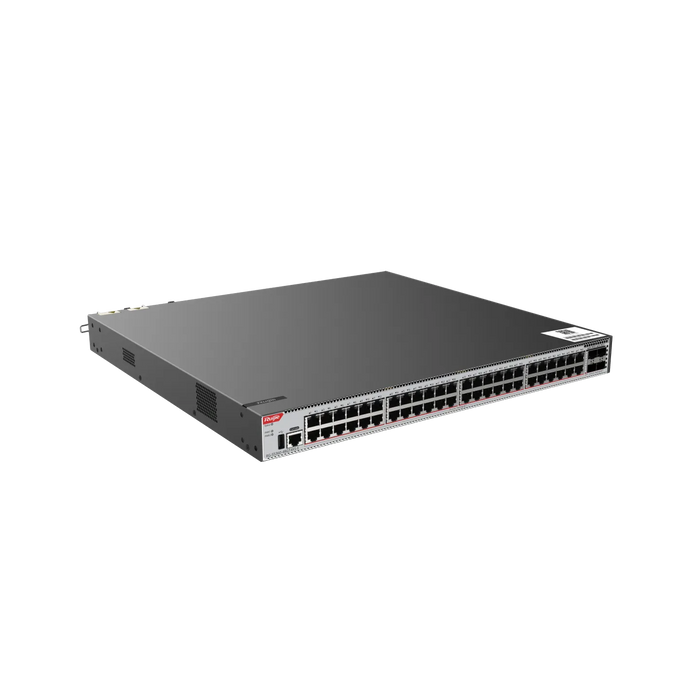

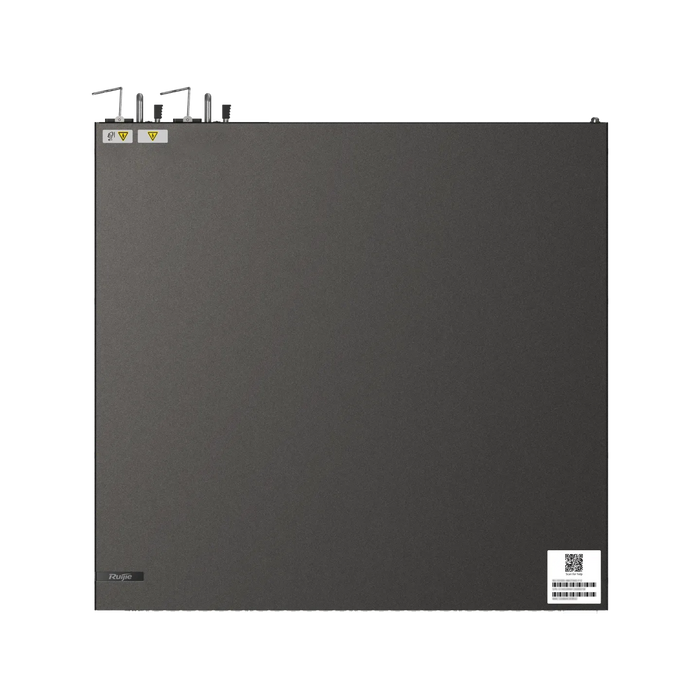

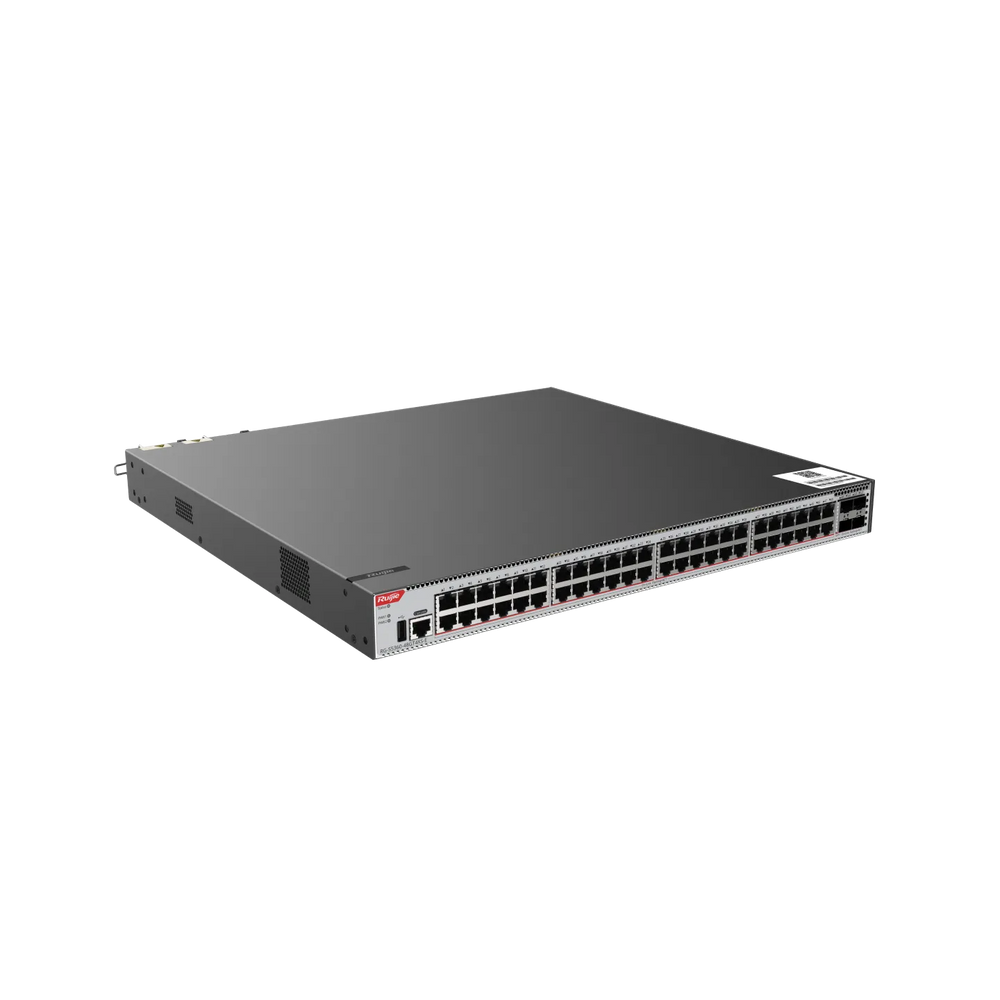

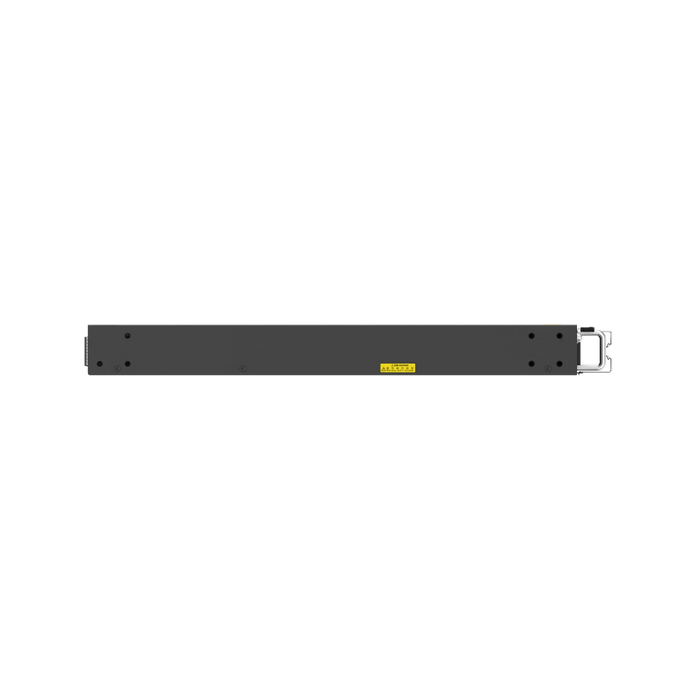

Ruijie RG-S5360-48GT4XS-E Industrial 48×Gigabit & 4×10G SFP+ Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S5360-48GT4XS-E 48-Port GE Layer 3 Managed Access Switch, 4×10 GE SFP+ Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas

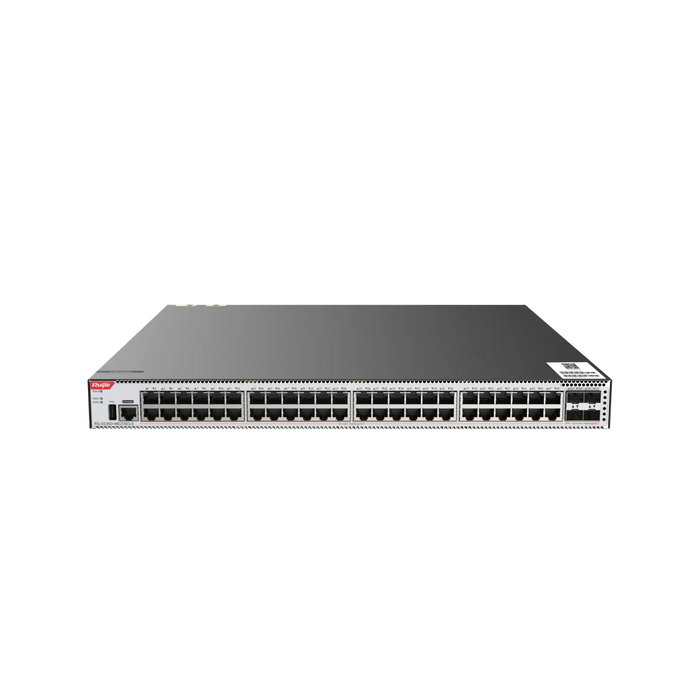

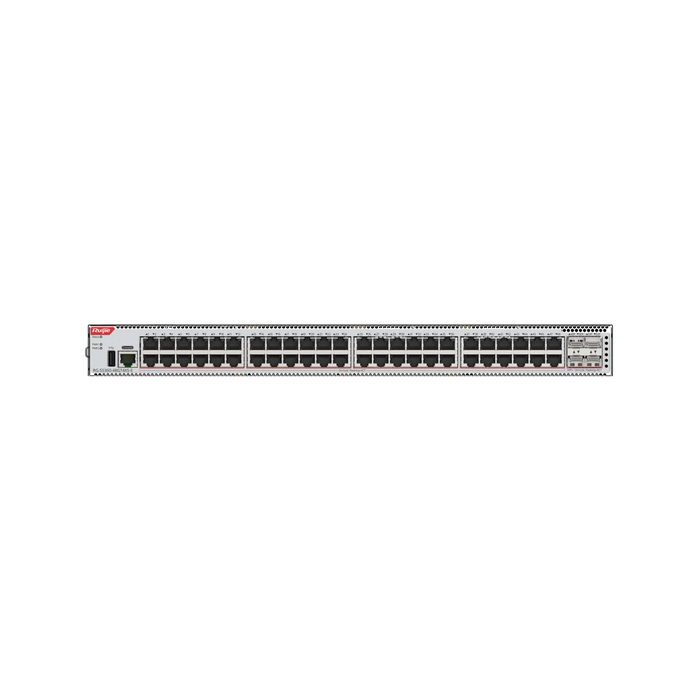

The RG-S5360-48GT4XS-E from Ruijie’s S5360-E Essentials series delivers high-density, high-reliability Layer 3 access for large-scale campus and enterprise networks. It provides 48 auto-sensing Gigabit RJ-45 ports and 4 fixed 10 GE SFP+ uplinks (supporting 1 GE/2.5 GE/10 GE optics).
Built on a dual-core 1.0 GHz CPU with 1 GB DDR4, 512 MB flash, 16 MB BootROM, and a 4 MB packet buffer running RGOS 12.X, it offers 211 Gbps non-blocking capacity and 158 Mpps forwarding.
The fanless, IP 40-rated 1 RU chassis supports two hot-swappable power-module slots (1+1 redundancy), wide-temp operation (–40 °C to +65 °C), 10 kV common-mode surge protection, and integrates with Ruijie INC/Cloud for plug-and-play O&M.
Overview
Highlights
- High Switching Capacity: Featuring a switching capacity of 211 Gbps and a forwarding rate of 158 Mpps, the RG-S5360-48GT4XS-E manages substantial traffic loads effectively, delivering seamless and uninterrupted network performance.
- Versatile connectivity: The switch has 48 Gigabit Ethernet ports and 4 SFP+ uplink ports, providing adaptable connectivity options for various network topologies and needs.
- Advanced Security Features: The RG-S5360-48GT4XS-E supports IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection to safeguard your network against unauthorized access and security threats.
- Key Features SNMP、Web、CLI Have Multiple Management Interface, Easy To Configure, Monitor and Maintain.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5360-48GT4XS-E:
| Product Name | Category | Description |
| Ruijie RG-PA70IB | Power Supply Units |
70W AC power supply module, suitable for industrial switches like the RG-S5360-48GT4XS-E. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| Ruijie RG-PA1000I-P-F | Power Supply Units |
1000W AC power supply module, offering robust power support for large-scale deployments. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5360-48GT4XS-E, facilitating secure rack installation. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Capacity / Forwarding | Power Redundancy |
|---|---|---|---|
| RG-S5360-48GT4XS-E | 48×GE + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | 2× hot-swap PSUs |
| RG-S5360-24GT4XS-E | 24×GE + 4×10 GE SFP+ | 154 Gbps / 115 Mpps | 2× hot-swap PSUs |
| RG-S5360-48GT4XS-P-E | 48×GE PoE+ + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | 1+1 PoE PSUs |
| RG-S5360-48GT4SFP-E | 48×GE + 4×1 GE SFP | 125 Gbps / 94 Mpps | 2× hot-swap PSUs |
Specifications
| Parameter | Specification |
| Model | RG-S5360-48GT4XS-E |
| Port Configuration | 48 x 10/100/1000BASE-T, 4 x 1GE/2.5GE/10GE SFP+ |
| Switching Capacity | 211 Gbps |
| Forwarding Rate | 158 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 4,000 |
| IPv4 Unicast Routes | 6,000 |
| IPv6 Unicast Routes | 2,000 |
| Access Control Entries | Ingress: 1,750; Egress: 800 |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 40 W (without PoE load); 600 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | 3.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
