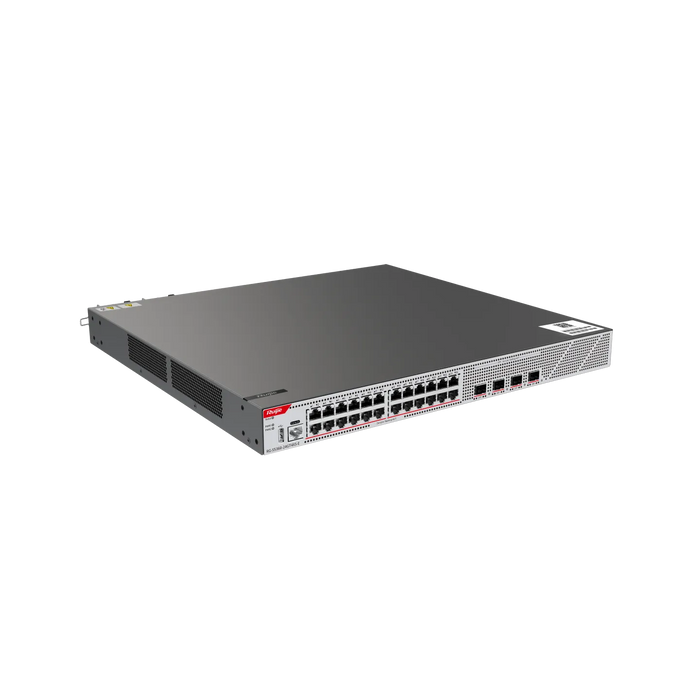

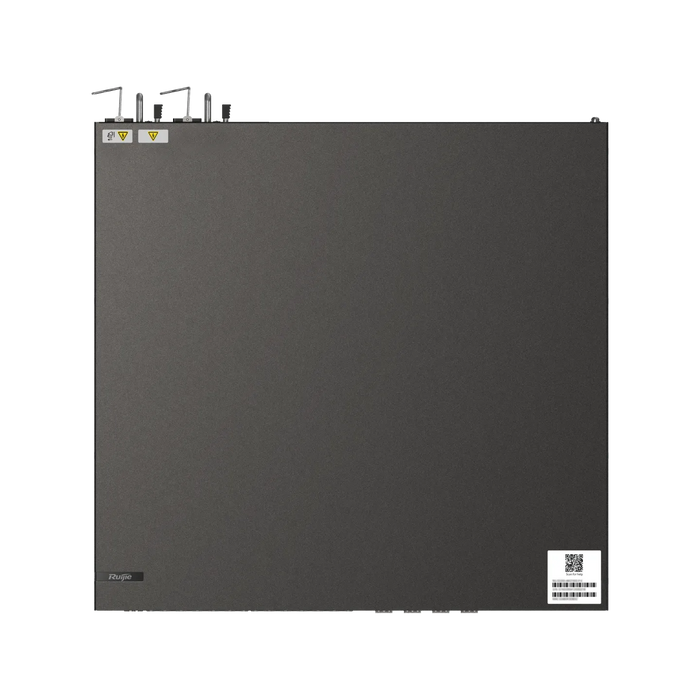

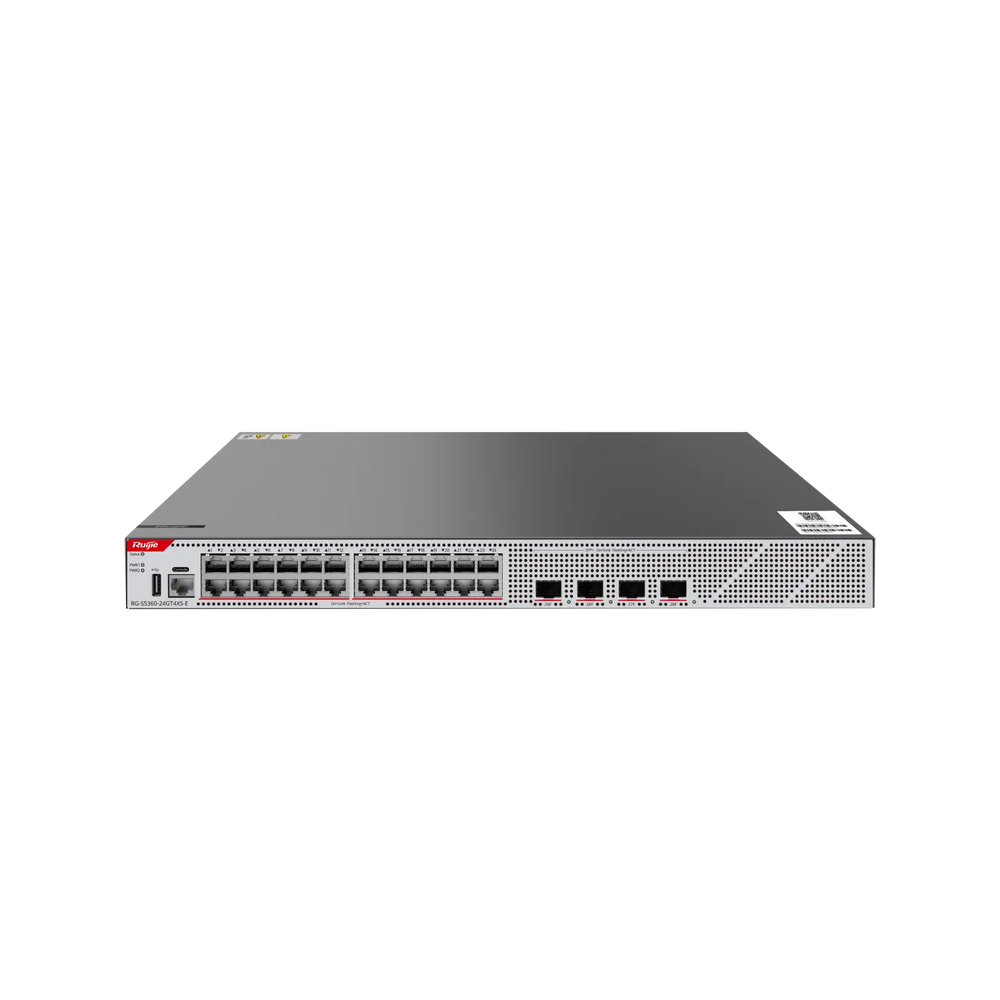

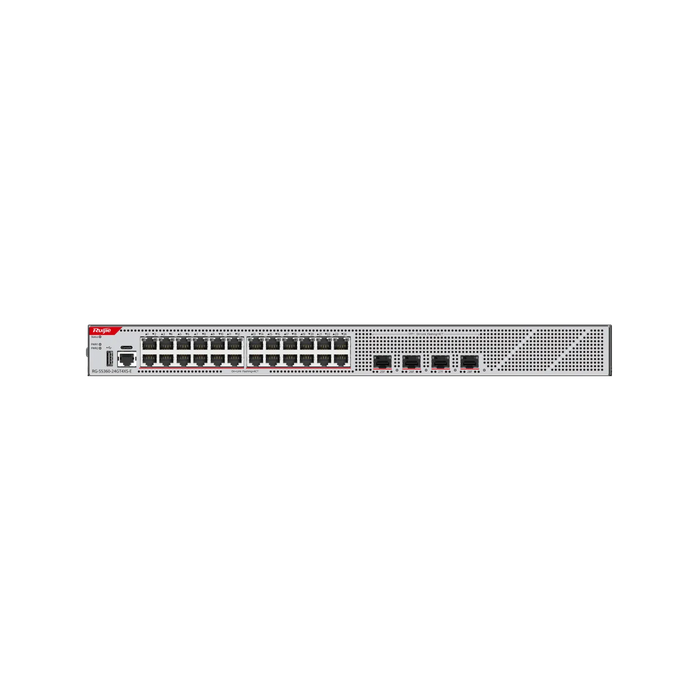

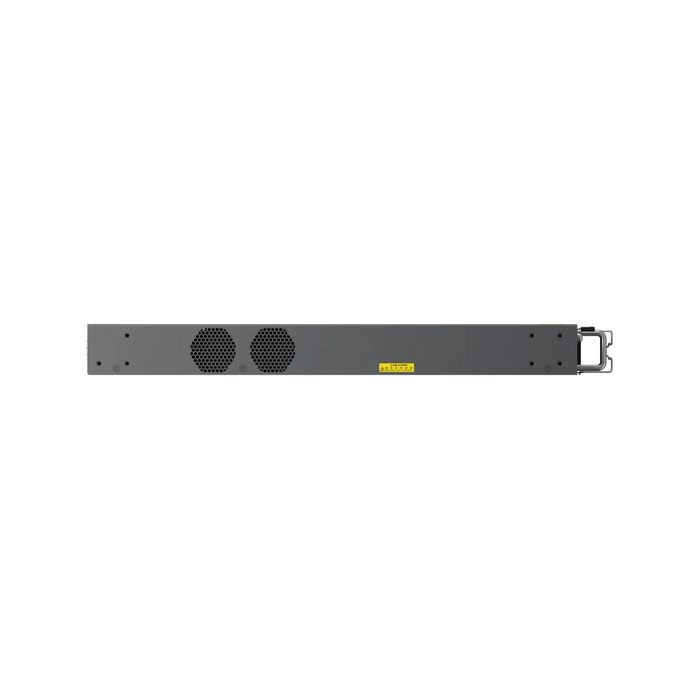

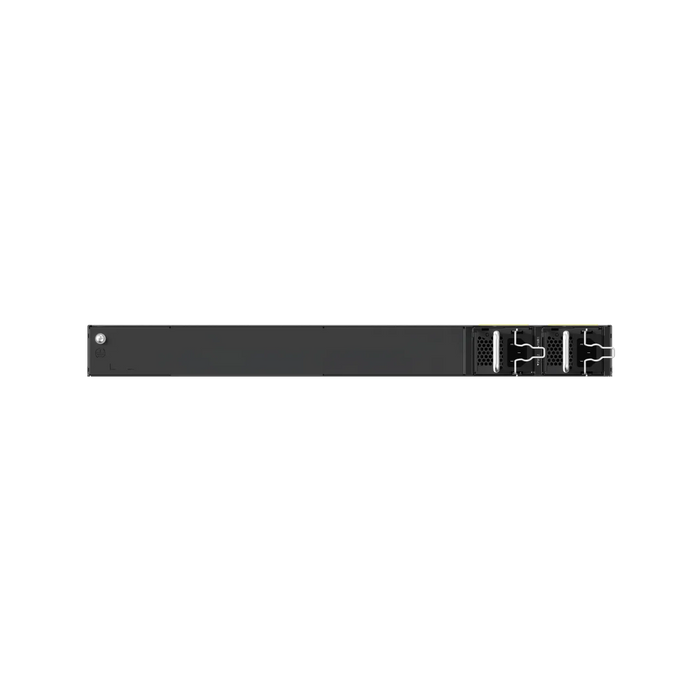

Ruijie RG-S5360-24GT4XS-E Industrial 24×Gigabit & 4×10G SFP+ Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S5360-24GT4XS-E 24-Port GE Layer 3 Access Switch, 4×10 GE SFP+ Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
As a high-performance Layer 3 managed access switch, the Ruijie RG-S5360-24GT4XS-E is suitable for large and medium-sized enterprise and campus networks. This switch features 24 ports of Gigabit Ethernet and 4 ports of SFP+ uplinks, providing excellent connectivity and compatibility. It can handle 154 Gbps switching capacity and 115 million packets per second (Mpps) packet forwarding rate to guarantee effective networking performance even in high load areas.
The RG-S5360-24GT4XS-E is designed for reliability in harsh environments, operating in a temperature range of –40°C to +65°C and supporting diverse deployment environments, including industrial and enterprise scenarios. The switch includes cutting-edge security features like CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) to protect your network. All this is accompanied by a feature-rich selection of management methods, such as SNMP, Web and CLI interfaces that make configuring and monitoring the network a breeze.
Overview
Highlights
- High Switching Capacity: With a switching capacity of 154 Gbps and a forwarding rate of 115 Mpps, the RG-S5360-24GT4XS-E efficiently handles high traffic loads, ensuring smooth and uninterrupted network performance.
- 24 Gigabit Ethernet Ports for Flexibility: With 24 Gigabit Ethernet ports and 4 SFP+ uplink ports, this switch has a lot of flexibility, supporting multiple topologies and requirements.
- Security Features: The RG-S5360-24GT4XS-E provides advanced security features, such as IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection that help safeguard your network against unauthorized access and security threats.
- Multi-Management: Only this switch with multi-management interfaces such as SNMP, Web, and CLI provide a handy way to configure, monitor and maintain the network administrator.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5360-24GT4XS-E:
| Product Name | Category | Description |
| Ruijie RG-PA70IB | Power Supply Units |
70W AC power supply module, suitable for industrial switches like the RG-S5360-24GT4XS-E. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| Ruijie RG-PA1000I-P-F | Power Supply Units |
1000W AC power supply module, offering robust power support for large-scale deployments. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
|
MokerLink 1U Rack Mount Kit |
Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5360-24GT4XS-E, facilitating secure rack installation. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Capacity / Forwarding | Power Redundancy |
|---|---|---|---|
| RG-S5360-24GT4XS-E | 24×GE + 4×10 GE SFP+ | 154 Gbps / 115 Mpps | 2× hot-swap PSUs |
| RG-S5360-48GT4XS-E | 48×GE + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | 2× hot-swap PSUs |
| RG-S5360-24GT4XS-P-E | 24×GE PoE+ + 4×10 GE SFP+ | 154 Gbps / 115 Mpps | 1+1 PoE PSU Redundancy |
Specifications
| Parameter | Specification |
| Model | RG-S5360-24GT4XS-E |
| Port Configuration | 24 x 10/100/1000BASE-T, 4 x 1GE/2.5GE/10GE SFP+ |
| Switching Capacity | 154 Gbps |
| Forwarding Rate | 115 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 4,000 |
| IPv4 Unicast Routes | 6,000 |
| IPv6 Unicast Routes | 2,000 |
| Access Control Entries | Ingress: 1,750; Egress: 800 |
| Operating Temperature | –40°C to +65°C |
| Storage Temperature | –40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 25 W (without PoE load); 30 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | 3.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
