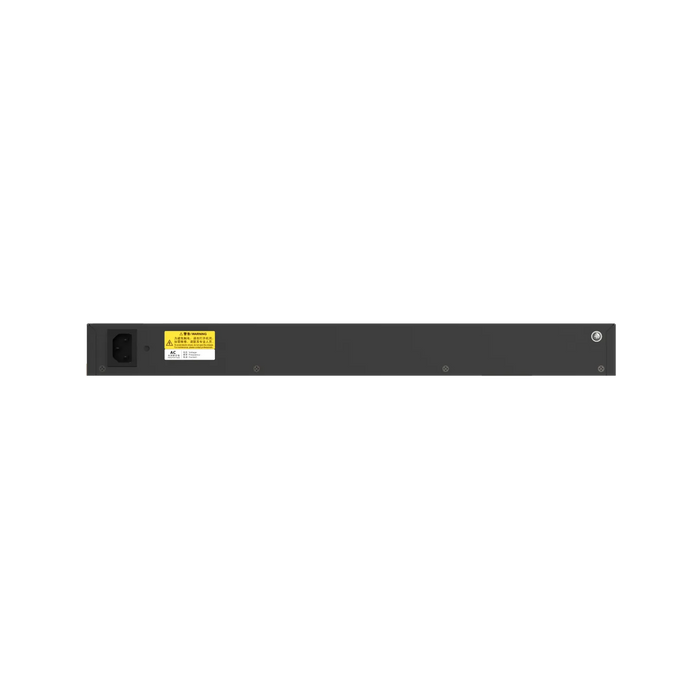

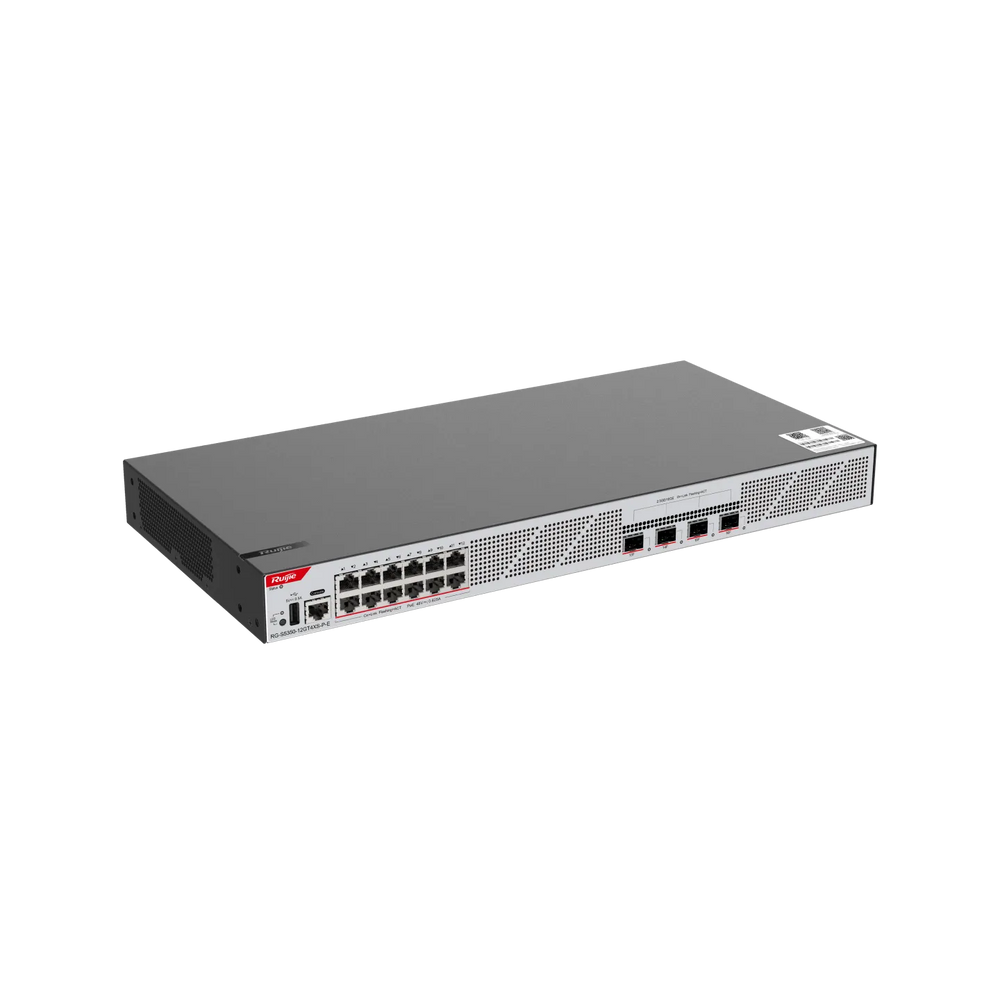

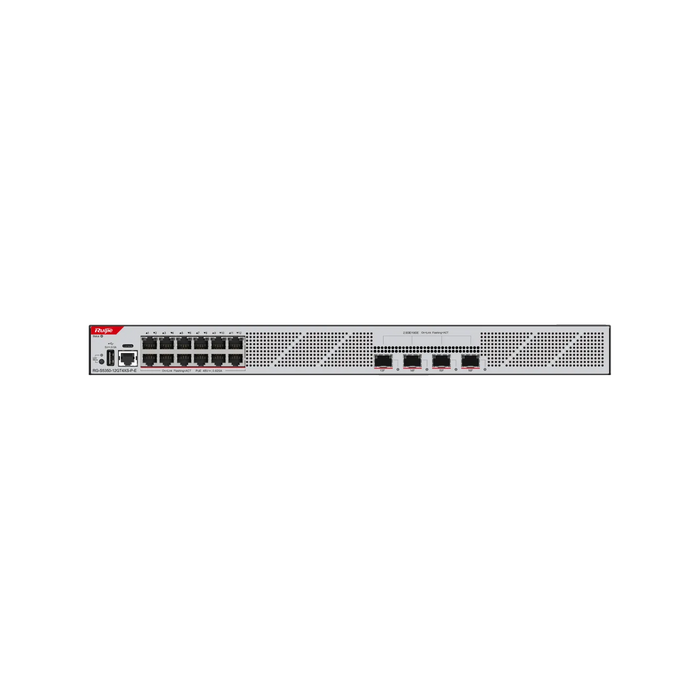

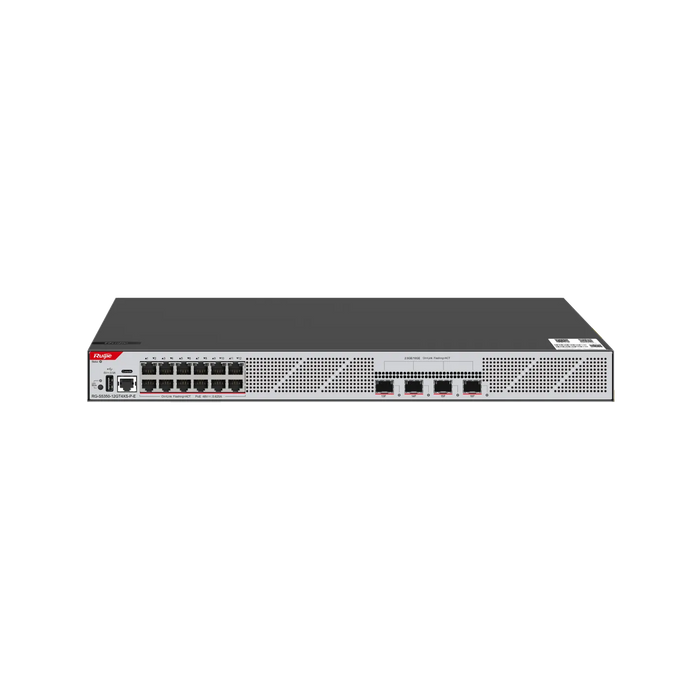

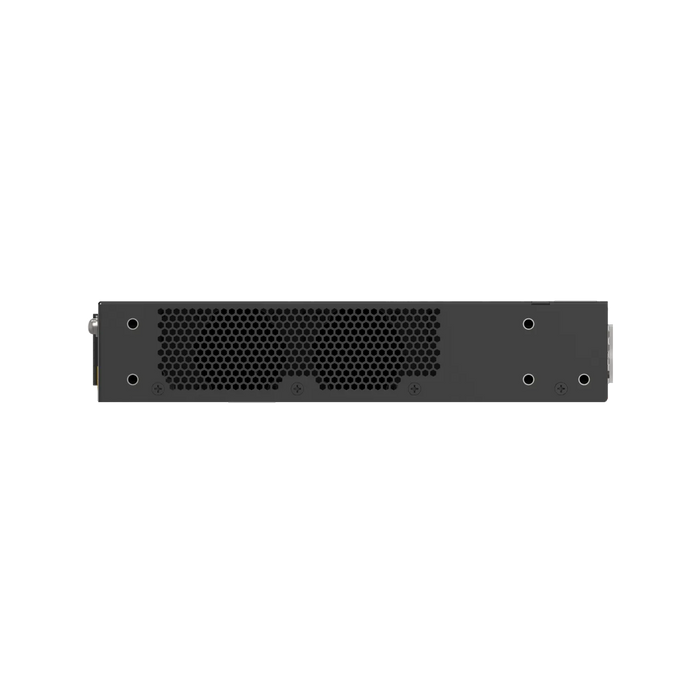

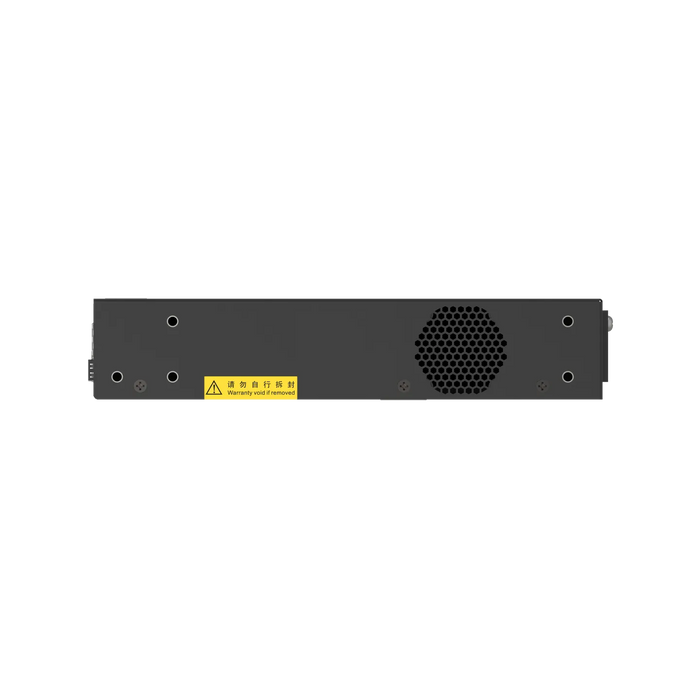

Ruijie RG-S5350-12GT4XS-P-E 12×Gigabit PoE+ & 4×10G SFP+ L2+ Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S5350-12GT4XS-P-E 12-Port GE Layer 3 Managed PoE+ Switch, 4×10 GE SFP+ Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The RG-S5350-12GT4XS-P-E is part of Ruijie’s RG-S5350-E Essentials series, designed for large-sized enterprise and campus networks.
It features 12 auto-negotiating 10/100/1000 BASE-T downlinks with IEEE 802.3af/at PoE+ (up to 30 W/port) and four fixed SFP+ slots supporting 1 GE or 10 GE optics.
Powered by a dual-core 1.0 GHz CPU, 1 GB DDR4 memory, and a 4 MB packet buffer, it delivers 125 Gbps of non-blocking switching capacity and forwards up to 94 Mpps—ideal for voice, video, and data traffic.
Housed in a 1 RU, fanless IP 40 chassis with a fixed AC PSU, it supports VSU virtualization for sub-50 ms failover and integrates hardware CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) for enhanced control-plane stability.
Overview
Highlights
- High Switching Capacity: Supporting up to 125 Gbps switching capacity and 94 Mpps forwarding rate, the RG-S5350-12GT4XS-P-E effectively processes high traffic and guarantees seamless network operation.
- PoE+ Supported: Ports 1-12 support IEEE 802.3af / at PoE / PoE+ power supply, up to 30 W for each port to meet the power supply needs of terminals such as VoIP phones, wireless access points, and IP cameras.
- Scalability and Growth: The RG-S5350-12GT4XS-P-E is designed with an eye towards growth, with options for stacking and power redundancy, allowing the network to expand easily as company needs evolve over time.
- Security is always a top concern, and the RG-S5350-12GT4XS-P-E provides advanced security features, including 802.1x authentication, IP Source Guard and Dynamic ARP Inspection, to protect your network from unauthorized access and threats.
- Legacy Management: It provides multiple management interfaces SNMP, Web, CLI, enabling simple configuration, monitoring, and upkeeping.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5350-12GT4XS-P-E:
| Product Name | Category | Description |
| Ruijie RG-PA150IB-F | Power Supply Units |
150W AC power supply module, suitable for industrial switches like the RG-S5350-12GT4XS-P-E. |
| Ruijie RG-PD150IB-F | Power Supply Units |
150W DC power supply module, offering a compact solution for smaller setups. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5350-12GT4XS-P-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Capacity / Forwarding | PoE Budget |
|---|---|---|---|
| RG-S5350-12GT4XS-P-E | 12×GE PoE+ + 4×10 GE SFP+ | 125 Gbps / 94 Mpps | Up to 360 W (12×30 W) |
| RG-S5350-24GT4XS-P-E | 24×GE PoE+ + 4×10 GE SFP+ | 154 Gbps / 115 Mpps | Up to 720 W |
| RG-S5350-48GT4XS-P-E | 48×GE PoE+ + 4×10 GE SFP+ | 211 Gbps / 158 Mpps | Up to 1 440 W |
Specifications
| Parameter | Specification |
| Model | RG-S5350-12GT4XS-P-E |
| Port Configuration | 12 x 10/100/1000BASE-T, 4 x 1G/10G SFP+ |
| PoE Support | Ports 1 to 12 support PoE/PoE+ (IEEE802.3af/at) power supply |
| Switching Capacity | 125 Gbps |
| Forwarding Rate | 94 Mpps |
| MAC Address Table | 16,000 entries |
| ARP Table Size | 4,000 |
| IPv4 Unicast Routes | 6,000 |
| IPv6 Unicast Routes | 2,000 |
| Access Control Entries | Ingress: 1,750; Egress: 800 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 40 W (without PoE load); 600 W (full PoE load) |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Weight | 3.3 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
