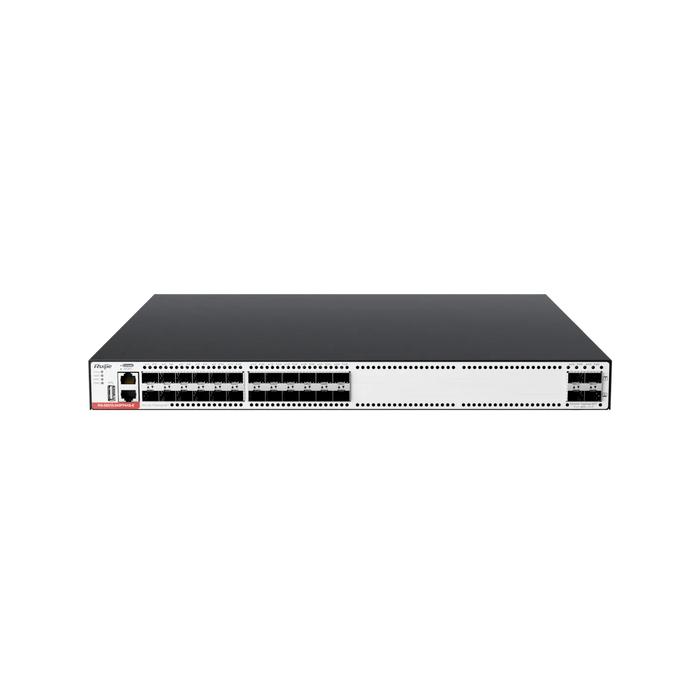

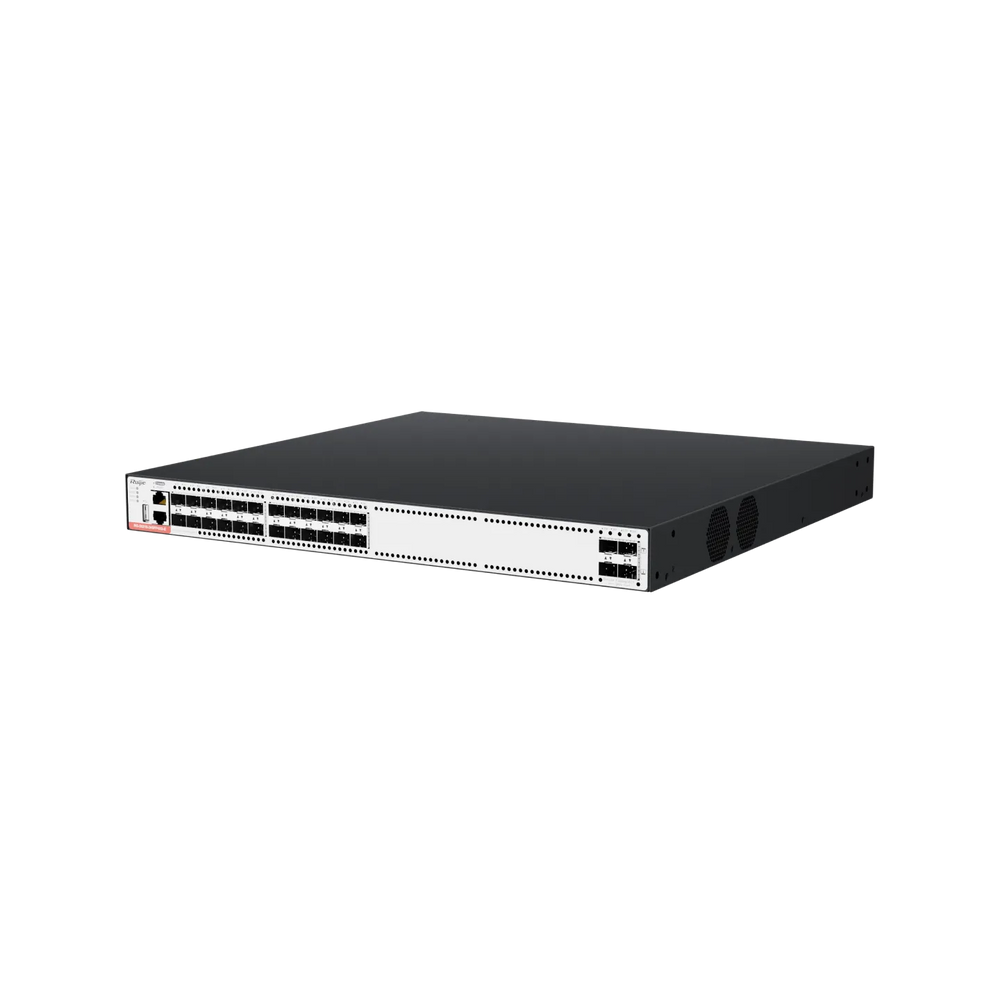

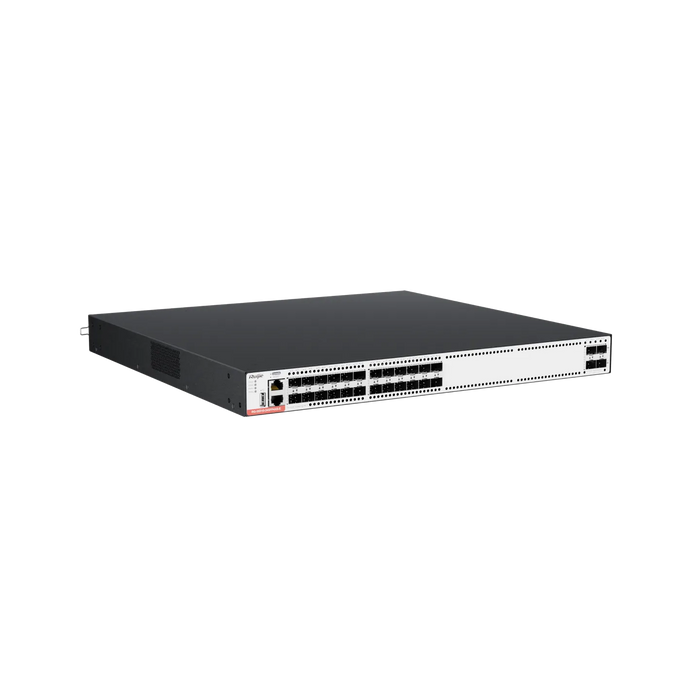

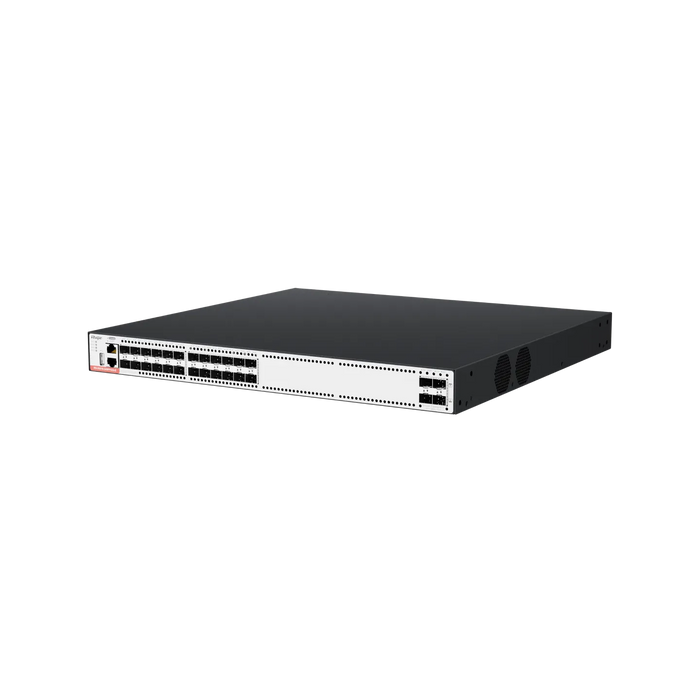

Ruijie RG-S5310-24SFP4XS-E 24×1G SFP & 4×10G SFP+ Layer 3 Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S5310-24SFP4XS-E 24-Port GE SFP Layer 3 Managed Access Switch, 4×1 GE/10 GE SFP+ Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
A high performance Layer 3 managed access switch for large enterprises and campus networks, the Ruijie RG-S5310-24SFP4XS-E. It has 24 Gigabit SFP ports and 4 SFP+ uplink ports for versatile connectivity and high-performance data rates.
It is equipped with a switching capacity of 154 Gbps and a forwarding rate of 115 million packets per second (Mpps) to achieve maximum network performance in a high-traffic environment.
The RG-S5310-24SFP4XS-E is designed for high reliability in harsh environments, with a working temperature of 0°C to 45°C, allowing for a wide range of applications in industrial, enterprise and other deployment environments.
IEEE 802.1X Authentication Dynamic ARP Inspection Certified: This switch offers dynamic security features to prevent unauthorized network access. It also features a versatile set of management strategies, including support for SNMP, Web, and CLI interfaces, for easy-to-use network configuration and monitoring.
Overview
Highlights
- Support High Performance Switching: Support a switching capacity of 154 Gbps and a forwarding rate of 115 Mpps, the RG-S5310-24SFP4XS-E has performance beyond the crowd, meets 10G access requirements.

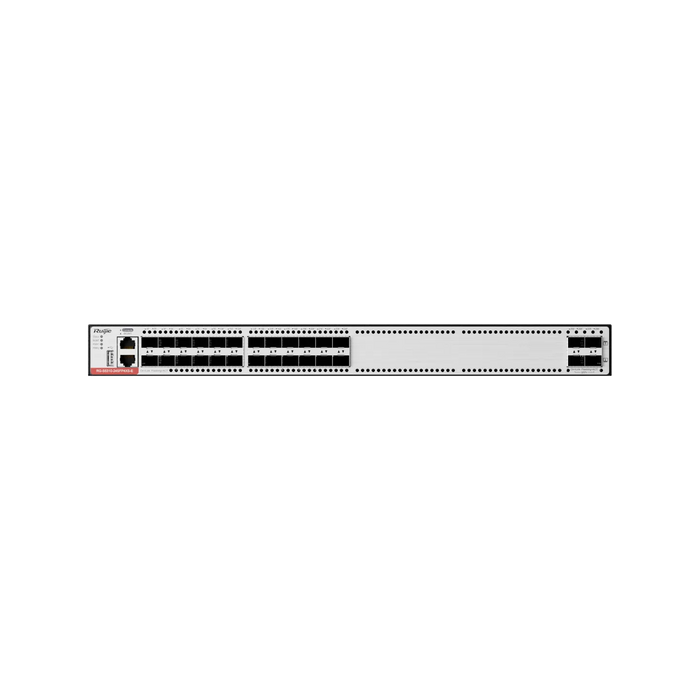

- Flexible Connectivity: RG-S5310-24SFP4XS-E provides 24 Gigabit SFP ports for flexible use; 4 SFP+ uplink ports for cascading configuration to meet different topology requirements.
- Security Features: RG-S5310-24SFP4XS-E also supports IEEE 802.1X authentication, IP Source Guard as well as Dynamic ARP Inspection, helping to protect your network from unauthorized access and security threats.
- Multiple Management Interfaces — SNMP, Web and CLI — Easy configuration as well as monitoring and maintenance.

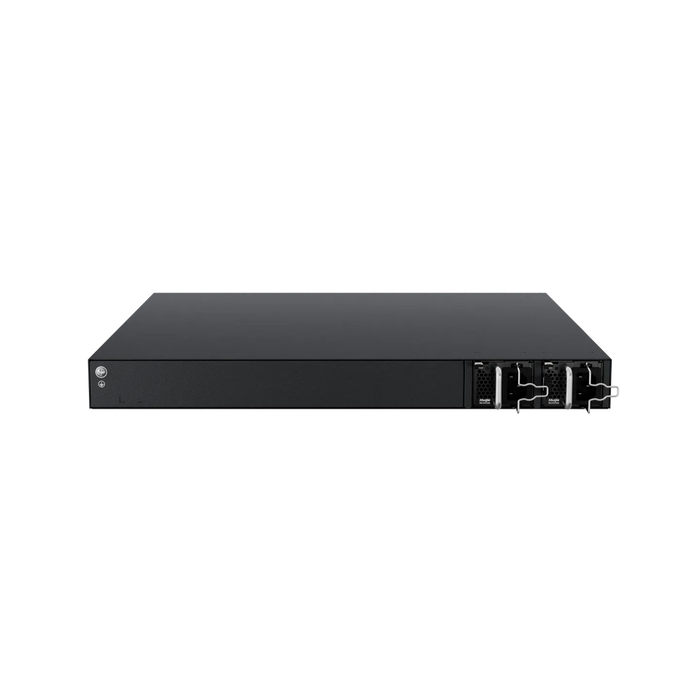

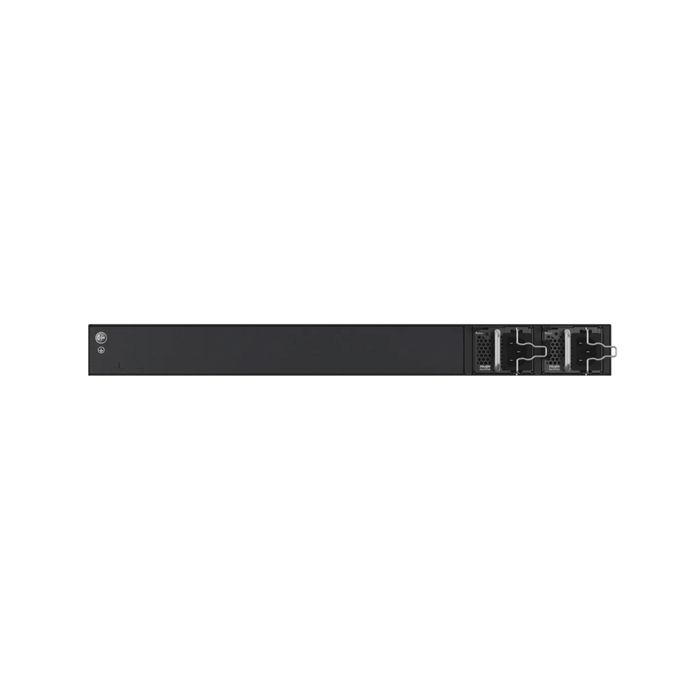

- Power Supply Redundancy: The RG-S5310-24SFP4XS-E series supports 1+1 redundancy hot-swappable dual power supply modules, which keeps the device running smoothly even when a power module fails.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S5310-24SFP4XS-E:
| Product Name | Category | Description |
| Ruijie RG-PA150IB-F | Power Supply Units |
150W AC power supply module, suitable for industrial switches like the RG-S5310-24SFP4XS-E. |
| Ruijie RG-PD150IB-F | Power Supply Units |
150W DC power supply module, offering a compact solution for smaller setups. |
| Ruijie RG-PA600I-P-F | Power Supply Units |
600W AC power supply module, providing higher power output for demanding applications. |
| MokerLink 1U Rack Mount Kit | Rack Mount Kits |
Compatible with 19-inch switches, including the RG-S5310-24SFP4XS-E, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Switching Capacity / Forwarding | Power Redundancy |
|---|---|---|---|
| RG-S5310-24SFP4XS-E | 24×1 Gbps SFP + 4×1/10 GE SFP+ | 154 Gbps / 115 Mpps | 2× hot-swappable |
| RG-S5310-24GT4XS-E | 24×1 Gbps RJ-45 + 4×1/10 GE SFP+ | 154 Gbps / 115 Mpps | 2× hot-swappable |
| RG-S5310-24SFP4XS-P-E | 24×1 Gbps SFP + 4×1/10 GE SFP+, PoE+ | 154 Gbps / 115 Mpps | 2× hot-swappable |
| Model | Downlinks | Uplinks | PoE | Capacity | Forwarding | Brand |
|---|---|---|---|---|---|---|
| Ruijie RG‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑24GT4XS‑E | 24 × 1 GbE | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch (OEM) |
| Ruijie RG‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑48GT4XS‑E | 48 × 1 GbE | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑24SFP4XS‑E | 24 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑48SFP4XS‑E | 48 × SFP (1 Gbps) | 4 × 10 Gbps SFP+ | No | 176 Gbps | 131 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑24GT4XS‑P‑E | 24 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (740W) | 208 Gbps | 155 Mpps | Network‑Switch |
| Ruijie RG‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Ruijie |
| Network‑Switch NS‑S5310‑48GT4XS‑P‑E | 48 × 1 GbE (PoE+) | 4 × 10 Gbps SFP+ | PoE+ (1,480W) | 211 Gbps | 158 Mpps | Network‑Switch |
Specifications
| Parameter | Specification |
| Model | RG-S5310-24SFP4XS-E |
| Port Configuration | 24 x 1000BASE-X SFP, 4 x 1G/10G SFP+ |
| PoE Support | Not supported |
| Switching Capacity | 154 Gbps |
| Forwarding Rate | 115 Mpps |
| MAC Address Table | 32,000 entries |
| ARP Table Size | 4,000/16,000 (authorized) |
| ND Table Size | 2,000/8,000 (authorized) |
| IPv4 Unicast Routes | 8,000/12,000 (authorized) |
| IPv6 Unicast Routes | 4,000 |
| Access Control Entries | Ingress: 3,500; Egress: 1,500 |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Power Input | AC: 100V to 240V, 50/60Hz |
| Maximum Power Consumption | 85 W |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | 4.2 kg |
| Mounting | 19-inch rack mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge Protection | Service port: 10 kV / Power port: Common mode |
