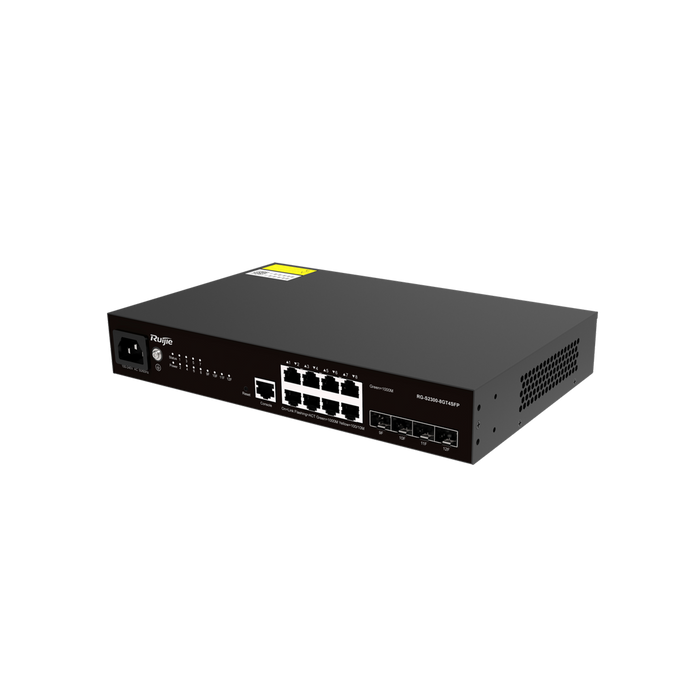

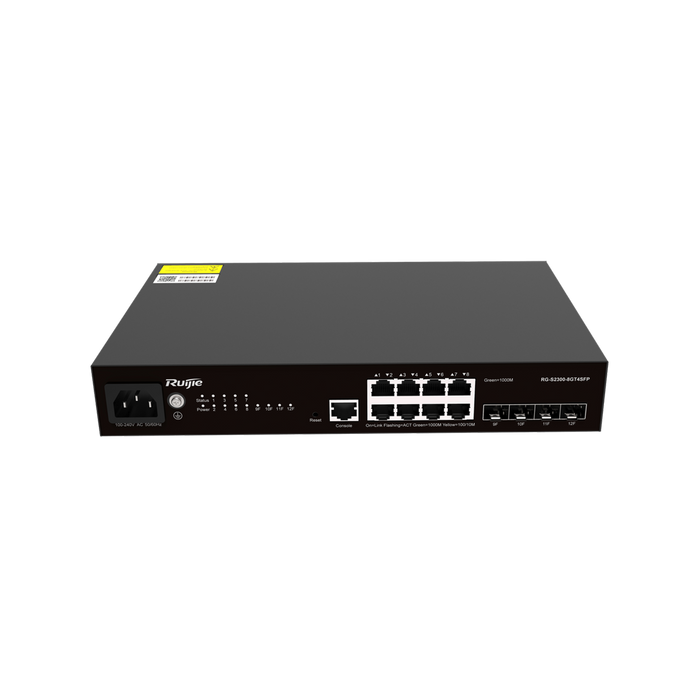

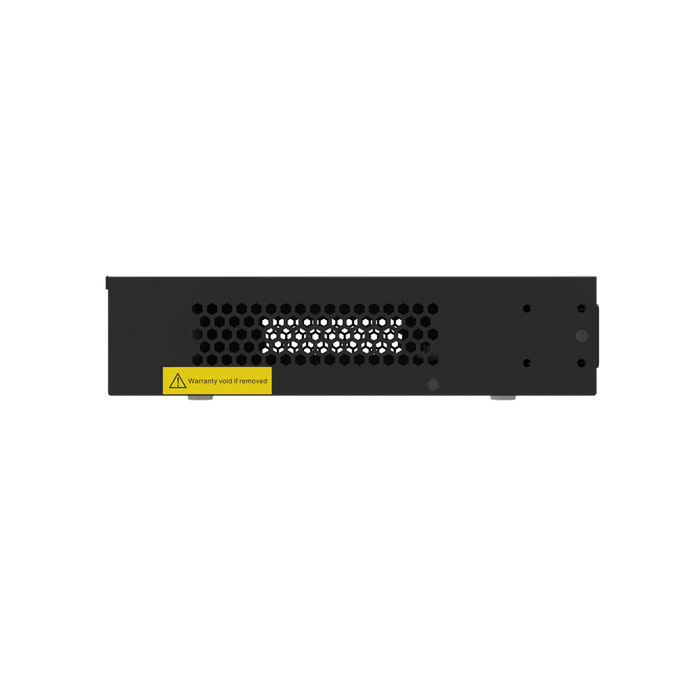

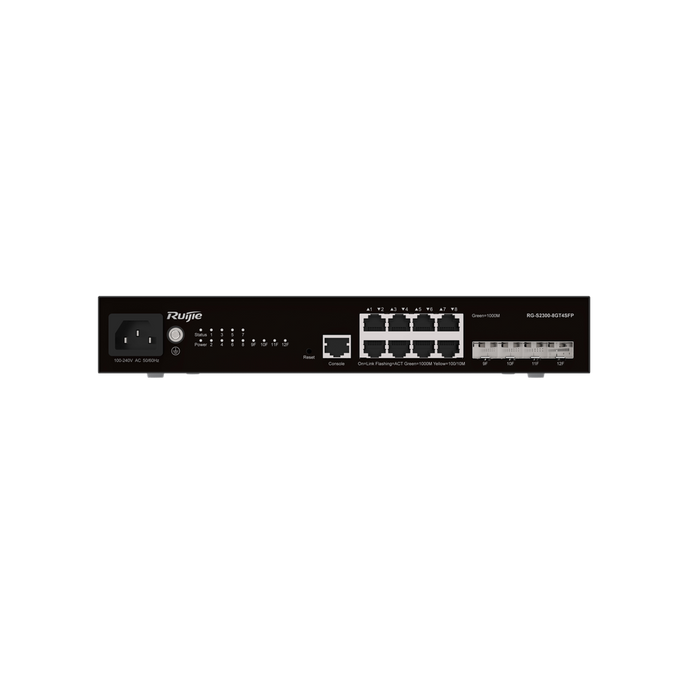

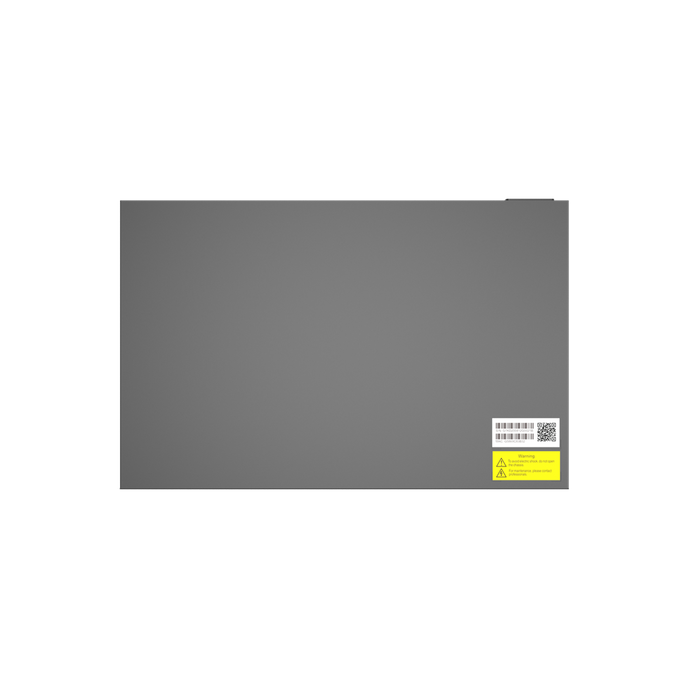

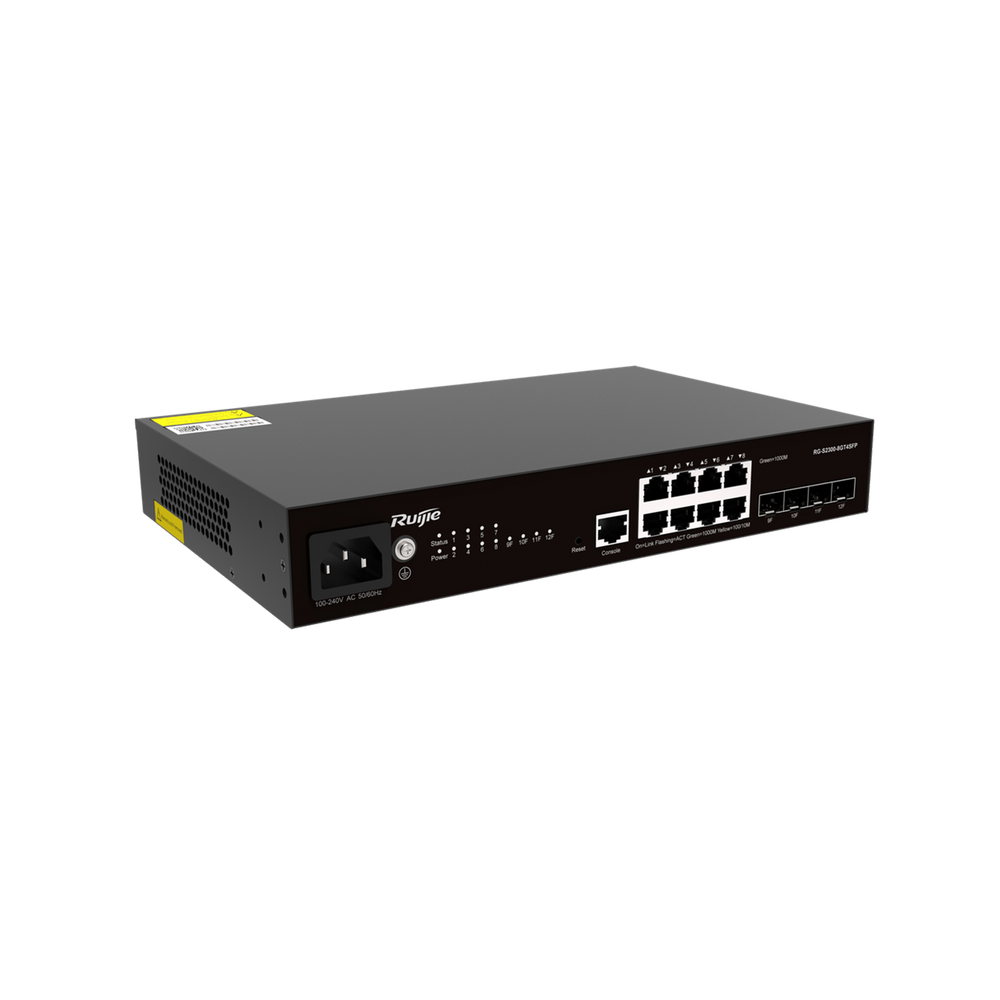

Ruijie RG-S2300-8GT4SFP 8×1G & 4×1G SFP Gigabit Access Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-S2300-8GT4SFP 8-Port Gigabit Managed Switch with 4×1 Gbps SFP Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Ruijie RG-S2300-8GT4SFP is a compact, silent-running Layer 2 managed switch designed for small-to-medium enterprise and campus access. It features eight auto-sensing 10/100/1000 BASE-T ports and four fixed 1 Gbps SFP uplinks, plus a single console port and a single AC power slot.
Built on a non-blocking 24 Gbps switch fabric, it delivers wire-speed forwarding for all ports. The switch supports IEEE 802.3az Energy-Efficient Ethernet for low power draw, and provides flexible management via Web GUI, CLI, SNMP v1/v2c/v3, and RMON.
Overview
Highlights
-
High Switching Capacity: With a switching capacity of 56 Gbps and a forwarding rate of 41.67 Mpps, the RG-S2300-8GT4SFP efficiently handles high traffic loads, ensuring smooth and uninterrupted network performance.
-
Wide Operating Temperature Range: The switch operates reliably in temperatures ranging from -40°C to +80°C, making it perfect for use in various environmental conditions, such as industrial and outdoor settings.
-
Flexible Connectivity: With 8 Gigabit Ethernet ports and 4 SFP uplink ports, the RG-S2300-8GT4SFP offers versatile connectivity options, accommodating different network topologies and demands.
-
Advanced Security Features: The RG-S2300-8GT4SFP supports IEEE 802.1X authentication, IP Source Guard, and Dynamic ARP Inspection to safeguard your network against unauthorized access and security threats.
-
Comprehensive Management: This switch offers multiple management interfaces, including SNMP, Web, and CLI, providing easy configuration, monitoring, and maintenance for network administrators.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-S2300-8GT4SFP:
| Product Name | Category | Description |
| Ruijie RG-PA240-48 | Power Supply Units |
240W DIN-Rail AC/DC power supply, suitable for industrial switches like the RG-S2300-8GT4SFP. |
| Ruijie RG-PA120-48 | Power Supply Units |
120W DIN-Rail AC/DC power supply, offering a compact solution for smaller setups. |
|
MokerLink 1U Rack Mount Kit |
Rack Mount Kits |
Compatible with 13-inch switches, including the RG-S2300-8GT4SFP, facilitating secure rack installation. |
| Ruijie XG-SFP-SR-MM850 | SFP Transceivers |
10G SFP+ transceiver with 850nm wavelength, suitable for short-range fiber connections. |
| Ruijie XG-SFP-LR-SM1310 | SFP Transceivers |
10G SFP+ transceiver with a 1310nm wavelength, designed for long-range single-mode fiber links. |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE Support | Capacity |
|---|---|---|---|---|
| RG-S2300-8GT4SFP | 8×1 GbE data-only | 4×1 Gbps SFP | None | 24 Gbps fabric |
| RG-S2300-24GT4SFP | 24×1 GbE data-only | 4×1 Gbps SFP | None | 56 Gbps fabric |
| RG-S2300-24GT4XS | 24×1 GbE data-only | 4×10 Gbps SFP+ | None | 128 Gbps fabric |
| RG-S2300-8GT4SFP-D | 8×1 GbE data-only (DC power) | 4×1 Gbps SFP | None | 24 Gbps fabric |
| Model | Downlink Ports | Uplink Ports | Switching Capacity | Forward Rate | Brand |
|---|---|---|---|---|---|
| Ruijie RG‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Ruijie |
| NS‑S2300‑24GT4XS | 24×Gigabit Ethernet | 4×1/10 Gbps SFP+ | 128 Gbps | 96 Mpps | Network‑Switch (our brand) |
| Ruijie RG‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Ruijie |
| NS‑S2300‑24GT4SFP | 24×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | 41.66 Mpps | Network‑Switch |
| Ruijie RG‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Ruijie |
| NS‑S2300‑8GT4SFP | 8×Gigabit Ethernet | 4×1 Gbps SFP | 56 Gbps | ~41.6 Mpps | Network‑Switch |
Specification
| Parameter | Specification |
| Model | RG-S2300-8GT4SFP |
| Port Configuration | 8 x 10/100/1000BASE-T, 4 x SFP |
| PoE Support | IEEE 802.3af/at PoE+ supported, Ports 1 to 8 support PoE functionality |
| PoE Power Budget | Maximum 240W (48V DC input) |
| Switching Capacity | 24 Gbps |
| Forwarding Rate | 17.857 Mpps |
| MAC Address Table | 8,000 entries |
| VLAN Support | Supports up to 4,094 VLANs |
| Operating Temperature | -40°C to +80°C |
| Power Input | 12V DC to 56V DC |
| Power Redundancy | Dual power input support (DC) |
| Dimensions | 160 mm x 120 mm x 45 mm |
| Weight | Approx. 0.8 kg |
| Mounting | DIN rail mount |
| Ingress Protection | IP40 (Protection from solid objects larger than 1mm) |
| ESD Protection | 8kV (Electrostatic Discharge protection) |
| Ring Protection | Supports ERPS (Ethernet Ring Protection Switching) |
| Management | Supports SNMP, Web, and CLI management, compatible with Ruijie Cloud management platform |
| MTBF | >200,000 hours |
| Warranty | 5 years |
