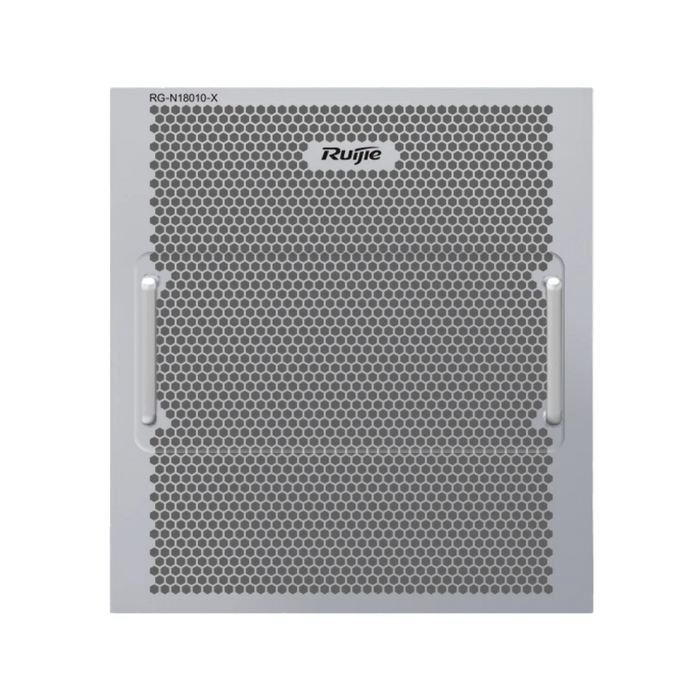

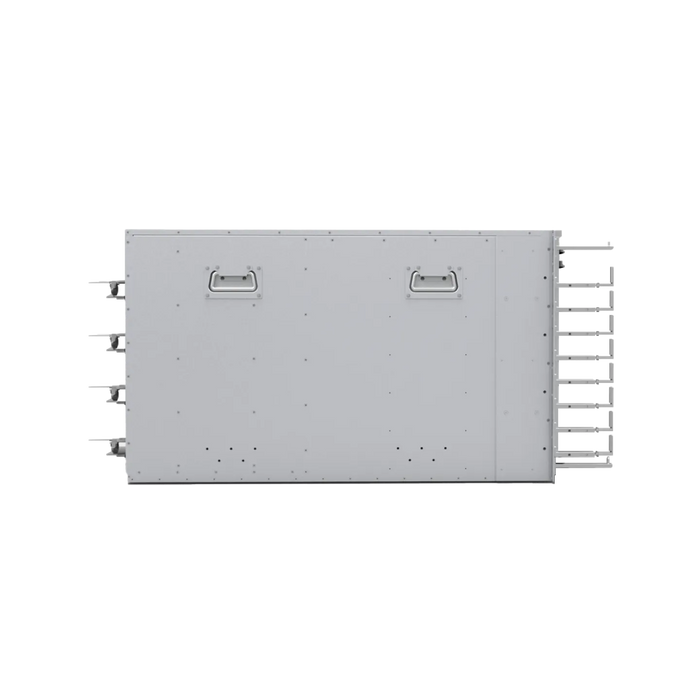

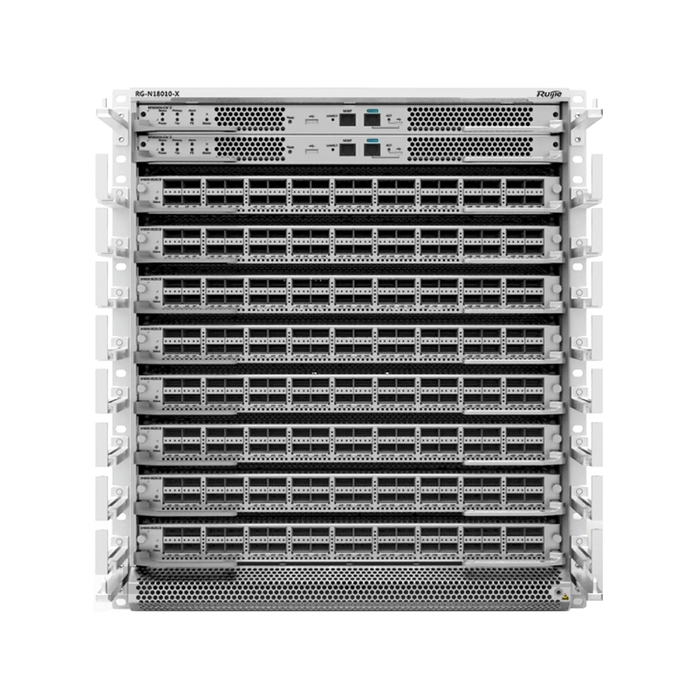

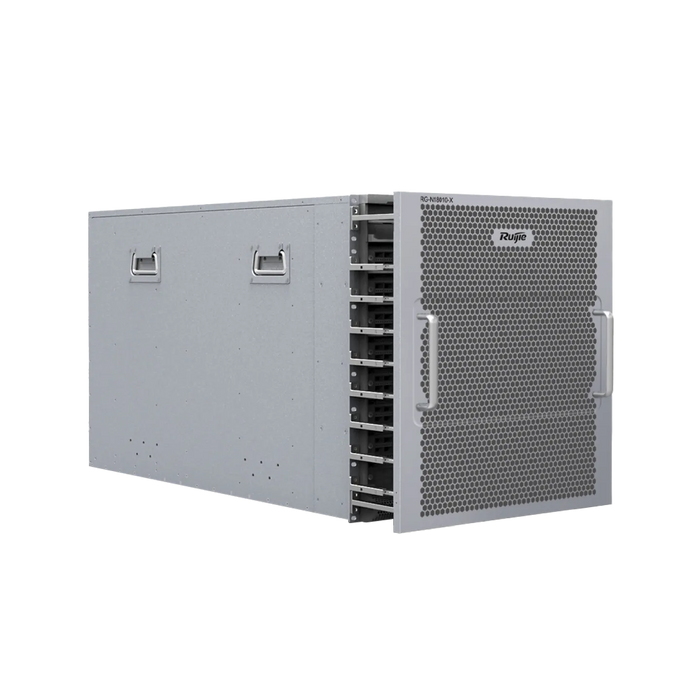

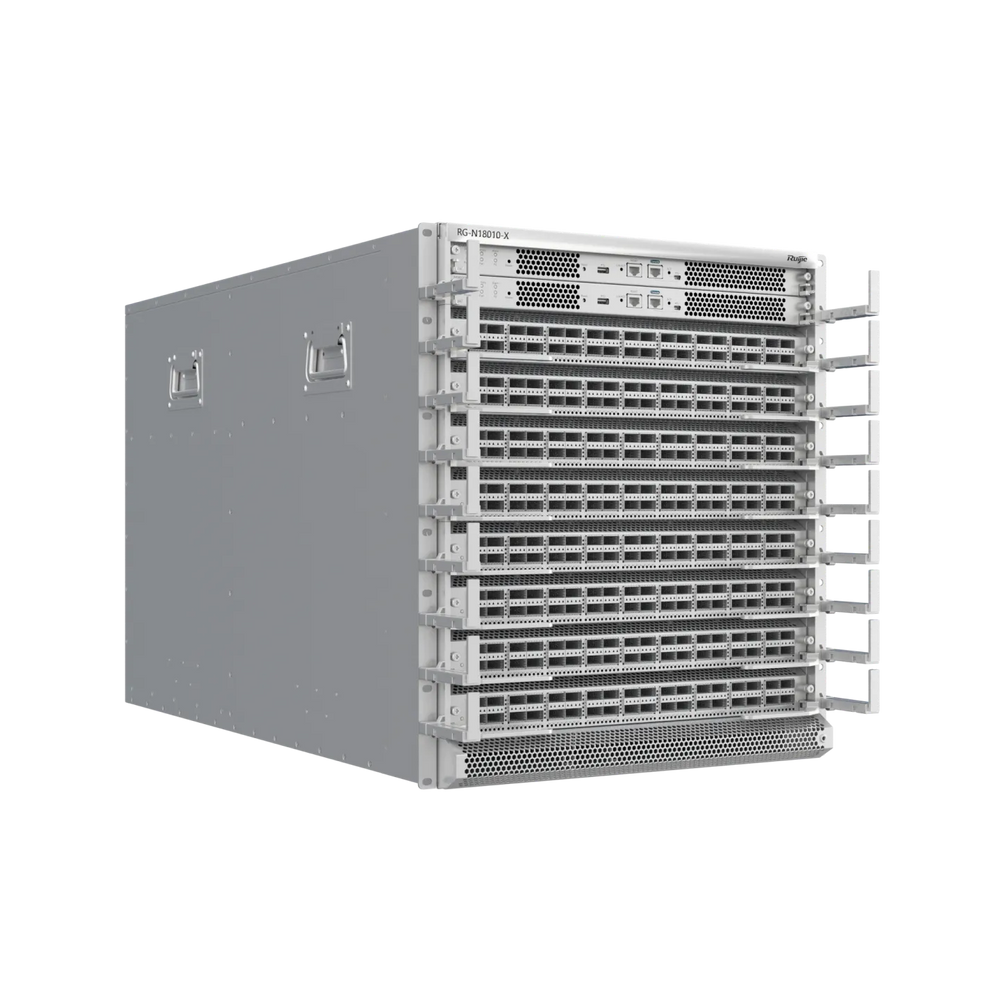

Ruijie RG-N18010-X 12U 10-Slot Core Switch, 89Tbps Switching Fabric(Chassis)
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-N18010-X 8-Slot Modular Data Center Core Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
RG-N18010-X | Ruijie Networks AU Home The 105600 10-slot chassis (consisting of 8 card slots and 2 supervisor module slots) supports a wide range of interface types, including 10GE, 40GE, 100GE, 200GE, and 400GE, allowing for great flexibility depending on the customer's needs.
The RG-N18010-X is equipped with a switching capacity of 153.6 Tbps and a packet forwarding rate of 34,560 Mpps, providing efficient data processing and high-speed connectivity.
Eliminating midplane on the switch with Clos orthogonal architecture speeds up data transmission and cuts transportation latency as well. VXLAN tunneling, BGP-EVPN, and full L2/L3 protocols are supported to allow seamless integration into 2D topologies.
It also has N+1 switch fabric modules, M+N power modules, 1+1 supervisor modules, etc., for hardware-level redundancy to ensure continuous operation and service reliability.
Overview
Highlights
-
Modular Design: 10-slot chassis with 8 line card slots and 2 supervisor module slots, providing scalability and flexibility.
-
High Performance: Switching capacity of 153.6 Tbps and packet forwarding rate of 34,560 Mpps ensure efficient data processing.
-
Advanced Architecture: Midplane-free design and Clos orthogonal architecture enhance data transmission efficiency and reduce latency.
-
Comprehensive Protocol Support: Supports VXLAN tunneling, BGP-EVPN, and a wide range of Layer 2/Layer 3 protocols for seamless network integration.
-
Robust Redundancy: N+1 switch fabric modules, M+N power modules, and 1+1 supervisor modules ensure continuous operation and service reliability.
-
Intelligent Monitoring: Telemetry-based network monitoring provides real-time insights for efficient management.
Recommended Accessories
Here are some compatible accessories to enhance the functionality of the Ruijie RG-N18010-X:
| Product Name | Category | Description |
| RG-PA2700I | Power Supply Module |
2700W AC/HVDC power supply module, supporting M+N redundancy for uninterrupted power. |
| RG-PA3000I-F | Power Supply Module |
3000W AC/HVDC power supply module, supporting M+N redundancy for uninterrupted power. |
| M18010X-FE-C I | Switch Fabric Module |
Type-C switch fabric module I for RG-N18010-X, enhancing data forwarding capabilities. |
| M18010X-FE-E II | Switch Fabric Module |
Type-E switch fabric module II for RG-N18010-X, supporting high-speed data transmission. |
| M18000X-48CQ-CE | Line Card Module |
CE series line card with 48 × 100GE QSFP28 ports, suitable for high-density connectivity. |
| M18000X-36QXS-CB | Line Card Module |
CB series line card with 36 × 40GE QSFP+ ports, ideal for high-throughput applications. |
| M18000X-48XS2CQ-CB | Line Card Module |
CB series line card with 48 × 10GE SFP+ ports and 2 × 100GE QSFP28 ports, offering flexible deployment options. |
Comparison with Similar Models
| Model | Line/Sup/Fabric Slots | RU | Capacity | Forwarding |
|---|---|---|---|---|
| RG-N18006-X | 4 / 2 / 6 | 7 | 28.8 Tbps | 17 280 Mpps |
| RG-N18010-X | 8 / 2 / 6 | 12 | 153.6 Tbps | 34 560 Mpps |
| RG-N18018-X | 16 / 2 / 6 | 21 | 307.2 Tbps | 69 120 Mpps |
Specifications
| Parameter | Specification |
| Model | RG-N18010-X |
| Module Slots | 10 (8 line card slots, 2 supervisor module slots) |
| Switch Fabric Module Slots | 6 |
| Switching Capacity | 153.6 Tbps |
| Packet Forwarding Rate | 34,560 Mpps |
| Port Configurations | Supports 10GE, 40GE, 100GE, 200GE, and 400GE line cards |
| Buffer Capacity | 24 GB per line card, 200 ms buffering per port |
| Power Module Slots | 8 |

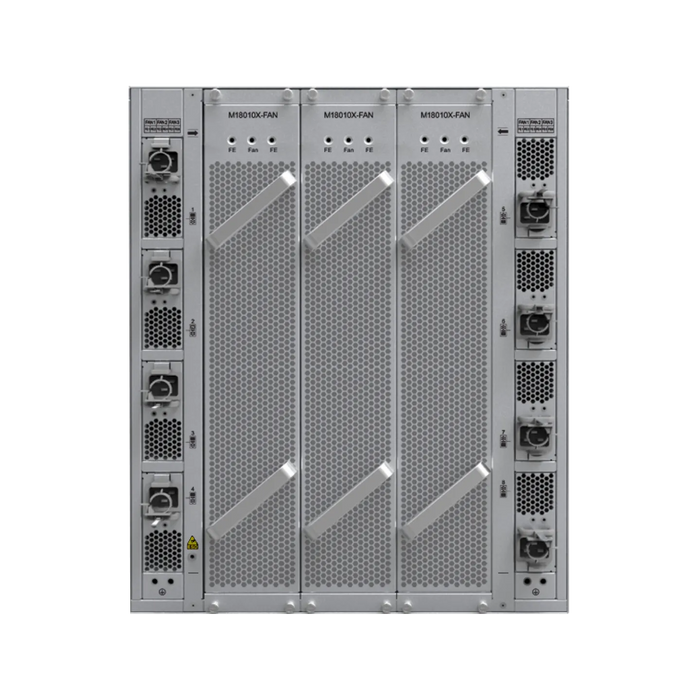

| Fan Module Slots | 3 |
| Dimensions (W × D × H) | 442 mm × 961 mm × 534 mm (17.40 in. × 37.83 in. × 21.02 in., 12 RU) |
| Weight | Approximately 52 kg (including fan modules) |
| Power Supply | RG-PA2700I or RG-PA3000I-F (AC 100–240V or HVDC 192–350V) |
| Ventilation | Front-to-rear airflow |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Altitude | Operating: up to 5000 m (16404.20 ft.) |
| MTBF | ≥ 200,000 hours |
