Ruijie RG-IS5200-8GT4XS Industrial 8-Port Gigabit Switch 4×10G Uplinks
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-IS5200-8GT4XS Industrial Ethernet Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas

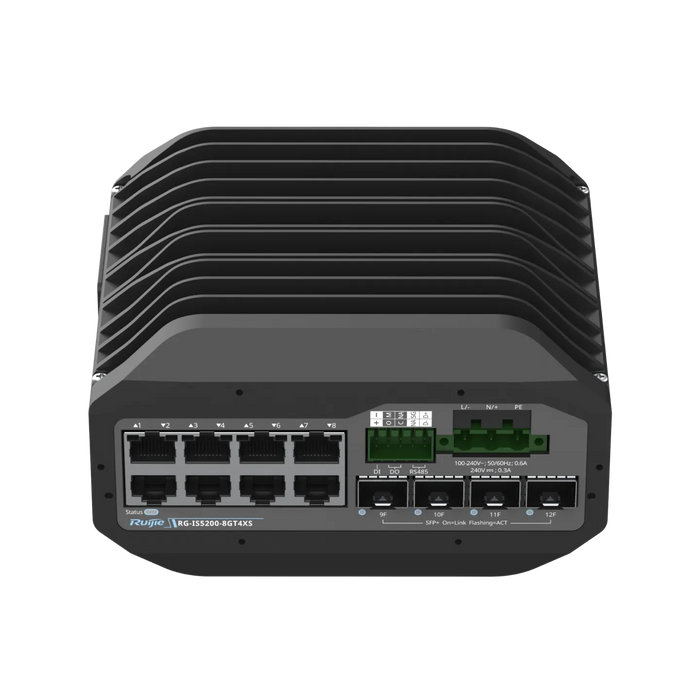

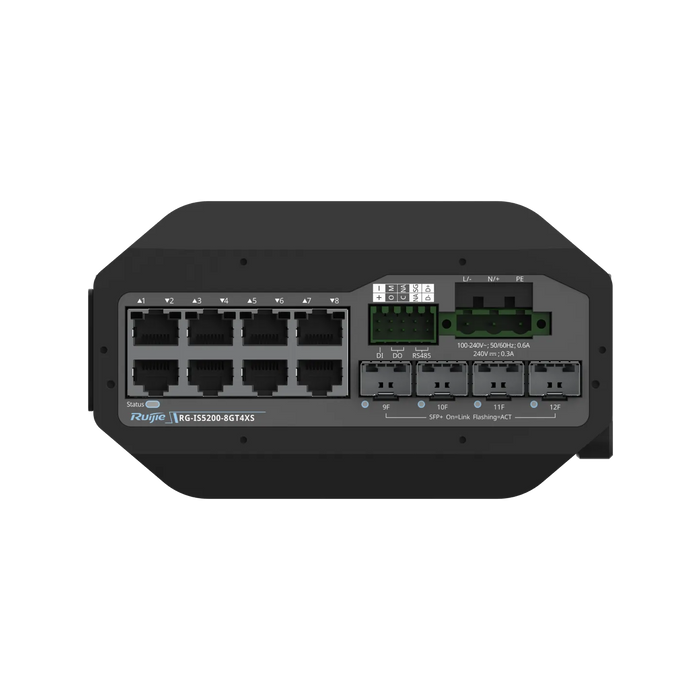

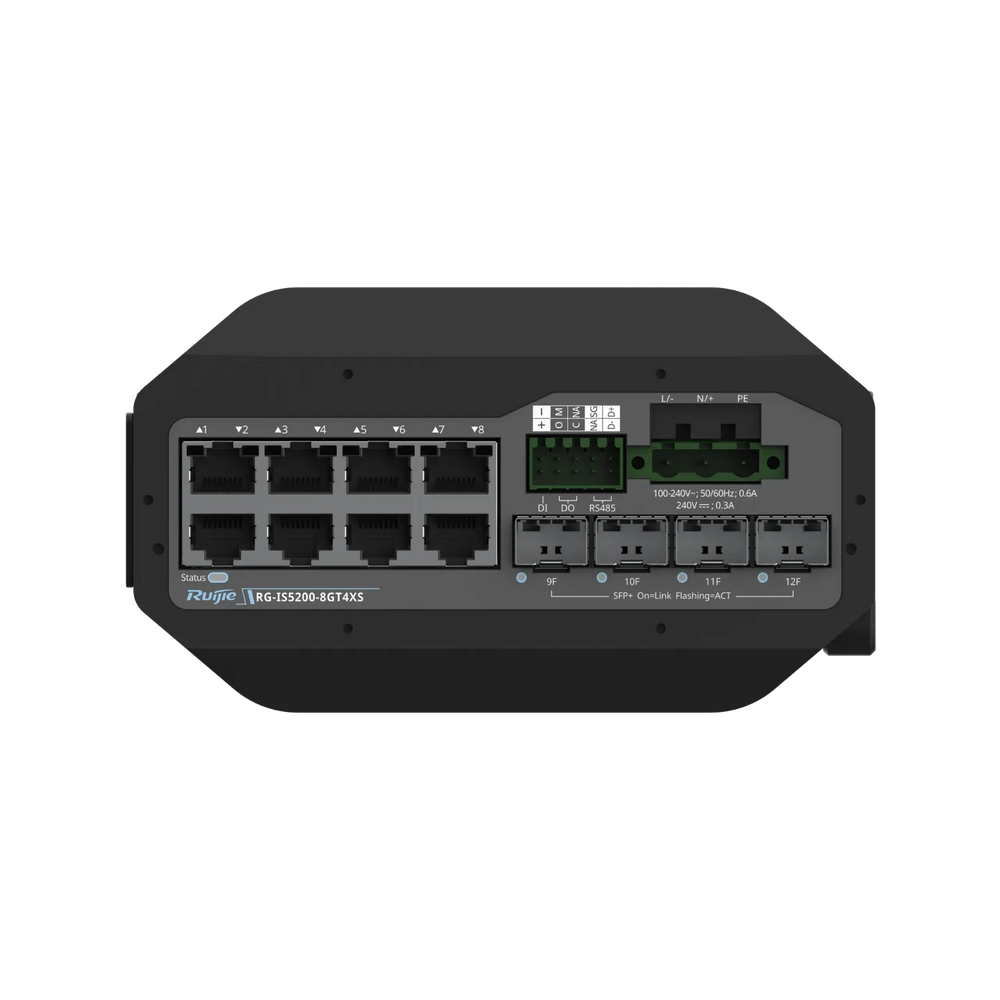

The RG-IS5200-8GT4XS is part of Ruijie’s S5360-E industrial lineup, engineered for demanding environments. It features eight auto-sensing Gigabit Ethernet ports with IEEE 802.3af/at/bt PoE/PoE+/PoE++ (up to 30 W/port), plus four fixed SFP+ slots supporting 1 GE/2.5 GE/10 GE optics.
Powered by a dual-core ARM Cortex-A55 CPU (1.0 GHz), 1 GB DDR4, 512 MB flash, and a 4 MB packet buffer, it delivers 96 Gbps switching capacity and 72 Mpps packet forwarding.

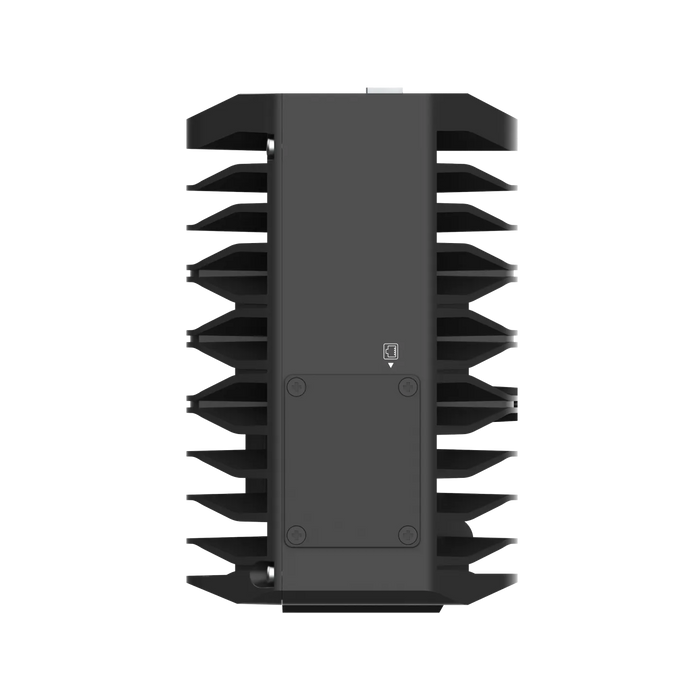

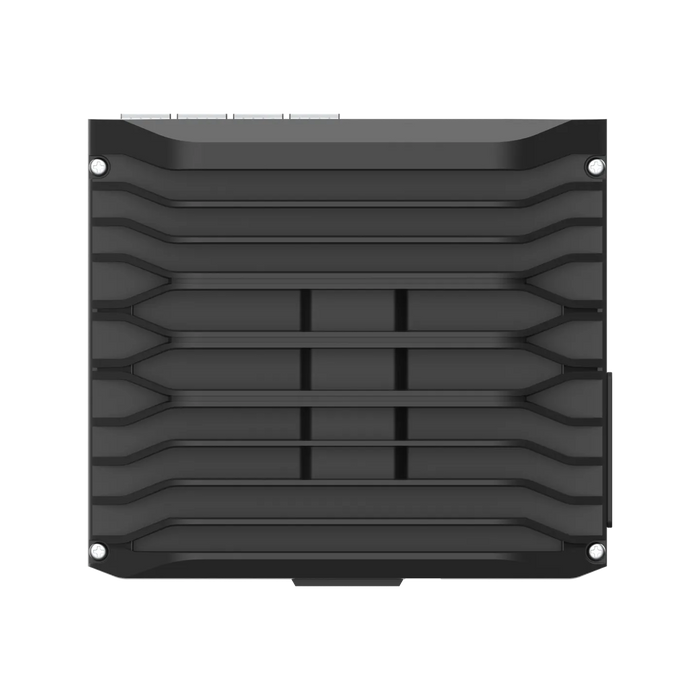

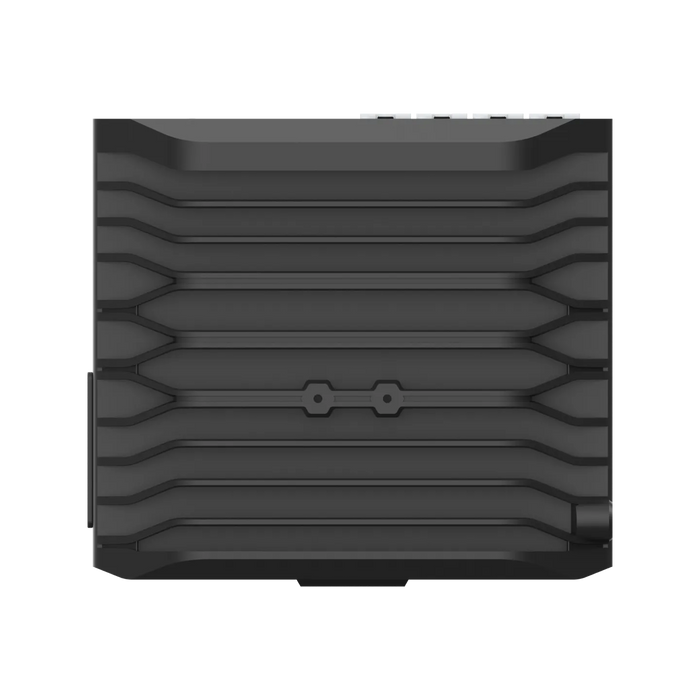

The fanless IP 41 chassis mounts via DIN rail or wall/desktop, operates from –40 °C to +75 °C, and withstands 10 kV surge, dust, water, and vibration—while VSU virtualization and zero-touch O&M via Ruijie INC/Cloud simplify network expansion and management.
Overview
Highlights
-
Industrial-Grade Design: Built to withstand harsh environmental conditions, including wide temperature ranges and electromagnetic interference.
-
High-Density Port Configuration: Provides 8 × 10/100/1000BASE-T ports and 4 × 1GE/10GE SFP+ uplink ports, supporting flexible deployment options.
-
VSU Virtualization: Supports Virtual Switch Unit (VSU) technology, allowing multiple physical switches to operate as a single logical unit, simplifying network management and enhancing reliability.
-
Advanced Layer 3 Routing: Offers comprehensive Layer 3 routing protocols, including static routing, RIP, OSPF, IS-IS, and BGP, supporting both IPv4 and IPv6 networks.
-
Robust Security Features: Incorporates multiple security mechanisms such as ACLs, DHCP Snooping, ARP inspection, and support for SSH and SNMPv3 for secure management.
-
High Reliability: Features hot-swappable power modules with redundancy, ensuring continuous operation and service reliability.
-
Efficient Management: Supports various management methods, including CLI, web-based management, Telnet, and integration with Ruijie’s INC for simplified operations and maintenance.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| IPA60 | AC Power Module | 60 W terminal-block AC/DC adapter for non-PoE deployments |
| IPA240-P | PoE Power Module | 240 W terminal-block DC adapter for PoE/PoE+/PoE++ scenarios; supports 1:1 hot-standby |
| IP55 Enclosure | Protective Housing | Rugged IP 55 cover for harsh outdoor or wash-down environments |
| XG-SFP-SR-MM850-I | 10 GE SFP+ Transceiver | Industrial-grade 10GBASE-SR, LC duplex, 850 nm, up to 300 m (OM3) / 400 m (OM4) |
| GE-SFP-LR-SM1310-I | 1 GE SFP Transceiver | Industrial-grade 1000BASE-LR, LC duplex, 1310 nm, up to 10 km |
Comparison with Similar Models
| Model | Downlinks & Uplinks | Power Input | Capacity & Forwarding |
|---|---|---|---|
| RG-IS5200-8GT4XS | 8×GE PoE+/PoE++ + 4×10 GE | Single AC (100–240 VAC); IPA60 or external DC | 96 Gbps / 72 Mpps |
| RG-IS5200-8GT4XS-DC | 8×GE PoE+/PoE++ + 4×10 GE | Dual DC (12–48 VDC) | 96 Gbps / 72 Mpps |
| RG-IS5200-8GT4XS-UP-DC | 8×GE PoE+/PoE++ + 4×10 GE | Dual DC (56 VDC) with IPA240-P | 96 Gbps / 72 Mpps |
| RG-IS5200-24GT4XS-UP-DC | 24×GE PoE+/PoE++ + 4×10 GE | Dual DC (56 VDC) with IPA240-P | 128 Gbps / 96 Mpps |
| Model | Ports / Uplinks | PoE Support | Capacity / Rate | Key Selling Points |
|---|---|---|---|---|
| Ruijie RG‑IS5200‑8GT4XS‑DC | 8×1 GbE + 4×SFP+ | None | 96 Gbps / 72 Mpps | Industrial-grade Temp, Surge, VSU, DIN mount |
| Network‑Switch NS‑IS5200‑8GT4XS‑DC | Same | None | Same | Identical spec under your brand |
| Ruijie RG‑IS5200‑8GT4XS‑UP‑DC | 8×GbE PoE + 4×SFP+ | PoE/PoE+/PoE++ | 96 Gbps / 72 Mpps | PoE-REP, Industry-ready, VSU, Surge |
| Network‑Switch NS‑IS5200‑8GT4XS‑UP‑DC | Same | Same | Same | Same spec, customized branding |
| Ruijie RG‑IS5200‑24GT4XS‑UP‑DC | 24×GbE PoE + 4×SFP+ | PoE/PoE+/PoE++ | 128 Gbps / 96 Mpps | High-density PoE, industrial protection |
| Network‑Switch NS‑IS5200‑24GT4XS‑UP‑DC | Same | Same | Same | Brand-equivalent model, full industrial feature |
Specifications
| Parameter | Specification |
| Model | RG-IS5200-8GT4XS |
| Service Ports | 8 × 10/100/1000BASE-T |
| Uplink Ports | 4 × 1GE/10GE SFP+ |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95 Mpps |
| MAC Address Table | 32,000 entries |
| ARP Table Size | 16,000 entries |
| IPv4 Unicast Routes | 16,000 entries |
| IPv6 Unicast Routes | 8,000 entries |
| IPv4 Multicast Routes | 2,000 entries |
| IPv6 Multicast Routes | 1,000 entries |
| Power Module Slots | 2 (supporting 1+1 redundancy) |
| Fan Module Slots | 2 built-in fixed fans |
| Management Ports | 1 × Management, 1 × Console, 1 × USB 2.0 |
| Expansion Slots | 1 × expansion module slot |
| Dimensions (W × D × H) | 440 mm × 340 mm × 44 mm (17.32 in. × 13.39 in. × 1.73 in., 1 RU) |
| Weight | Approximately 4.5 kg (including all modules) |
| Power Supply | AC 100–240V, HVDC 192–288V |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| MTBF | ≥ 200,000 hours |
