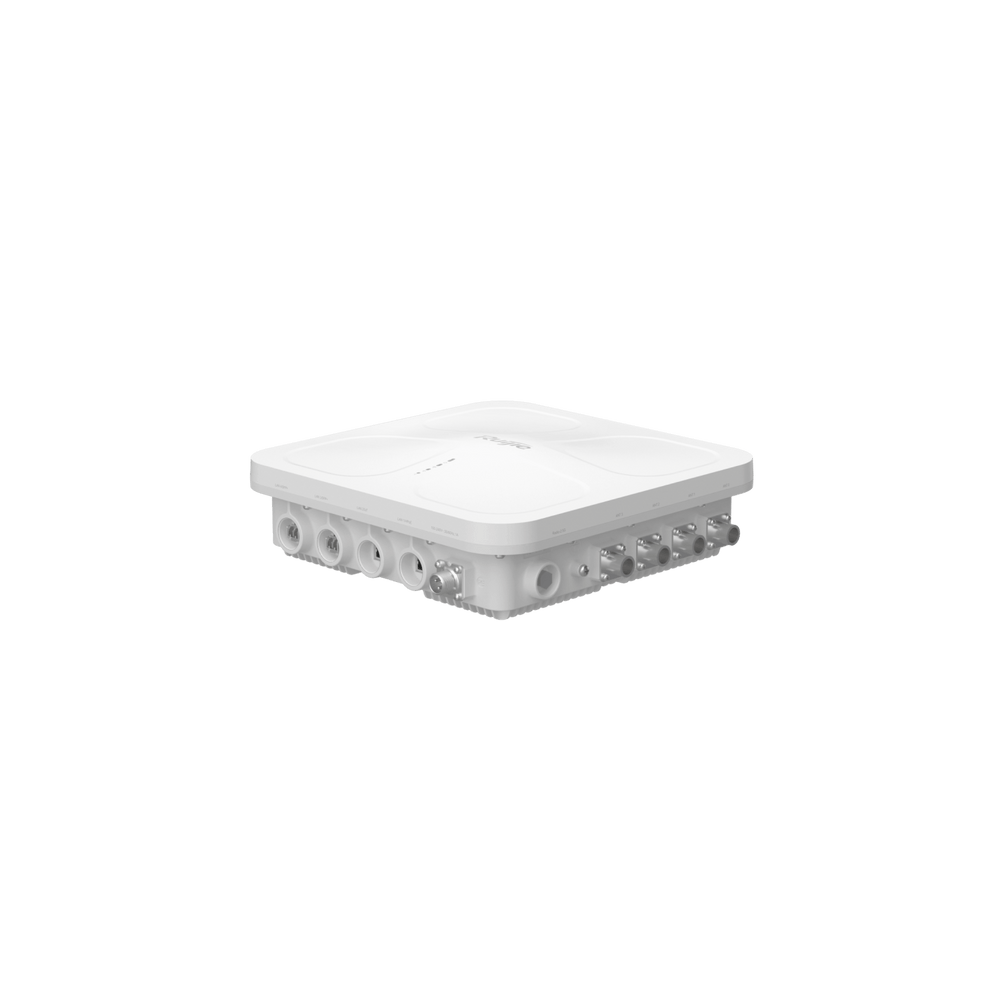

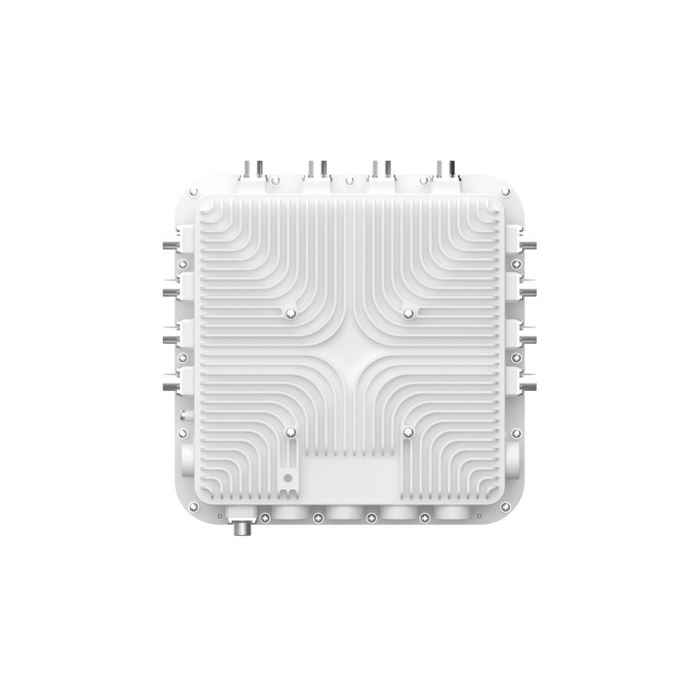

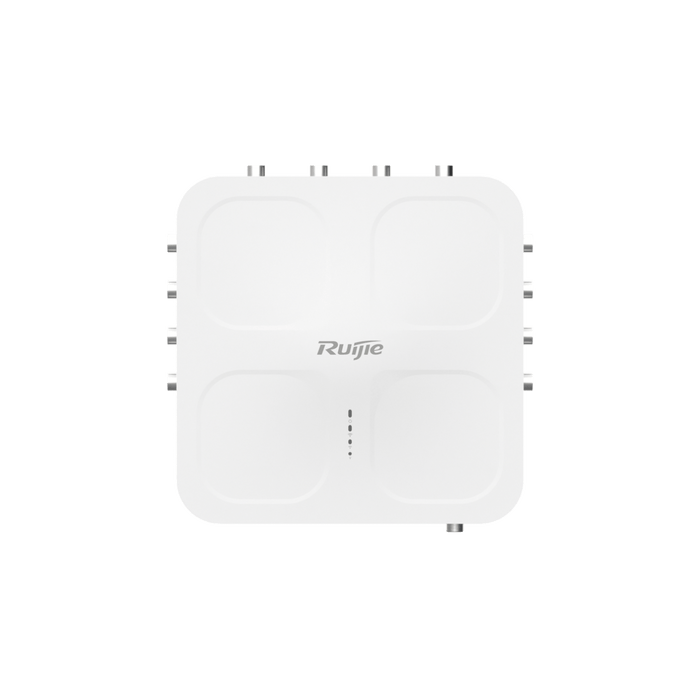

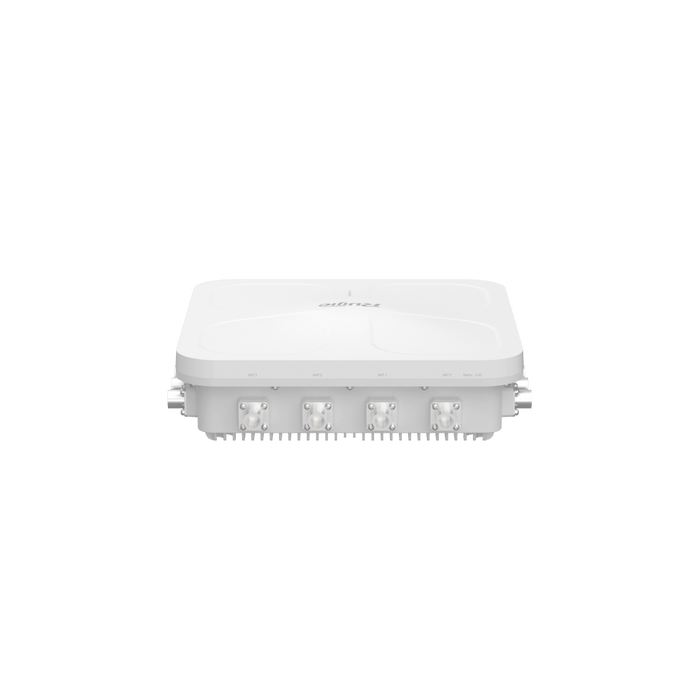

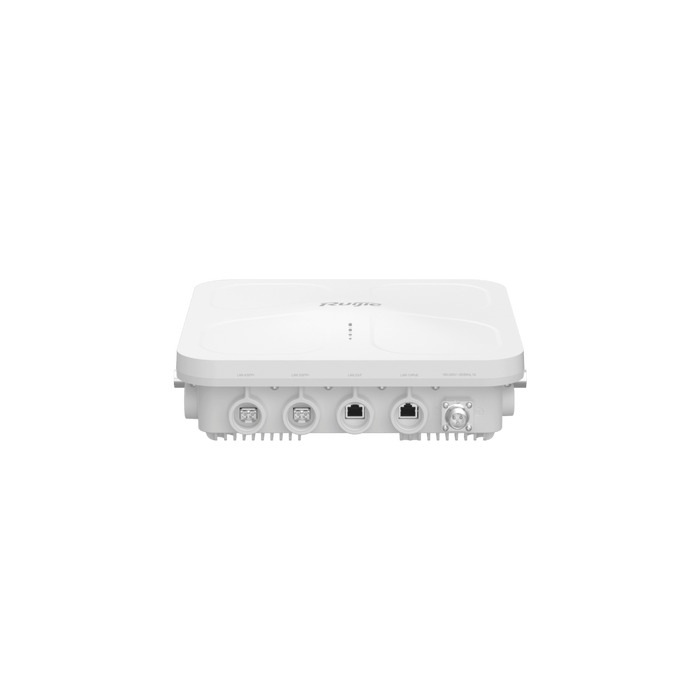

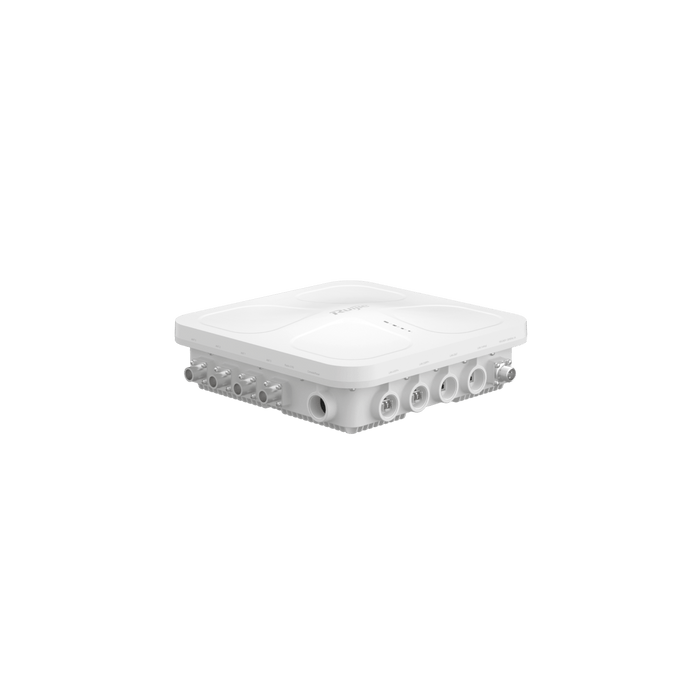

Ruijie RG-AP680-AR Outdoor Wi-Fi 6 AP, 10.755 Gbps, 2×10 G SFP+ Ports
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie RG-AP680-AR Outdoor Wi-Fi 6 AP — Quad-Radio 14-Spatial-Streams & 10.755 Gbps
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Ruijie RG-AP680-AR is a high-performance, industrial-grade Wi-Fi 6 (802.11ax) quad-radio outdoor access point designed to deliver ultra-fast, reliable wireless connectivity in challenging environments such as educational institutions, transportation hubs, smart cities, and enterprise campuses.
With its advanced features and robust design, the RG-AP680-AR ensures seamless user experiences and efficient network management.
Overview
Highlight
- Quad-Radio Design: Equipped with three main radios (2.4 GHz and two 5 GHz) and an independent AI radio, supporting a combined peak data rate of up to 11.617 Gbps, ensuring high-speed wireless access.
- Advanced Wireless Technologies: Supports OFDMA, MU-MIMO, and 1024-QAM, enhancing efficiency and reducing latency in high-density environments.
- Flexible Deployment: Supports both wall and pole mounting options, as well as PoE and DC power supply modes, catering to diverse installation requirements.
- Enhanced Security: Incorporates WPA3 encryption, 802.1X authentication, and an independent AI radio for continuous wireless security scanning, ensuring robust network security.
- Intelligent Management: Compatible with Ruijie’s WIS Cloud platform and supports hybrid management modes (Cloud / Controller / Standalone) for simplified operations and maintenance.
- Industrial-Grade Design: Features an IP68-rated enclosure, 6 kV lightning protection, and operates in temperatures ranging from –40°C to +70°C, ensuring reliable performance in harsh outdoor environments.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| XG-SFP-SR-MM850 | 10 G SFP Module | 10GBASE-SR multimode, 850 nm LC duplex, up to 300 m (OM3/OM4) |
| IEEE 802.3at PoE+ Injector | Power | Provides up to 30 W via RJ45 for sites without local DC supply |
| ZigBee/RFID USB Module | IoT Expansion | USB adapter for external ZigBee/RFID radios |
| Wall/Pole Mount Kit | Installation | Corrosion-resistant brackets for secure outdoor mounting |
Comparison with Similar Models
| Model | Spatial Streams & Bands | Peak Rate | Uplinks | Ruggedness |
|---|---|---|---|---|
| RG-AP680-AR | 4×4@2.4 GHz + 4×4@5 GHz + AI scan radios | 10.755 Gbps | 1×10 G SFP + 1×5 G RJ45 PoE/DC | IP68; –40 °C–+70 °C |
| RG-AP680-CD(V3) | 4×4@2.4 GHz + 4×4@5 GHz + 2 AI scan radios | 2.976 Gbps | 1×2.5 G SFP + 1×1 G RJ45 PoE/DC | IP68; –40 °C–+65 °C |
| RG-AP680-O(V3) | 4×4@2.4 GHz + 4×4@5 GHz | 2.976 Gbps | 1×2.5 G SFP + 1×1 G RJ45 PoE | IP68; –40 °C–+65 °C |
Specification
| Parameter | Specification |
| Model | RG-AP680-AR |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax |
| Radio Configuration | Quad-radio: 2.4 GHz (4x4 MIMO), 5 GHz (4x4 MIMO x2), AI Radio (2x2 MIMO) |
| Peak Data Rate | Up to 11.617 Gbps |
| Ethernet Ports | 1 × 10/100/1000/2.5G/5GBASE-T RJ45, 2 × 10G SFP+ ports, 1 × RJ45 console port |
| Antenna Type | Built-in smart omnidirectional antennas; (external antennas for additional purchase) |
| Antenna Gain | 2.4 GHz: 3 dBi; 5 GHz: 3 dBi |
| Power Supply | Supports DC and PoE power supply (IEEE 802.3af/at/bt) |
| Maximum Power Consumption | 40 W |
| Security | WPA3, WPA2, WPA, 802.1X, PPSK, AI-based security scanning |
| Management | Supports Fat, Fit, and Cloud modes; compatible with Ruijie WIS Cloud |
| Operating Temperature | –40°C to +70°C (–40°F to 158°F) |
| Storage Temperature | –40°C to +85°C (–40°F to 185°F) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W × D × H) | 300 mm × 300 mm × 94 mm (11.81 in. × 11.81 in. × 3.70 in.) |
| Weight | AP: ≤ 4.5 kg (9.92 lbs); Mounting bracket: ≤ 1.5 kg (3.31 lbs) |
| Warranty | Limited lifetime warranty |
