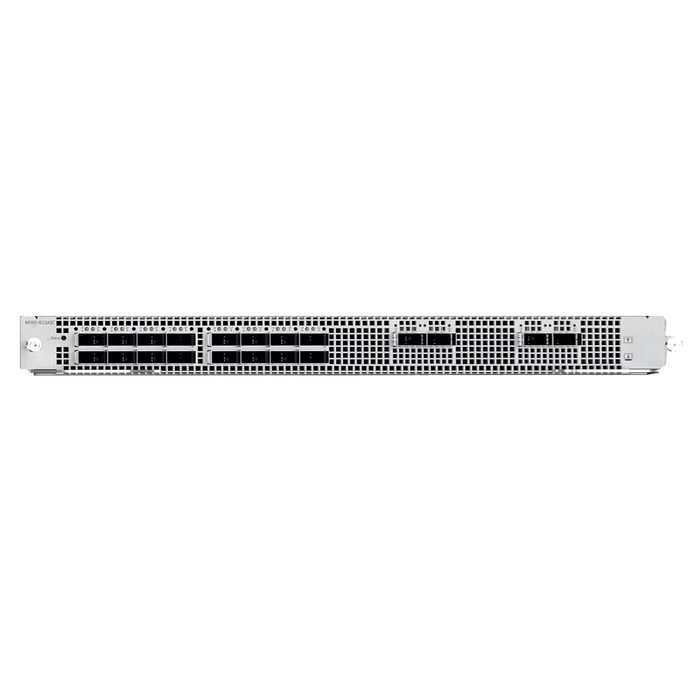

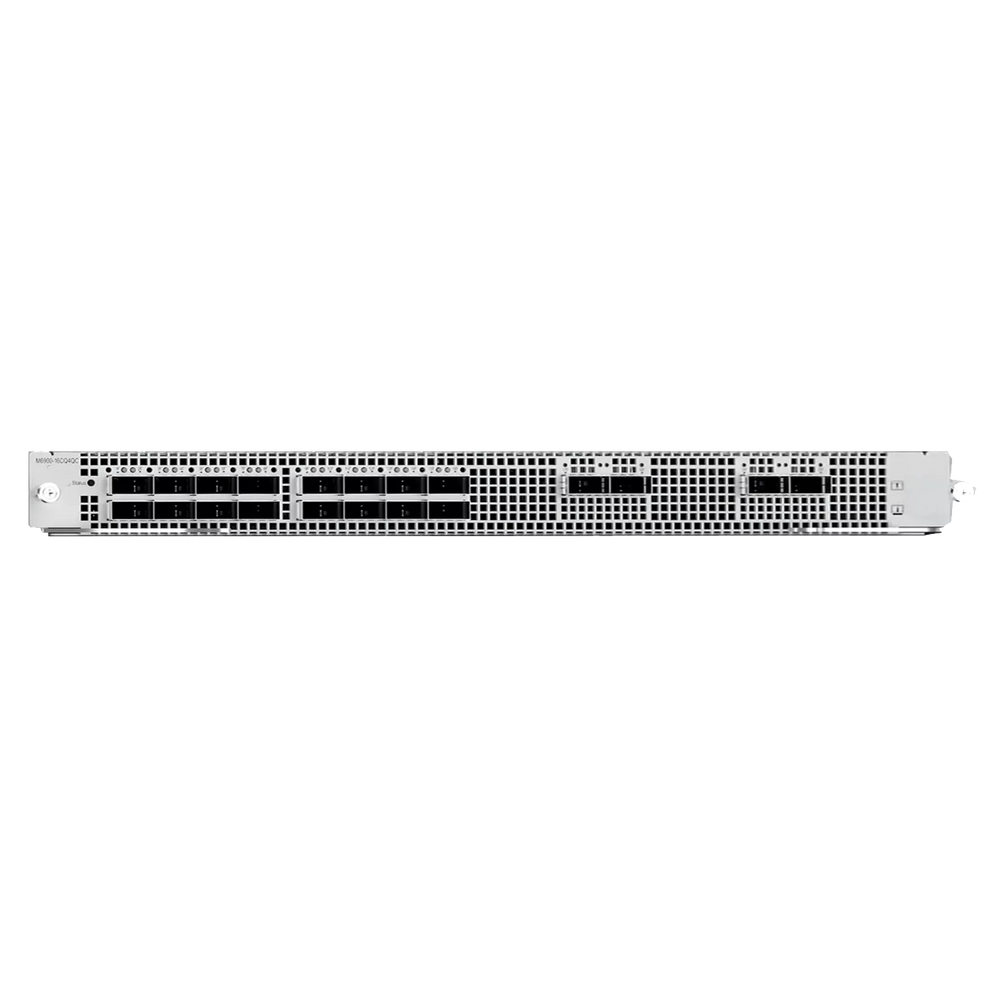

Ruijie M6900-16CQ4QC 16×100G QSFP28 +4×400G QSFP-DD Expansion Module
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Ruijie M6900-16CQ4QC Line Card Module
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Ruijie M6900-16CQ4QC is a high-performance line card module designed for the S6920-4C series modular switches, tailored for data center and enterprise core networks. This expansion module provides 16 × 100GE QSFP28 ports and 4 × 400GE QSFP-DD ports, offering ultra-high bandwidth and flexible deployment options for next-generation networks. With its exceptional forwarding performance and advanced Layer 2/3 feature support, the M6900-16CQ4QC enhances the scalability and throughput of core switching platforms, making it an ideal choice for high-density, low-latency networking environments.
Overview
Highlights
-
Port Configuration: 16 × 100GE QSFP28 ports and 4 × 400GE QSFP-DD ports for maximum bandwidth aggregation and network flexibility.
-
High Throughput: Designed to support full line-rate forwarding across all ports, ensuring ultra-low latency and high-speed data transmission.
-
Modular Compatibility: Seamlessly integrates with the Ruijie S6920-4C chassis to enable flexible modular expansion based on business needs.
-
Advanced Layer 3 Features: Supports protocols like BGP, OSPF, IS-IS, and MPLS to enable complex network architectures.
-
Data Center Ready: Supports VXLAN, EVPN, and virtualization features for large-scale cloud data center deployments.
-
Comprehensive Security: Built-in access control lists (ACL), storm control, ARP inspection, and MAC filtering for secure access.
-
High Availability: Redundant architecture support with hot-swappable design for non-disruptive maintenance and upgrades.
-
Energy-Efficient: Intelligent energy management and low-power optics reduce overall power consumption and cooling requirements.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| QSFP-100G-SR4 | Optical Module | 100GBASE-SR4 QSFP28, 850nm, multimode fiber, up to 100m |
| QSFP-100G-LR4 | Optical Module | 100GBASE-LR4 QSFP28, 1310nm, single-mode fiber, 10km |
| QSFP-DD-400G-LR8 | Optical Module | 400GBASE-LR8 QSFP-DD, 1310nm, single-mode fiber, 10km |
| QSFP-DD-400G-DR4 | Optical Module | 400GBASE-DR4 QSFP-DD, single-mode fiber, up to 500m |
| CAB-QSFP28-4SFP10G | Breakout Cable | 100G QSFP28 to 4 × 10G SFP+ DAC, 1m/3m |
| CAB-QSFP28-QSFP28 | Direct Attach | 100G QSFP28 to QSFP28 DAC, 1m/3m/5m |
Comparison with Similar Line Cards
| Feature | M6900-16CQ4QC | M6900-32CQ | M6900-4C |
|---|---|---|---|
| 100GE Ports | 16 × QSFP28 | 32 × QSFP28 | Up to 128 (via subcards) |
| 400GE Ports | 4 × QSFP-DD | None | 16 × QSFP-DD (max) |
| Modular Support | S6920-4C Only | S6920-4C Only | Base Chassis |
| High Availability | Yes | Yes | Yes |
| Target Use Case | Mixed 100G/400G Aggregation | High-density 100G | Flexible modular configuration |
Specifications
| Parameter | Specification |
|---|---|
| Model | M6900-16CQ4QC |
| Compatible Chassis | Ruijie S6920-4C Modular Switch |
| Downlink Ports | 16 × 100GE QSFP28 |
| Uplink Ports | 4 × 400GE QSFP-DD |
| Switching Capacity | Up to 4.8 Tbps per module |
| Forwarding Rate | Up to 3571 Mpps |
| Layer 2/3 Features | VLAN, STP, LACP, OSPF, BGP, IS-IS, MPLS, VXLAN, EVPN |
| MAC Address Table | 288K entries |
| MTU | Up to 9600 bytes |
| Power Consumption | Max 230W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W×D×H) | 398 mm × 480 mm × 43.6 mm |
| Weight | ≤ 8.5 kg |
| Hot-Swappable | Yes |
| Warranty | Limited lifetime warranty |
