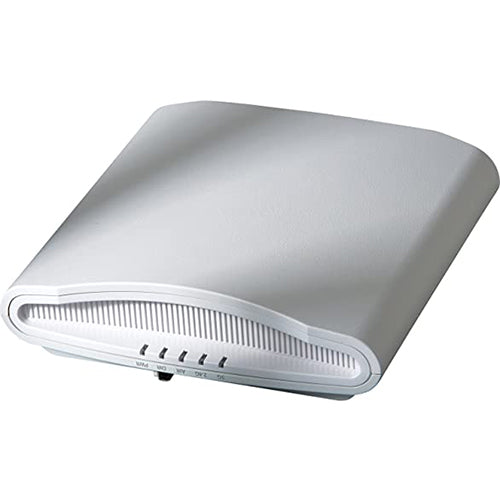

Ruckus ZoneFlex R710 Access Point (901-R710-US00)
Ruckus ZoneFlex R710 Access Point (901-R710-US00)

Ruckus ZoneFlex R710 Access Point (901-R710-US00)

por Ruckus
Desconto de 63%
R$ 15.540,00
R$ 5.748,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Wireless access point - Wi-Fi - 2.4 GHz, 5 GHz
[/shortdesc] [properties]
Properties Ruckus ZoneFlex R710 Access Point (901-R710-US00)
Description Indoor 802.11ac Wave 2 4x4:4 Wi-Fi Access Point
Product Family Ruckus ZoneFlex R700
Product Type Access Point
[/properties] [specifications]
Specifications Ruckus ZoneFlex R710 Access Point (901-R710-US00)
WI-FI
Wi-Fi Standards · IEEE 802.11a/b/g/n/ac Wave 2
Supported Rates · 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for
VHT20/40/80)
· 802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS31)
· 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
· 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels · 2.4GHz: 1-13
· 5GHz: 36-64, 100-144, 149-165
MIMO · 4x4 SU-MIMO
· 4x4 MU-MIMO
Spatial Streams · 4 streams for SU-MIMO
· 3 streams for MU-MIMO
Channelization · 20, 40, 80MHz
Security · WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise,
WPA3-Personal, WPA3-Enterprise, WPA3, AES, 802.11i,
Dynamic PSK
· WIPS/WIDS
Other Wi-Fi Features · WMM, Power Save, Tx Beamforming, LDPC, STBC,
802.11r/k/v
· Hotspot
· Hotspot 2.0
· Captive Portal
· WISPr
RF
Antenna Type · BeamFlex+ adaptive antennas with polarization diversity
· Adaptive antenna that provides 4,000+ unique antenna patterns
Antenna Gain (max)  · Up to 3dBi
Peak Transmit Power
(aggregate across MIMO chains)		 · 2.4GHz: 28dBm
· 5GHz: 28dBm
Minimum Receive Sensitivity (Rx Sensitivity varies by band, channel width and MCS rate)  -104dBm
Frequency Bands · ISM (2.4-2.484GHz)
· U-NII-1 (5.15-5.25GHz)
· U-NII-2A (5.25-5.35GHz)
· U-NII-2C (5.47-5.725GHz)
· U-NII-3 (5.725-5.85GHz)
2.4GHZ RECEIVE SENSITIVITY
HT20 MCS0      : -97
MCS7      : -79
HT40 MCS0      : -94
MCS7      : -77
5GHZ RECEIVE SENSITIVITY
VHT20 MCS0      : -98
MCS7      : -80
VHT40 MCS0      : -94
MCS7      : -77
VHT80 MCS0      : -91
MCS7      : -74
2.4GHZ TX POWER TARGET
MCS0 HT20  22
MCS7 HT20 19
5GHZ TX POWER TARGET
VHT20 22
MCS0, VHT40 22
MCS7, VHT40, VHT80 19
MCS9, VHT40, VHT80 16
PERFORMANCE AND CAPACITY
Peak PHY Rates  • 2.4GHz: 600Mbps
• 5GHz: 1733Mbps
Client Capacity • Up to 512 clients per AP
SSID • Up to 31 per AP
RUCKUS RADIO MANAGEMENT
Antenna Optimization • BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Wi-Fi Channel Management  • ChannelFly
Client Density Management • Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization
SmartCast Quality of Service • QoS-based scheduling
• Directed Multicast
• L2/L3/L4 ACLs
Mobility • SmartRoam
Diagnostic Tools • Spectrum Analysis
• SpeedFlex
NETWORKING
Controller Platform Support • SmartZone
• ZoneDirector
• Unleashed*
• Standalone

* Refer to Unleashed datasheets for SKU ordering information.
Mesh • SmartMesh™ wireless meshing technology. Self-healing Mesh
IP • IPv4, IPv6, dual-stack
VLAN • 802.1Q (1 per BSSID or dynamic per user based on
RADIUS)
• Port-based
802.1x • Authenticator & Supplicant
Tunnel • L2TP
Policy Management Tools • Application Recognition and Control
• Access Control Lists
• Device Fingerprinting
PHYSICAL INTERFACES
Ethernet • Two 1Gbps Ethernet ports
• Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable
• Link Aggregation (LACP)
USB • 1 USB 2.0 port, Type A
PHYSICAL CHARACTERISTICS
Physical Size • 22 cm (L), 22 cm (W), 6 cm (H)
• 8.7in (L) x 8.7in (W) x 2.4in (H)
Weight • 1.12 kg (2.5 lb)
Mounting • Wall, Drop ceiling, Desk
• Secure bracket (sold separately)
Physical Security • Hidden latching mechanism
• Kensington Lock Hole
• T-bar Torx
Operating Temperature • -4ºC (-14ºF) to 60ºC (140ºF)
Operating Humidity • Up to 95%, non-condensing
POWER (Max power varies by country setting, band, and MCS rate)
802.3af • 2.4GHz: 2x4, 19dBm per chain
• 5GHz: 4x4, 20dBm per chain
• Functional Limitation: 2nd
Ethernet disabled USB disabled
802.3at, PoE+/injector, VDC • 2.4GHz: 4x4, 22dBm per chain
• 5GHz: 4x4, 20dBm per chain
• Functional Limitation: None
Max Power Consumption • Peak: 25W, including USB loading and 100m cable
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance* • Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®, Vantage
Standards Compliance** • EN 60950-1 Safety
• EN 60601-1-2 Medical
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• UL 2043 Plenum
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation
*For a complete list of WFA certifications, please see the Wi-Fi Alliance website
**For current certification status, please see price list
SOFTWARE AND SERVICES
Location Based Services • SPoT
Network Analytics • SmartCell Insight (SCI)
Security and Policy • Cloudpath
[/specifications] [accesories]
OPTIONAL ACCESSORIES
902-0162-XXYY • PoE injector (24W) (Sold in quantities of 1, 10 or 100)
902-1169-XX00 • Power Supply (12V, 2.0A, 24W)
902-0120-0000 • Spare, Accessory Mounting Bracket
902-0123-0000 • Flush-frame acoustic ceiling bracket for R710. Flushframe only – not applicable for standard (recessed frame) acoustic ceiling
902-0195-0000 • Spare, T-bar ceiling mount kit for mounting to flush frame ceiling
[/accesories] The Ruckus ZoneFlex R710 indoor AP is the industry's highest capacity four-stream 802.11ac Wave 2 wireless access point. The R710 delivers reliable connectivity for high-density Wi-Fi environments where noise and interference are a big challenge.

Large businesses, office headquarters, school campuses, hotel chains, retail outlets, restaurants, multi-tenant office buildings, and hotspots - these are just some of the environments where high-speed, high-capacity Wi-Fi is critical to productivity, revenue generation, and customer satisfaction.

This high-end 802.11ac Wave 2 wireless access point incorporates top-performance patented technologies found only in the Ruckus Wi-Fi portfolio.

BeamFlex+ adaptive antenna technology directs each packet over the best-performing signal path, extending coverage range and mitigating interference automatically. ChannelFly technology chooses the best channel to give users the highest throughput - delivering up to 50 percent capacity gain over competitive dynamic channel selection approaches.

Whether organizations are deploying ten or ten thousand APs, the R710 is also easy to manage through the appliance, virtual and cloud management options.

The R710: Supports up to 512 clients on a single AP; Supports more services - including streaming HD media, bandwidth hungry cloud applications, web browsing, and email; Easily handles the transmission of challenging content - including jitter and latency sensitive streaming HD media; Uses fewer APs to cover more area with extended range capabilities; Improves throughput automatically delivering up to 50 percent capacity gains; Provides more wireless coverage and reduces costs with less cable runs; Reduces costs with support for both standard PoE and PoE+.
