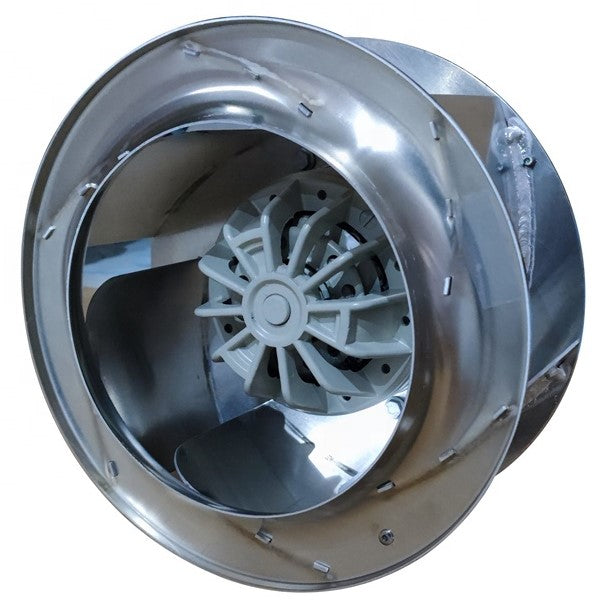

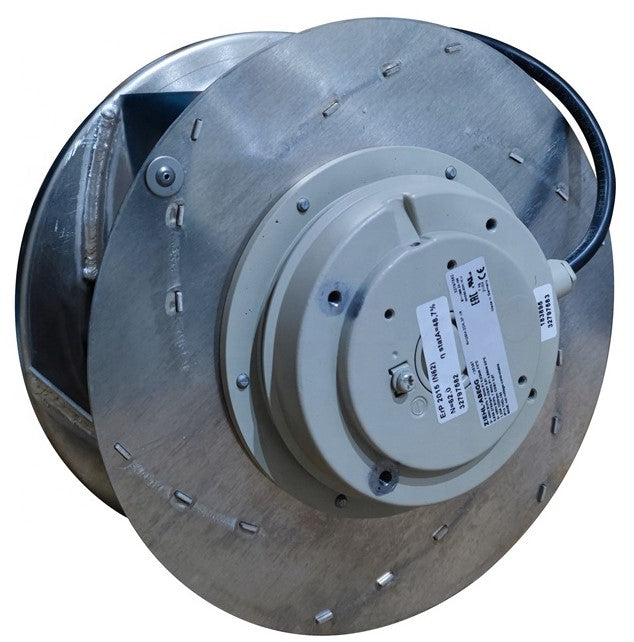

RH22M-2EK.1B.1R ZIEHL-ABEGG centrifugal fan 1-230V 50HZ 2590RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
RH22M-2EK.1B.1R ZIEHL-ABEGG centrifugal fan 1-230V 50HZ 2590RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
RH22M-2EK.1B.1R ZIEHL-ABEGG centrifugal fan 1-230V 50HZ 2590RPM
Clique ou role para ampliar
Toque ou belisque para ampliar
RH22M-2EK.1B.1R ZIEHL-ABEGG centrifugal fan 1-230V 50HZ 2590RPM
RH22M-2EK.1B.1R ZIEHL-ABEGG centrifugal fan 1-230V 50HZ 2590RPM

RH22M-2EK.1B.1R ZIEHL-ABEGG centrifugal fan 1-230V 50HZ 2590RPM

R$ 6.592,44
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo p/ empresas
  • Impostos inclusos • até 12x sem juros
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
RH22M-2EK.1B.1R | ZIEHL-ABEGG Centrifugal Fan 1-230V 0.21kW 0.9A 2590 rpm 1200 m³/h ⚡ INDUSTRIAL GRADE | MADE IN GERMANY

RH22M-2EK.1B.1R ZIEHL-ABEGG Centrifugal Fan 1-230V 0.21kW 0.9A 2590 rpm 1200 m³/h

German-engineered single-phase high-performance centrifugal fan for extreme reliability (10+ years), ultra-quiet operation, energy-saving efficient power consumption, and massive high-volume airflow – the ultimate cooling solution for demanding industrial applications.

📄 DOWNLOAD OFFICIAL DATASHEET (PDF)
🏆 10+ Years Industrial Durability German-engineered by ZIEHL-ABEGG with robust 3.2kg construction, premium ball bearings, and heavy-duty housing. Exceeds 10+ years of continuous operation in harsh environments with minimal maintenance. 🔇 Ultra-Quiet Operation Advanced aerodynamic blade profiling and precision dynamic balancing drastically reduce turbulence and noise. Ideal for hospitals, offices, residential areas, and noise-sensitive facilities. ⚡ Energy Efficient High Power Optimized 0.21kW power consumption with current draw of just 0.9A at 230V. Delivers exceptional performance per watt for heavy-duty 24/7 continuous operation. 💨 Massive High-Volume Airflow Powerful high-speed airflow at 2590 rpm with 1200 m³/h capacity and 50Hz compatibility generates exceptional directional air movement and static pressure of 475 Pa. Provides superior heat dissipation for the most demanding industrial systems.

The RH22M-2EK.1B.1R is trusted across multiple sectors requiring reliable, high-efficiency centrifugal ventilation.

🏭Industrial Ventilation ❄️Commercial Air Conditioning 🧊Industrial Refrigeration 🔥Heating Systems ⚙️Electrical Automation 🔌Frequency Converters 🚄Rail Transportation HVAC 🏢HVAC (FFU/AHU) 🌫️Air Purification Systems 🚗New Energy Vehicles 💻Data Center Cooling 🏥Hospital HVAC Systems 🔬Laboratory Ventilation 📡Telecom Equipment Cooling 🔋Battery Storage Systems 🚢Marine & Shipboard HVAC
Model No RH22M-2EK.1B.1R GENUINE
Condition Original new from manufacturer
Manufacturer ZIEHL-ABEGG GERMANY
Power 0.21 kW ENERGY EFFICIENT
Voltage 1-230 V SINGLE PHASE
Current 0.9 A LOW CURRENT
Speed 2590 rpm HIGH PERFORMANCE
Airflow 1200 m³/h HIGH AIRFLOW
Pressure 475 Pa
Noise Level 80 dBA
Protection Class IP 44 IP44 RATED
Frequency 50 Hz
Size 220 mm
HS Code 8414599099
Country of Origin Germany MADE IN GERMANY
Product Type Centrifugal fan INDUSTRIAL GRADE
Warranty 1 year PEACE OF MIND
Net Weight 3.2 kg
Shipping Dimension 30 × 30 × 30 cm
Ship From Hong Kong
Lead Time 5 days
Delivery Time 3-8 days
Ship By DHL / UPS
Sell and ship only genuine products from factory.
Promise: Meet all factory specs, fit, form, and function.
30 days returns policy, 100% customers satisfaction.
Large quantity inquiry please contact email: sales@axialfanz.com

Sell and ship only genuine products from factory.

Promise: Meet all factory specs, fit, form, and function.

Shipping From: Dispatched from Hong Kong – fast global distribution hub.

Processing Time: Orders are processed within 5 business days.

Express Delivery: Worldwide delivery in 3-8 business days via DHL / UPS.

Warranty: Full 1-year manufacturer warranty backed by ZIEHL-ABEGG.

30-Day Returns: 30-day return policy & 100% customer satisfaction commitment.

Volume Pricing: For large quantity inquiries: sales@axialfanz.com
🔹 Q1: What makes this fan last over 10 years? A: The RH22M-2EK.1B.1R features German-engineered construction with premium ball bearings, reinforced housing, and robust 3.2kg build. Designed for continuous heavy-duty industrial operation with minimal wear, ensuring a service life exceeding a decade. 🔹 Q2: How quiet is this fan's operation? A: Despite its powerful high-speed airflow at 2590 rpm with 1200 m³/h capacity, the aerodynamically optimized impeller and precision balancing drastically reduce noise. It is well-suited for noise-sensitive environments such as hospitals, labs, and office buildings. 🔹 Q3: How does this fan save energy? A: With 0.21kW power consumption and current draw of just 0.9A at 230V, this single-phase fan delivers exceptional performance per watt – perfect for 24/7 continuous operation while keeping energy costs optimized. 🔹 Q4: What cooling performance can I expect? A: This centrifugal fan delivers massive volumetric flow of 1200 m³/h at 2590 rpm with 475 Pa static pressure, ensuring superior heat dissipation for the most demanding industrial machinery, data centers, and high-performance HVAC systems.

Contact our technical team for application support, bulk quotes, or customized solutions.

📧 Request Technical Support 📊 Request Volume Pricing
★★★★★ Verified Buyer – Senior HVAC Engineer

"The RH22M-2EK.1B.1R is a powerful single-phase centrifugal fan from ZIEHL-ABEGG. The 0.21kW motor with 0.9A current draw delivers outstanding airflow of 1200 m³/h at 2590 rpm with 475 Pa pressure while maintaining energy efficiency. It runs surprisingly quiet for its performance level. German build quality at 3.2kg with IP44 rating is excellent – built for 10+ years in demanding industrial environments. Perfect for high-performance cooling applications. Highly recommended!"

— Bertram W., Industrial Facilities Director

✅ Verified Purchase · Reviewed on June 26, 2026
Descrição, características do produto
RH22M-2EK.1B.1R | ZIEHL-ABEGG Centrifugal Fan 1-230V 0.21kW 0.9A 2590 rpm 1200 m³/h ⚡ INDUSTRIAL GRADE | MADE IN GERMANY

RH22M-2EK.1B.1R ZIEHL-ABEGG Centrifugal Fan 1-230V 0.21kW 0.9A 2590 rpm 1200 m³/h

German-engineered single-phase high-performance centrifugal fan for extreme reliability (10+ years), ultra-quiet operation, energy-saving efficient power consumption, and massive high-volume airflow – the ultimate cooling solution for demanding industrial applications.

📄 DOWNLOAD OFFICIAL DATASHEET (PDF)
Core Performance Advantages
🏆 10+ Years Industrial Durability German-engineered by ZIEHL-ABEGG with robust 3.2kg construction, premium ball bearings, and heavy-duty housing. Exceeds 10+ years of continuous operation in harsh environments with minimal maintenance. 🔇 Ultra-Quiet Operation Advanced aerodynamic blade profiling and precision dynamic balancing drastically reduce turbulence and noise. Ideal for hospitals, offices, residential areas, and noise-sensitive facilities. ⚡ Energy Efficient High Power Optimized 0.21kW power consumption with current draw of just 0.9A at 230V. Delivers exceptional performance per watt for heavy-duty 24/7 continuous operation. 💨 Massive High-Volume Airflow Powerful high-speed airflow at 2590 rpm with 1200 m³/h capacity and 50Hz compatibility generates exceptional directional air movement and static pressure of 475 Pa. Provides superior heat dissipation for the most demanding industrial systems.
Industry Applications

The RH22M-2EK.1B.1R is trusted across multiple sectors requiring reliable, high-efficiency centrifugal ventilation.

🏭Industrial Ventilation ❄️Commercial Air Conditioning 🧊Industrial Refrigeration 🔥Heating Systems ⚙️Electrical Automation 🔌Frequency Converters 🚄Rail Transportation HVAC 🏢HVAC (FFU/AHU) 🌫️Air Purification Systems 🚗New Energy Vehicles 💻Data Center Cooling 🏥Hospital HVAC Systems 🔬Laboratory Ventilation 📡Telecom Equipment Cooling 🔋Battery Storage Systems 🚢Marine & Shipboard HVAC
Technical Specifications
Model No RH22M-2EK.1B.1R GENUINE
Condition Original new from manufacturer
Manufacturer ZIEHL-ABEGG GERMANY
Power 0.21 kW ENERGY EFFICIENT
Voltage 1-230 V SINGLE PHASE
Current 0.9 A LOW CURRENT
Speed 2590 rpm HIGH PERFORMANCE
Airflow 1200 m³/h HIGH AIRFLOW
Pressure 475 Pa
Noise Level 80 dBA
Protection Class IP 44 IP44 RATED
Frequency 50 Hz
Size 220 mm
HS Code 8414599099
Country of Origin Germany MADE IN GERMANY
Product Type Centrifugal fan INDUSTRIAL GRADE
Warranty 1 year PEACE OF MIND
Net Weight 3.2 kg
Shipping Dimension 30 × 30 × 30 cm
Ship From Hong Kong
Lead Time 5 days
Delivery Time 3-8 days
Ship By DHL / UPS
Sell and ship only genuine products from factory.
Promise: Meet all factory specs, fit, form, and function.
30 days returns policy, 100% customers satisfaction.
Large quantity inquiry please contact email: sales@axialfanz.com
📦 Shipping, Warranty & Service

Sell and ship only genuine products from factory.

Promise: Meet all factory specs, fit, form, and function.

Shipping From: Dispatched from Hong Kong – fast global distribution hub.

Processing Time: Orders are processed within 5 business days.

Express Delivery: Worldwide delivery in 3-8 business days via DHL / UPS.

Warranty: Full 1-year manufacturer warranty backed by ZIEHL-ABEGG.

30-Day Returns: 30-day return policy & 100% customer satisfaction commitment.

Volume Pricing: For large quantity inquiries: sales@axialfanz.com
Frequently Asked Questions
🔹 Q1: What makes this fan last over 10 years? A: The RH22M-2EK.1B.1R features German-engineered construction with premium ball bearings, reinforced housing, and robust 3.2kg build. Designed for continuous heavy-duty industrial operation with minimal wear, ensuring a service life exceeding a decade. 🔹 Q2: How quiet is this fan's operation? A: Despite its powerful high-speed airflow at 2590 rpm with 1200 m³/h capacity, the aerodynamically optimized impeller and precision balancing drastically reduce noise. It is well-suited for noise-sensitive environments such as hospitals, labs, and office buildings. 🔹 Q3: How does this fan save energy? A: With 0.21kW power consumption and current draw of just 0.9A at 230V, this single-phase fan delivers exceptional performance per watt – perfect for 24/7 continuous operation while keeping energy costs optimized. 🔹 Q4: What cooling performance can I expect? A: This centrifugal fan delivers massive volumetric flow of 1200 m³/h at 2590 rpm with 475 Pa static pressure, ensuring superior heat dissipation for the most demanding industrial machinery, data centers, and high-performance HVAC systems.
Need a Reliable High-Performance Centrifugal Fan?

Contact our technical team for application support, bulk quotes, or customized solutions.

📧 Request Technical Support 📊 Request Volume Pricing
⭐ Customer Reviews
★★★★★ Verified Buyer – Senior HVAC Engineer

"The RH22M-2EK.1B.1R is a powerful single-phase centrifugal fan from ZIEHL-ABEGG. The 0.21kW motor with 0.9A current draw delivers outstanding airflow of 1200 m³/h at 2590 rpm with 475 Pa pressure while maintaining energy efficiency. It runs surprisingly quiet for its performance level. German build quality at 3.2kg with IP44 rating is excellent – built for 10+ years in demanding industrial environments. Perfect for high-performance cooling applications. Highly recommended!"

— Bertram W., Industrial Facilities Director

✅ Verified Purchase · Reviewed on June 26, 2026
