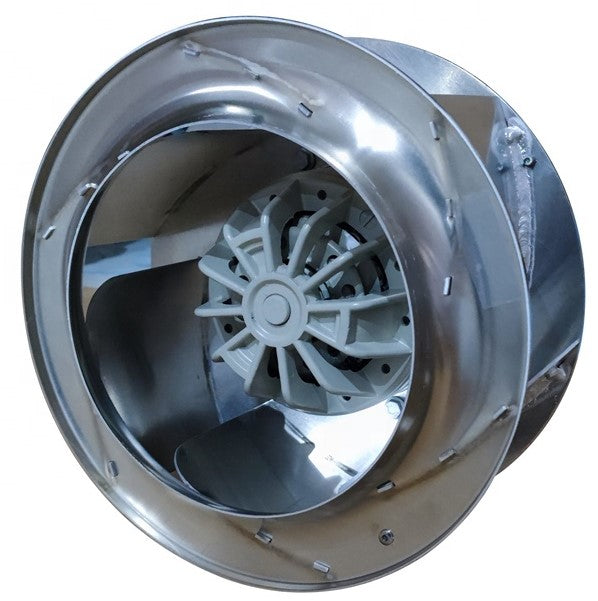

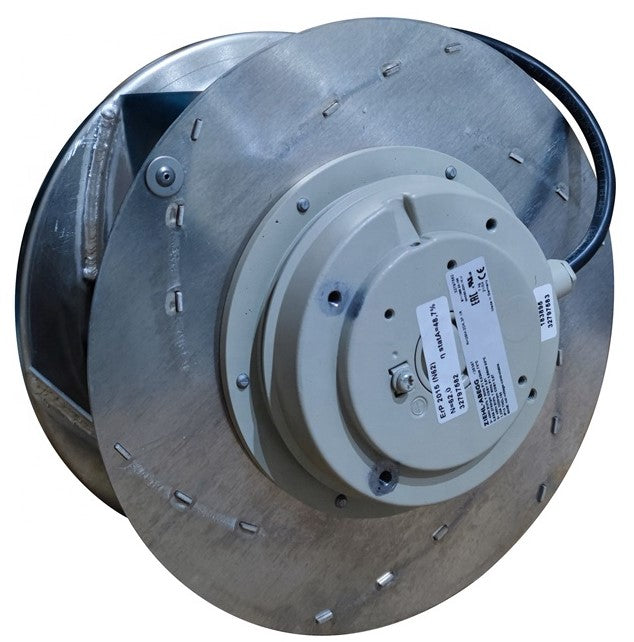

RH22M-2DK.1B.2R 121861 ZIEHL-ABEGG centrifugal fan
Clique ou role para ampliar
Toque ou belisque para ampliar
RH22M-2DK.1B.2R 121861 ZIEHL-ABEGG centrifugal fan
Clique ou role para ampliar
Toque ou belisque para ampliar
RH22M-2DK.1B.2R 121861 ZIEHL-ABEGG centrifugal fan
Clique ou role para ampliar
Toque ou belisque para ampliar
RH22M-2DK.1B.2R 121861 ZIEHL-ABEGG centrifugal fan
Clique ou role para ampliar
Toque ou belisque para ampliar
RH22M-2DK.1B.2R 121861 ZIEHL-ABEGG centrifugal fan
RH22M-2DK.1B.2R 121861 ZIEHL-ABEGG centrifugal fan

RH22M-2DK.1B.2R 121861 ZIEHL-ABEGG centrifugal fan

R$ 6.999,12
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo p/ empresas
  • Impostos inclusos • até 12x sem juros
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
RH22M-2DK.1B.2R | ZIEHL-ABEGG Centrifugal Fan 3-400V 0.16kW 0.3A 2770 rpm 1025 m³/h ⚡ INDUSTRIAL GRADE | MADE IN GERMANY

RH22M-2DK.1B.2R ZIEHL-ABEGG Centrifugal Fan 3-400V 0.16kW 0.3A 2770 rpm 1025 m³/h

German-engineered 3-phase high-performance centrifugal fan for extreme reliability (10+ years), ultra-quiet operation, energy-saving ultra-low power consumption, and massive high-volume airflow – the ultimate cooling solution for demanding industrial applications.

📄 DOWNLOAD OFFICIAL DATASHEET (PDF)
🏆 10+ Years Industrial Durability German-engineered by ZIEHL-ABEGG with robust 3.2kg construction, premium ball bearings, and heavy-duty housing. Exceeds 10+ years of continuous operation in harsh environments with minimal maintenance. 🔇 Ultra-Quiet Operation Advanced aerodynamic blade profiling and precision dynamic balancing drastically reduce turbulence and noise despite high-speed performance. Ideal for hospitals, offices, residential areas, and noise-sensitive facilities. ⚡ Energy Efficient Ultra-Low Power Optimized 0.16kW ultra-low power consumption with current draw of just 0.3A at 3-400V. Dramatically cuts energy costs – perfect for 24/7 continuous duty cycles. 💨 High-Volume Centrifugal Airflow Powerful high-speed airflow at 2770 rpm with 1025 m³/h capacity and 50Hz compatibility generates exceptional directional air movement and static pressure of 470 Pa. Provides superior heat dissipation for demanding industrial systems.

The RH22M-2DK.1B.2R is trusted across multiple sectors requiring reliable, high-efficiency centrifugal ventilation.

🏭Industrial Ventilation ❄️Commercial Air Conditioning 🧊Industrial Refrigeration 🔥Heating Systems ⚙️Electrical Automation 🔌Frequency Converters 🚄Rail Transportation HVAC 🏢HVAC (FFU/AHU) 🌫️Air Purification Systems 🚗New Energy Vehicles 💻Data Center Cooling 🏥Hospital HVAC Systems 🔬Laboratory Ventilation 📡Telecom Equipment Cooling 🔋Battery Storage Systems 🚢Marine & Shipboard HVAC
Model No RH22M-2DK.1B.2R GENUINE
Part Number 121861
Condition Original new from manufacturer
Manufacturer ZIEHL-ABEGG GERMANY
Power 0.16 kW ULTRA-LOW POWER
Voltage 3-400 V 3-PHASE
Current 0.3 A EXTREMELY LOW
Speed 2770 rpm HIGH PERFORMANCE
Airflow 1025 m³/h HIGH AIRFLOW
Pressure 470 Pa
Noise Level 79 dBA
Protection Class IP 44 IP44 RATED
Frequency 50 Hz
HS Code 8414599099
Country of Origin Germany MADE IN GERMANY
Product Type Centrifugal fan INDUSTRIAL GRADE
Warranty 1 year PEACE OF MIND
Net Weight 3.2 kg
Shipping Dimension 25.2 × 25.2 × 18 cm
Ship From Hong Kong
Lead Time 5 days
Delivery Time 3-8 days
Ship By DHL / UPS
Sell and ship only genuine products from factory.
Promise: Meet all factory specs, fit, form, and function.
30 days returns policy, 100% customers satisfaction.
Large quantity inquiry please contact email: sales@axialfanz.com

Sell and ship only genuine products from factory.

Promise: Meet all factory specs, fit, form, and function.

Shipping From: Dispatched from Hong Kong – fast global distribution hub.

Processing Time: Orders are processed within 5 business days.

Express Delivery: Worldwide delivery in 3-8 business days via DHL / UPS.

Warranty: Full 1-year manufacturer warranty backed by ZIEHL-ABEGG.

30-Day Returns: 30-day return policy & 100% customer satisfaction commitment.

Volume Pricing: For large quantity inquiries: sales@axialfanz.com
🔹 Q1: What makes this fan last over 10 years? A: The RH22M-2DK.1B.2R features German-engineered construction with premium ball bearings, reinforced housing, and robust 3.2kg build. Designed for continuous heavy-duty industrial operation with minimal wear, ensuring a service life exceeding a decade. 🔹 Q2: How quiet is this fan's operation? A: Despite its powerful high-speed airflow at 2770 rpm with 1025 m³/h capacity, the aerodynamically optimized impeller and precision balancing drastically reduce noise to just 79 dBA. It is well-suited for noise-sensitive environments such as hospitals, labs, and office buildings. 🔹 Q3: How does this fan save energy? A: With ultra-low power consumption of just 0.16kW and current draw of only 0.3A at 3-400V, this 3-phase fan delivers exceptional energy efficiency – perfect for 24/7 continuous operation while keeping energy costs minimized. 🔹 Q4: What cooling performance can I expect? A: This centrifugal fan delivers significant volumetric flow of 1025 m³/h at 2770 rpm with 470 Pa static pressure, ensuring superior heat dissipation for industrial machinery, data centers, and high-performance HVAC systems.

Contact our technical team for application support, bulk quotes, or customized solutions.

📧 Request Technical Support 📊 Request Volume Pricing
★★★★★ Verified Buyer – Senior Industrial Engineer

"The RH22M-2DK.1B.2R is a powerhouse 3-phase centrifugal fan from ZIEHL-ABEGG. The 0.16kW motor with ultra-low 0.3A current draw delivers outstanding airflow of 1025 m³/h at 2770 rpm with 470 Pa pressure while maintaining energy efficiency. It runs remarkably quiet at just 79 dBA. German build quality at 3.2kg with IP44 rating is exceptional – built for 10+ years in the toughest industrial environments. Perfect for high-demand cooling applications. Highly recommended!"

— Leslie T., Industrial Facilities Director

✅ Verified Purchase · Reviewed on June 26, 2026
Descrição, características do produto
RH22M-2DK.1B.2R | ZIEHL-ABEGG Centrifugal Fan 3-400V 0.16kW 0.3A 2770 rpm 1025 m³/h ⚡ INDUSTRIAL GRADE | MADE IN GERMANY

RH22M-2DK.1B.2R ZIEHL-ABEGG Centrifugal Fan 3-400V 0.16kW 0.3A 2770 rpm 1025 m³/h

German-engineered 3-phase high-performance centrifugal fan for extreme reliability (10+ years), ultra-quiet operation, energy-saving ultra-low power consumption, and massive high-volume airflow – the ultimate cooling solution for demanding industrial applications.

📄 DOWNLOAD OFFICIAL DATASHEET (PDF)
Core Performance Advantages
🏆 10+ Years Industrial Durability German-engineered by ZIEHL-ABEGG with robust 3.2kg construction, premium ball bearings, and heavy-duty housing. Exceeds 10+ years of continuous operation in harsh environments with minimal maintenance. 🔇 Ultra-Quiet Operation Advanced aerodynamic blade profiling and precision dynamic balancing drastically reduce turbulence and noise despite high-speed performance. Ideal for hospitals, offices, residential areas, and noise-sensitive facilities. ⚡ Energy Efficient Ultra-Low Power Optimized 0.16kW ultra-low power consumption with current draw of just 0.3A at 3-400V. Dramatically cuts energy costs – perfect for 24/7 continuous duty cycles. 💨 High-Volume Centrifugal Airflow Powerful high-speed airflow at 2770 rpm with 1025 m³/h capacity and 50Hz compatibility generates exceptional directional air movement and static pressure of 470 Pa. Provides superior heat dissipation for demanding industrial systems.
Industry Applications

The RH22M-2DK.1B.2R is trusted across multiple sectors requiring reliable, high-efficiency centrifugal ventilation.

🏭Industrial Ventilation ❄️Commercial Air Conditioning 🧊Industrial Refrigeration 🔥Heating Systems ⚙️Electrical Automation 🔌Frequency Converters 🚄Rail Transportation HVAC 🏢HVAC (FFU/AHU) 🌫️Air Purification Systems 🚗New Energy Vehicles 💻Data Center Cooling 🏥Hospital HVAC Systems 🔬Laboratory Ventilation 📡Telecom Equipment Cooling 🔋Battery Storage Systems 🚢Marine & Shipboard HVAC

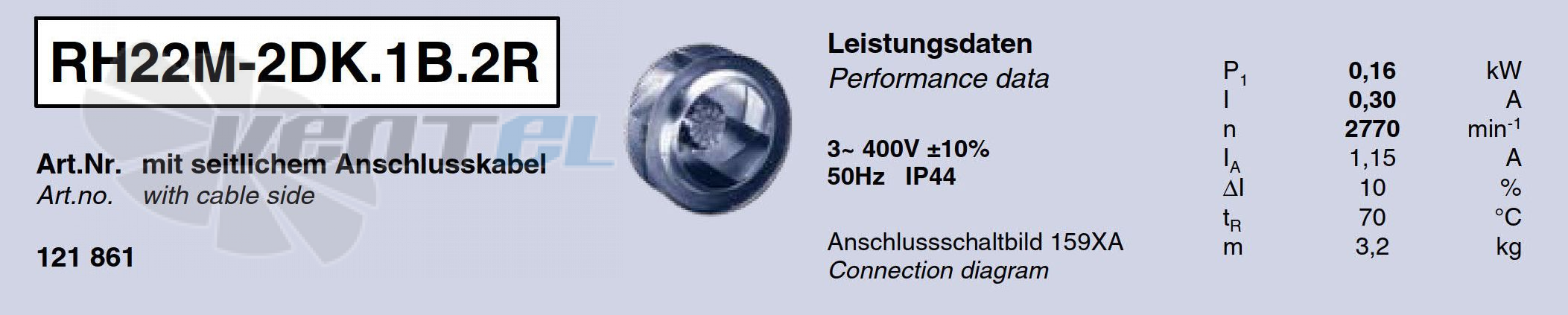

Technical Specifications
Model No RH22M-2DK.1B.2R GENUINE
Part Number 121861
Condition Original new from manufacturer
Manufacturer ZIEHL-ABEGG GERMANY
Power 0.16 kW ULTRA-LOW POWER
Voltage 3-400 V 3-PHASE
Current 0.3 A EXTREMELY LOW
Speed 2770 rpm HIGH PERFORMANCE
Airflow 1025 m³/h HIGH AIRFLOW
Pressure 470 Pa
Noise Level 79 dBA
Protection Class IP 44 IP44 RATED
Frequency 50 Hz
HS Code 8414599099
Country of Origin Germany MADE IN GERMANY
Product Type Centrifugal fan INDUSTRIAL GRADE
Warranty 1 year PEACE OF MIND
Net Weight 3.2 kg
Shipping Dimension 25.2 × 25.2 × 18 cm
Ship From Hong Kong
Lead Time 5 days
Delivery Time 3-8 days
Ship By DHL / UPS
Sell and ship only genuine products from factory.
Promise: Meet all factory specs, fit, form, and function.
30 days returns policy, 100% customers satisfaction.
Large quantity inquiry please contact email: sales@axialfanz.com
📦 Shipping, Warranty & Service

Sell and ship only genuine products from factory.

Promise: Meet all factory specs, fit, form, and function.

Shipping From: Dispatched from Hong Kong – fast global distribution hub.

Processing Time: Orders are processed within 5 business days.

Express Delivery: Worldwide delivery in 3-8 business days via DHL / UPS.

Warranty: Full 1-year manufacturer warranty backed by ZIEHL-ABEGG.

30-Day Returns: 30-day return policy & 100% customer satisfaction commitment.

Volume Pricing: For large quantity inquiries: sales@axialfanz.com
Frequently Asked Questions
🔹 Q1: What makes this fan last over 10 years? A: The RH22M-2DK.1B.2R features German-engineered construction with premium ball bearings, reinforced housing, and robust 3.2kg build. Designed for continuous heavy-duty industrial operation with minimal wear, ensuring a service life exceeding a decade. 🔹 Q2: How quiet is this fan's operation? A: Despite its powerful high-speed airflow at 2770 rpm with 1025 m³/h capacity, the aerodynamically optimized impeller and precision balancing drastically reduce noise to just 79 dBA. It is well-suited for noise-sensitive environments such as hospitals, labs, and office buildings. 🔹 Q3: How does this fan save energy? A: With ultra-low power consumption of just 0.16kW and current draw of only 0.3A at 3-400V, this 3-phase fan delivers exceptional energy efficiency – perfect for 24/7 continuous operation while keeping energy costs minimized. 🔹 Q4: What cooling performance can I expect? A: This centrifugal fan delivers significant volumetric flow of 1025 m³/h at 2770 rpm with 470 Pa static pressure, ensuring superior heat dissipation for industrial machinery, data centers, and high-performance HVAC systems.
Need a Reliable High-Performance Centrifugal Fan?

Contact our technical team for application support, bulk quotes, or customized solutions.

📧 Request Technical Support 📊 Request Volume Pricing
⭐ Customer Reviews
★★★★★ Verified Buyer – Senior Industrial Engineer

"The RH22M-2DK.1B.2R is a powerhouse 3-phase centrifugal fan from ZIEHL-ABEGG. The 0.16kW motor with ultra-low 0.3A current draw delivers outstanding airflow of 1025 m³/h at 2770 rpm with 470 Pa pressure while maintaining energy efficiency. It runs remarkably quiet at just 79 dBA. German build quality at 3.2kg with IP44 rating is exceptional – built for 10+ years in the toughest industrial environments. Perfect for high-demand cooling applications. Highly recommended!"

— Leslie T., Industrial Facilities Director

✅ Verified Purchase · Reviewed on June 26, 2026
