A Slim Compact Controller Based on Raspberry Pi
Informações e formas de pagamento
Estabelecemos parcerias com revendas
A Slim Compact Controller Based on Raspberry Pi

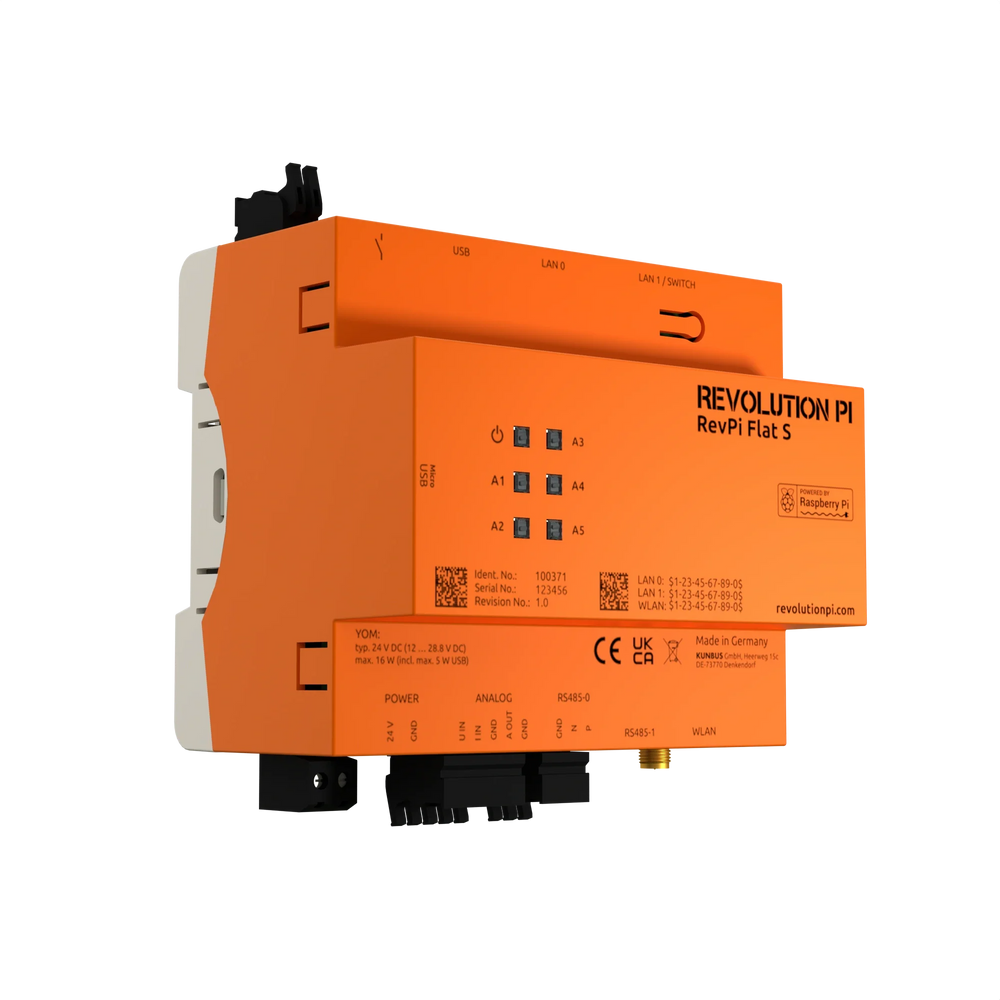

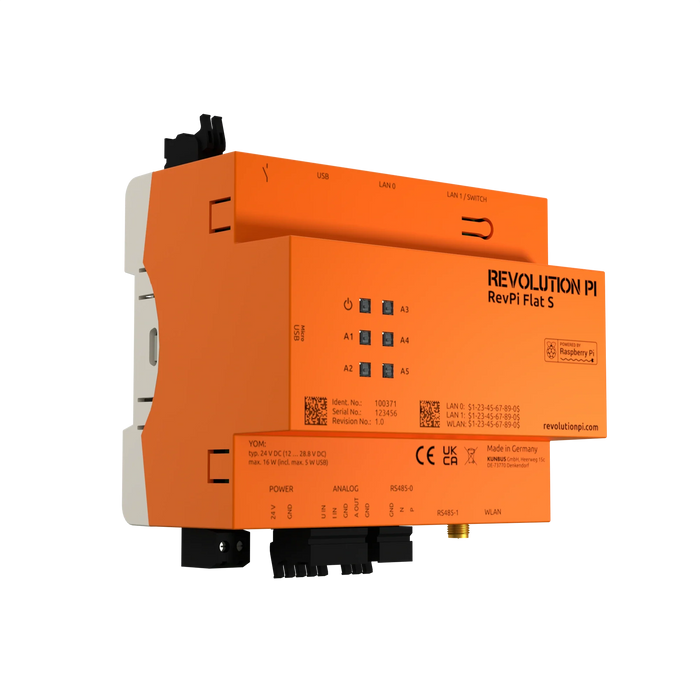

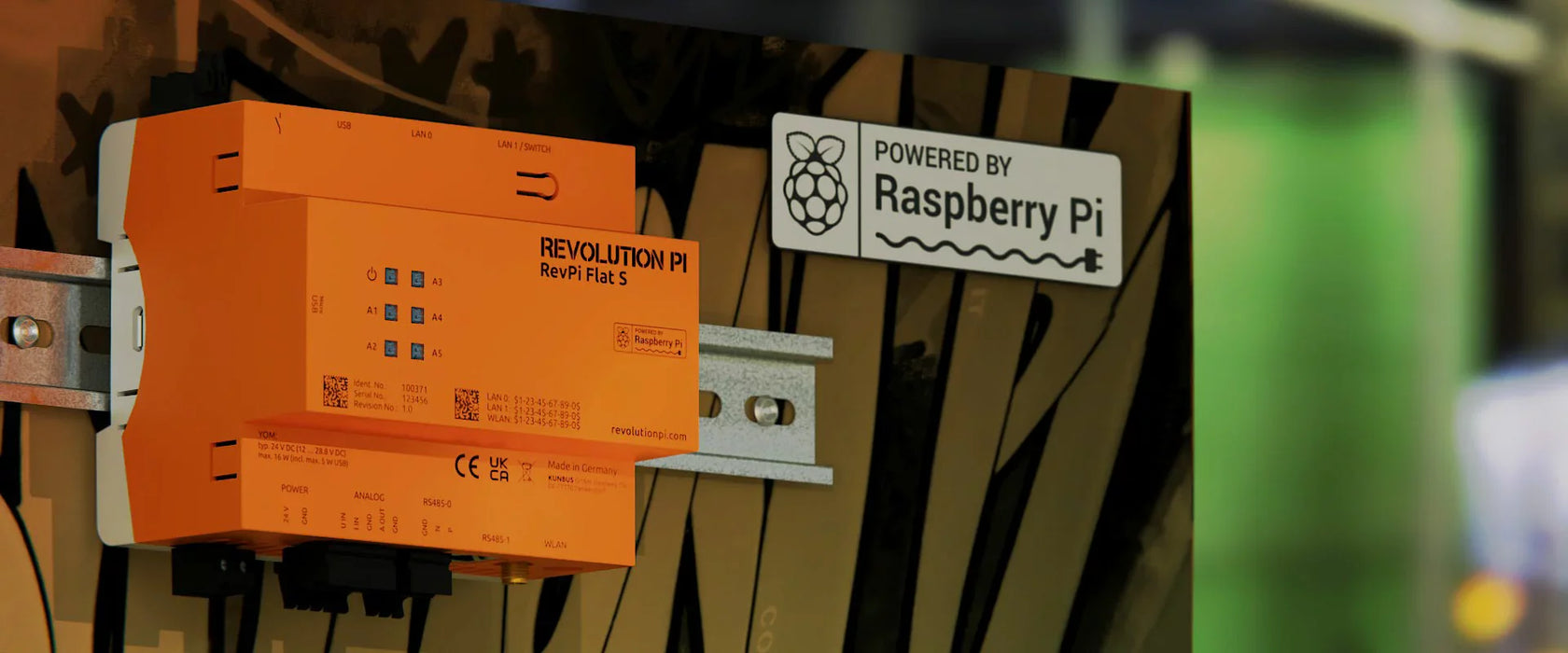

RevPi Flat is an open-source industrial PC for the DIN rail. Equipped with the Raspberry Pi Compute Module 4S, the device has a 1.5 GHz quad-core processor with 1 GB RAM and 32 GB eMMC flash memory. With its slim design, it fits perfectly into the sub-distribution cabinets that are typically used in building automation. The operating system used by the RevPi Flat S is a specially adapted Raspbian version with RT patch by default. Unlike the RevPi Core and RevPi Connect devices, the RevPi Flat is not modular in design and cannot be extended with expansion modules.
The RevPi Flat S is particularly appealing to manufacturers of software solutions in the energy sector who seek an open, high-performance Linux platform. It provides new, cost-efficient, and flexibly adaptable application possibilities, whether for the control and monitoring of photovoltaic systems or for load management of charging stations.
Ideal Applications:
• Modern, decentralized energy management • Management of virtual power plants • Ensuring control power when controlling numerous small power plants • Support for energy trading • Control of photovoltaic, biogas and wind power plants • Control of charging stations and hydrogen cells • Cost- and time-optimized charging of electric vehicles • Management of alternative intermediate storage, e.g. for e-vehicles • On-site management of digital master data, files and maintenance logs • Remote reading of meters • Integration of cloud solutions
Phytools SKU to EAN#
PR1003714260498391875
Available Connections
4 x RJ45 Ethernet
2 x USB A
1 x RS485
1 x WLAN (RP SMA)
1 x ISM 868 MHz (SMA)
1 x digital output
1 x analog input
1 x analog output
Power Supply
typ. 24 V DC (12.0 … 28.8 V DC)
IP Code
IP20
WEEE-Reg.-No.
DE 34461592

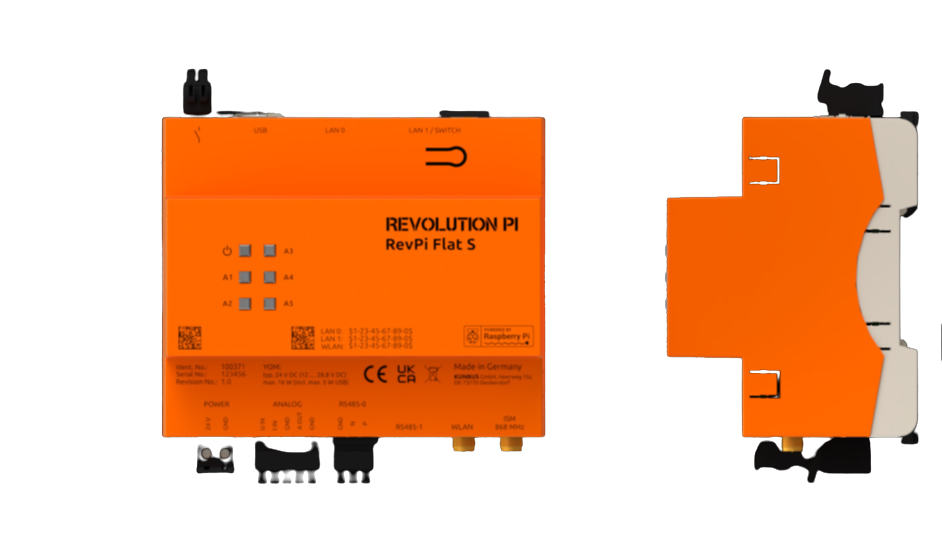

Housing dimensions (HxWxD)
90 x 106 x 70 mm
Housing type
DIN rail housing for TH35 according to DIN EN 60715
Housing material
Polycarbonate
Weight
approx. 256 g (including connectors)
IP Code
IP20 / NEMA Class 1
Power supply
typ. 24 V DC (12.0 … 28.8 V DC), reverse polarity protected
Max. power consumption
11 W (incl. max. 5 W USB)
Operating temperature
-20 °C to +55 °C
Storage temperature
-40 °C to +85 °C
Humidity (40 °C)
up to 93 % (non-condensing)
Interfaces
4 x RJ45 10/100 Ethernet, two or four separate MAC addresses for LAN0/switch or LAN0 ... LAN3; LAN0: 1 x Ethernet; LAN1: 3 x Ethernet switched or single (DSA)
2 x USB A (total current draw from all sockets max. 1 A) 2 x RS485 max. 500 kbps, galvanically isolated, termination switchable by software 1 x RP-SMA jack WLAN
Connectors
2-, 3- and 5-pole screw/spring-loaded terminal
Processor
Broadcom BCM2711, quad-core Arm Cortex-A72
Clock rate
1.5 GHz
Processor cooling
Passive with heat sink
RAM
1 GB LPDDR4
Flash memory
32 GB
Number of digital input channels
1
Input Type
24 V control voltage (e.g. for power-good signal of a UPS)
Input Threshold
approx. 3.0 V (0 -> 1) / 2.3 V (1 -> 0)
Input protection
against overvoltage, negative voltages
Number of digital output channels
1
Digital output type
potential-free relay contact
Maximum current output channel
2 A @ 30V DC
Number of analog input channels
1
Analog input type
0-10 V DC or 0-20 mA, single ended, 16-bit at piControl, 21-bit raw value
Number of analog output channels
1
Analog output type
0-10 V DC, short-circuit proof, protection against back feeding, 12-bit resolution, 1% accuracy
Maximum current load of the analog output
10 mA (10 V DC @ 1 k)
Software interface of inputs and outputs
Via GPIOs and process image
EMC interference emission
according to EN 61000-6-4
EMC immunity
according to EN 61000-6-2
Buffer time
RTC min. 24 h
Optical indicator
6 status LEDs (bi-color), two of them freely programmable
