RevPi S and SE series are based on the Raspberry Pi Compute Module 4S
Informações e formas de pagamento
Estabelecemos parcerias com revendas
RevPi S and SE series are based on the Raspberry Pi Compute Module 4S
The RevPi S and SE seriesare an intermediate step between the RevPi Connect+ series and the RevPi Connect 4 series.

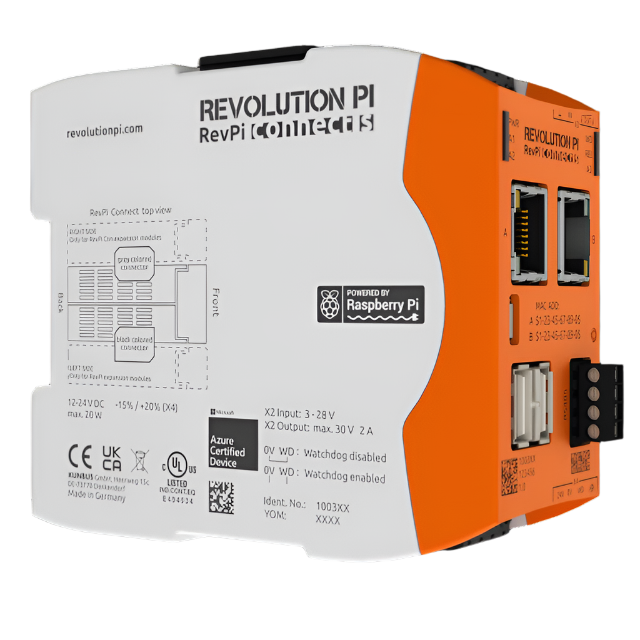

The RevPi Connect S from KUNBUS is an open source Industrial IoT (IIoT) gateway and is the updated version of the RevPi Connect+. RevPi Connect S is based on the Raspberry Pi Compute Module 4S, and features a 1.5 GHz quad-core processor, 1 GB RAM and 8 GB or 32 GB eMMC flash memory. The operating system is a customized Raspbian version with a real time patch. Common IIoT protocols such as OPC UA and MQTT are fully supported allowing the transfer of data directly to the cloud.
Individual applications may be programmed using Node-RED, Python, or C programming. The modular design allows the 45mm base device to be fitted with expansion modules such as digital and analog I/Os, fieldbus gateways and radio modules including Bluetooth. The expansion modules may be connected with the base device via a socket located at the top and is easily configured with an intuitive GUI.
For a detailed comparison of the technical distinctions among the different RevPi Connect variants, please refer to this page.
Phytools SKU to EAN#
PR1003624260498391783
PR1003634260498391790
PR1003644260498391806
Want to learn more about the difference between theS and SE series?
12-24 V DC -15 % / +20 %, reverse polarity protected
Max. power consumption
20 Watt (incl. 1 A total USB output current) The average power consumption without USB load varies greatly and depends on the use of the interfaces, the GPU and the CPU. It is usually well below 4 watts without HDMI
Operating temperature
-25 °C to +55 °C
Storage temperature
-40 °C to +85 °C
Humidity (40 °C)
up to 93 % (non-condensing)
Interfaces
2 x USB A (Total current draw from both sockets max. 1 A) 2 x RJ45 10/100 Ethernet (using separate MAC addresses) 1 x RS485 screw-type terminal (not galvanically isolated) 1 x Micro-USB (solely for image transfer to eMMC) 1 x Micro HDMI HDMI 2.0a (4K) 1 x PiBridge system bus 1 x ConBridge system bus
Connectors
1 x 4-pole screw-type terminal for relay contact and signal input 1 x 4-pole screw-type terminal for power supply
24 V control voltage (e.g. for power-good signal of a UPS)
Input Threshold
approx. 3.0 V (0 -> 1) / 2.3 V (1 -> 0)
Input protection
against overvoltage, negative voltages
Number of digital output channels
1
Output type
Relay contact, approval up to 30 V switching voltage (e.g. for power supply of a router)
Maximum current load of the contact
2 A @ 30V DC (resistive load!)
Software integration of input and output
Via GPIOs and process image. Output is optionally switched by hardware watch-dog.
Hardware watchdog functionality
Can be disabled by bridging the 4-pole screw-type terminal. Reset by toggling a GPIO or alternatively a bit in the process image.
Hardware watchdog intervall
Trigger after approx. 60 seconds without toggling the reset bit.
Compatible modules for system expansion
All RevPi IO modules and RevPi Gateway modules can be connected via the PiBridge system bus. All RevPi Con modules can be connected via the ConBridge system bus.
ESD protection
4 kV / 8 kV (according to EN61131-2 and IEC 61000-6-2)
EMI tests
Passed (according to EN61131-2 and IEC 61000-6-2)
Surge/Burst tests
Passed (according to EN61131-2 and IEC 61000-6-2)
Buffer time
RTC min. 24 h
Optical indicator
6 status LEDs (bi-color), two of them freely programmable
RoHS conformity
Yes
CE conformity
Yes
UL certification
Yes, UL-File-No. E494534 Note: The device may only be supplied from circuits that comply with Class 2 or Safety Extra Low Voltage (SELV) according to Class 9.4 of UL 61010-1
