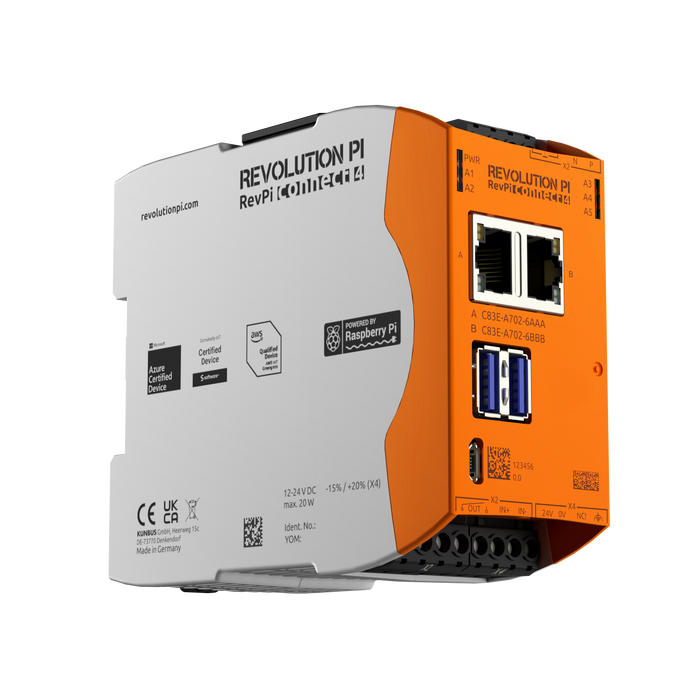

RevPi Connect 4
Clique ou role para ampliar
Toque ou belisque para ampliar

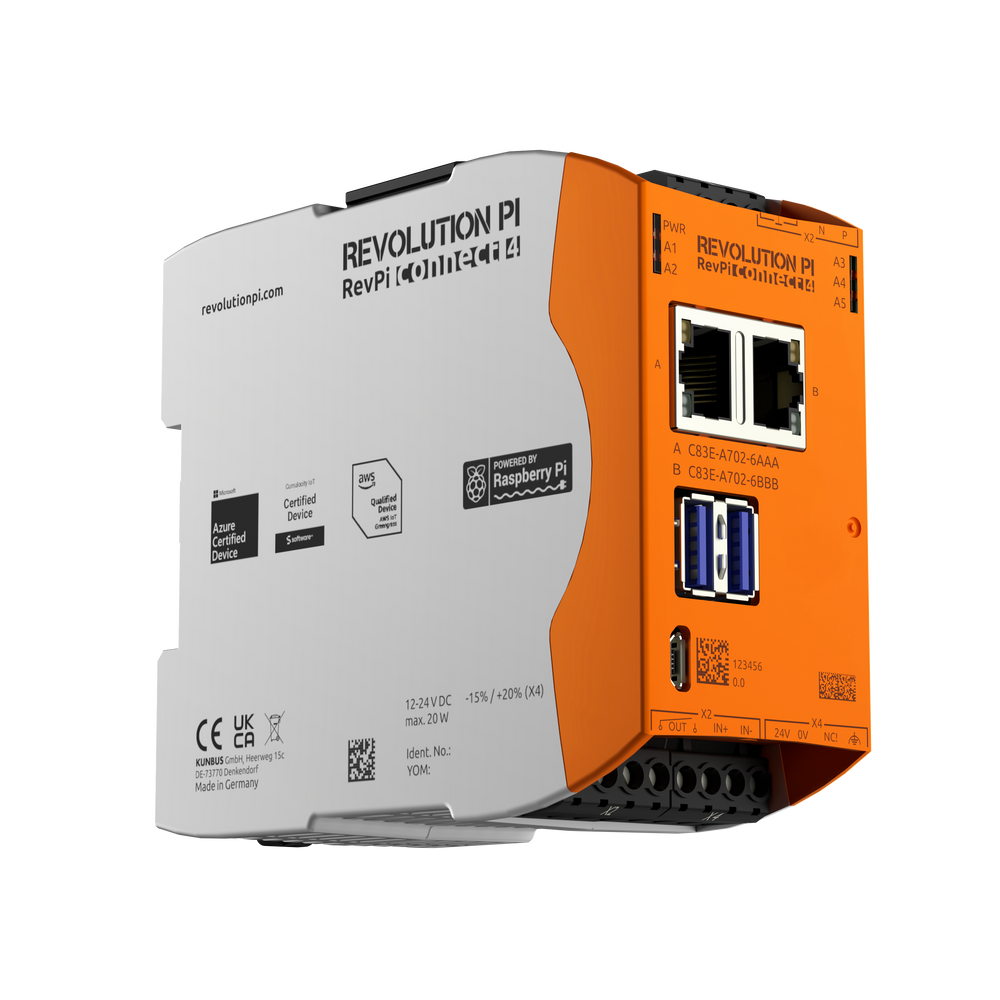

RevPi Connect 4
Clique ou role para ampliar
Toque ou belisque para ampliar
RevPi Connect 4
RevPi Connect 4

RevPi Connect 4

por KUNBUS
R$ 6.348,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

Based on the Raspberry Pi CM4 and powered by a Broadcom BCM2711 processor. It has up to 32 GB eMMC memory, optional WLAN/Bluetooth, and can be expanded with up to ten I/O modules. It has multiple interfaces, an integrated RTC, hardware watchdog, and HAT EEPROM.

The pre-installed Raspberry Pi OS is customized and supports Modbus RTU/TCP, MQTT, and OPC UA protocols. Custom app development is possible with Node-RED, Python, and C. The modular design allows for easy expansion with digital/analog I/Os, fieldbus gateways, and radio modules.

NEW FEATURES:

  • Faster processor (Broadcom BCM2711)
  • WLAN and Bluetooth support (optional)
  • Easier I/O expansion with plug-and-play GUI
  • Real-time clock (RTC) now battery-buffered

For a detailed comparison of the technical distinctions among the different RevPi Connect variants, please refer to this page.

Phytools SKU to EAN#

PR100376              4260498391905

PR100378              4260498391929

PR100379              4260498391936

PR100395              4260498392100

PR100380              4260498391943

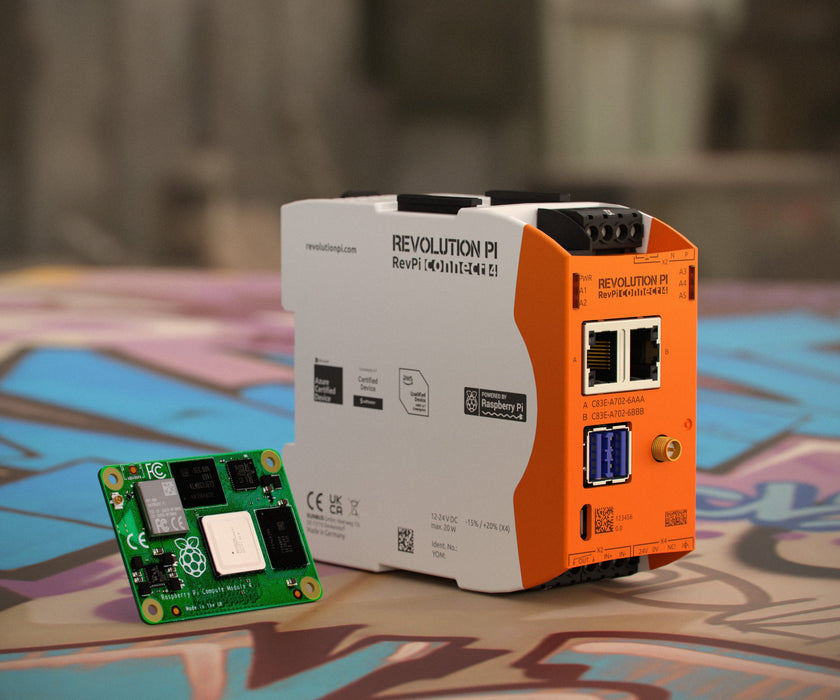

  • Based on Raspberry Pi Compute Module 4 (CM4)
  • Processor: Broadcom BCM2711 a 64-bit quad-core Arm Cortex-A72

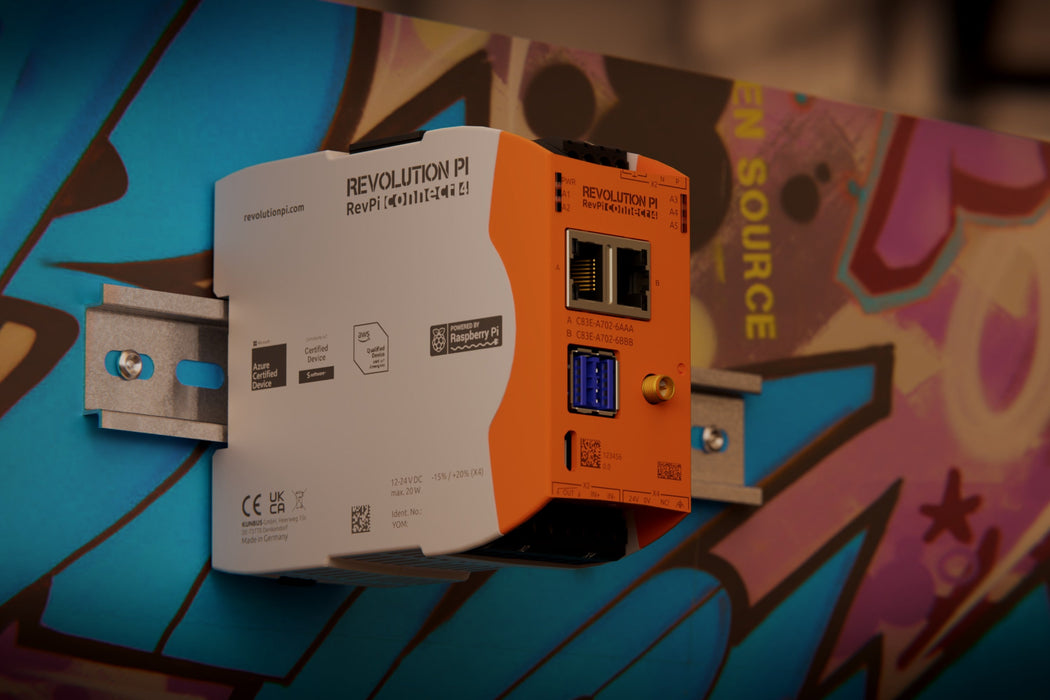

  • DIN rail housing for easy mounting in industrial environments
  • 2 x RJ45 GBit Ethernet interfaces for high-speed connections
  • 2 x USB 3.2 Gen1 interfaces
  • 1 x RS485 interface
  • 1 x Micro-HDMI interface for connecting a monitor or display
  • 1 x Micro-USB port
  • 1 x RP-SMA socket for connecting an external WLAN/BT antenna (2.4/ 5 GHz), not available on Article No. 100376 and 100378
  • 2 x PiBridge (expandable with up to 10 I/O modules)
  • WLAN and Bluetooth connectivity via the internal antenna or optionally through an external antenna connected to the new SMA socket
  • HAT EEPROM for storing device information such as type, serial number, and MAC address
  • Real-time clock (RTC) stored by using an integrated battery
  • Hardware watchdog
  • Six RGB LEDs on the front panel (five individually programmable)
  • Pre-installed customized 64-Bit Raspberry Pi OS with real-time patch and process image
  • Default support for Modbus RTU and Modbus TCP with client and server functionalities
  • User-specific control and HMI software can be optionally used
  • Supports protocols like MQTT and OPC UA
  • Simplifies programming of custom applications with Node-RED, Python, and C
Housing dimensions (HxWxD) 96 x 45 x 110.5 mm
Housing type DIN rail housing (for DIN rail version EN 50022)
Housing material Polycarbonate
Weight approx. 197 g / 224 g (incl. connectors)
IP Code IP20
Power supply 10.8 ... 28.8 V DC
Max. power consumption 20 W (incl. 2 x 900 mA USB load)
Operating temperature -25 °C to +55 °C
Storage temperature -40 °C to +85 °C
Humidity (40 °C) up to 93 % (non-condensing)
Interfaces 2 x USB A 3.2 Gen 1
2 x RJ45 10/100 Ethernet (using separate MAC addresses)
1 x RS485 screw-type terminal
1 x Micro-USB (solely for image transfer to eMMC)
1 x Micro HDMI 2.0a (4K)
2 x PiBridge system bus
Connectors

3 x 4-pole screw-type terminals for RS485, power and relay contact /signal output
Processor Broadcom BCM2711, quad-core Arm Cortex-A72
Clock rate 1.5 GHz
Processor cooling Passive with heat sink
RAM 2 GB LPDDR4 (Article No.: 100376, 100377), 4 GB LPDDR4 (Article No.: 100378, 100379), 8 GB LPDDR4 (Article No.: 100380)
Flash memory 8 GB (Article No.: 100376, 100377), 32 GB (Article No.: 100378, 100379, 100380)
Number of digital input channels 1
Input Type 24 V control voltage (e.g. for power-good signal of a UPS)
Input Threshold approx. 10 V DC (0 -> 1) resp. 7 V DC (1 -> 0); input current 2.4 mA (according to IEC 61131-2)
Number of digital output channels 1
Output type opto-decoupled solid-state relay, normally open, max. 30 V, 300 mA DC, any polarity
Software interface for input and output Via GPIOs and process image.
Hardware watchdog functionality Watchdog in RTC device, freely configurable watchdog character device
Compatible modules for system expansion All RevPi IO modules can be connected via the PiBridge system bus. Up to 5 modules can be connected on each side of the device.
EMC interference emission according to IEC 61000-6-4 Emission standard for industrial environments
EMC immunity according to IEC 61000-6-2 Immunity standard for industrial environments
RTC Buffer CR2032 lithium battery, lifetime approx. 10 years
Optical indicator 6 status LEDs; 5 x red/green/blue, freely programmable, 1 x red/green
RoHS conformity Yes
CE conformity Yes
Technical Data Sheet
RevPi Connect 4 Technical Data Sheet
