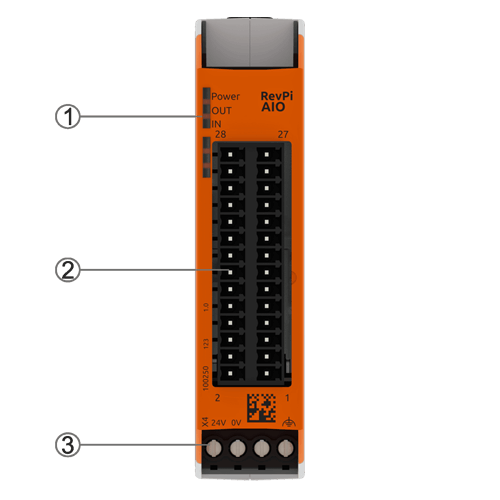

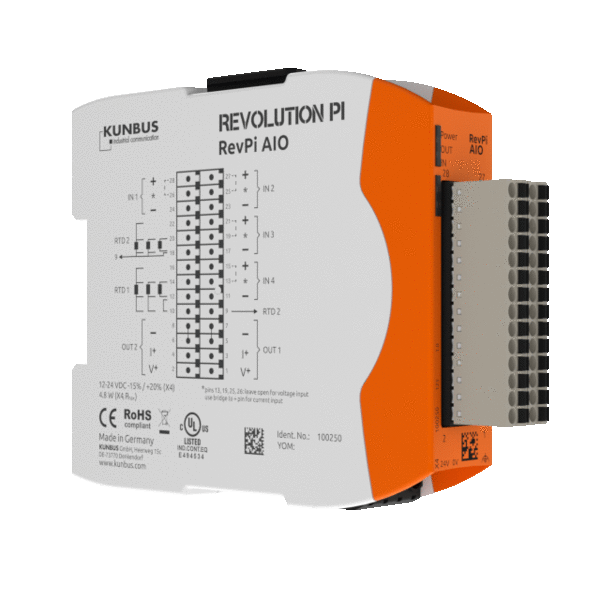

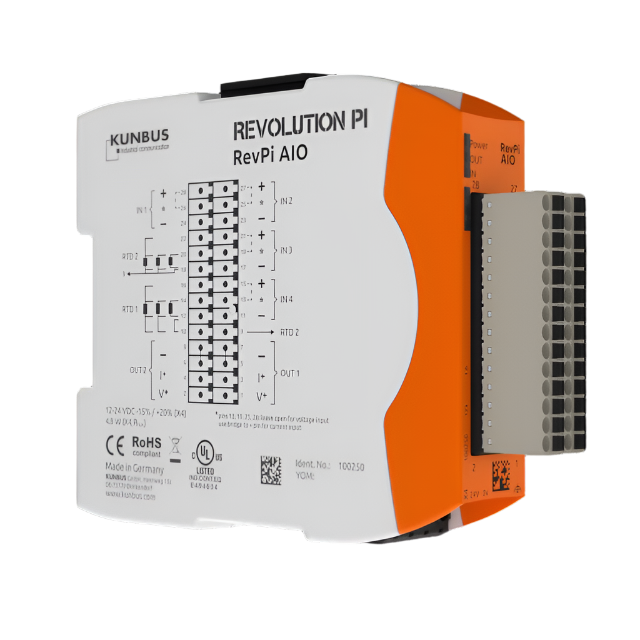

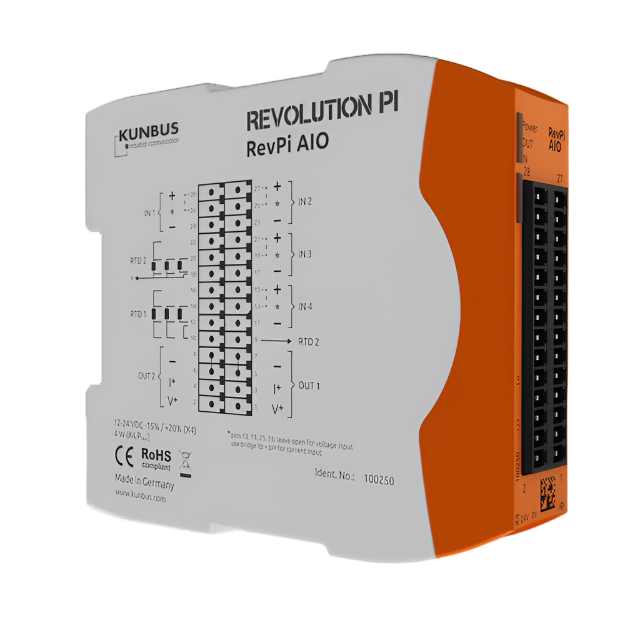

RevPi Analog-IO Module

This add-on unit features 4 analog inputs, 2 analog outputs and 2 RTD input channels. This expansion module is connected to your RevPi Core by the means of the overhead PiBridge plug. Inputs, RTD inputs and outputs are galvanically isolated to each other. Differential inputs eliminate ground loops.

Analog input range/options: +/- 10 V, 0 10 V, 0 5 V, +/- 5 V, 0 20 mA, 0 24 mA, 4 20 mA, +/- 25 mA

Analog outputs range/options: 0 5 V, 0 10 V, +/- 5 V, +/- 10 V, 0 5,5 V, 0 11 V, +/- 5,5 V, +/- 11 V, 4 20 mA, 0 20 mA, 0 24 mA

The 2 RTD inputs enable temperatures to be measured with high precision from -165°C to +600°C in steps of 0.5°C using common RTDs sensors like Pt100/Pt1000 probes. The probes can be connected directly to the module with 2, 3 or 4 cables.

Just like the digital IO modules, RevPi AIO is protected against disturbances according to EN61131-2 and can be operated between -40 and +50°C ambient temperature and up to 80% relative humidity. It is also protected against static discharges, burst and surge impulses in accordance with EN61131-2 requirements.

Note: The required PiPridge Plug (Item No.: 100204) is included in delivery.

Phytools SKU to EAN#

PR100250              4260498390908

Review the RevPi Analog IO Data Sheet.

Review the UL Certificate.
