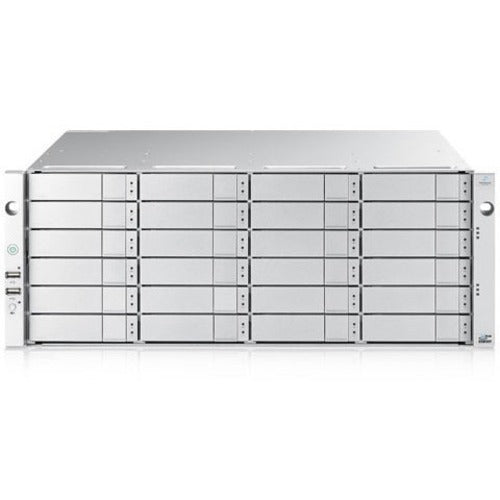

Promise VTrak D5800FXDAHD D5800fxD D5000 SAN/NAS Storage System delivers high-performance, rack-mountable storage with dual controllers, Fibre Channel support, and flexible RAID options. It features Flash Cache acceleration, predictive data migration, and scalable expansion up to 512 drives, making it ideal for mid-tier IT applications, surveillance, backup, and mixed workloads.
Accelerate Your Business
VTrak D5000 enables data driven business with an integrated combination of high-performance hardware, adaptive storage software, and flexible protocols at an affordable price. The platform is optimized for high bandwidth and low latency which makes it a perfect storage solution for mid-tier IT applications, surveillance, backup, and running multiple mixed workloads.
Unlock Power of Flash Cache
Flash Cache accelerated VTrak D5000 storage systems deliver impressive performance, boosting throughput and lowering latency. User has option to add Flash Cache for read and write acceleration. PROMISE intelligent data caching automatically promotes hot data to cache in real time, so you get the full benefit of flash performance.
Configurations To Suit Any Need
VTrak D5000 series comes in four models D5300/20 (2RU), D5600 (3RU), and D5800 (4RU) giving users the flexibility on form factor.
- Predictive Data Migration (PDM) to minimizes maintenance
- Everything redundant for no downtime
- Active-Active Dual Controller with ALUA support for access flexibility
- Background data Integrity scrub with parity rebuild
- iSCSI: 4K IOPs: 93,018, Sequential Performance: 4214MB/s reads 3376MB/s writes
- NAS: 4K IOPs: 42,334, Sequential Performance: 3867MB/s reads 3525MB/s writes
- Scalable up to 15 JBODs or 512 drives
Product Specification:
|
| Product Type: SAN/NAS Storage System |
| Manufacturer Part Number: D5800FXDAHD |
| Manufacturer Website Address: http://www.promise.com |
| Protocols: iSCSI,CIFS,LDAP,SSH,SMB,NFSv3,SNMP,TCP/IP,NFSv4,FCP |
| Packaged Quantity: 1 |
| Limited Warranty: 3 Year |
| Form Factor: Rack-mountable |
| Manufacturer: Promise Technology |
| Product Model: D5800fxD |
| Product Name: VTrak D5800fxD SAN/NAS Storage System |
| Product Line: VTrak |
| Raid Levels: 0, 1, 5, 6, 10, 50, 60 |
| Controller Type: 12Gb/s SAS |
| Product Series: D5000 |
| Rack Height: 4U |
| Brand Name: Promise |
| Fibre Channel: Yes |
| Expansion Slot Type: SFP+ |
| Number Of Controllers: 2 |
| Country Of Origin: Taiwan |
| Environmentally Friendly: Yes |
| Redundant Power Supply: Yes |
| Optical Drive Type: No |
| Raid Supported: Yes |
| Ethernet Technology: 10 Gigabit Ethernet |
| Number Of Total Expansion Bays: 28 |
| Number Of 3.5" Bays: 24 |
| Total Hard Drive Capacity Installed: 336 TB |
| Number Of Hard Drives Supported: 28 |
| Number Of Hard Drives Installed: 24 |
| Number Of 2.5" Bays: 4 |
| Drive Interface: 12Gb/s SAS |
| Number Of Sas Ports (External): 4 |
| Total Number Of Expansion Slots: 4 |
| Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) 2 |
| Feature1: Predictive Data Migration (PDM) to minimizes maintenance |
| Feature2: Everything redundant for no downtime |
| Feature3: Active-Active Dual Controller with ALUA support for access flexibility |
| Feature4: Background data Integrity scrub with parity rebuild |
| Feature5: iSCSI: 4K IOPs: 93,018, Sequential Performance: 4214MB/s reads 3376MB/s writes |
| Feature6: NAS: 4K IOPs: 42,334, Sequential Performance: 3867MB/s reads 3525MB/s writes |
| Feature7: Scalable up to 15 JBODs or 512 drives |
