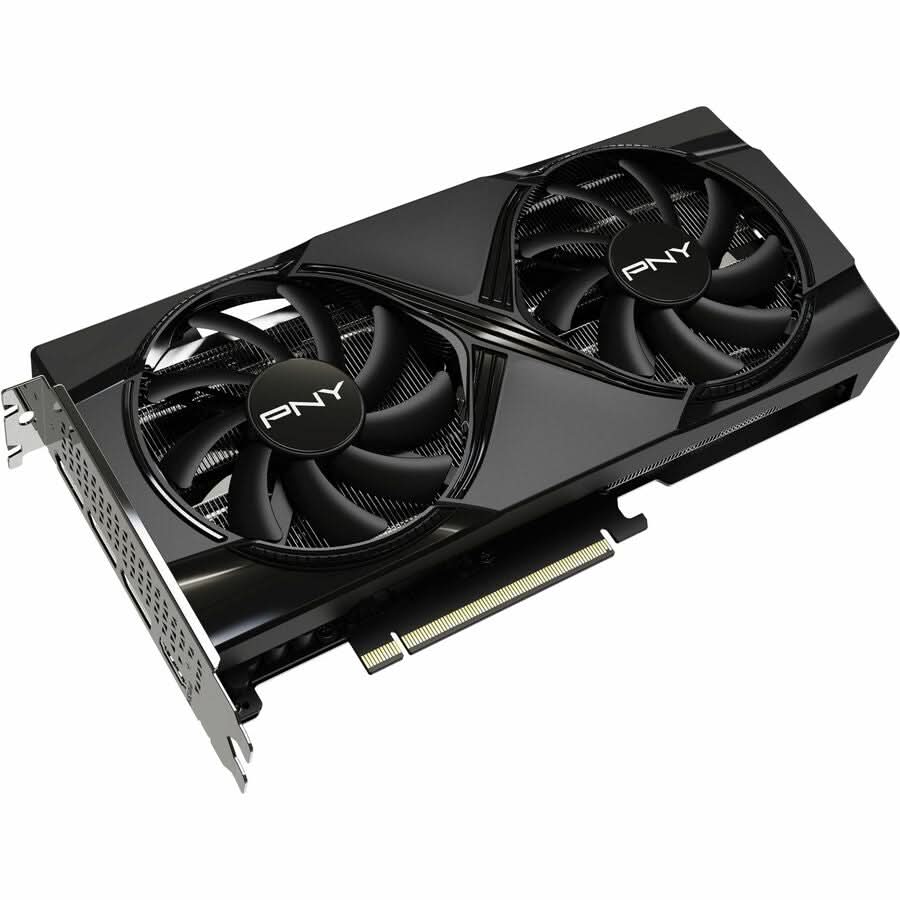

PNY VCG5060T16DFXPB1 GeForce RTX 5060 Ti 16GB GDDR7 Dual Fan Graphic Card
Get game-changing performance with the GeForce RTX™ 5060 Ti 16GB, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
DUAL FAN COOLING
With two fans working together, heat is distributed and dissipated efficiently across a compact design.
METAL BACKPLATE
Adds additional support to prevent the card from sagging and vents that enhance passive cooling
Product Specification:
|
| Host Interface: PCI Express 5.0 x8 |
| Product Type: Graphic Card |
| Manufacturer Part Number: VCG5060T16DFXPB1 |
| Manufacturer Website Address: http://www.pny.com |
| Platform Supported: PC,Linux |
| Limited Warranty: 3 Year |
| Standard Memory: 16 GB |
| Features: Dual-fan Cooler |
| Form Factor: Plug-in Card |
| Length: 9.6" |
| Manufacturer: PNY Technologies |
| Product Name: GeForce RTX 5060 Ti 16GB Dual Fan Graphic Card |
| Brand Name: PNY |
| Cooler Type: Passive Cooler |
| Memory Technology: GDDR7 |
| Bus Width: 128 bit |
| Number Of Monitors Supported: 4 |
| Chipset Manufacturer: NVIDIA |
| Chipset Model: RTX 5060 Ti |
| Card Height: Full-height |
| Power Supply Wattage: 600 W |
| Hdmi: Yes |
| Chipset Line: GeForce |
| Chipset Series: RTX |
| Displayport: Yes |
| Slot Space Required: Dual |
| Number Of Displayport Outputs: 3 |
| Number Of Hdmi Outputs: 1 |
| Maximum Digital Display Resolution: 7680 x 4320 |
| Gpu Clock: 2.41 GHz |
| Gpu Boost Clock: 2.57 GHz |
| Cuda Cores: 4608 |
| Power Connector: 1x 8-pin |
| Maximum Memory Bandwidth: 448 GB/s |
| Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Ai Powered: Yes |
| Feature1: NVIDIA DLSS 4 |
| Feature2: NVIDIA Reflex 2 |
| Feature3: GDDR7 Graphics Memory |
| Feature4: NVIDIA® App |
| Feature5: PCI Express® Gen 5 |
| Feature6: NVIDIA Broadcast |
*
