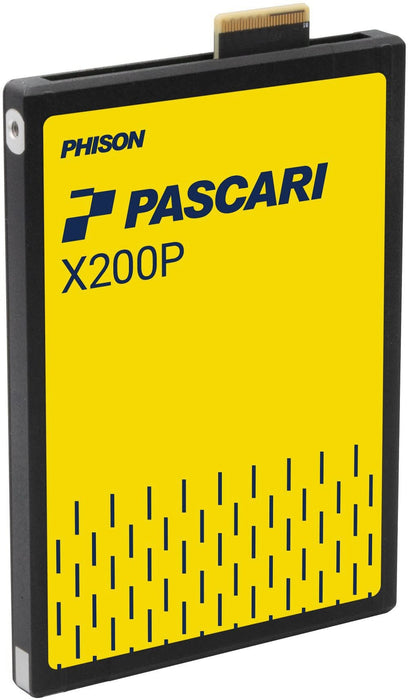

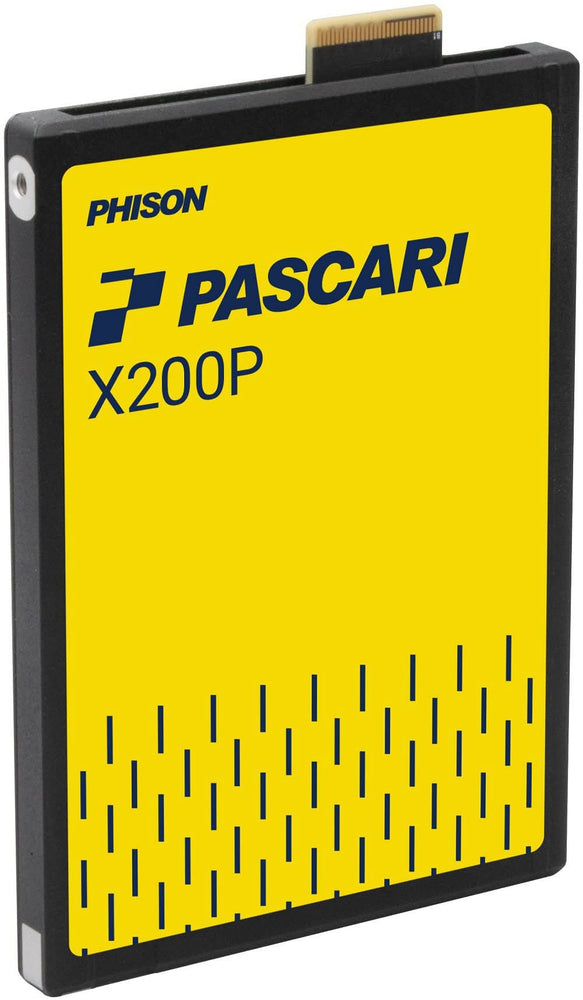

PHISON XP208H031T92P322T0410 Pascari X200P 1.92TB U.2 PCIE Single Port ISE SSD

Overview

 PHISON XP208H031T92P322T0410 Pascari X200P 1.92TB U.2 PCIE 5.0 Single Port ISE SSD

Specifications

Model Number:XP208H031T92P322T0410

Brand:   PHISON

Alt Part Number(s):XP208H031T92P322T0410

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP208H031T92P322T0410

Capacity: 1.92 TB

Form Factor: U.2 15mm

PCIe Interface
PCIe Gen5x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Compliance
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVM Express Management Interface Rev 1.2
PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7

Performance
Sequential Read: up to 14,800 MB/s
Sequential Write: up to 4,300 MB/s
Random Read: up to 2,400K IOPS
Random Write: up to 140K IOPS

Power Consumption
128K Active Read (Avg. RMS): 16 W
128K Write (Avg. RMS): 14 W
4KB Active Read (Avg. RMS): 15 W
4KB Active Write (Avg. RMS): 16 W
4KB 70/30 Random Read/Write (Avg. RMS): 14 W
Idle Power: 5 W

Endurance / Reliability
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 3,504 TB

Environmental Specification
Temperature Range:
Operating: 0°C – 70°C (with specified airflow)
Non-operating: -40°C – 85°C

Shock:
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms

Vibration:
Operating: 2.17 Grms (7 – 800 Hz)
Non-operating: 16.3 Grms (10 – 2000 Hz)

Drop: 80 cm, 6 surfaces
Bending: 50 N, 60 s

Certifications and Declarations:
CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Product Ecological Compliance:
RoHS compliant

Feature Support
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
128 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus

*
