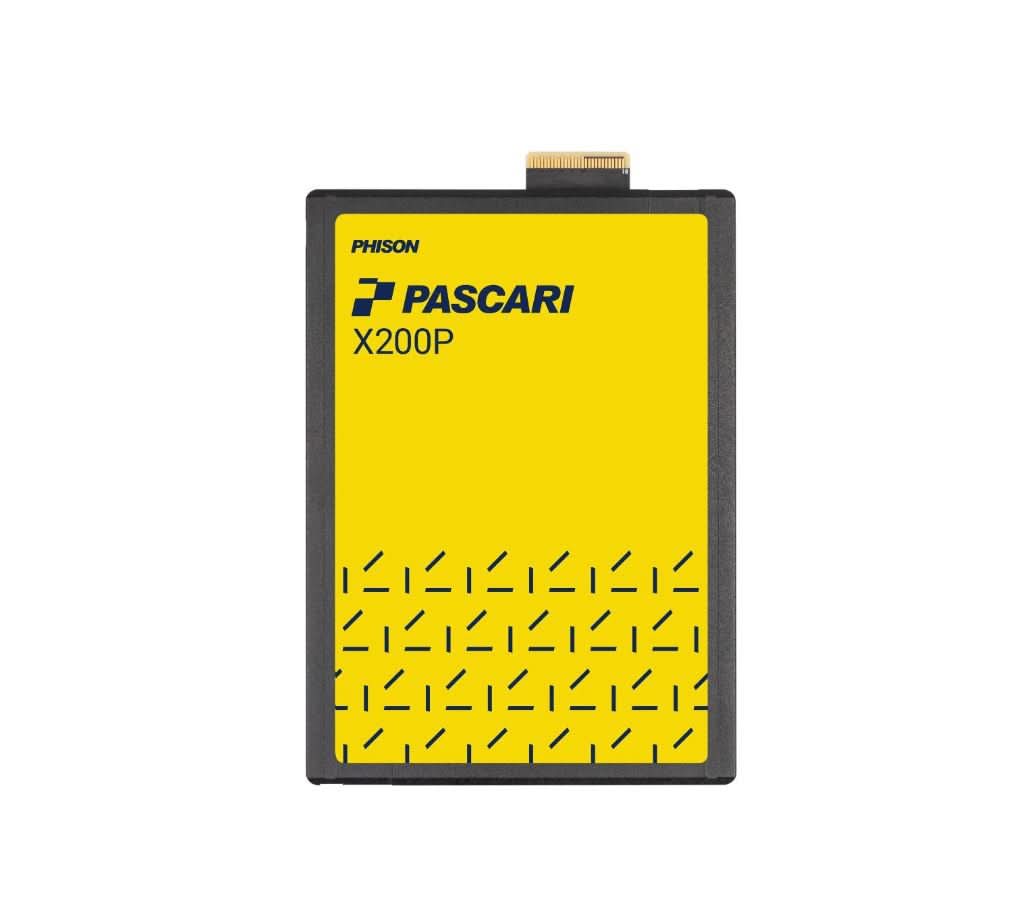

PHISON XP208H023T84P324T0910 Pascari X200P 3.84TB U.2 15mm PCIE 5.0 Single Port ISE Solid State Drive

Overview

PHISON XP208H023T84P324T0910 Pascari X200P 3.84TB U.2 15mm PCIE 5.0 Single Port ISE Solid State Drive

Specifications

Model Number:XP208H023T84P324T0910

Brand:   PHISON

Alt Part Number(s):XP208H023T84P324T0910

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP208H023T84P324T0910

Storage Capacity: 3.84 TB

Form Factor: U.2 15mm

Drive Interface: PCI Express NVMe

Drive Interface Standard: PCIe Gen5 x4 (Single Port)

NVMe Version: 2.0

Compliance:

• PCI Express Base Specification Rev. 5.0
• NVM Express Base Specification Rev. 2.0
• NVM Express Management Interface Rev. 1.2
• PCI Express SFF-8639 Module Specification Rev. 5.0, Version 0.7

Maximum Sequential Read: 14,800 MB/s

Maximum Sequential Write: 8,600 MB/s

Random 4KB Read: 3,300,000 IOPS

Random 4KB Write: 320,000 IOPS

Power Consumption (128K Read, Avg. RMS): 17 W

Power Consumption (128K Write, Avg. RMS): 21 W

Power Consumption (4KB Read, Avg. RMS): 17 W

Power Consumption (4KB Write, Avg. RMS): 22 W

Power Consumption (4KB 70/30 R/W, Avg. RMS): 18 W

Power Consumption (Idle): 5 W

Endurance (DWPD): 1

Endurance (TBW): 7,008 TB

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

Operating Temperature: 0°C to 70°C (with specified airflow)

Non-Operating Temperature: -40°C to 85°C

Shock (Operating): 500G, 2ms

Shock (Non-Operating): 1000G, 0.5ms

Vibration (Operating): 2.17 Grms (7 - 800 Hz)

Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)

Drop Tolerance: 80 cm, 6 surfaces

Bending Resistance: 50 N, 60s

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Environmental Compliance: RoHS Compliant

Features:

• Power Loss Protection
• Hardware AES-XTS 256-bit Encryption
• Thermal Throttling
• Metadata Protection
• Reservation
• LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
• 128 Namespaces
• Single Port
• SMBus Support

*
