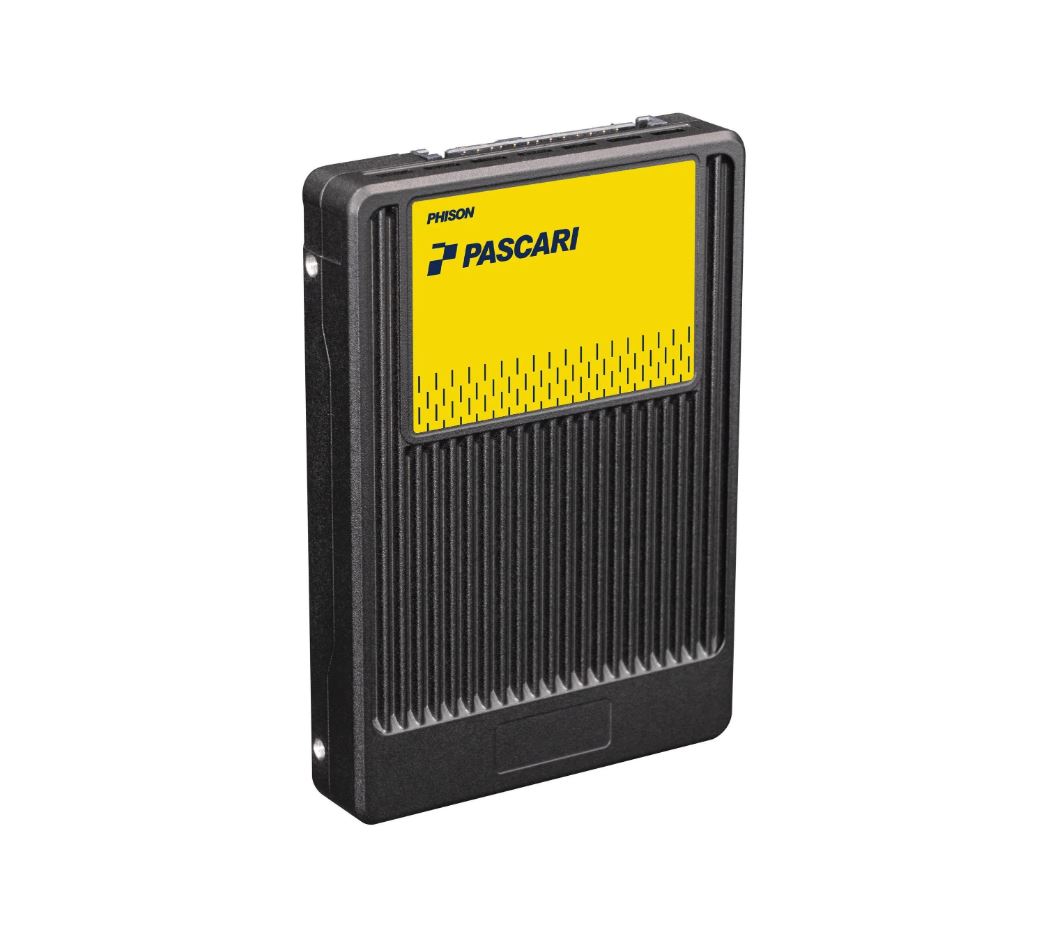

PHISON D1808K01960GP021T0200 Pascari D100P is a 960 GB solid state drive featuring a U.2 15 mm form factor, PCIe Gen4x4 interface, sequential read speeds up to 6800 MB/s, sequential write speeds up to 1400 MB/s, and support for NVMe 1.4 specifications. It delivers up to 800K random read IOPS and 50K random write IOPS, offers 1 DWPD endurance with 1800 TBW, includes hardware power loss protection and AES XTS 256 bit encryption, and is designed for enterprise applications requiring reliable high performance storage.
Specifications
Model Number: D1808K01960GP021T0200
Brand: PHISON
Alt Part Number(s): D1808K01960GP021T0200
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: D1808K01960GP021T0200
Series: Pascari D100P
Capacity: 960 GB
Form Factor: U.2 15mm
PCIe Interface: PCIe Gen4x4
Compliance: PCI Express® Base Specification Rev. 4.0; NVM Express™ Base Specification Rev. 1.4; NVM Express™ Management Interface Rev. 1.1
Sequential Read: Up to 6800 MB/s
Sequential Write: Up to 1400 MB/s
Random Read: Up to 800K IOPS
Random Write: Up to 50K IOPS
128K Active Read (Avg. RMS): 9.0W
128K Active Write (Avg. RMS): 7.0W
4KB Active Read (Avg. RMS): 8.3W
4KB Active Write (Avg. RMS): 6.5W
4KB 70/30 Random Read/Write (Average RMS): 6.8W
Idle Power: 4.0W
MTBF: 2.0 million hrs
UBER: < 1 sector per 10^17 bits read
DWPD: 1
TBW: 1800 TB
Operating Temperature: 0°C - 70°C
Non-operating Temperature: -40°C - 85°C
Operating Shock: 1000G, 0.5ms
Non-operating Shock: 1500G, 0.5ms
Operating Vibration: 3.08Grms (7 - 200Hz)
Non-operating Vibration: 20G (20 - 2000Hz)
Drop: 80 cm height
Bending: ≥20N force
Certifications and Declarations: CE; FCC; BSMI; VCCI; UKCA; RCM; ICES; KCC; CB; UL
Product Ecological Compliance: RoHS compliant
Feature Support: 64 Namespaces; Hardware Based Power Loss Data Protection; Reservation; Thermal throttling; Hardware AES-XTS 256-bit Encryption; SMBus; End-to-End Data Path Protection; TCG Opal 2.0; Sanitize; SECDED
Physical Dimensions: U.2, 100.10(L) x 69.85(W) x 14.65(H) mm
