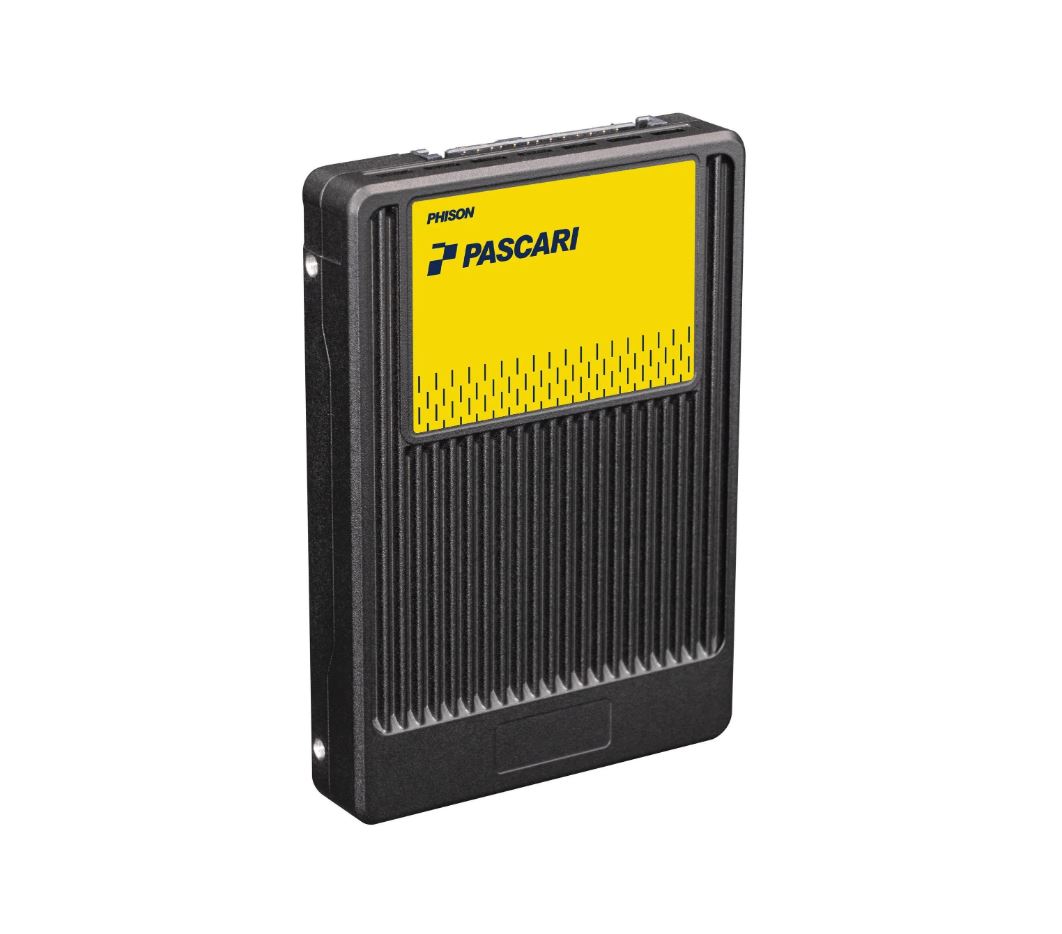

PHISON D1808K011T92P022T0400 Pascari D100P Solid State Drive delivers 1.92 TB of storage in a U.2 15 mm form factor with a PCIe Gen4 x4 NVMe 1.4 interface, offering sequential read speeds up to 6,800 MB/s, sequential write speeds up to 2,000 MB/s, and random read performance up to 900K IOPS. Engineered for enterprise applications, it features 1 DWPD endurance, 3,700 TBW, hardware based power loss protection, AES XTS 256 bit encryption, TCG Opal 2.0 support, end to end data path protection, and a 2.0 million hour MTBF for dependable long term operation.
Specifications
Model Number: D1808K011T92P022T0400
Brand: PHISON
Alt Part Number(s): D1808K011T92P022T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: D1808K011T92P022T0400
Series: Pascari D100P
Capacity: 1.92 TB
Form Factor: U.2 15 mm
PCIe Interface: PCIe Gen4 x4
Compliance: PCI Express Base Specification Rev. 4.0; NVM Express Base Specification Rev. 1.4; NVM Express Management Interface Rev. 1.1
Sequential Read: Up to 6,800 MB/s
Sequential Write: Up to 2,000 MB/s
Random Read: Up to 900K IOPS
Random Write: Up to 60K IOPS
Power Consumption: 128K Active Read (Avg. RMS) - 10.2 W; 128K Write (Avg. RMS) - 9.5 W; 4KB Active Read (Avg. RMS) - 11.7 W; 4KB Active Write (Avg. RMS) - 6.4 W; 4KB 70/30 Random Read/Write (Avg. RMS) - 9.4 W; Idle - 4.2 W
MTBF: 2.0 million hours
UBER: < 1 sector per 10^17 bits read
DWPD: 1
TBW: 3,700 TB
Operating Temperature: 0°C to 70°C
Non-Operating Temperature: -40°C to 85°C
Shock: Operating - 1000G, 0.5 ms; Non-operating - 1500G, 0.5 ms
Vibration: Operating - 3.08 Grms (7 - 200 Hz); Non-operating - 20G (20 - 2000 Hz)
Drop: 80 cm height
Bending: ≥20 N force
Certifications and Declarations: CE; FCC; BSMI; VCCI; UKCA; RCM; ICES; KCC; CB; UL
Product Ecological Compliance: RoHS Compliant
Feature Support: 64 Namespaces; Hardware Based Power Loss Data Protection; Reservation; Thermal Throttling; Hardware AES-XTS 256-bit Encryption; SMBus; End-to-End Data Path Protection; TCG Opal 2.0; Sanitize; SECDED
Physical Dimension: U.2; 100.10 × 69.85 × 14.65 mm
