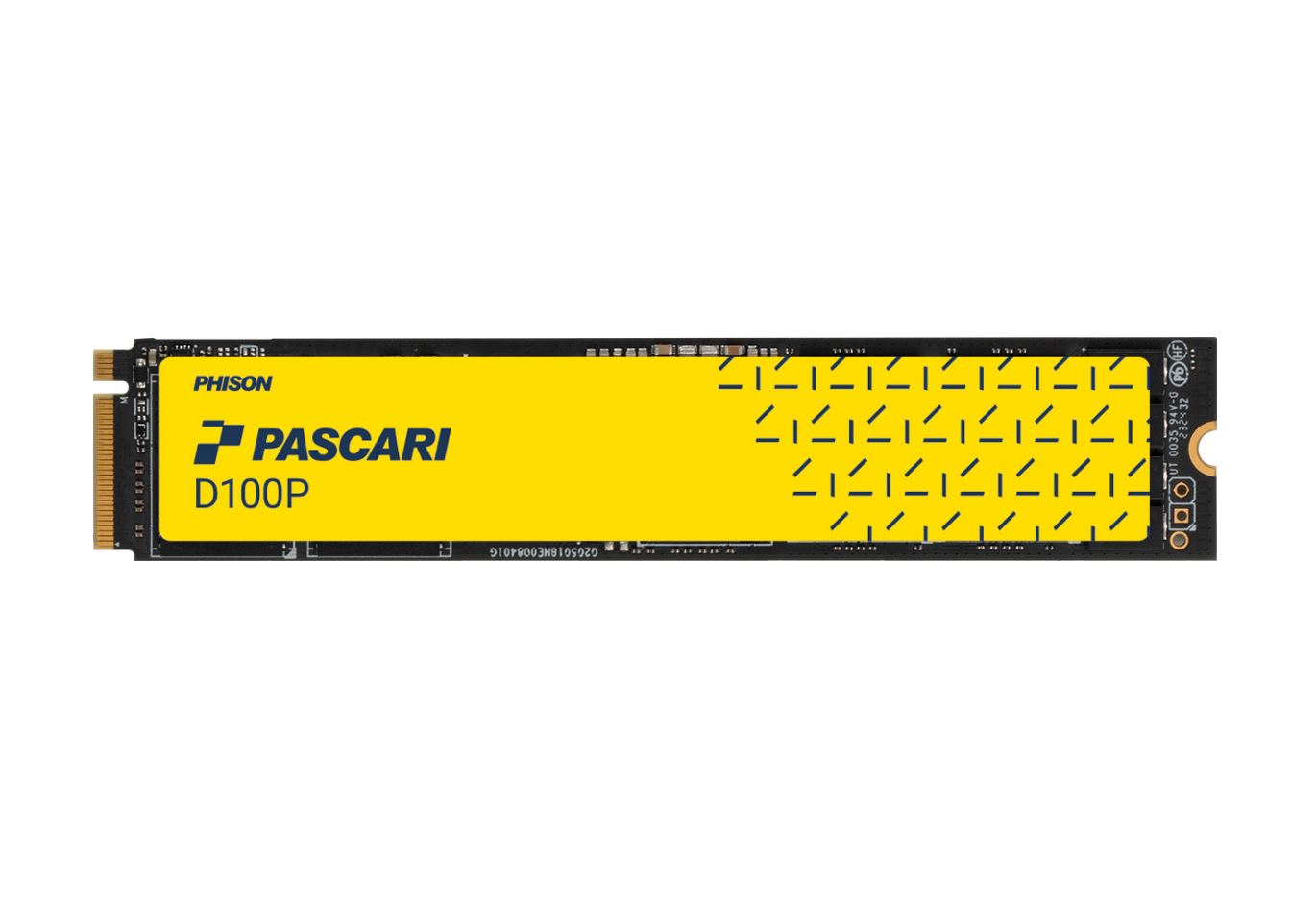

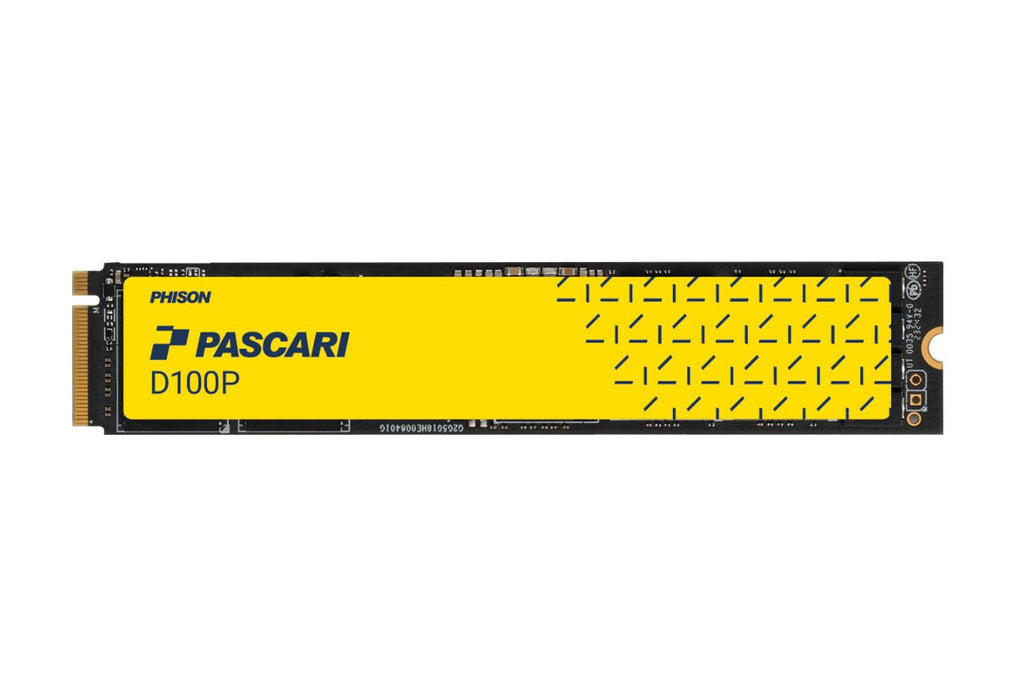

PHISON D1803K013T84P014T0900 Phison Pascari D100P series solid state drive features 3,840 GB capacity, PCIe 5.0 x4 interface, NVMe 2.0d support, M.2 22110 form factor, sequential read speeds up to 3700 MB/s, sequential write speeds up to 1700 MB/s, and 7500TB total bytes written. It delivers enterprise-grade reliability with 2.0 million hours MTBF, 1 DWPD endurance, hardware-based power loss data protection, AES-XTS 256-bit encryption, end-to-end data path protection, and operates from 0°C to 70°C with a 110 x 22 x 4.08 mm physical design
Model Number: D1803K013T84P014T0900
Brand: PHISON
Alt Part Number(s): D1803K013T84P014T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: D1803K013T84P014T0900
Series: Phison Pascari D100P
Capacity: 3,840 GB
Interface: PCIe 5.0 x4
NVMe: 2.0d
Form Factor: M.2 22110
PCIe Interface: PCIe Gen4 x 4
Compliance: PCI Express® Base Specification Rev. 4.0; NVM Express™ Base Specification Rev. 1.4; NVM Express™ Management Interface Rev 1.1
Sequential Read: Up to 3700 MB/s
Sequential Write: Up to 1700 MB/s
Random Read: Up to 400K IOPS
Random Write: Up to 40K IOPS
128K Active Read (Avg. RMS): 7.2W
128K Write (Avg. RMS): 7.9W
4KB Active Read (Avg. RMS): 8.7W
4KB Active Write (Avg. RMS): 7.6W
4KB 70/30 Random READ/WRITE (Average RMS, W): 7.0W
Idle Power: 4.2W
MTBF: 2.0 million hrs
UBER: < 1 sector per 10^17 bits read
DWPD: 1
TBW: 7500TB
Operating Temperature: 0°C - 70°C
Non-operating Temperature: -40°C - 85°C
Operating Shock: 1000G, 0.5ms
Non-operating Shock: 1500G, 0.5ms
Operating Vibration: 3.08Grms (7 - 200Hz)
Non-operating Vibration: 20G (20 - 2000Hz)
Drop: 80cm height
Bending: ≥20N force
Certifications and Declarations: CE; FCC; BSMI; VCCI; UKCA; RCM; ICES; KCC; CB; UL
Product Ecological Compliance: RoHS compliant
Feature Support: 64 Namespaces; Hardware Based Power Loss Data Protection; Reservation; Thermal throttling; Hardware AES-XTS 256-bit Encryption; SMBus; End-to-End Data Path Protection; TCG Opal 2.0; Sanitize; SECDED
Physical Dimension: M.2 22110, 110(L)x22(W)x4.08(H) mm
