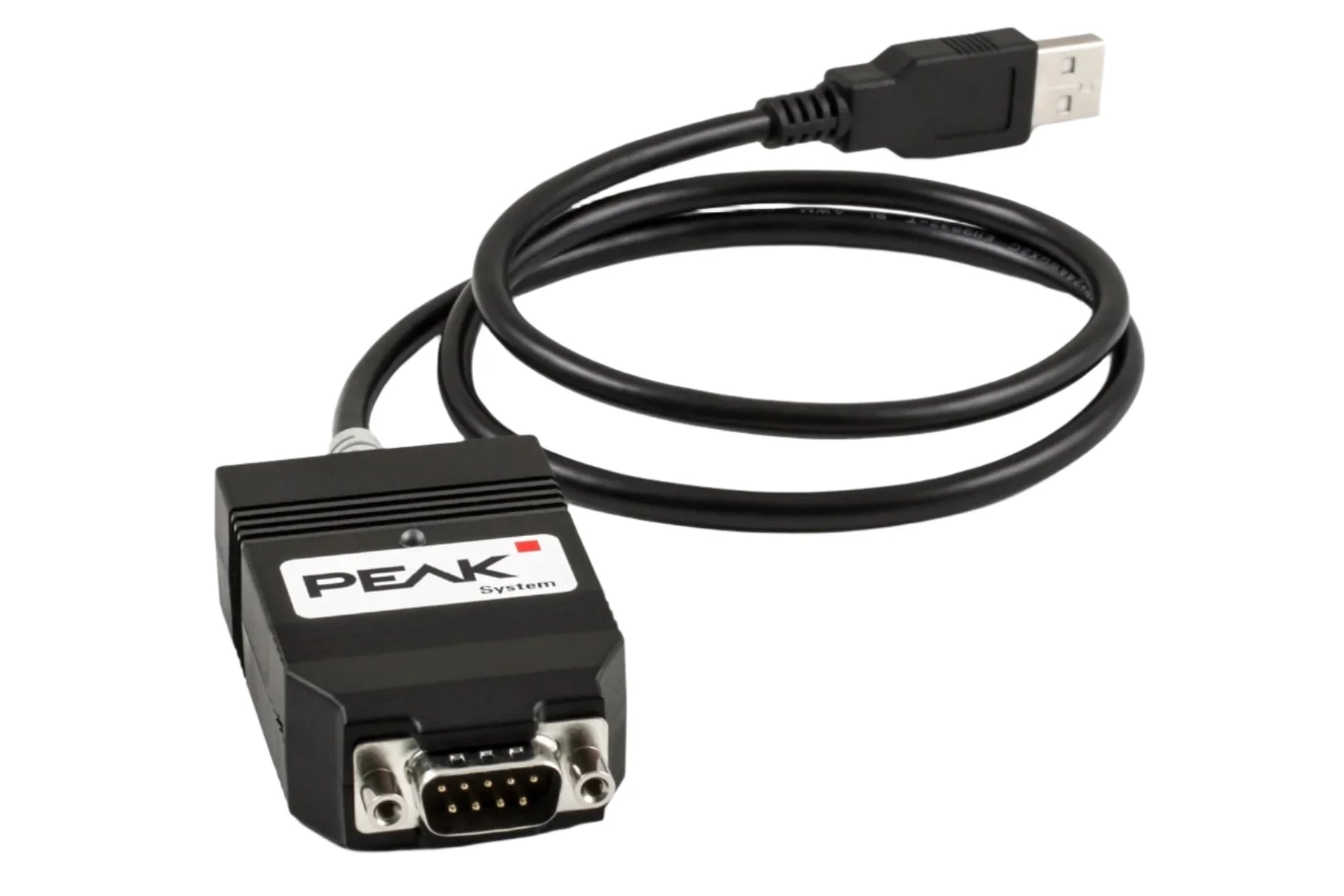

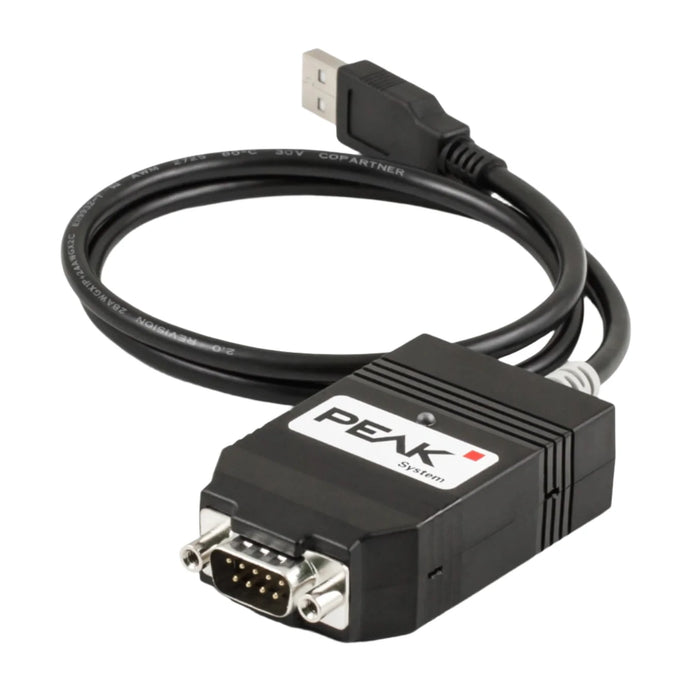

PCAN-USB FD Adapter
Clique ou role para ampliar
Toque ou belisque para ampliar
PCAN-USB FD Adapter
Clique ou role para ampliar
Toque ou belisque para ampliar
PCAN-USB FD Adapter
PCAN-USB FD Adapter

PCAN-USB FD Adapter

por PEAK-System Technik
R$ 4.416,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
The simple handling and its compact plastic casing make the adapter suitable for mobile applications. This CAN interface device features galvanic isolation of up to 500 Volts which decouples the PC side from the CAN bus. Also available in galvanically isolated and non-isolated classic CAN versions.  *Note: A USB-C connector is also offered as a variant.

The PCAN-USB package includes device drivers for Windows® 11 (64-bit) and 10 (32/64-bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. (Linux drivers are also available.) For customers needing more sophisticated CAN Analyzing software we have PCAN-Explorer 7

  • Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0)
  • Complies with CAN specifications 2.0 A/B and FD 1.0
  • CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 12 Mbit/s
  • CAN bit rates from 40 kbit/s up to 1 Mbit/s
  • Time stamp resolution 1 μs
  • CAN bus connection via D-Sub, 9-pin
    (in accordance with CiA® 102)
  • FPGA implementation of the CAN FD controller
  • NXP TJA1044GT CAN transceiver
  • Galvanic isolation up to 500 V
  • CAN termination can be activated through a solder jumper
  • Measurement of bus load including error frames and overload frames
  • Induced error generation for incoming and outgoing CAN messages
  • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Voltage supply via USB
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
Pin Pin assignment
1 not connected / optional +5V
2 CAN-L
3 GND
4 not connected
5 not connected
6 GND
7 CAN-H
8 not connected
9 not connected
Dimensions 75 x 43 x 22 mm
Product Weight 68 grams
Baud Rate CAN: 40 kBit/s - 1 MBit/s, CAN FD: 40 kBit/s - 12 MBit/s
Storage Specifications Temperature: -40°C to +100°C
Power Consumption max. 100 mA
Certifications CE, RoHS
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Enclosure IP20, Plastic Enclosure
Transceiver CAN: NXP TJA1044GT
EMC Directive EN 55024:2011-09
EN 55022:2011-12
EC directive 2004/108/EG
Software Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit)
Tools: PCAN-View for Windows®
Controller(s) FPGA implementation
Time stamp resolution 1 microsecond
Specification CAN FD 1.0 (compatible with CAN 2.0)
Connector(s) PC: High-Speed USB 2.0 (compatible to USB 1.1 and 3.0)
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Operating Conditions Temp. Range: -40°C to +85°C
Humidity: 15% to 90% (non-condensing)
PCAN-USB FD manual
User's Manual in English
Device driver setup for Windows
Installation package from PEAK-System for device drivers and tools for Windows ® 10, 8.1 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway.
Device drivers for Linux
Device driver for PEAK CAN interfaces from Kernel 2.6.
PCAN-USB firmware
Firmware upgrade
PCAN-View
Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 10, 8.1 (32/64-bit). *Please note: PCAN-View is a part of the device driver setup.
PCAN-Basic API
API for developing applications with CAN and CAN FD connections for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API (Linux)
API for developing applications with CAN connection for Linux.
PCAN-CCP API
API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-XCP API
API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-ISO-TP API
API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 10, 8.1 (32/64-bit).
PCAN-UDS API
API for communication with control units according to UDS (ISO 14229-1) for Windows ® 10, 8.1 (32/64-bit).
PCAN-OBD-2 API
API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 10, 8.1 (32/64-bit).
PCAN-PassThru API
Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 10, 8.1 (32/64-bit) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download.
