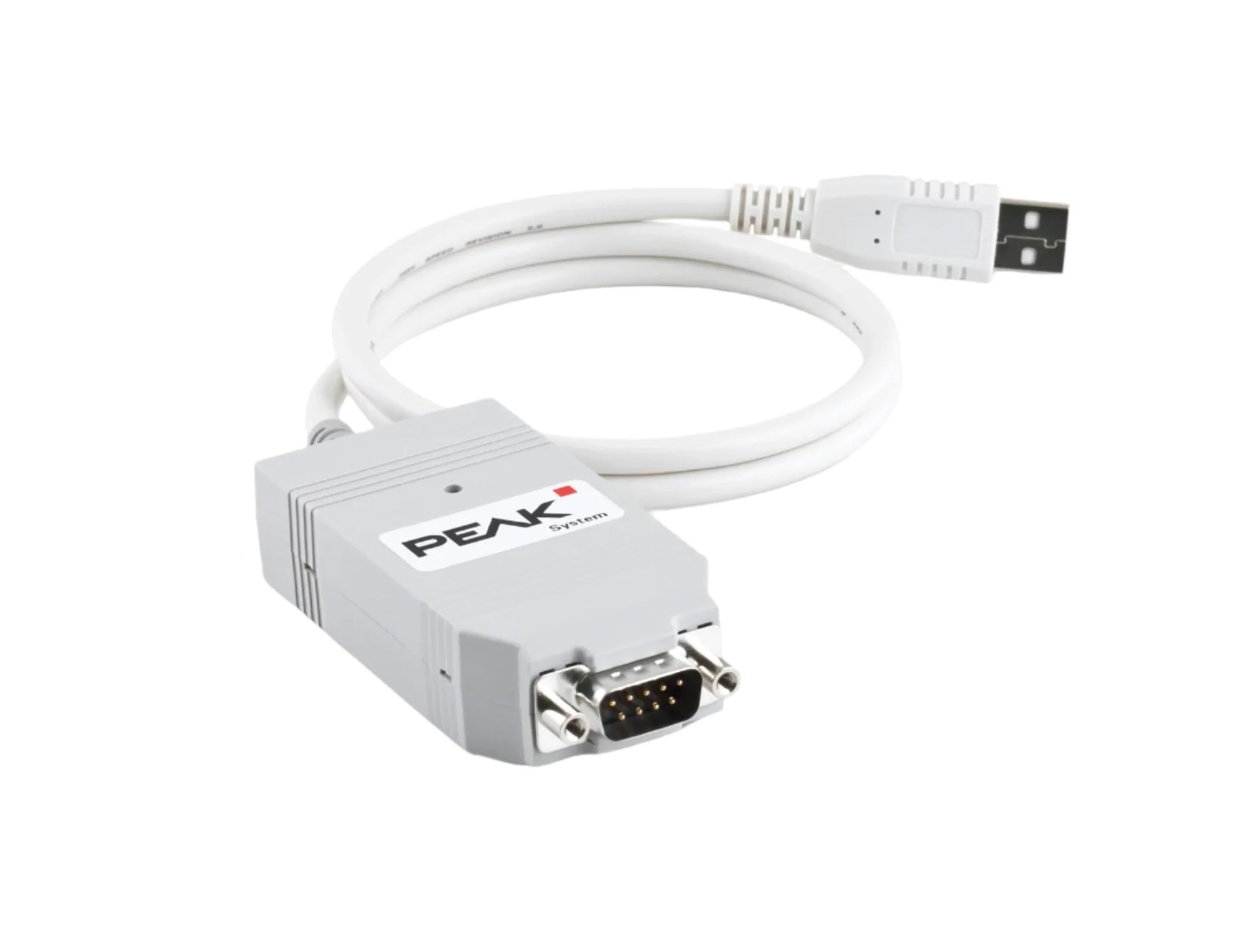

PCAN USB Adapter (isolated)
Clique ou role para ampliar
Toque ou belisque para ampliar

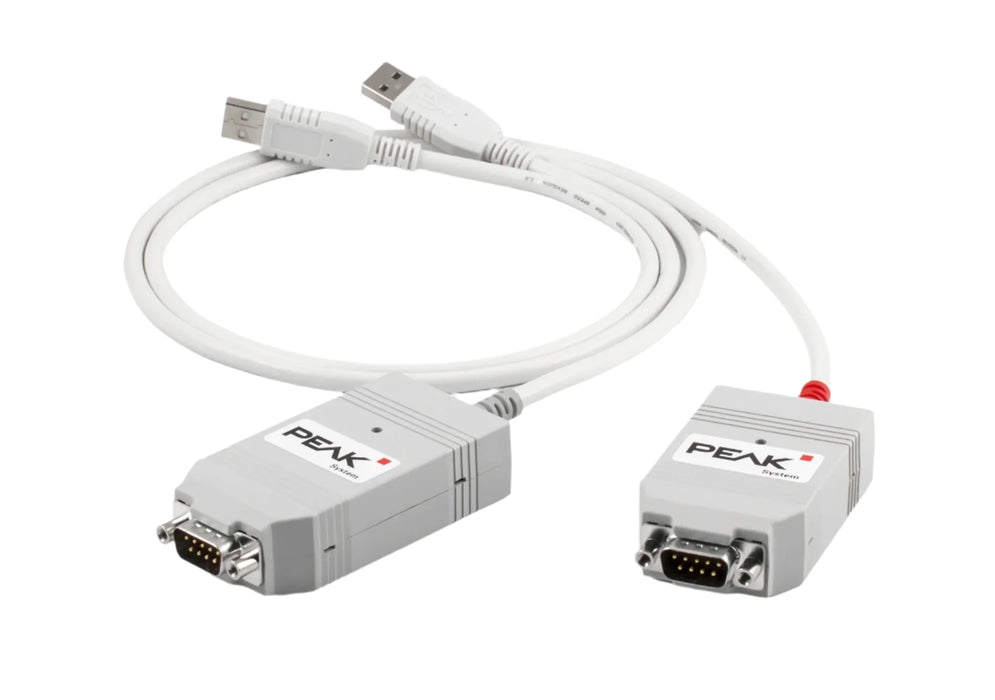

PCAN USB Adapter (isolated)
Clique ou role para ampliar
Toque ou belisque para ampliar

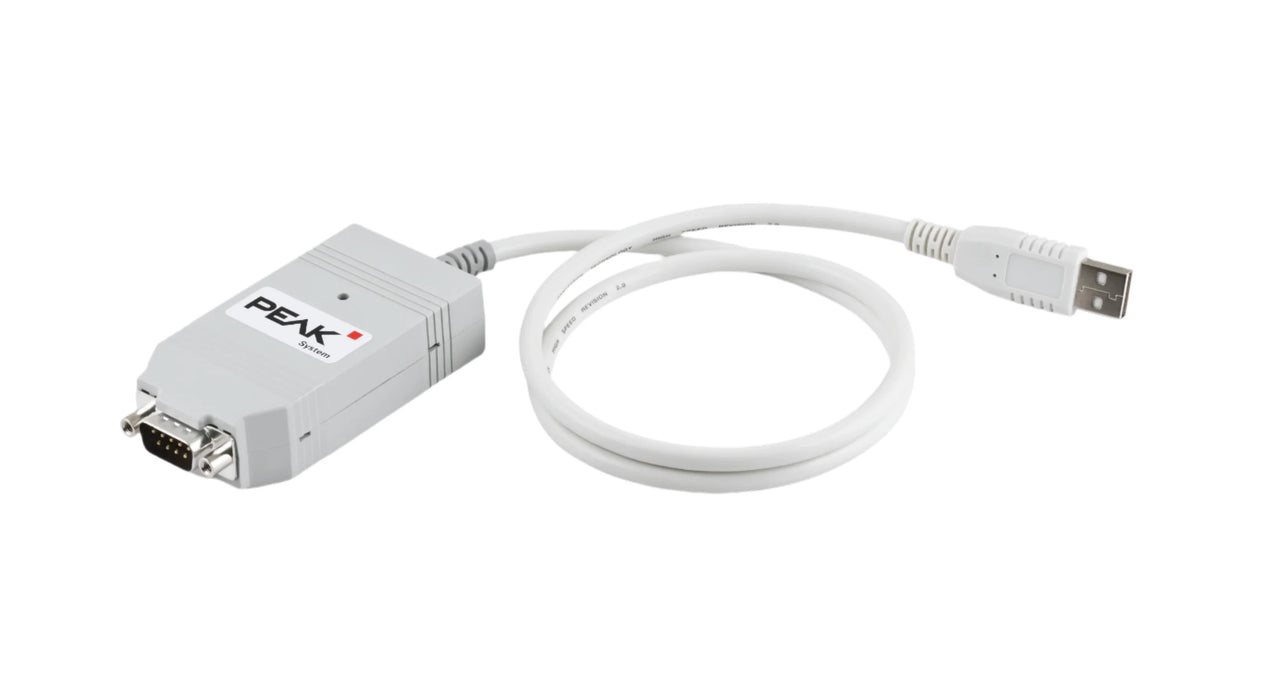

PCAN USB Adapter (isolated)
PCAN USB Adapter (isolated)

PCAN USB Adapter (isolated)

por PEAK-System Technik
R$ 3.768,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

Galvanic isolation of up to 500V between the CAN signals and the host-PC is achieved with the help of an integrated DC/DC converter. The CAN is connected via a 9-pin SUB-D plug according to CiA standard recommendation DS 102-1. The LED integrated in the housing shows the operating state of the PCAN-USB adapter. Also available without galvanic isolation.

The PCAN-USB Adapter package includes device drivers for Windows® 11 (64-bit) and 10 (32/64-bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available. For customers needing more sophisticated CAN Analyzing software we have PCAN-Explorer 7.
  • Interface in compact plastic casing
  • Transfer rates up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (to CiA® 102)
  • NXP SJA1000 CAN controller, 16 MHz clock frequenc
  • 82C251 CAN transceiver
  • Hardware can be reset via software
  • 5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external transceiver
  • Voltage supply through USB bus
  • USB connection (USB 1.1, compatible with USB 2.0 and USB 3.0)
  • Galvanic isolation on the CAN connection up to 500 V
Power Consumption 1 Channel max. 200mA
Baud Rate CAN: max. 1 MBit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver CAN: NXP / Philips PCA82C251
Dimensions 87 x 43 x 22 mm,
Weight 83 g,
Software Driver: Windows® 11 (64-bit), 10 and Linux (32/64-bit)
Tools: PCAN-View for Windows®
Controller(s) CAN: NXP / Phillips SJA1000
Connector(s) PC: USB plug type A, USB Full-speed mode, compatible to USB 1.1, 2.0 and USB 3.0
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
I/O & IRQ automatically assigned via "plug n play"
Specification CAN: 2.0A (Standard format) and 2.0B (extended format)
Operating temperature -40°C to +85°C
Storage Temperature -40°C to +100°C
Relative humidity 15% to 90% (non-condensing)
Enclosure IP20, Plastic Enclosure
EMC Directive EN 55024:2003-10
EN 55022:2007-04
EC directive 2004/108/EG
Certifications CE, RoHS
PCAN-USB Manual
PDF User's Manual in English
Device driver setup for Windows
Installation package from PEAK-System for device drivers and tools for Windows ® 11 (64-bit), 10 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway.
Device drivers for Linux
Device driver for PEAK CAN interfaces from Kernel 2.6.
PCAN-USB firmware
Firmware upgrade
PCAN-View
Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 11 (x64) and 10 (x86/x64).
PCAN-Basic API
API for developing applications with CAN and CAN FD connections for Windows ® 11 (x64) and 10 (x86/x64).
PCAN-Basic API (Linux)
API for developing applications with CAN connection for Linux.
PCAN-CCP API
API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 11 (x64) and 10 (x86/x64).
PCAN-XCP API
API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 11 (x64) and 10 (x86/x64).
PCAN-ISO-TP API
API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 11 (x64) and 10 (x86/x64).
PCAN-UDS API
API for communication with control units according to UDS (ISO 14229-1) for Windows ® 11 (x64) and 10 (x86/x64).
PCAN-OBD-2 API
API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 11 (x64) and 10 (x86/x64).
PCAN-PassThru API
Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 11 (x64) and 10 (x86/x64) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download.
Bit Rate Calculation Tool (Windows Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 11 (x64) and 10 (x86/x64).
Bit Rate Calculation Tool (Android Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 11 (x64) and 10 (x86/x64).
Bit Rate Calculation Tool (iOS Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 11 (x64) and 10 (x86/x64).
Windows CE6 package
PCAN-CE package for Microsoft Windows ® CE 6.x.
Windows 2000 package
Windows ® 2000 device driver including CAN monitor PCAN-View.

PCAN USB Lowest Price Guarantee

At Phytools we are an official North American distributor for products made by PEAK-System. Our large selection of networking solutions and in-house expertise allow us to offer our customers the most efficient and cost-effective products for their specific application needs at the lowest price on the market, guaranteed.

Why Phytools?

  • Official North American distributor for products from PEAK-System Technik
  • Member of CAN in Automation (CiA) and EtherCAT Technology Group (ETG)
  • Over 20 years of experience
  • Diverse customer base across industries such as automotive, industrial automation, medical equipment, aerospace, agriculture, construction, and renewable energy
  • Offers a large selection of industrial networking solutions
  • In-house expertise to provide efficient and cost-effective products
  • Provides support from pre-sales to rapid resolution of issues to exceed customer expectations.

What are the benefits of using a galvanically isolated adapter?

The galvanic isolation protects both the PC and the CAN network from electrical surges and ground loops, reducing the risk of damage and ensuring more stable communication.

Which operating systems are supported?

The PCAN-USB Adapter (both non-isolated and isolated) supports Windows, Linux, and macOS operating systems.

How do I install the PCAN-USB Adapter (isolated)?

Installation involves connecting the adapter to a USB port and installing the necessary drivers, which are available from the downloads tab on the product page.

Does the adapter support high-speed CAN?

Yes, the adapter supports high-speed CAN with data rates up to 1 Mbps.
