PCAN-RS-232 FD

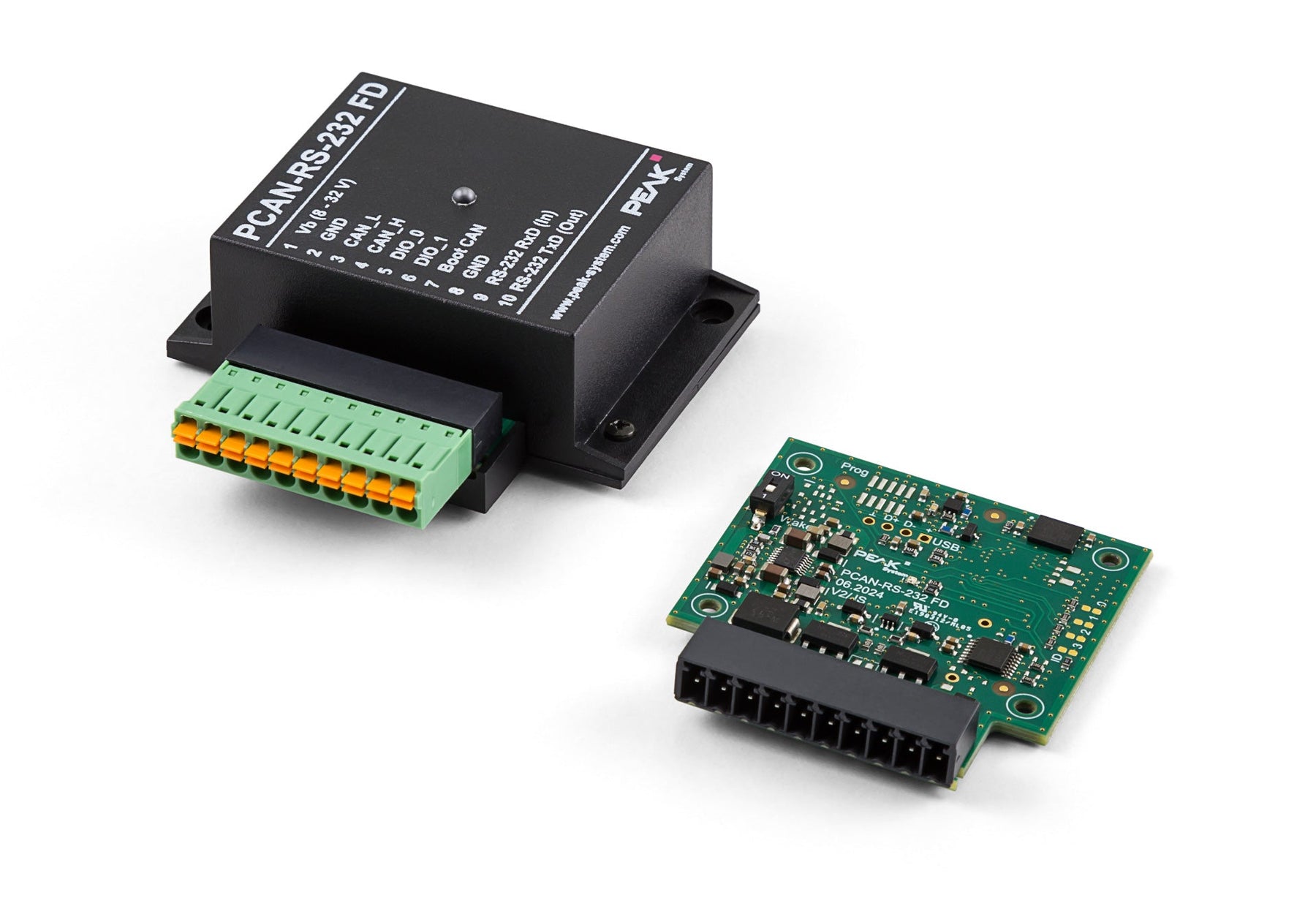

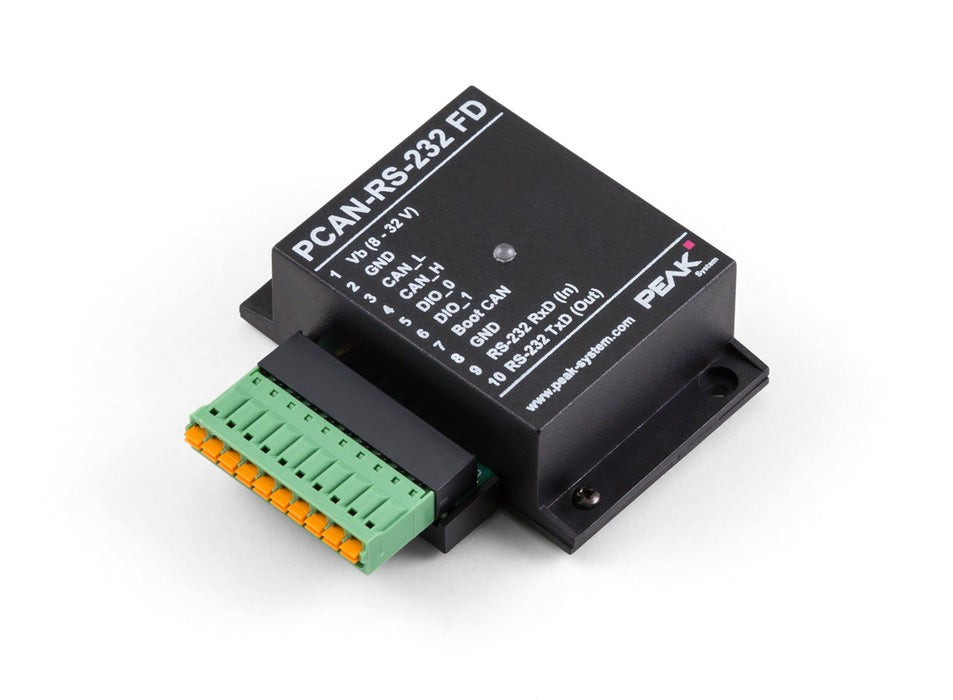

The PCAN-RS-232 FD is a programmable module for converting data traffic between its RS-232 interface and CAN FD connection. For example, machines, PLCs, sensors and actuators with a serial interface can be flexibly integrated into classic CAN or modern CAN FD buses.

The behavior of the PCAN-RS-232 FD can be programmed freely for specific applications. The firmware is created using the included development package with GNU compiler for C and C++ and is then transferred to the module via CAN. Various programming examples facilitate the implementation of own solutions.

On delivery the PCAN-RS-232 FD is provided with a standard firmware that routes from CAN FD to RS-232 and vice versa. It allows to configure the data transfer as well as the hardware with serial control commands. The corresponding source code is included as an example in the scope of supply.

REQUIREMENTS

The transfer of the firmware via CAN requires a PEAK CAN interface.

TECHNICAL SPECIFICATIONS

• NXP LPC54618 microcontroller with Arm® Cortex® M4 core
• High-speed CAN connection (ISO 11898-2)

  • Complies with CAN specifications 2.0 A/B and FD
  • CAN FD bit rates for the data field (64 bytes max.) from 40 kbit/s up to 10 Mbit/s
  • CAN bit rates from 40 kbit/s up to 1 Mbit/s
  • NXP TJA1043 CAN transceiver with wake-up
• CAN termination can be activated through solder jumpers
• Wake-up via CAN bus switchable
• RS-232 connection

  • Texas Instruments transceiver TRSF3221E
  • Bit rates up to 460,800 bit/s
• 8 MByte QSPI flash
• 2 digital I/Os, each usable as input (High-active) or output with Low-side switch
• 2-color LED for status signaling
• Connection via a 10-pole terminal strip (Phoenix)
• Voltage supply from 8 to 32 V
• Extended operating temperature ranges from -40 to +85 °C (-40 to +185 °F)
• New firmware can be loaded via CAN interface

SCOPE OF SUPPLY

• PCAN-RS-232 FD in plastic casing including mating connector (Phoenix Contact FMC 1,5/10-ST-3,5 - 1952348)
• Windows® development package with GCC ARM Embedded and programming examples
• Flash program PEAK-Flash for Windows® 11 (x64/ARM64), 10 (x64) Details
• Manual in PDF format

Additional information:

• PEAK-System Forum: Section for the PCAN-RS-232 FD for questions and support
• PEAK-DevPack: Version history: Development package for ARM-based products
• The version history of the programming examples can be found in the directory Hardware/PCAN-RS-232_FD/Examples of the development package
• The standard CAN FD: Support and compatible products
