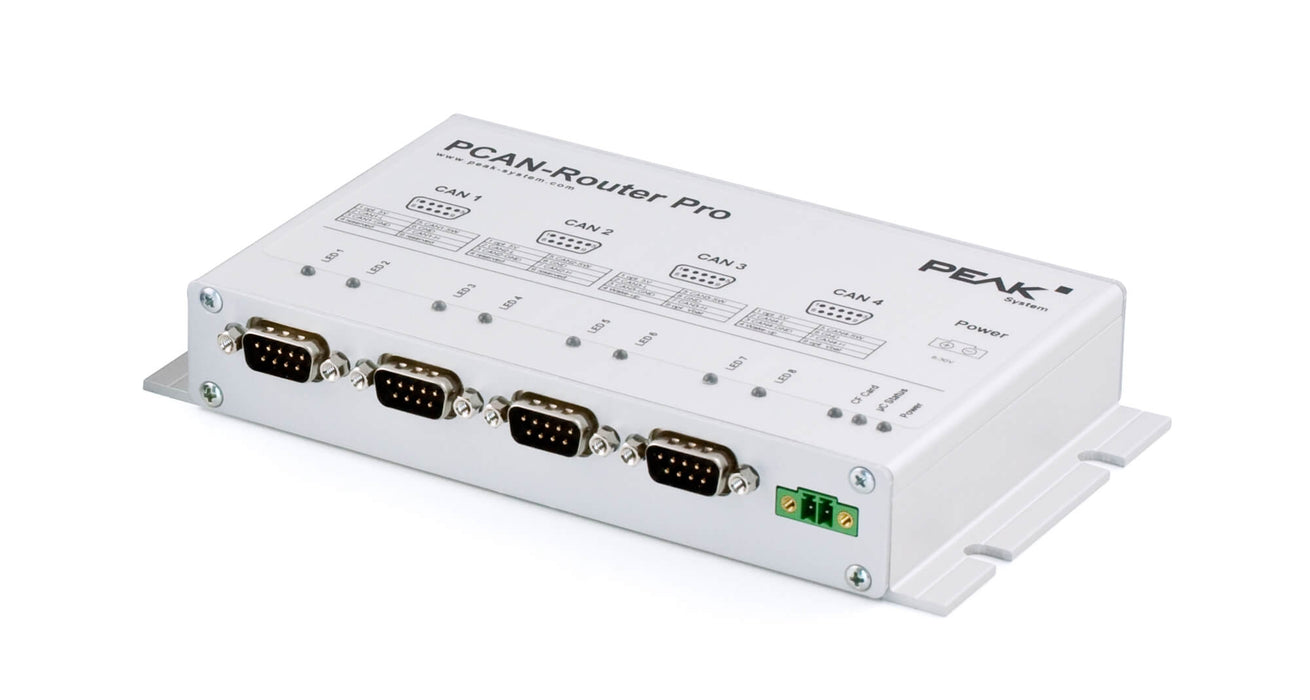

PCAN-Router Pro
Clique ou role para ampliar
Toque ou belisque para ampliar

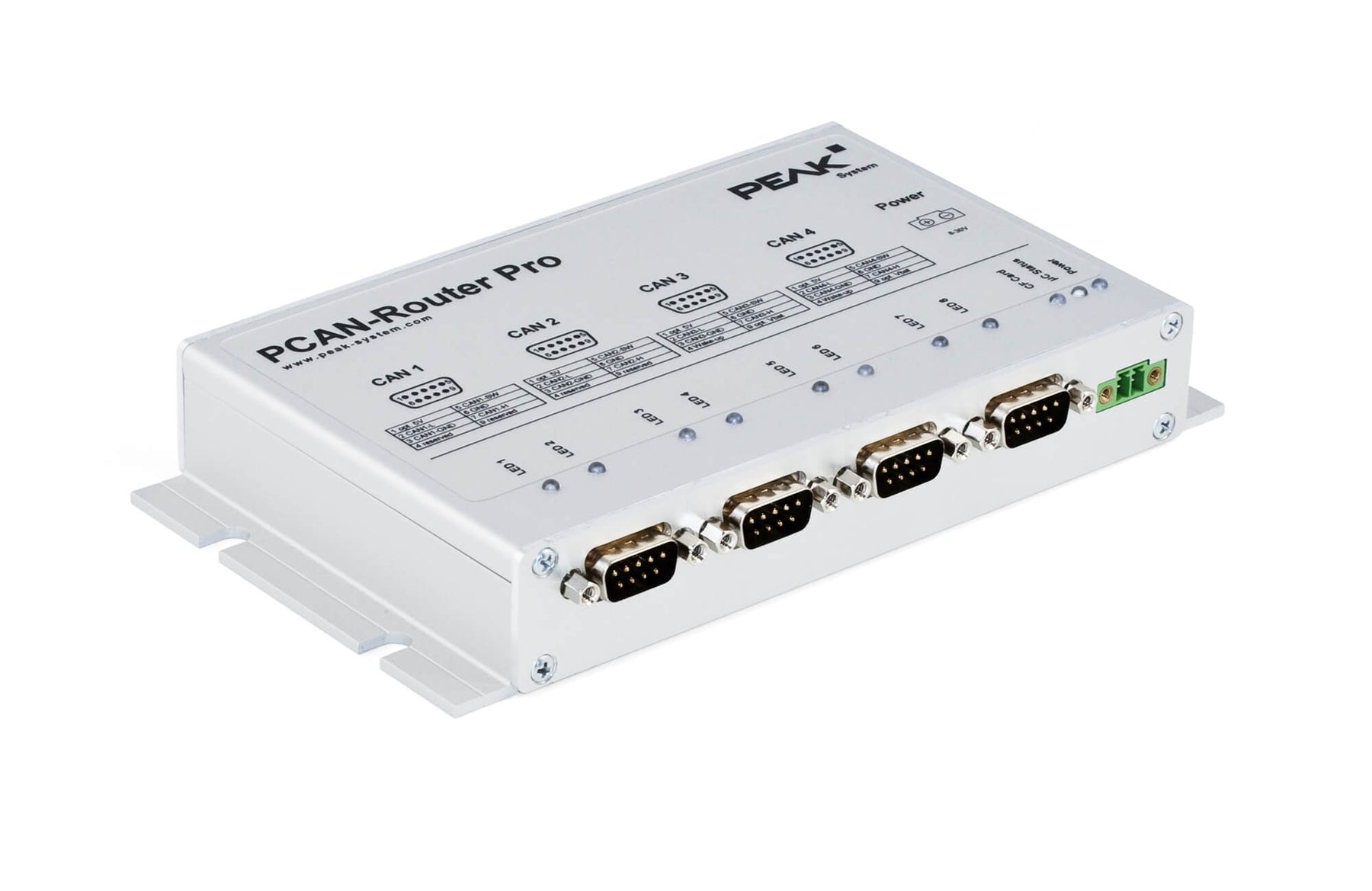

PCAN-Router Pro
PCAN-Router Pro

PCAN-Router Pro

por PEAK-System Technik
R$ 9.960,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

Besides straight message forwarding, the CAN data can be processed, manipulated and, for example, filtered in a number of different ways. The PCAN-Router Pro behavior can be freely configured using comprehensive Windows® software. There are a variety of function blocks and other settings available to the user to allow this kind of configuration to be set up. At the same time, there is a virtual fifth CAN channel which is responsible for recording all the data traffic to a CompactFlash card.

Added to this, the modular bus structure allows flexible adaptation of the CAN channels to the relevant requirements. The device is also available with low-speed and single-wire CAN transceivers upon request.

Delivery Contents:

  • PCAN-Router Pro in aluminum casing including mating connector for power supply
  • Configuration software PPCAN-Editor 2 for Windows® Details ...
  • Conversion software PEAK-Converter for
    Windows® 10, 8, 7 (32/64-bit)
  • Industrial CompactFlash card (min. 1 GB)
  • Manual in PDF format

(Customization and customer-specific firmware available on request)
  • 4 High-speed CAN channels via pluggable transceiver modules. Alternatively, Low-speed, Single-wire, and opto-decoupled High-speed modules, as well as High-speed modules without wake-up function available
  • Wake-up function using separate input or CAN bus
  • CAN connections are D-Sub, 9-pin
  • CAN termination switchable
  • Detailed configuration with the software PPCAN-Editor 2 for Windows®
  • Various function blocks for data processing and manipulation
  • Configurable beeper
  • Configurable status LEDs
  • Recording of CAN data and error frames to a CompactFlash card
  • Conversion of logging data to various output formats using Windows® software
  • Battery buffered real-time clock (RTC), can also be used for wake-up
  • Aluminum casing with flange. DIN rail fixing option available on request
  • 8 - 30 V power supply, protection against overvoltage and reverse polarity
  • Extended operating temperature ranges from -40 to 85°C (-40 to 185 °F)

PCAN-Router Pro manual
User's Guide in English
PPCAN-Editor configuration tutorial for PCAN-Router Pro
PPCAN-Editor configuration Guide
PPCAN-Editor function block reference guide
PPCAN-Editor function block reference guide
PCAN-Router Pro package
Package includes files for the configuration, the PPCAN-Editor, the PEAK-Converter, and documentation (German and English)
Development package for ARM-based products
Firmware development package for Windows® 11 (64-bit), 10 (32/64-bit) with GCC ARM Embedded, PEAK-Flash, programming examples, and quick start guide. Supported products: PCAN-GPS, PCAN-Router, PCAN-Router DR, PCAN-Router FD, PCAN-Router Pro, PCAN-Router Pro FD, and PCAN-RS-232.
Development package for PCAN-Router Pro (outdated)
The package includes all files for development (Yagarto GNU ARM toolchain, flash program, library, and programming examples). This development package is outdated. Please use the development package for ARM-based products.
PEAK-Flash
Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (64-bit), 10 (32/64-bit).
PPCAN-Editor 2
Configuration software for PCAN-MIO and PCAN-Router Pro for Windows® 11 (64-bit), 10 (32/64-bit).
PEAK-Converter
Conversion of trace data to various output formats using the conversion software PEAK-Converter for Windows® 11 (64-bit), 10 (32/64-bit).
