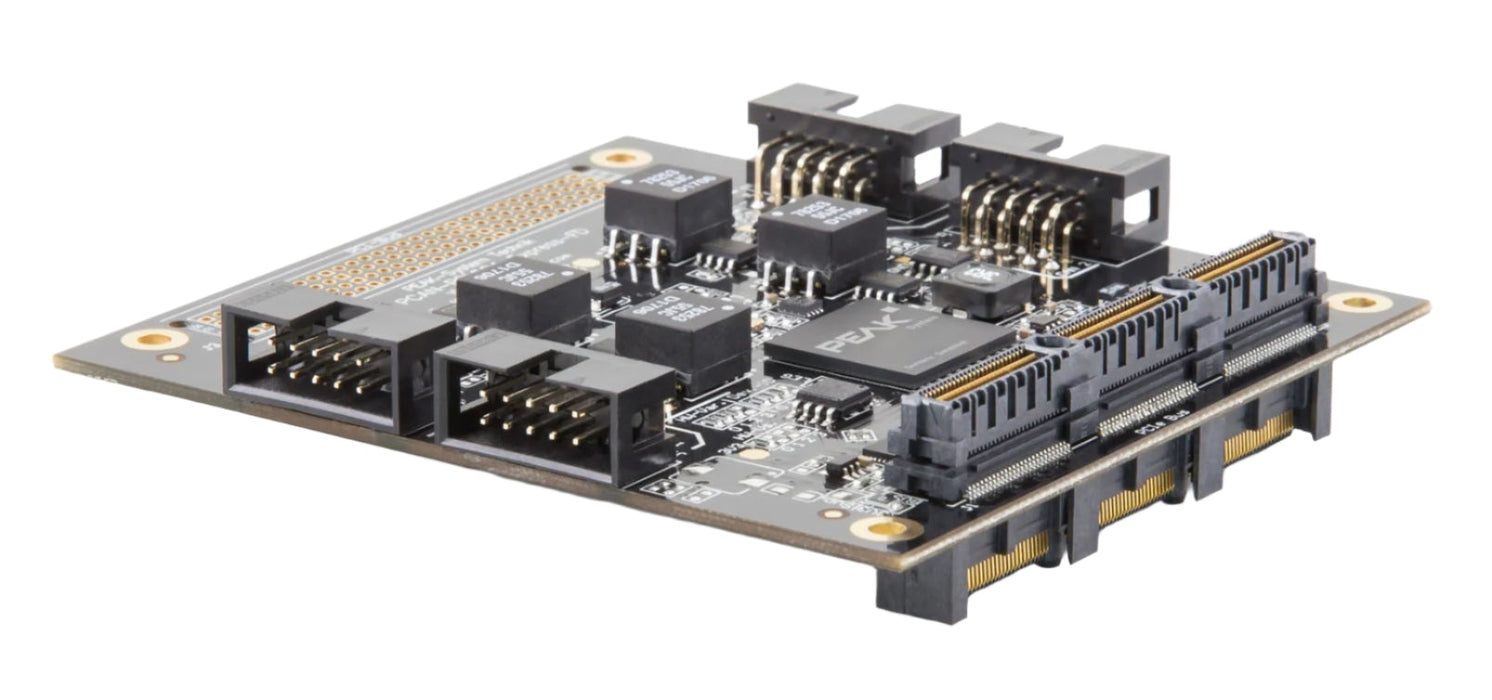

PCAN-PCI/104 Express FD (1ch/2ch/4ch)
Clique ou role para ampliar
Toque ou belisque para ampliar

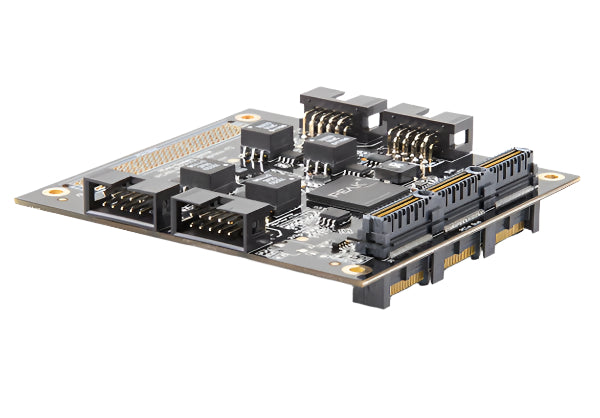

PCAN-PCI/104 Express FD (1ch/2ch/4ch)
Clique ou role para ampliar
Toque ou belisque para ampliar

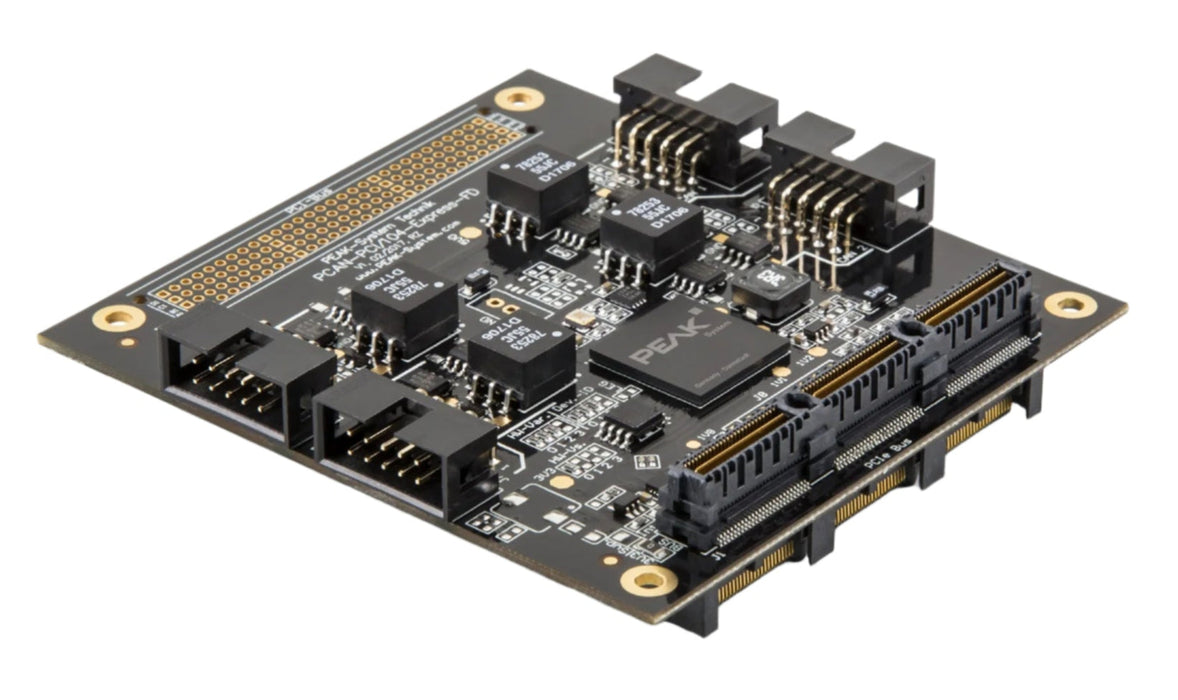

PCAN-PCI/104 Express FD (1ch/2ch/4ch)
Clique ou role para ampliar
Toque ou belisque para ampliar

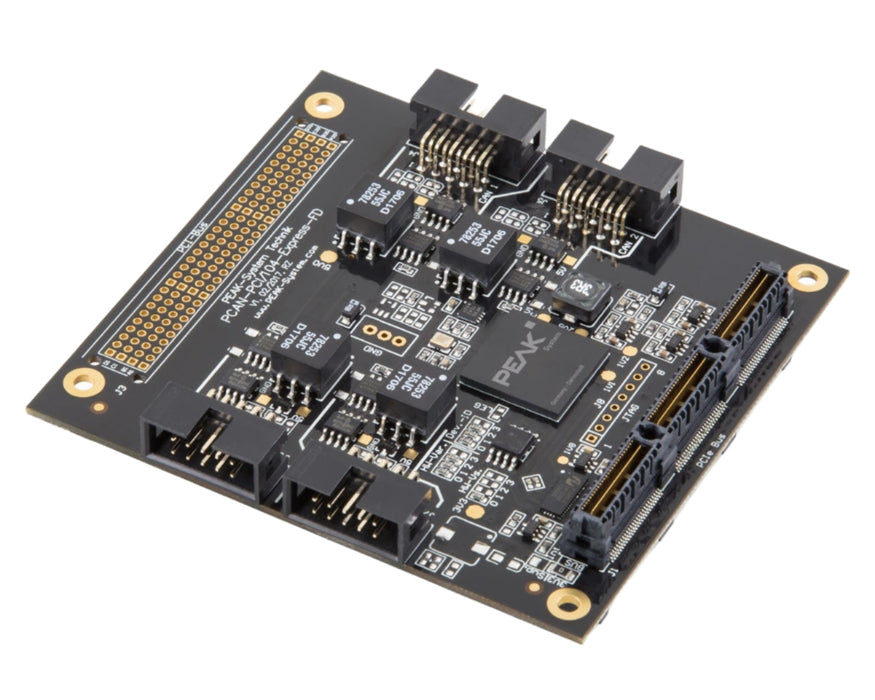

PCAN-PCI/104 Express FD (1ch/2ch/4ch)
PCAN-PCI/104 Express FD (1ch/2ch/4ch)

PCAN-PCI/104 Express FD (1ch/2ch/4ch)

por PEAK-System Technik
R$ 5.664,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

EOL NOTIFICATION: Product is at its end of life and will no longer be available once stock is depleted. This included all variants in this series.

Allows the connection of PCI/104-Express systems to CAN and CAN FD busses.

The PCI/104-Express specification establishes PCI Express for the PC/104 form factor wherewith up to four cards can be stacked. Based on this, standardized modular embedded systems such as industrial PCs can be realized. The CAN bus is connected via 9-pin D-Sub connectors to the supplied slot brackets. There is a galvanic isolation between the computer and the CAN side up to 500 Volts. The card is available as a single, dual, or four-channel version.

The new CAN FD standard (CAN with Flexible Data rate) is primarily characterized by higher bandwidth for data transfer. The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can be transmitted with bit rates up to 12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can be used in existing CAN networks. However, in this case the CAN FD extensions are not applicable.

The monitor software PCAN-View and the programming interface PCAN-Basic for the development of applications with CAN connection are included in the scope of supply and support the new standard CAN FD.

Scope of delivery:

  • PCAN-PCI/104 Express FD card
  • Slot bracket with D-Sub connector(s) for the CAN bus (two for the four-channel version)
  • Device drivers for Windows® 10, 8.1, 7 and Linux (32/64-bit)
  • CAN monitor PCAN-View
  • Programming interface PCAN-Basic
  • Programming interfaces for standardized protocols from the automotive sector
  • Manual in PDF format
  • PCI/104-Express card, 1 lane (x1)
  • Form factor PC/104
  • Up to four cards can be used in one system
  • 1, 2, or 4 High-speed CAN channels (ISO 11898-2)
  • Complies with CAN specifications 2.0 A/B and FD
  • CAN FD support for ISO and Non-ISO standards switchable
  • CAN FD bit rates for the data field (64 bytes max.) from 20 kbit/s up to 12 Mbit/s
  • CAN bit rates from 20 kbit/s up to 1 Mbit/s
  • Connection to CAN bus through D-Sub slot bracket, 9-pin (in accordance with CiA® 303-1)
  • FPGA implementation of the CAN FD controller
  • Microchip CAN transceiver MCP2558FD
  • MCP2558FD CAN transceiver
  • Galvanic isolation on the CAN connection up to 500 V, separate for each CAN channel
  • CAN termination can be activated through a solder jumper, separately for each CAN channel
  • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • PCIe data transfer via bus master DMA
  • DMA memory access operations with 32- and 64-bit addresses
  • Measurement of bus load including error frames and overload frames on the physical bus
  • Induced error generation for incoming and outgoing CAN messages
  • Optionally available: PCI-104 stack-through connector
  • Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Interface(s) PCIe/104: PCI Express x1 (1 Lane)
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
CAN FD 1.0
Power Consumption 1 channel: max. 220mA (@5V)
2 channel: max. 230mA (@5V)
4 channel: max. 270mA (@5V)
Baud Rate CAN: 15 kBit/s - 1 Mbit/s
CAN FD: 15 kBit/s - 12 Mbit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver NXP TJA1044GT
Dimensions 90.2 x 95.9 mm
Weight 44g (single channel); 50 g (dual channel); 56 g (four channel)
Software Driver: Windows® 10, 8.1, 7; Linux
Tools: PCAN-View for Windows®
Channels 1, 2 or 4
Controller(s) FPGA Implementation
I/O & IRQ automatically assigned via "plug n play"
Isolation Up to 500 VDC, separate for each CAN channel
Specification CAN FD 1.0 (compatible with CAN 2.0)
Operating temperature -40°C to +85°C
Storage temperature -40°C to +100°C
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 55024:2016-05
EN 55022:2011-12
EC directive 2014/30/EU
Certifications CE, RoHS
PCAN-PCI Express FD manual
User's Manual in English
Device driver setup for Windows
Installation package from PEAK-System for device drivers and tools for Windows ® 10, 8.1 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway.
Device drivers for Linux
Device driver for PEAK CAN interfaces from Kernel 2.6.
PCAN-View
Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API
API for developing applications with CAN and CAN FD connections for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API (Linux)
API for developing applications with CAN connection for Linux.
PCAN-CCP API
API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-XCP API
API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-ISO-TP API
API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 10, 8.1 (32/64-bit).
PCAN-UDS API
API for communication with control units according to UDS (ISO 14229-1) for Windows ® 10, 8.1 (32/64-bit).
PCAN-OBD-2 API
API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 10, 8.1 (32/64-bit).
PCAN-PassThru API
Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 10, 8.1 (32/64-bit) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download.
