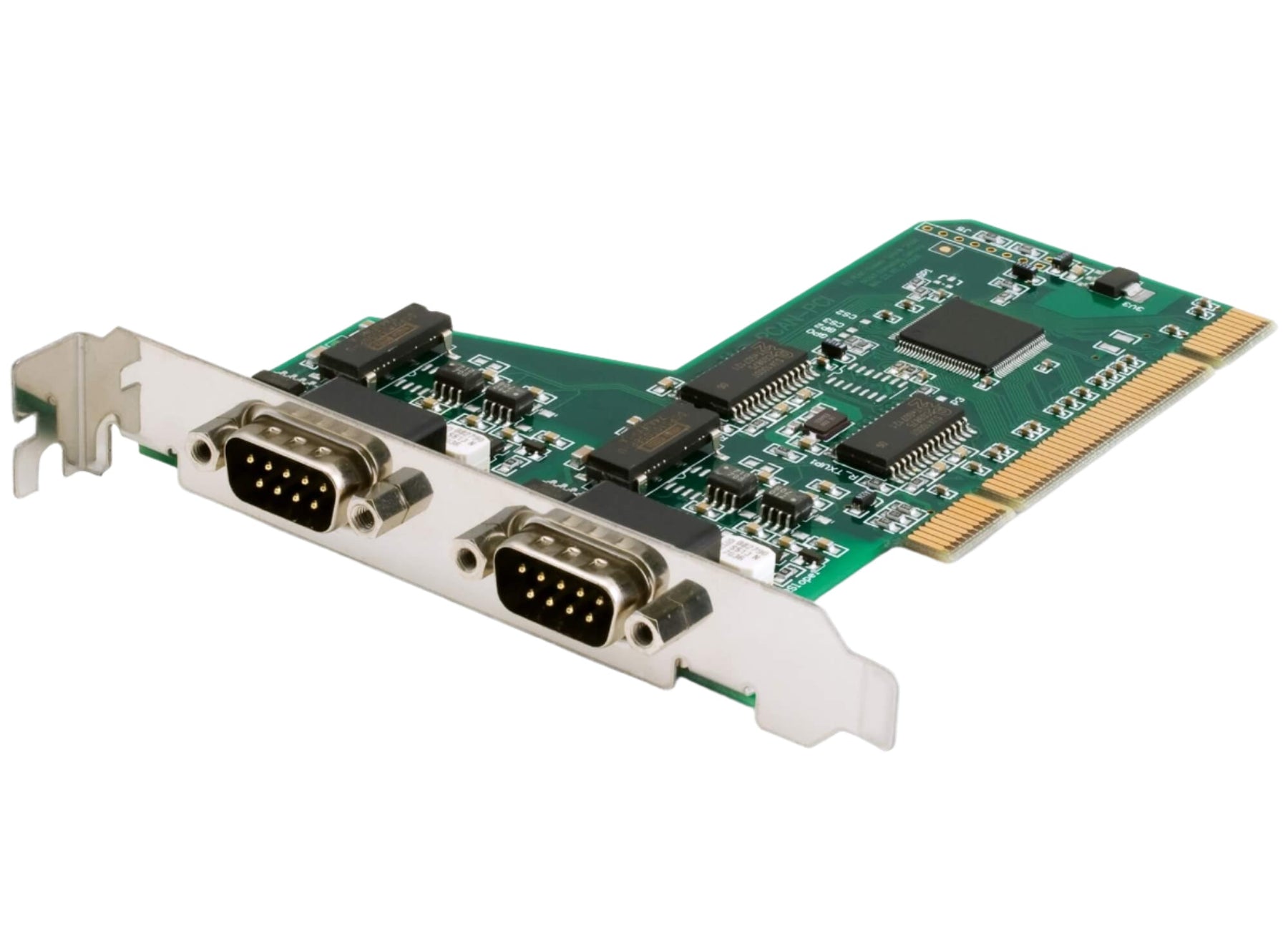

PCAN-PCI insert-card (1ch/2ch)
Clique ou role para ampliar
Toque ou belisque para ampliar

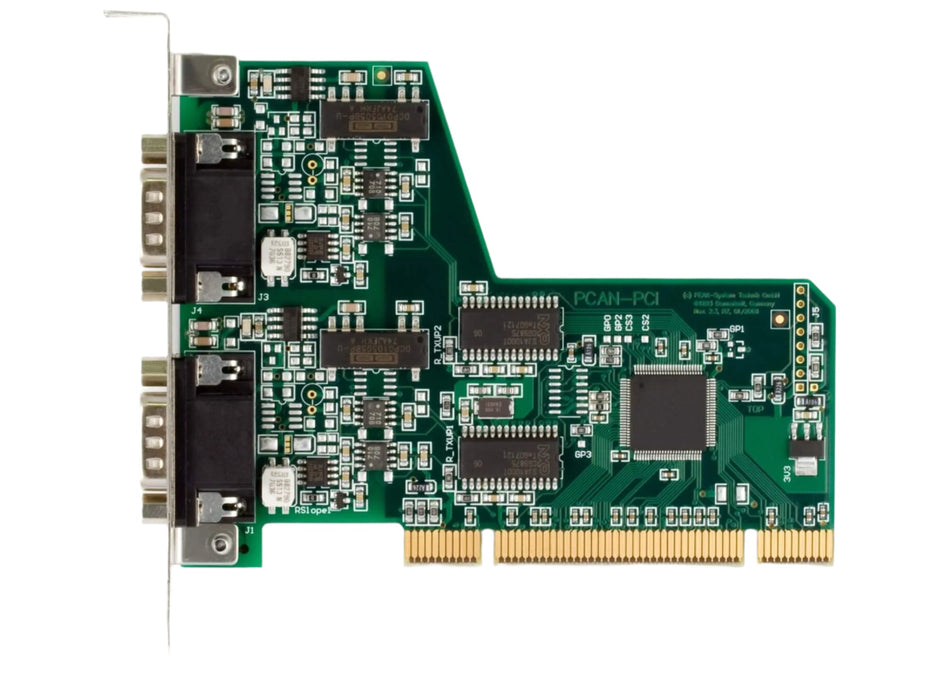

PCAN-PCI insert-card (1ch/2ch)
Clique ou role para ampliar
Toque ou belisque para ampliar

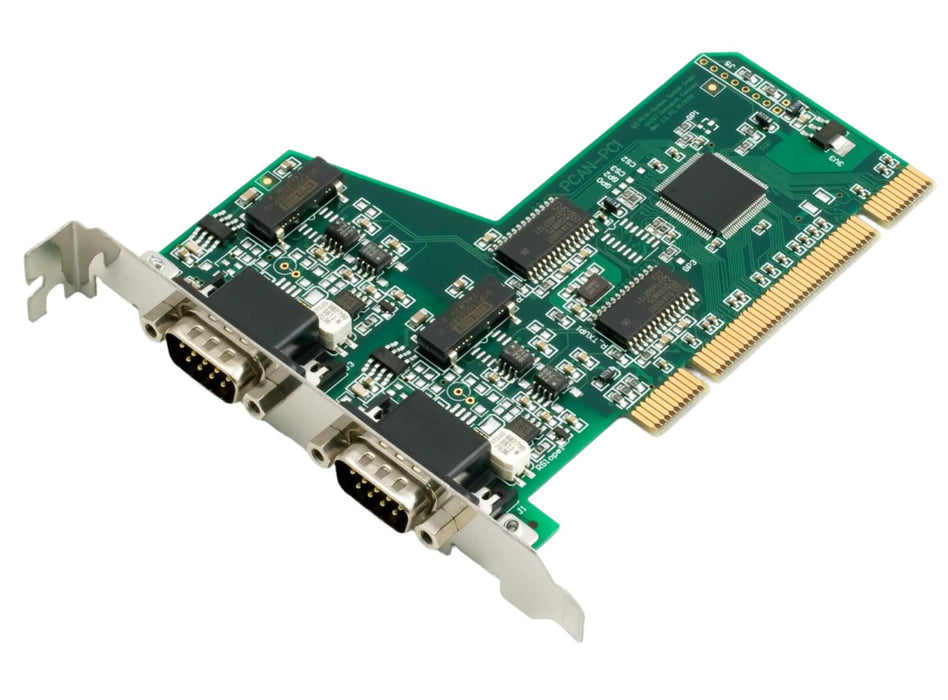

PCAN-PCI insert-card (1ch/2ch)
PCAN-PCI insert-card (1ch/2ch)

PCAN-PCI insert-card (1ch/2ch)

por PEAK-System Technik
R$ 3.948,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

 The pin assignment of which corresponds to the CiA recommendation DS 102-1. The PCAN-PCI allows the real-time exchange of CAN messages with a CAN network connected to a PC. The PCAN-PCI package includes device drivers for Windows® 7/8/10, Vista/XP (32/64Bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available.
  • PC plug-in card for PCI slot
  • Bit rates up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 102)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • NXP PCA82C251 CAN transceiver
  • 5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Extended operating temperature ranges from -40 to 85 °C (-40 to 185 °F)
  • Single-channel or dual-channel version
  • Galvanic isolation on the CAN connection up to 500 V (optional, see applicable page), separate for each CAN channel
Interface(s) PC: PCI bus (Rev 2.2) PC98 32-bit PCI-bus, for 3.3V and 5V systems
CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Power Consumption 1 channel max. 150 mA
2 channel max. 280 mA
Baud Rate CAN: max. 1 Mbit/s
Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3)
Transceiver CAN: max. 2 Philips PCA82C251
Dimensions 93 x 120 mm
Weight 54, 63, 55, 65 g
Software Driver: Windows® 10, 8.1, 7 and Linux (32/64-bit)
Tools: PCAN-View for Windows®
Isolation 500 VDC (optional)
Controller(s) CAN: NXP / Philips SJA1000
I/O & IRQ automatically assigned via "plug n play"
Specification CAN: 2.0A (Standard format) and 2.0B (extended format)
Operating temperature -40°C to +85°C
Storage temperature -40°C to +125°C
Relative humidity 15% to 90% (non-condensing)
EMC directives EN 55024:2003-10
EN 55022:2007-04
EC directive 89/336/EEC
Certifications CE, RoHS
PCAN-PCI manual
PDF Manual in English
Device driver setup for Windows
Installation package from PEAK-System for device drivers and tools for Windows ® 10, 8.1 (32/64-bit) for our PC interfaces. Tools included: PEAK-CPL, PCAN-View, PLIN-View Pro and Virtual PCAN-Gateway.
Device drivers for Linux
Device driver for PEAK CAN interfaces from Kernel 2.6.
PCAN-USB firmware
Firmware upgrade
PCAN-View
Software for displaying, sending and recording CAN and CAN FD messages for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API
API for developing applications with CAN and CAN FD connections for Windows ® 10, 8.1 (32/64-bit).
PCAN-Basic API (Linux)
API for developing applications with CAN connection for Linux.
PCAN-CCP API
API for developing software for communication with control units according to the CAN Calibration Protocol (CCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-XCP API
API for developing software for communication with ECUs in accordance with the Universal Measurement and Calibration Protocol (XCP) for Windows ® 10, 8.1 (32/64-bit).
PCAN-ISO-TP API
API for the transmission of data packets according to ISO-TP (ISO 15765-2) for Windows ® 10, 8.1 (32/64-bit).
PCAN-UDS API
API for communication with control units according to UDS (ISO 14229-1) for Windows ® 10, 8.1 (32/64-bit).
PCAN-OBD-2 API
API for vehicle diagnosis according to OBD-2 (ISO 15765-4) for Windows ® 10, 8.1 (32/64-bit).
PCAN-PassThru API
Pass-Thru API and connection of Pass-Thru software to PEAK-CAN interfaces. Installation for Windows ® 10, 8.1 (32/64-bit) including interface DLLs, configuration software, PCAN-Basic API and PCAN-ISO-TP API. Documentation included in the download.
Bit Rate Calculation Tool (Windows Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
Bit Rate Calculation Tool (Android Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
Bit Rate Calculation Tool (iOS Version)
Software for calculating register values for CAN and CAN FD bit rates for Android, iOS and Windows ® 10, 8.1 (32/64-bit).
